Functional Lock Cylinder

[1][2]Ignition Switch Lock Cylinder-Functional

Removal

1. Disconnect the battery ground cable.





2. Remove the [1][2]ignition switch lock cylinder.

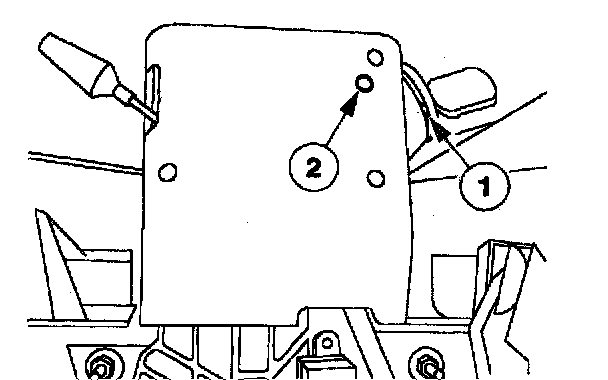

1 Insert the ignition key and turn to the RUN position.
2 Press the [1][2]ignition switch lock cylinder release pin while pulling out the ignition switch lock cylinder.

Installation





1. Follow the removal procedure in reverse order.
^ Verify [1][2]ignition switch lock cylinder operation.
