Power Steering Pressure Control Valve: Service and Repair

Power Steering Control Valve Actuator

Removal

1. Raise the vehicle.

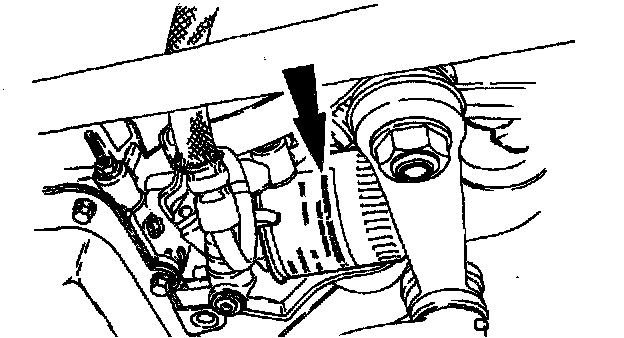

2. Remove the engine oil filter.

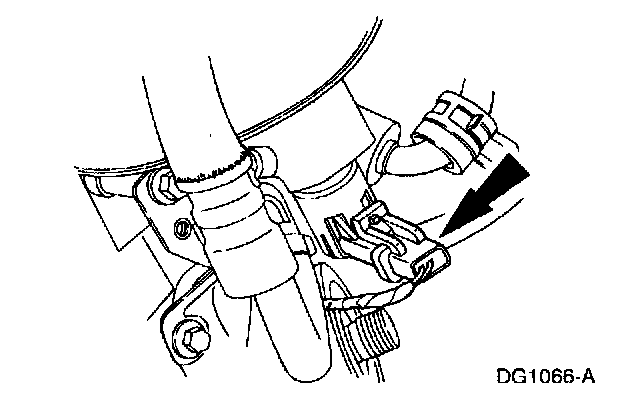

3. Disconnect the power steering auxiliary actuator electrical connector.

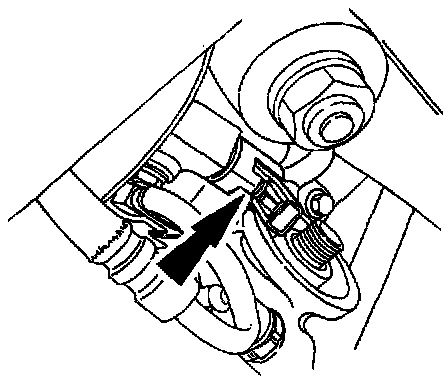

4. Remove the screw and the power steering auxiliary actuator.

Installation





1. Follow the removal procedure in reverse order.
2. Fill and check the system.
