Power Steering Fluid Reservoir: Service and Repair

Reservoir

Removal
1. Drain the reservoir using a hand suction pump.
2. Position a drain pan.

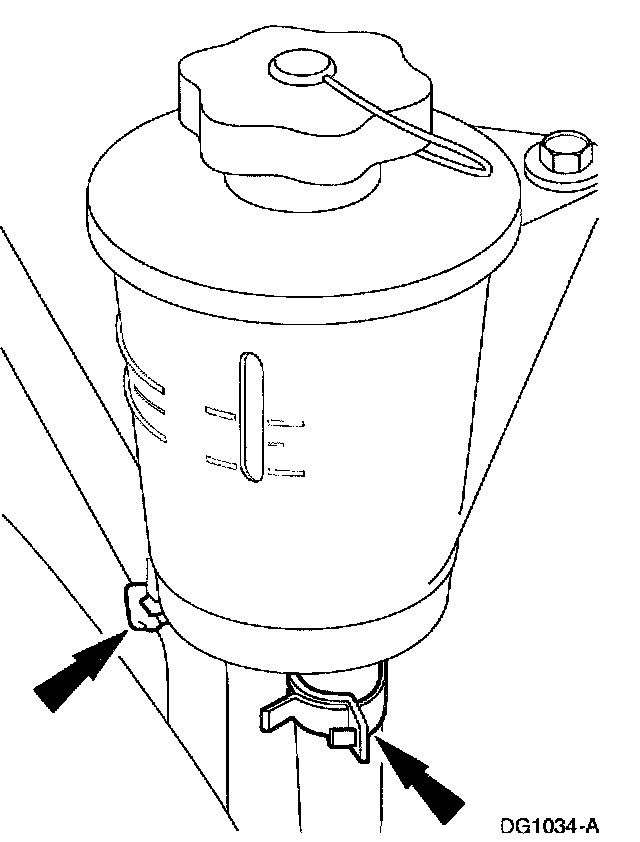

3. Disconnect the power steering reservoir pump hose and the power steering return hose.

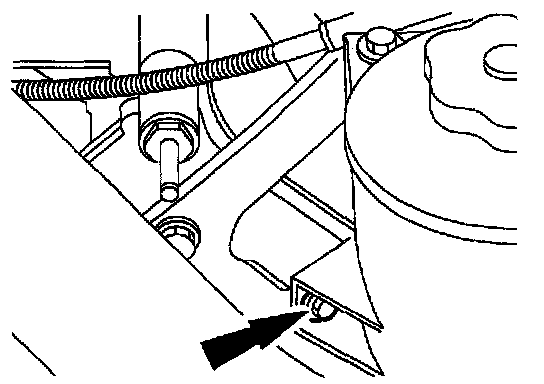

4. Remove the screw.

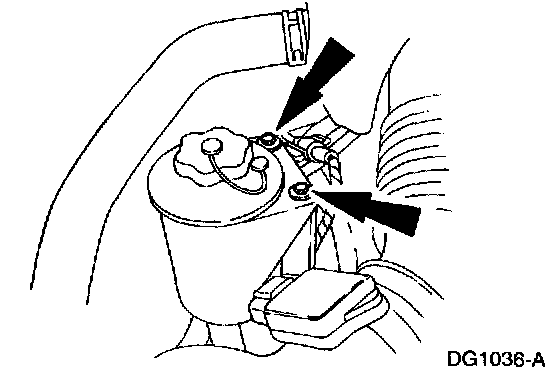

5. Remove the screws and the power steering pump reservoir.

Installation
1. Follow the removal procedure in reverse order.
2. Fill and leak check the system.
