Power Steering Fluid Cooler: Service and Repair

Cooler-Fluid

Removal

1. Remove the air cleaner assembly.

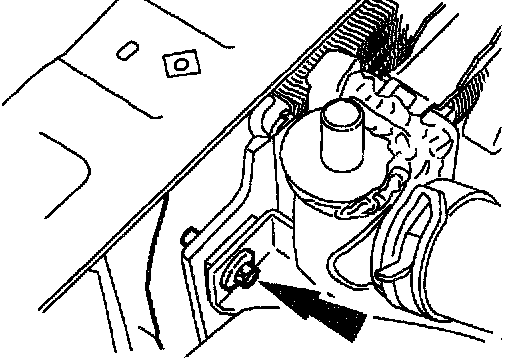

2. Remove the bolt and the bracket. Repeat on the opposite side.

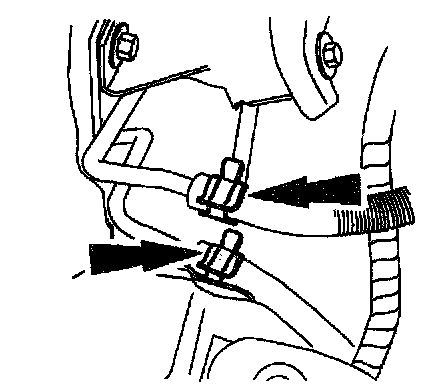

3. Disconnect the hoses.

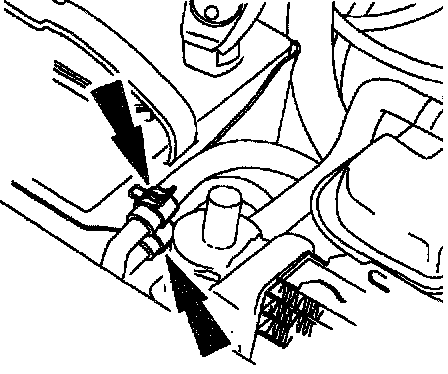

4. Disconnect the hoses.

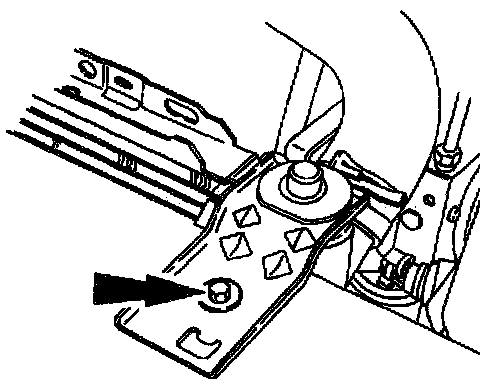

5. Remove the bolt. Repeat on the opposite side.
6. Push back on the radiator and remove the power steering fluid cooler.

Installation

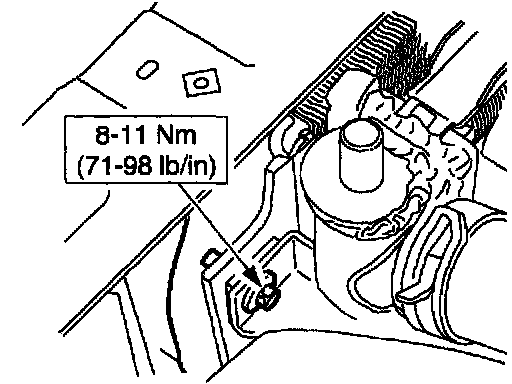

1. Follow the removal procedure in reverse order.
2. Fill and leak check the system.
