Brake Disc Shield

Shield

Removal
1. Remove the front disc brake rotor.
2. Unclip the anti-lock harness from the front disc brake shield.





3. Remove the front disc brake shield.

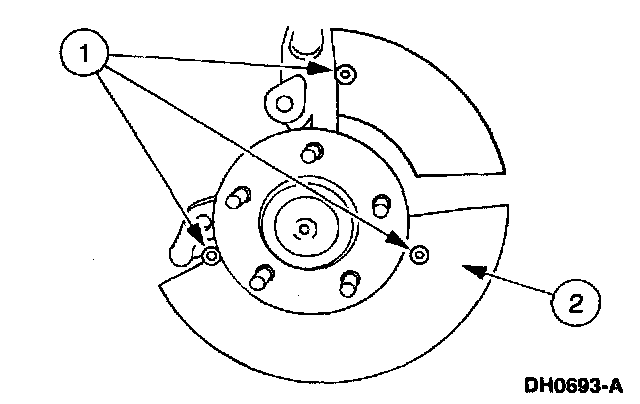

1 Drill out three front disc brake shield rivets.
2 Remove the front disc brake shield.

Installation

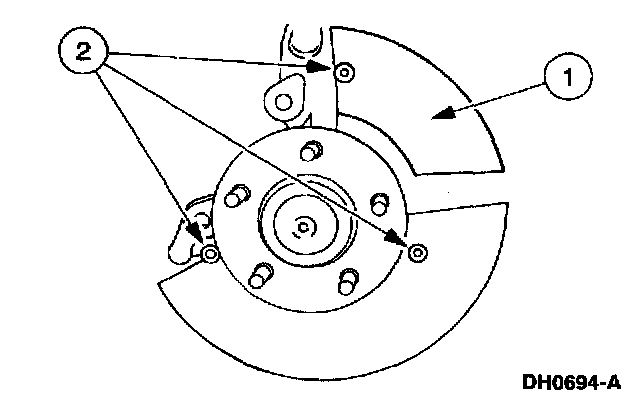

1. Install the front disc brake shield.
1 Position the front brake shield.
2 Secure with three rivets.
2. Clip the anti-lock harness to the front disc brake shield
3. Install the front disc brake rotor.
