Brake Pedal and Bracket
Brake Pedal And BracketRemoval
CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced.
All vehicles
1. Disconnect the battery ground cable.

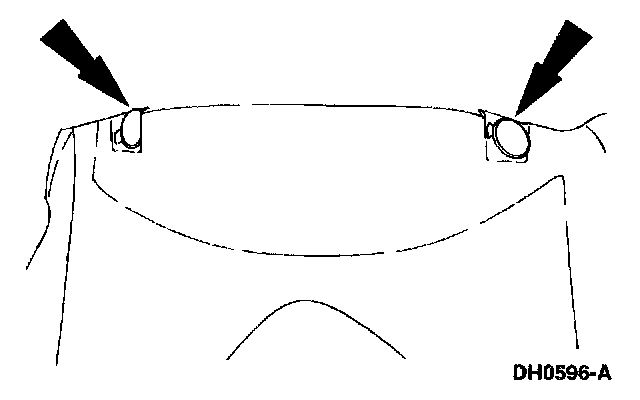

2. Remove the instrument close-out panel pushpins and remove the panel.

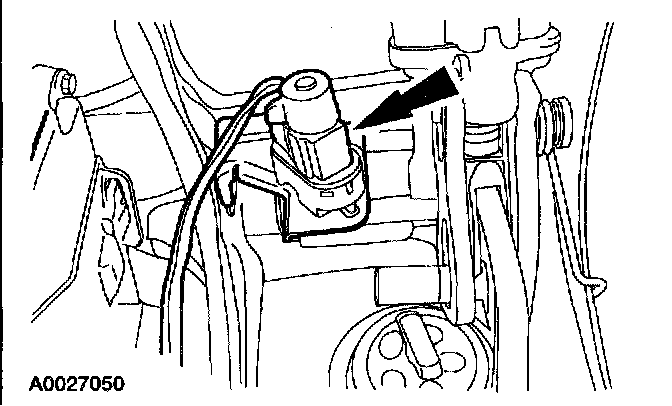

3. Remove the speed control deactivator switch.

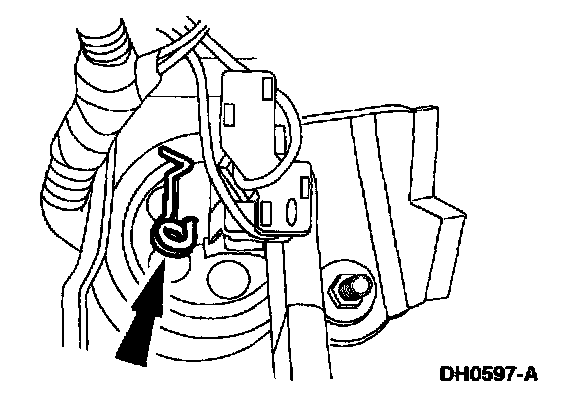

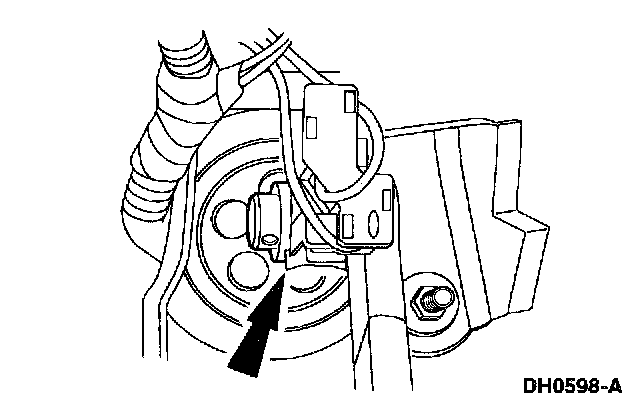

4. Remove the stoplight switch retaining pin.
5. Slide the stoplight switch and booster push rod from the brake pedal pin.

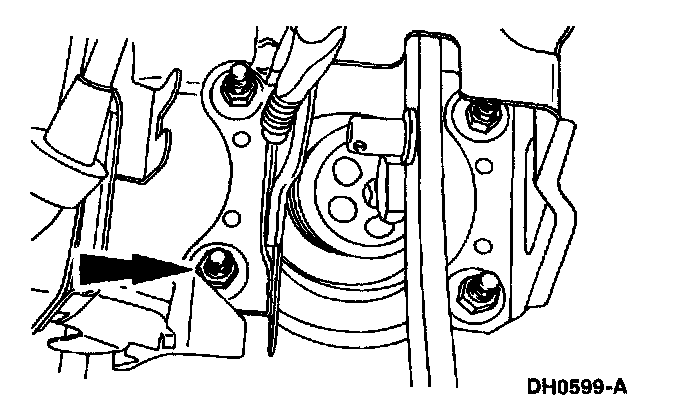

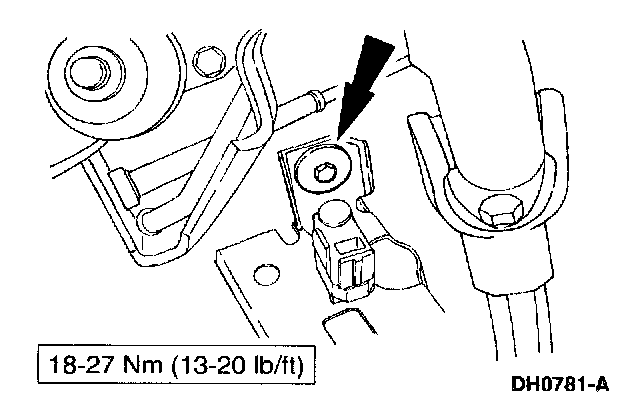

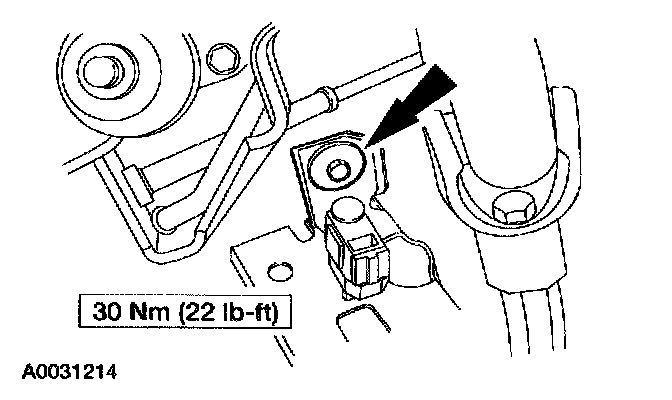

6. Remove the brake pedal bracket retaining bolt.
Vehicles with adjustable pedals

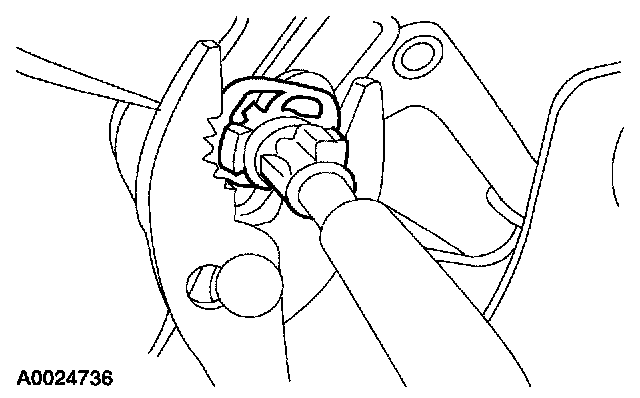

7. Detach the adjustable pedal drive cable from the brake pedal assembly.
All vehicles

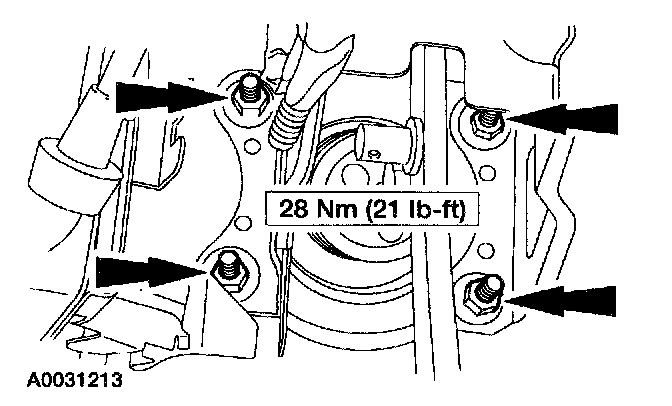

8. Remove the brake pedal bracket retaining nuts.
9. Remove the brake pedal and bracket.
Installation
CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced.
1. To install, reverse the removal procedure.
