Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

Transmission Filler Tube
Removal

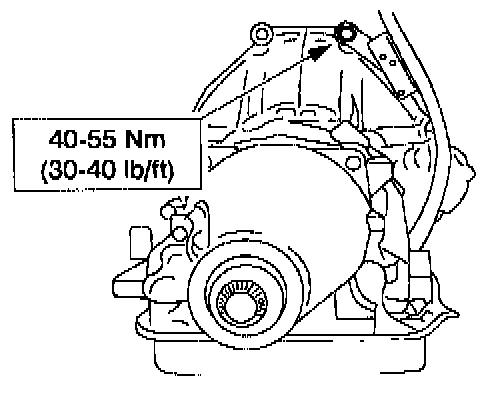

1. Remove the bolt.

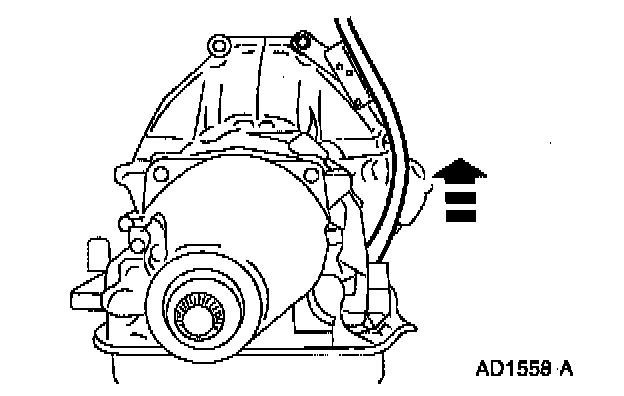

2. Remove the fluid filler tube.

Installation





1. To install, reverse the removal procedure.
