1-2 Accumulator

Removal

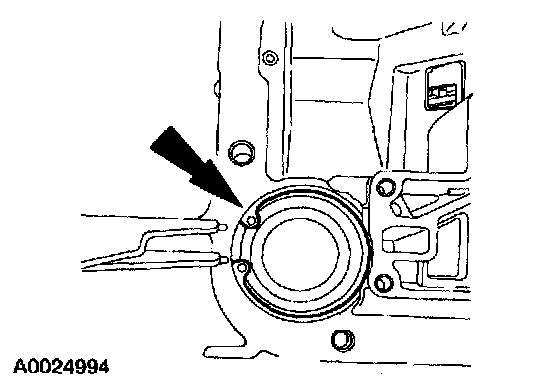

1. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.

2. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.

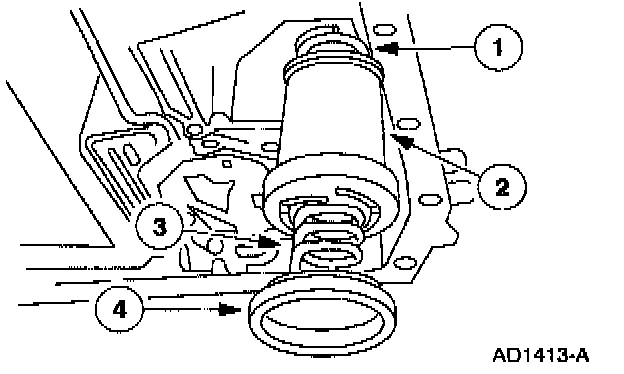

Remove the 1-2 accumulator.
1 Remove the 1-2 accumulator cover.
2 Remove the lower 1-2 accumulator spring.
3 Remove the accumulator piston.
4 Remove the upper 1-2 accumulator spring.

Installation

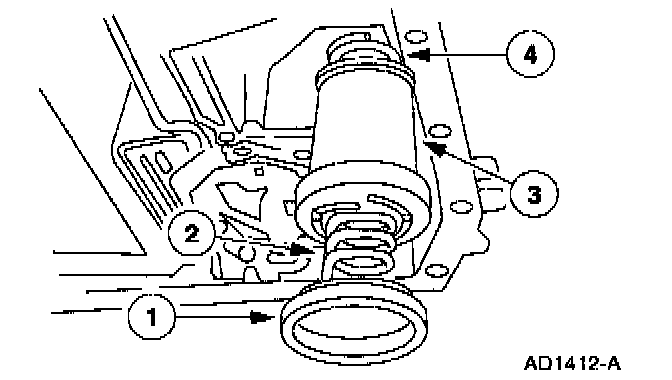

1. Install the 1-2 accumulator.
1 Install the 1-2 accumulator upper spring.
2 Install the accumulator piston.
3 Install the 1-2 accumulator lower spring.
4 Install the cover and seal assembly.





2. Compress the accumulator and install the accumulator piston retaining ring.
