2-3 Accumulator

Removal

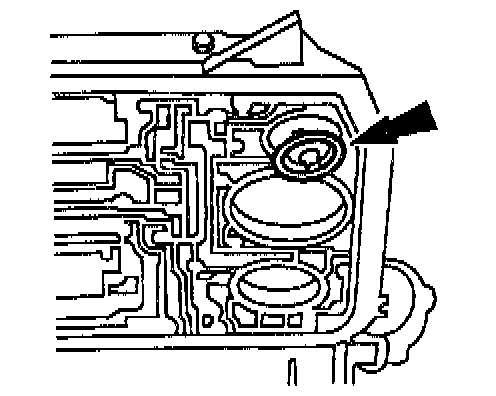

1. Remove the main control valve body.

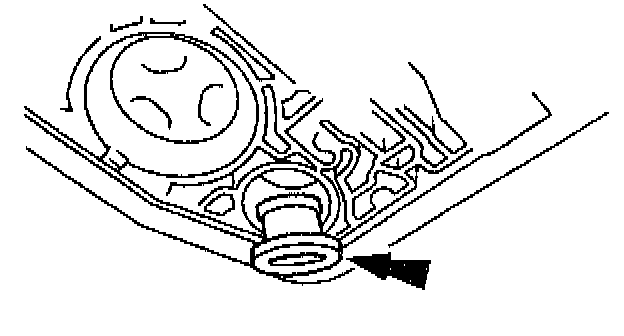

2. Remove the 2-3 accumulator piston retainer.





3. Remove the accumulator piston and spring.

Installation

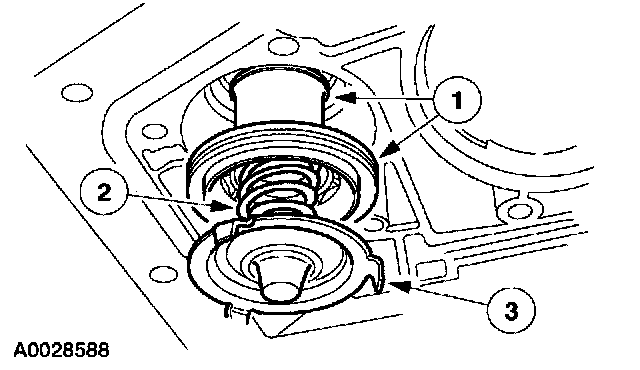

1. Install the 2-3 accumulator assembly.
1 Install the accumulator piston.
2 Install the accumulator piston spring.
3 Install the accumulator spring retainer.
2. Install the main control valve body.
