Ignition Coil: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.

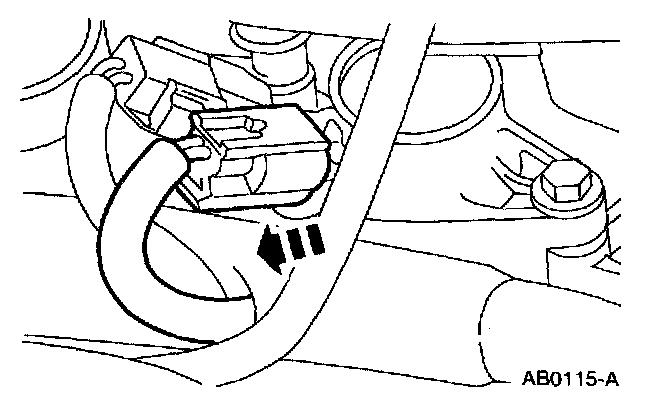

2. Disconnect the connector from the ignition coil.

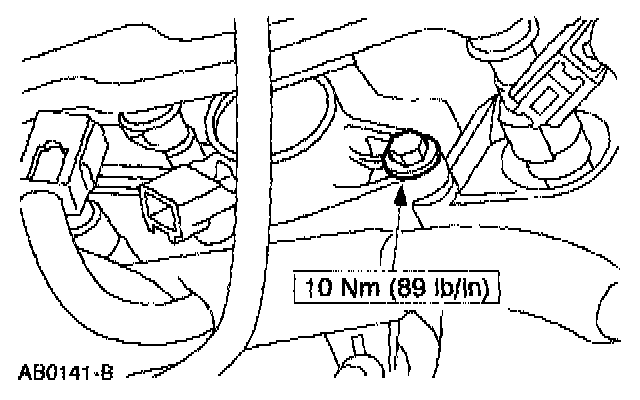

3. Remove the bolt from the ignition coil.

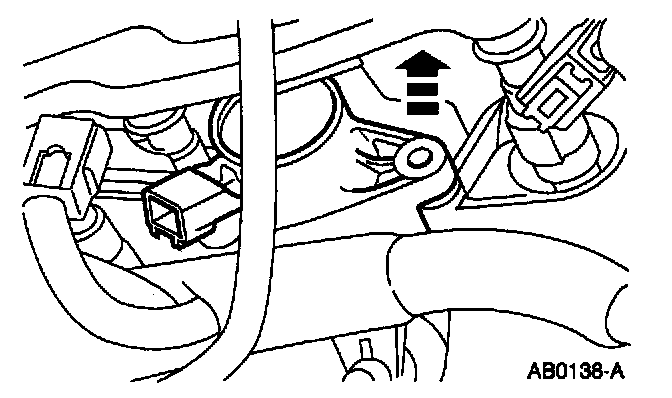

4. Remove the ignition coil on plug.

INSTALLATION







1. To install, reverse the removal procedure.
