Intake Air Duct: Service and Repair

REMOVAL

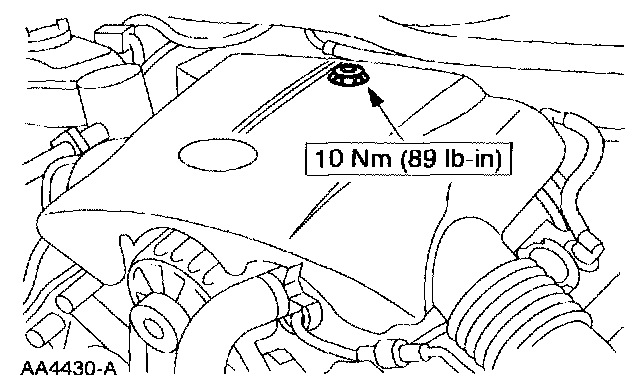

1. Remove the engine appearance cover.
^ Loosen the retainer.
^ Remove the cover.






2. Remove the idle air control valve inlet tube.

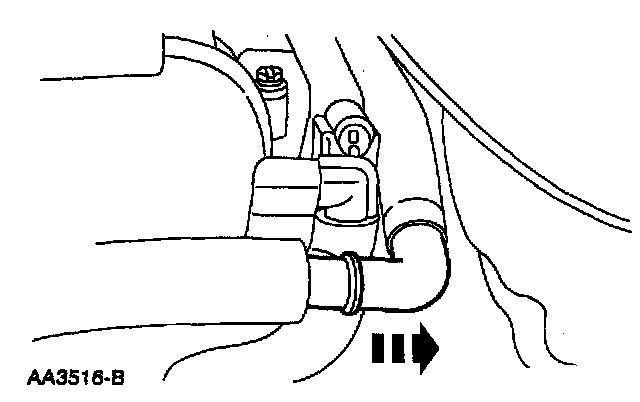

3. Remove the crankcase ventilation hose.

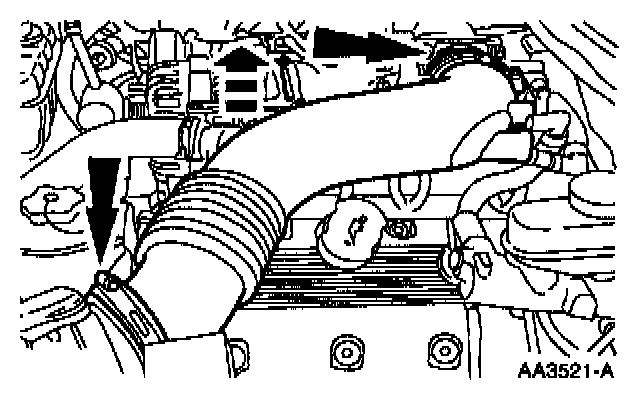

4. Loosen the clamps and remove the air cleaner outlet tube.

NOTE: The gasoline engine is shown, the natural gas engine is similar.

INSTALLATION
1. To install, reverse the removal procedure.
