EGR Valve: Service and Repair

REMOVAL

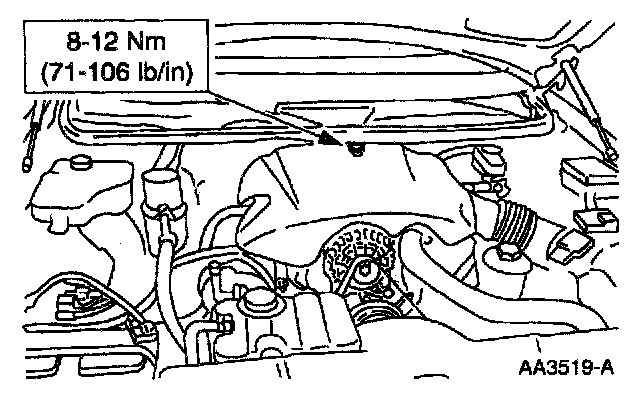

1. Remove the appearance cover.

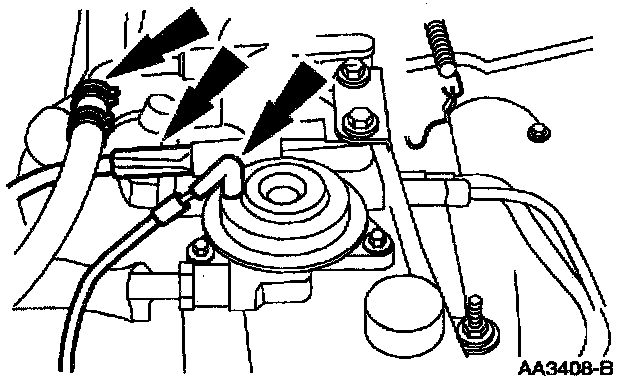

2. Remove the vacuum lines.

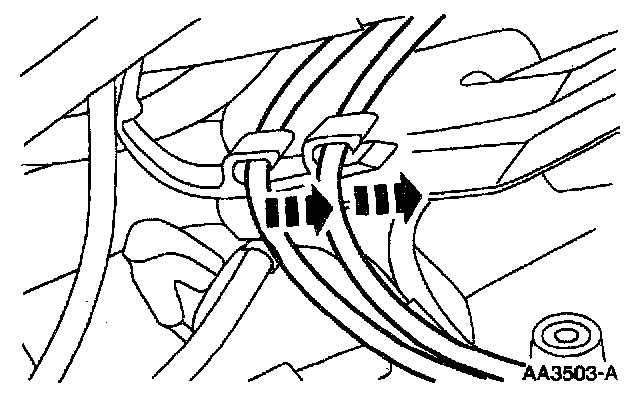

3. Remove the cables from the intake manifold shield.

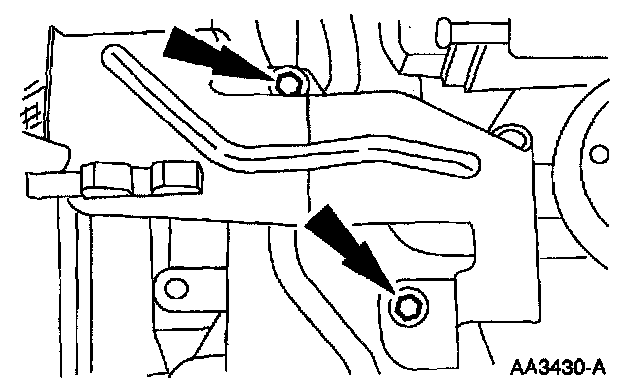

4. Remove the bolts from the intake manifold shield.

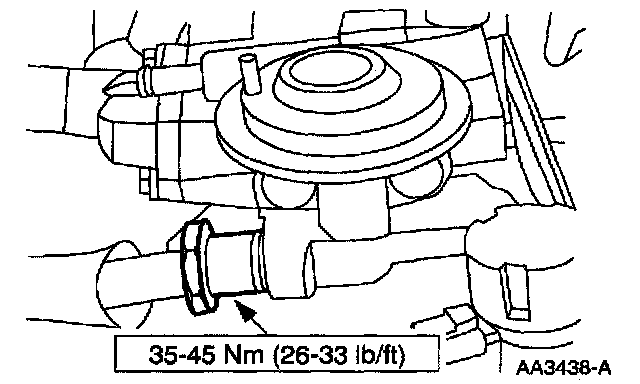

5. Remove the EGR exhaust manifold tube nut from the EGR valve.

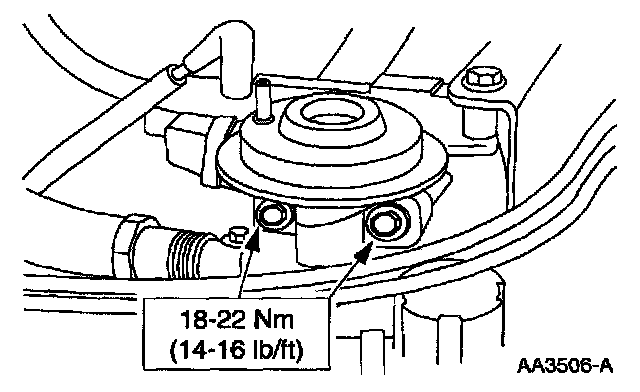

6. Remove the bolts and the EGR valve.

INSTALLATION
1. To install, reverse the removal procedure.
