Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test D: NGVM Does Not Respond To The Diagnostic Tool

Test D: NGVM Does Not Respond To The Diagnostic Tool

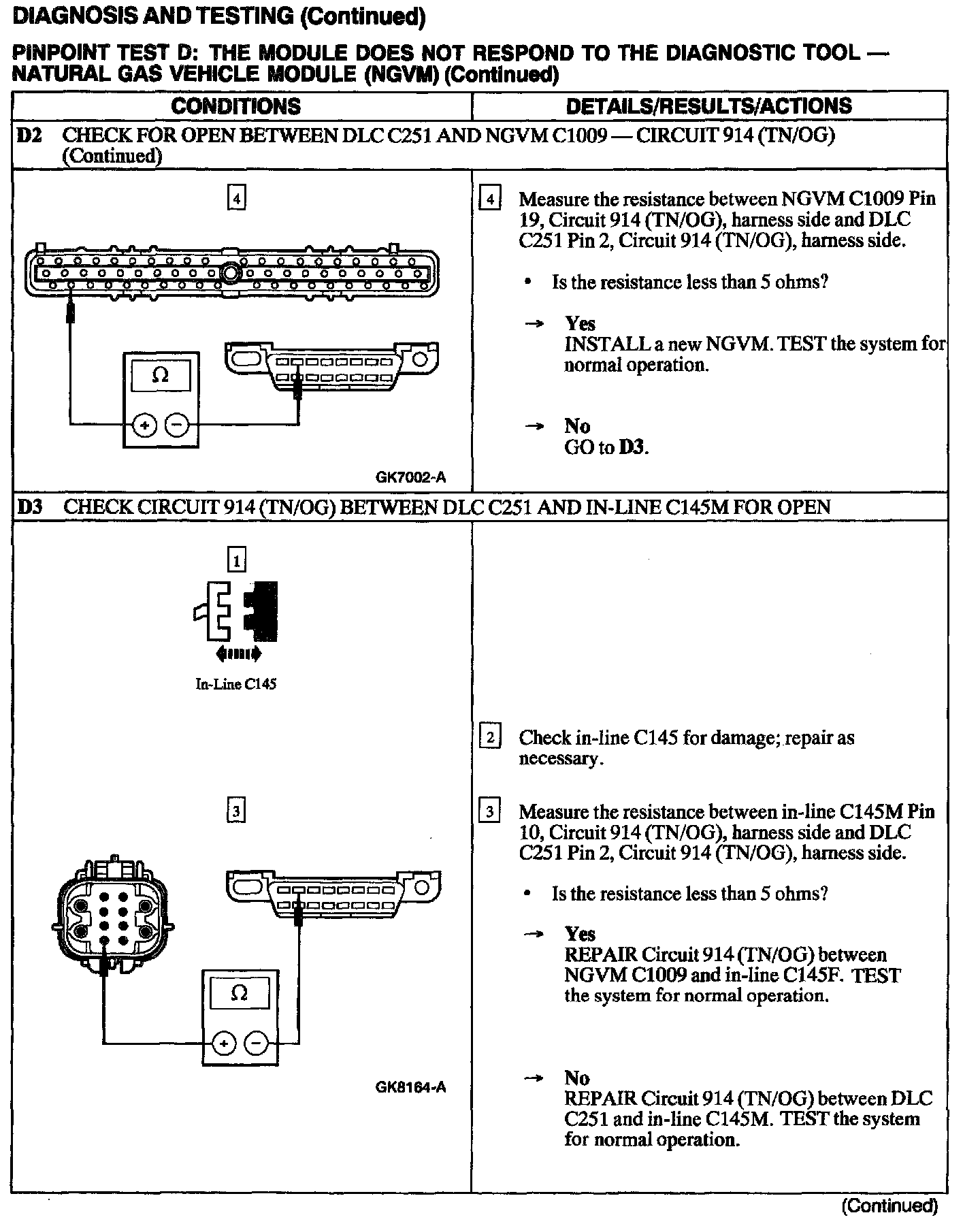

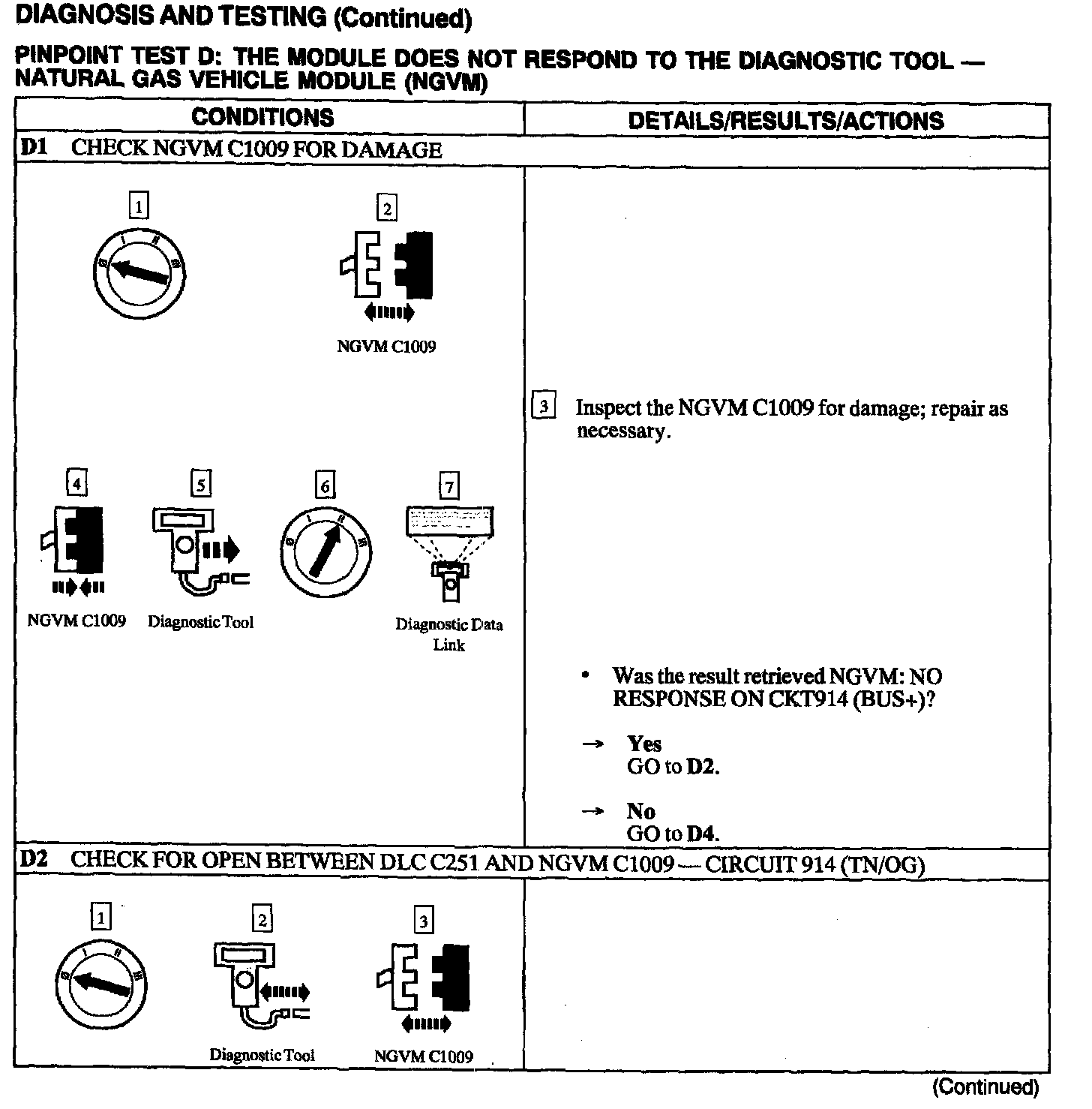

D1 - D2:






D2 - D3:

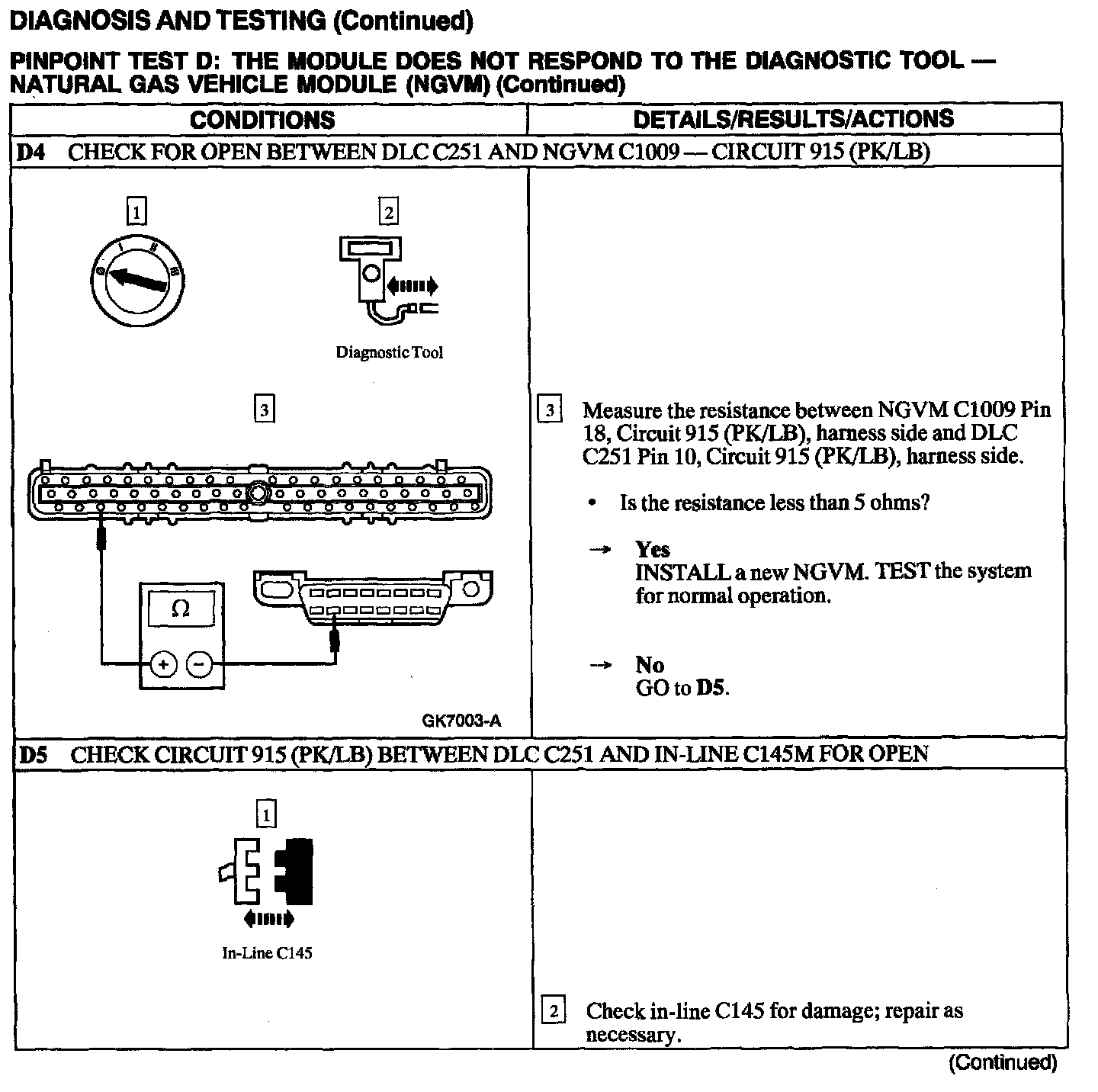

D4 - D5:

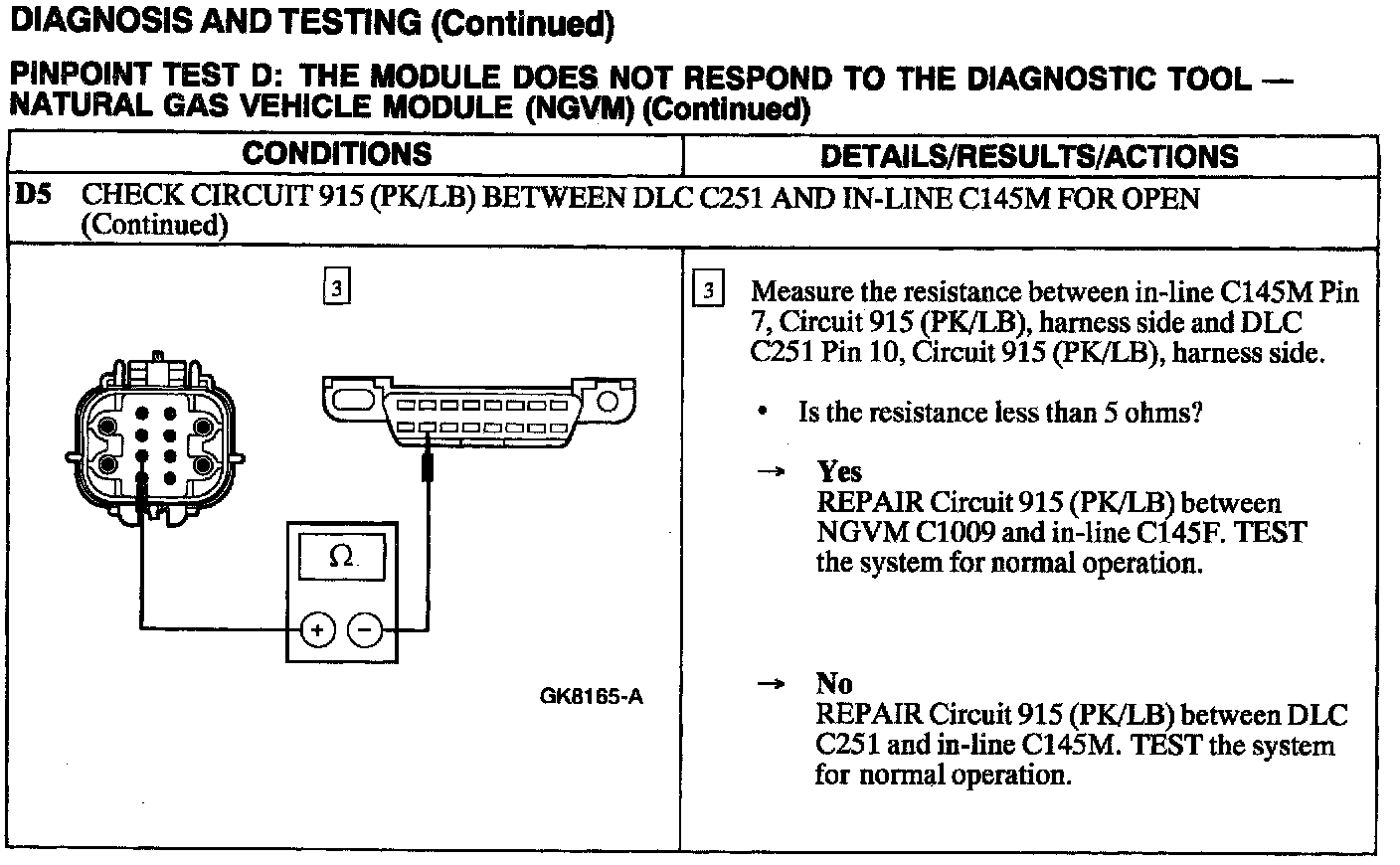

D5:
