Radiator Cooling Fan Motor: Service and Repair

Fan-Fan Motor, Fan Blade, and Shroud Assembly

Removal and Installation

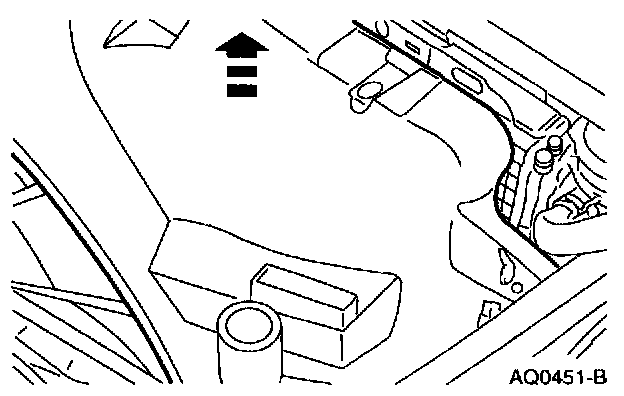

1. Remove the de-gas bottle.

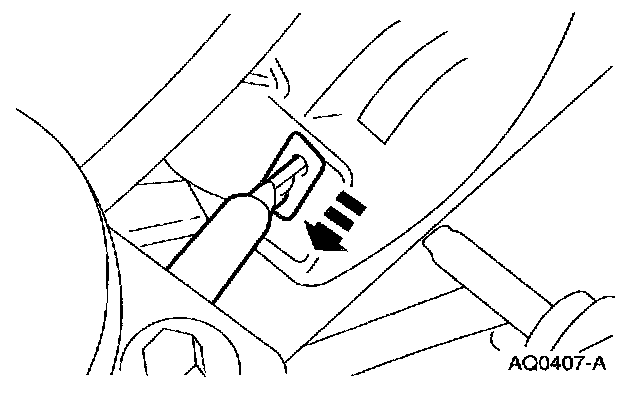

2. Disconnect the connector.

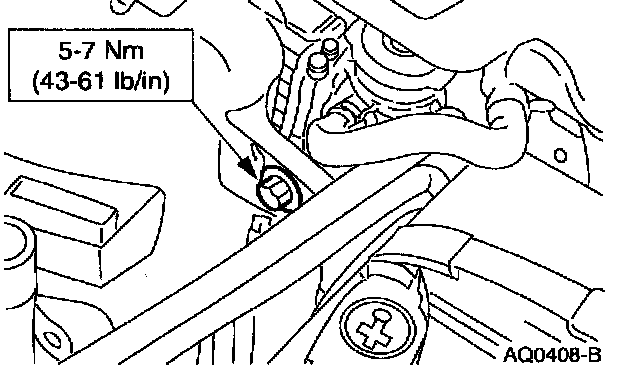

3. Remove the two bolts and the fan blade, fan motor and the fan shroud assembly.





4. To install, reverse the removal procedure.
