Coolant Reservoir: Service and Repair

Degas Bottle

Removal and Installation





1. NOTE: Drain coolant from the degas bottle only.

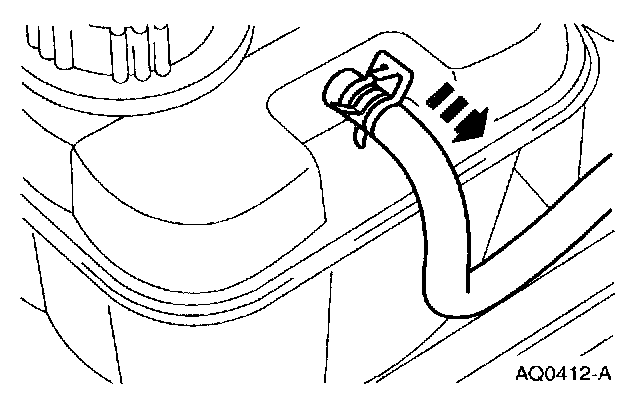

Remove the degas bottle supply hose.

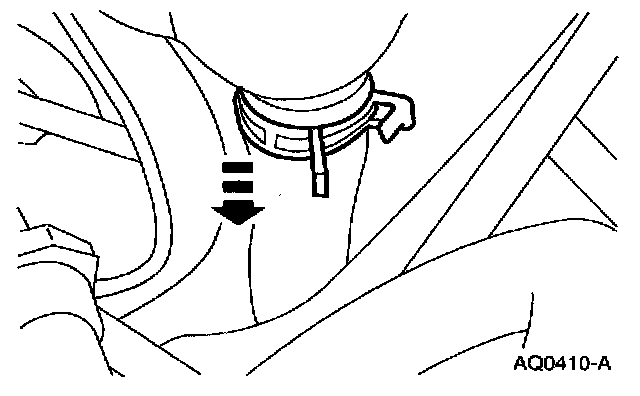

2. Remove the overflow hose.

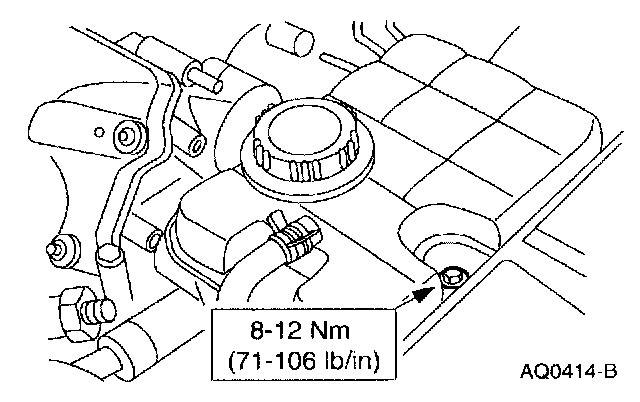

3. Remove the bolt and the degas bottle.
4. To install, reverse the removal procedure.
