Accelerator Pedal: Service and Repair

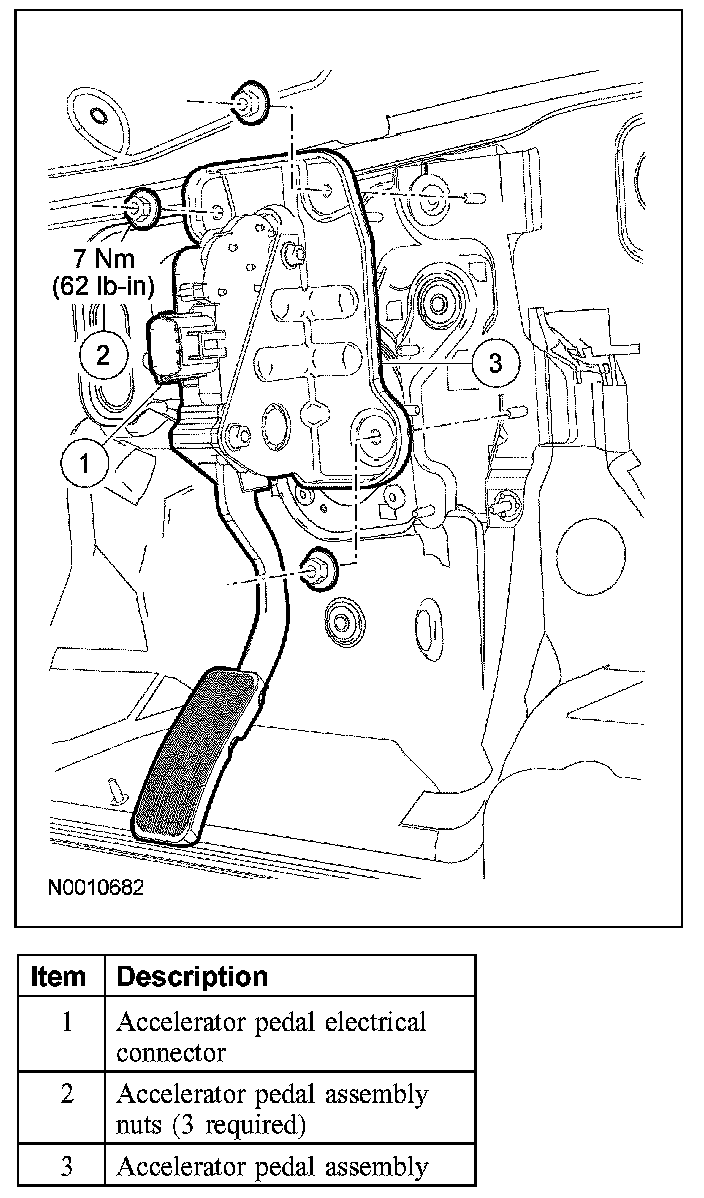

ACCELERATOR PEDAL AND SHAFT







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the accelerator pedal electrical connector.
3. Remove the nuts and the accelerator pedal assembly.
- To install, tighten to 7 Nm (62 lb-in).

4. To install, reverse the removal procedure.
