Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION CANISTER







Removal and Installation

WARNING:
- The evaporative emissions system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, possibly causing a fire or explosion if fuel vapor or liquid fuel are present in the area. Failure to follow these instructions may result in personal injury.
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the fuel tank. F

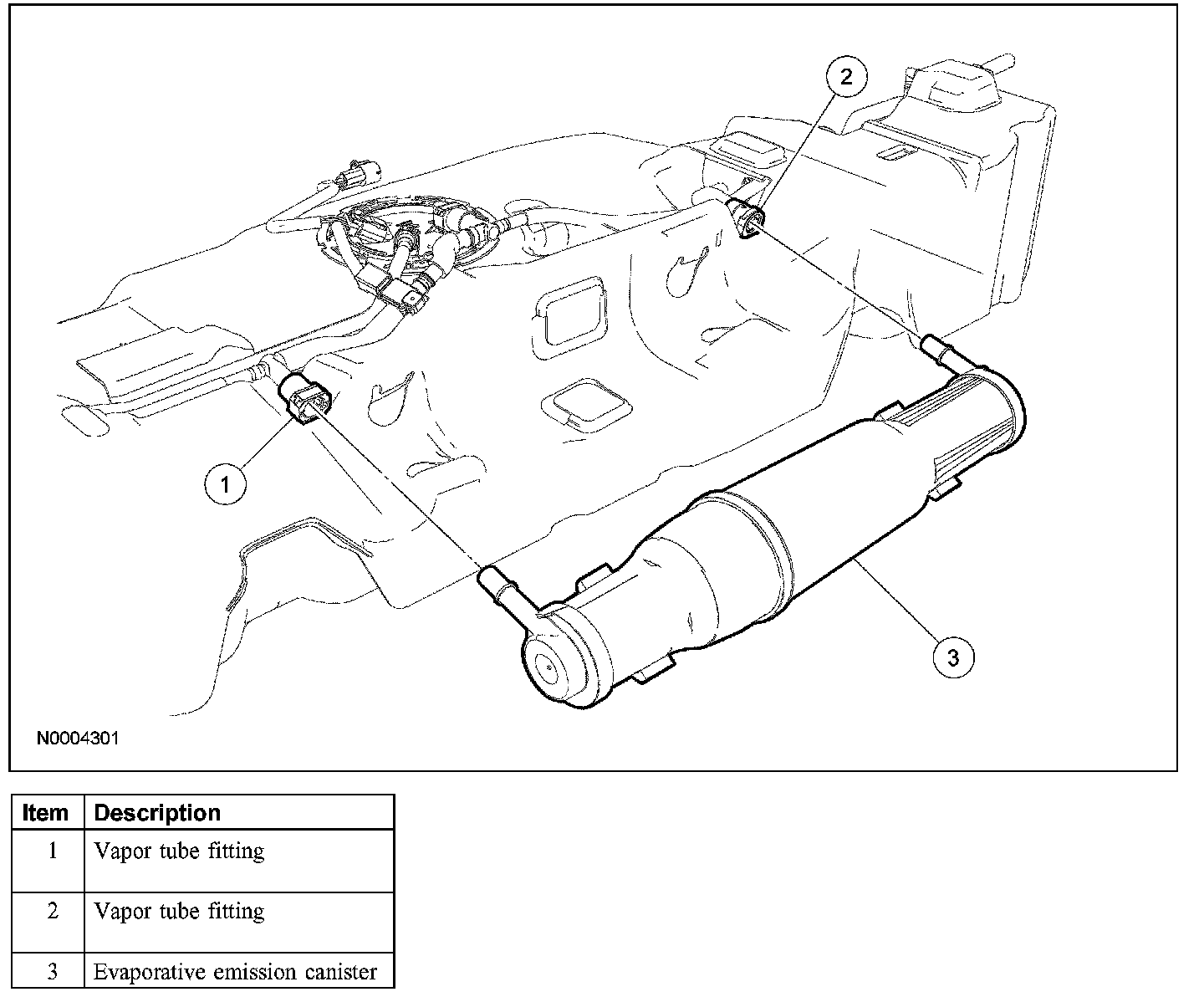

4. Disconnect the 2 vapor tube fittings.
5. Remove the evaporative emission canister.
6. To install, reverse the removal procedure.
- Lubricate the vapor hoses with clean engine oil to ease installation.

7. Leak test the evaporative emission system.
8. Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
