Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR







Removal and Installation
1. Remove the generator.

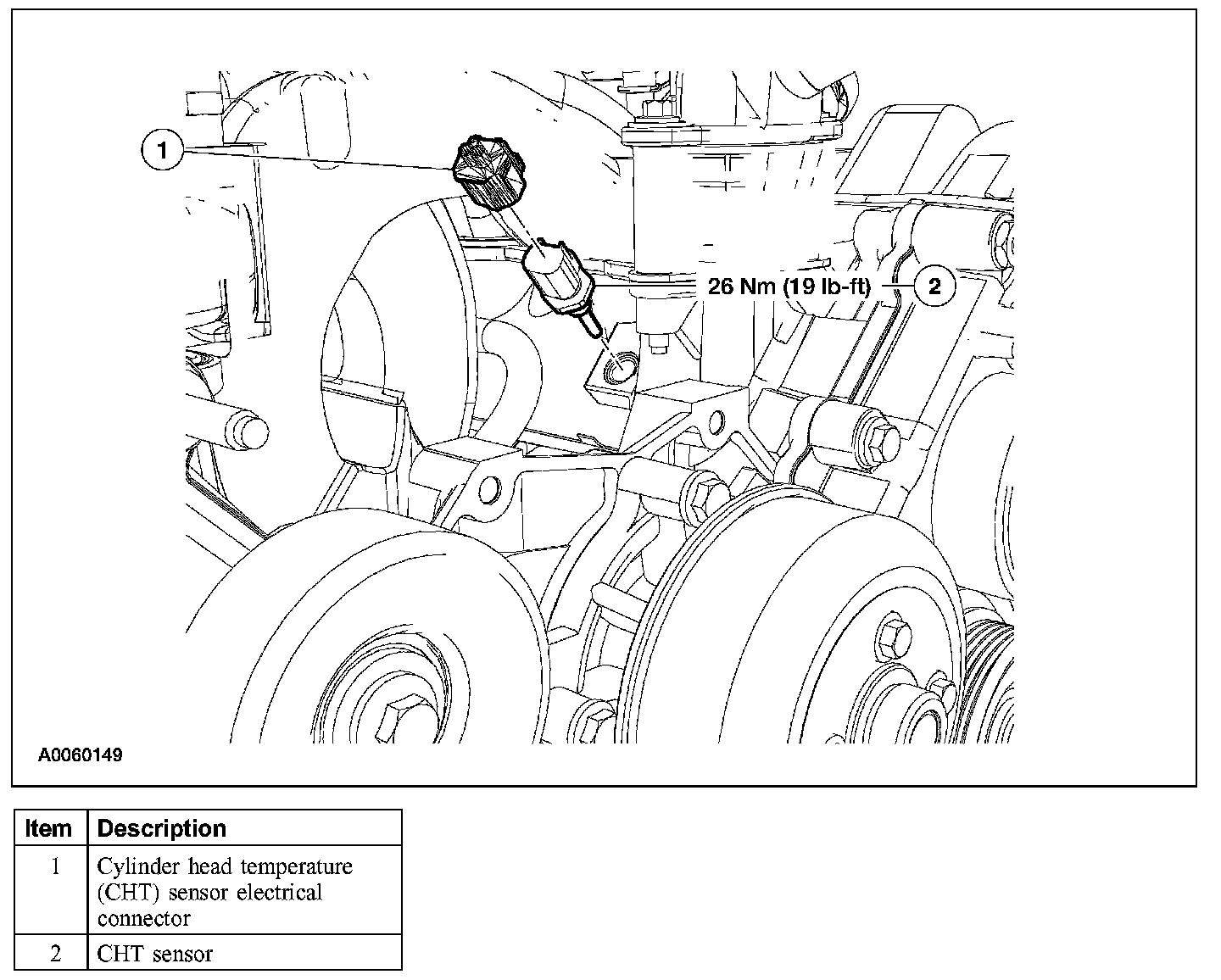

2. Disconnect the cylinder head temperature (CHT) sensor electrical connector.
3. Remove the CHT sensor.
- To install, tighten to 26 Nm (19 lb-ft).

4. To install, reverse the removal procedure.
