Fan Blade: Service and Repair
Cooling FanSpecial Tools And Equipment:

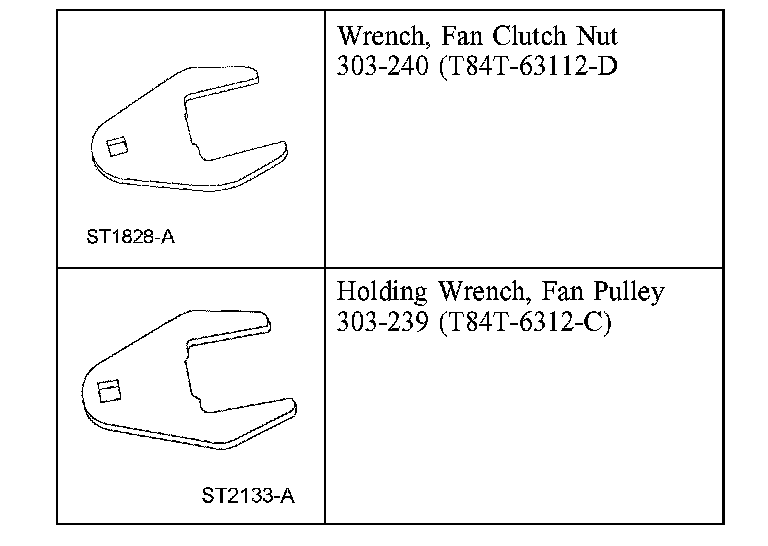

Special Tool(s)
Removal and Installation
1. If equipped, remove and discard the fan shroud screws.
2. Remove the bolts and the upper fan shroud.
^ To install, tighten to 7 Nm (62 inch lbs.).
3. CAUTION: Cardboard must be placed against the radiator when removing the cooling fan. Failure to follow these instructions can result in damage to the vehicle.
Place a piece of cardboard against the radiator to prevent damage while removing the cooling fan.

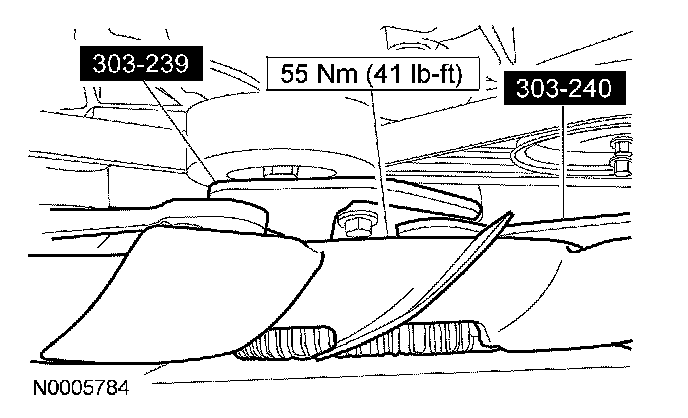

4. Using the special tools, remove the cooling fan.
^ To install, tighten to 55 Nm (41 ft. lbs.).
5. To install, reverse the removal procedure.
