Coolant Reservoir: Service and Repair

Degas Bottle

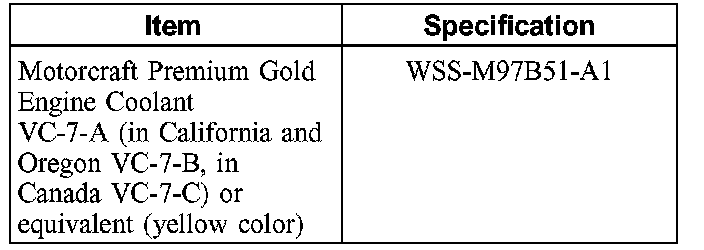

Material:

Material

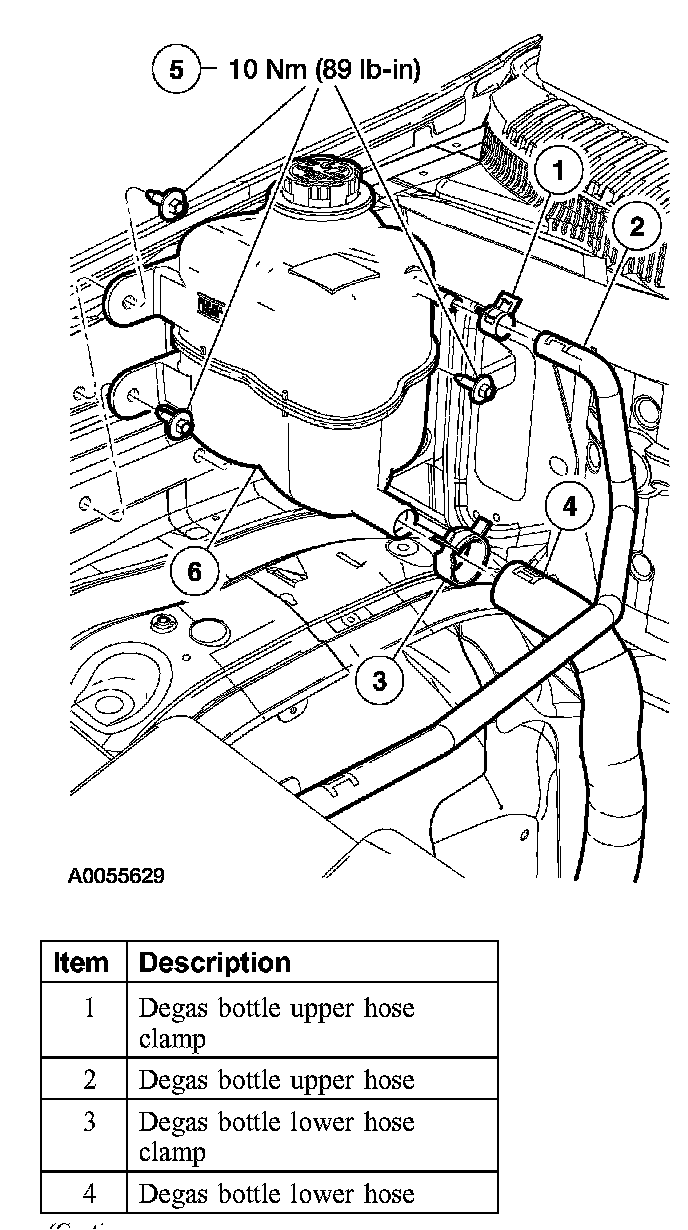

Removal and Installation
1. Drain the cooling system until the degas bottle is empty.
2. Remove the air cleaner outlet tube and the engine air cleaner.
3. Release the clamp and disconnect the degas bottle upper hose.
4. Release the clamp and disconnect the degas bottle lower hose.

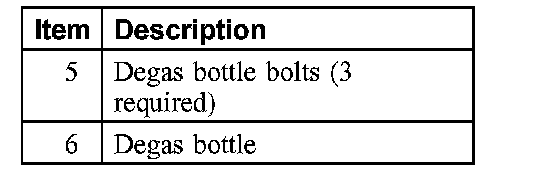

5. Remove the bolts and the degas bottle.
^ To install, tighten to 10 Nm (89 inch lbs.).

6. To install, reverse the removal procedure.
