Removal and Installation

SPARK PLUGS

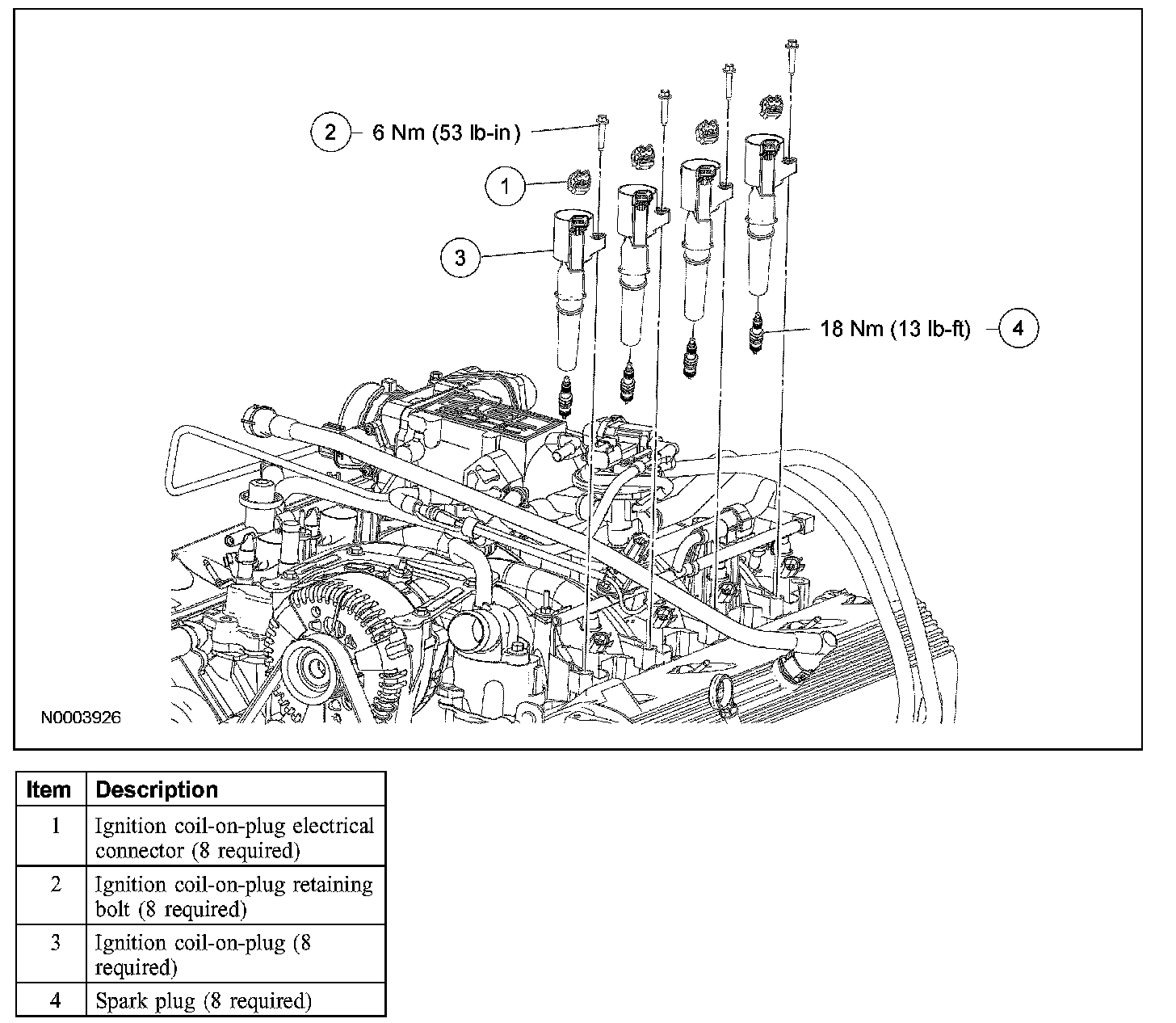

Exploded View

Removal and Installation
1. Remove the ignition coil-on-plugs.

2. NOTE: Use compressed air to remove any foreign material from the spark plug well before removing the spark plugs.

Remove the spark plugs.
- To install, tighten to 18 Nm (13 lb-ft).

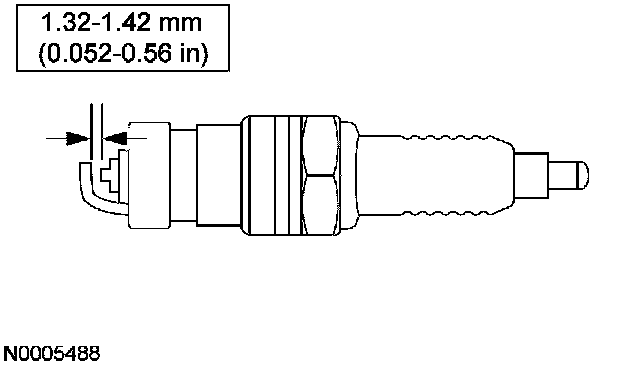

3. Inspect the spark plugs and adjust the spark plug gap as necessary.
4. To install, reverse the removal procedure.
