Valve Guide Seal: Service and Repair

Valve Seals

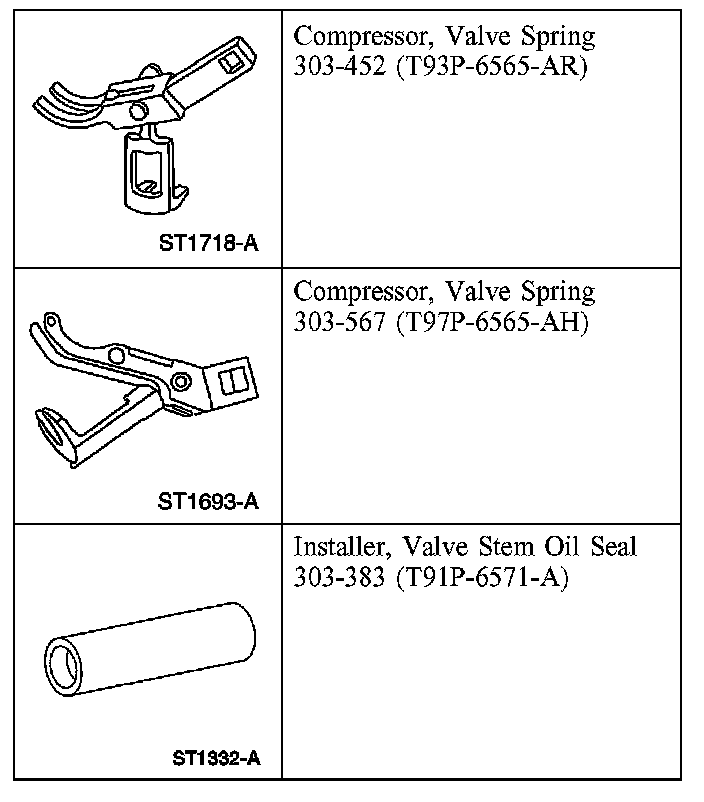

Special Tools And Equipment:

Special Tool(s)

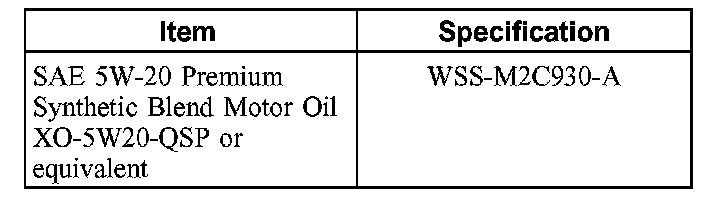

Material:

Material

Removal
1. Remove the valve springs. .
2. Remove the valve seals.

Installation






1. NOTE: The 3 rear-most valve seals on the RH side must use special tool 303 567 in same manner as is shown in the illustration.

NOTE: Make sure the garter spring is present in the valve seal.

NOTE: Lubricate the valve seals with clean engine oil.

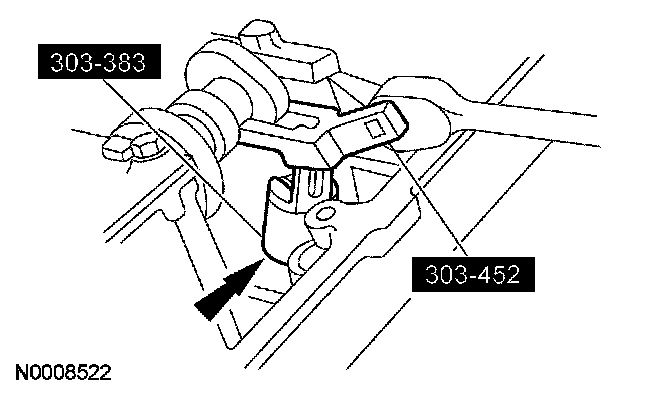

Using the special tools, install the valve seals.
2. Install the valve springs.
