Front Crankshaft Seal: Service and Repair

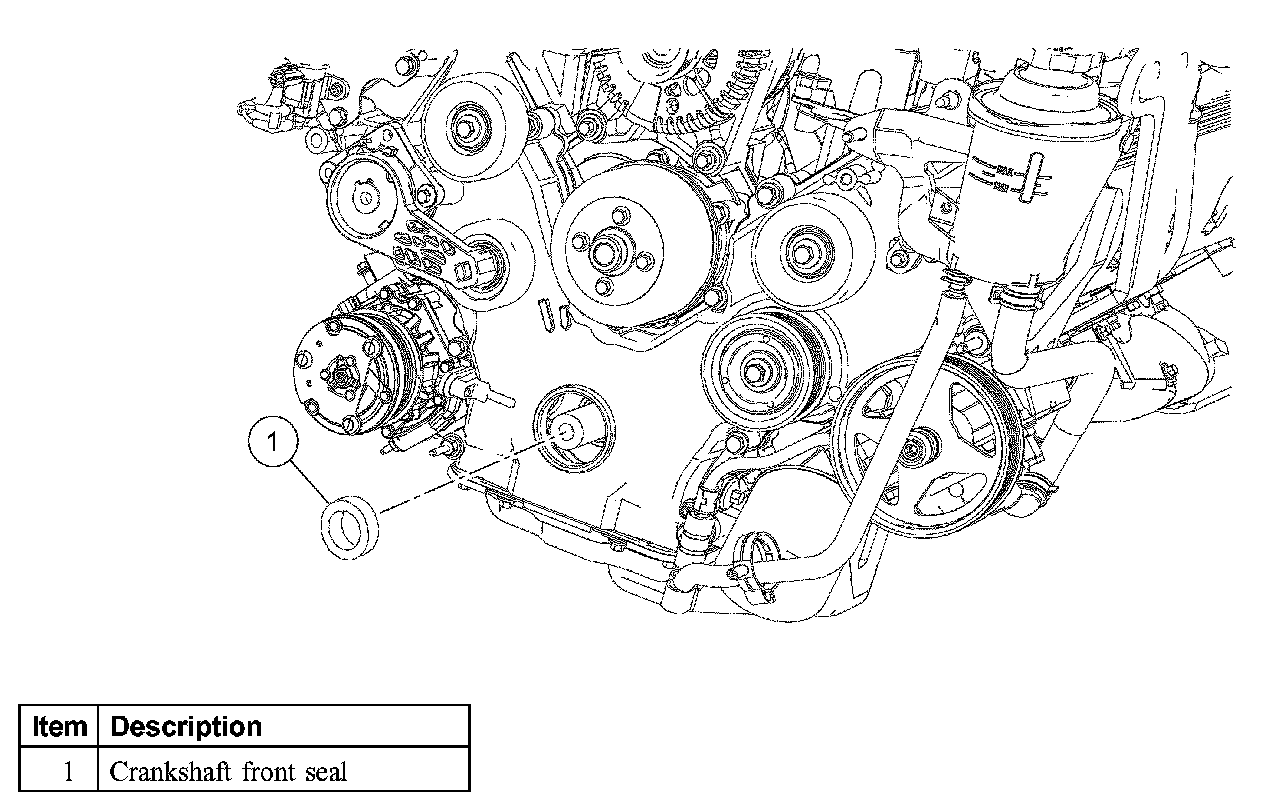

Crankshaft Front Seal

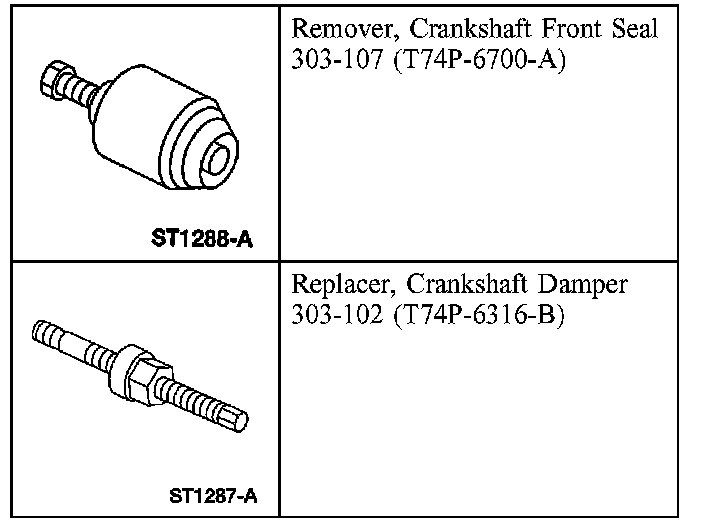

Special Tools And Equipment, Part 1:

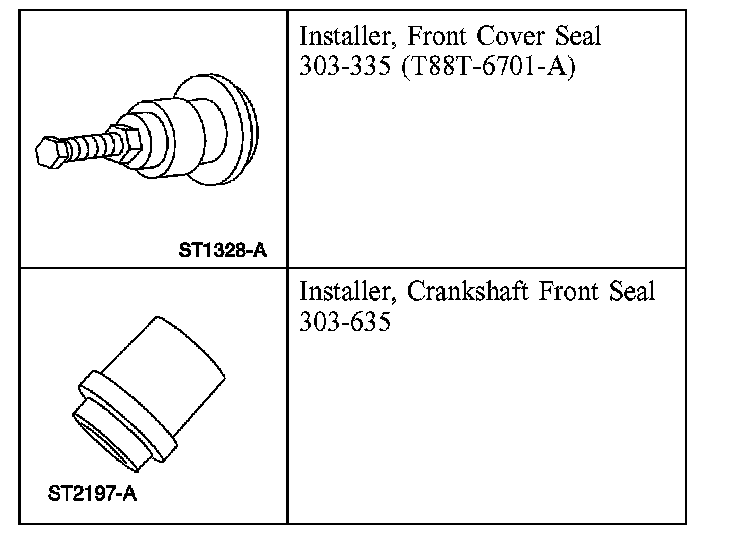

Special Tools And Equipment, Part 2:

Special Tool(s)

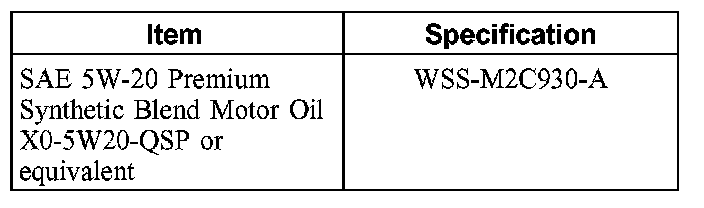

Material:

Material





Removal
1. Remove the crankshaft pulley.

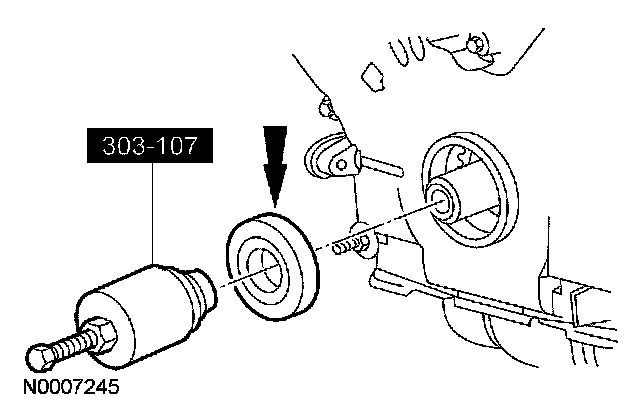

2. Using the special tools, remove the crankshaft front seal.

Installation
1. Lubricate the front cover and the crankshaft front seal lip with clean engine oil.

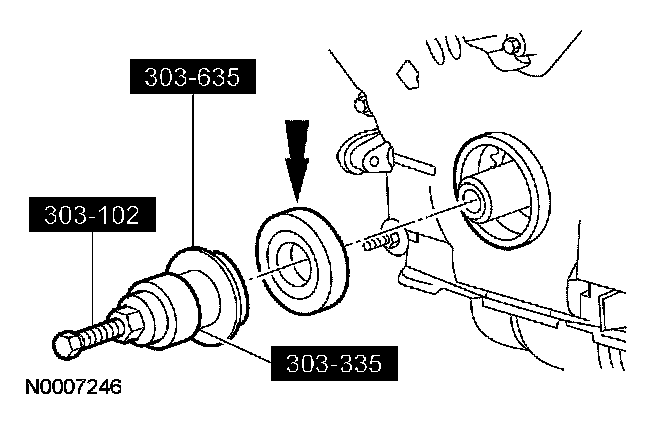

2. Using the special tools, install the crankshaft front seal.
3. Install the crankshaft pulley.
