Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

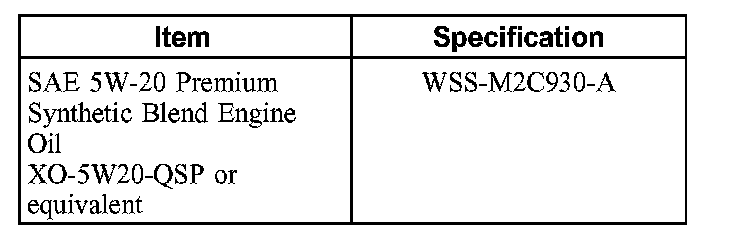

Material:

Material





Removal and Installation
1. Remove the LH exhaust manifold.

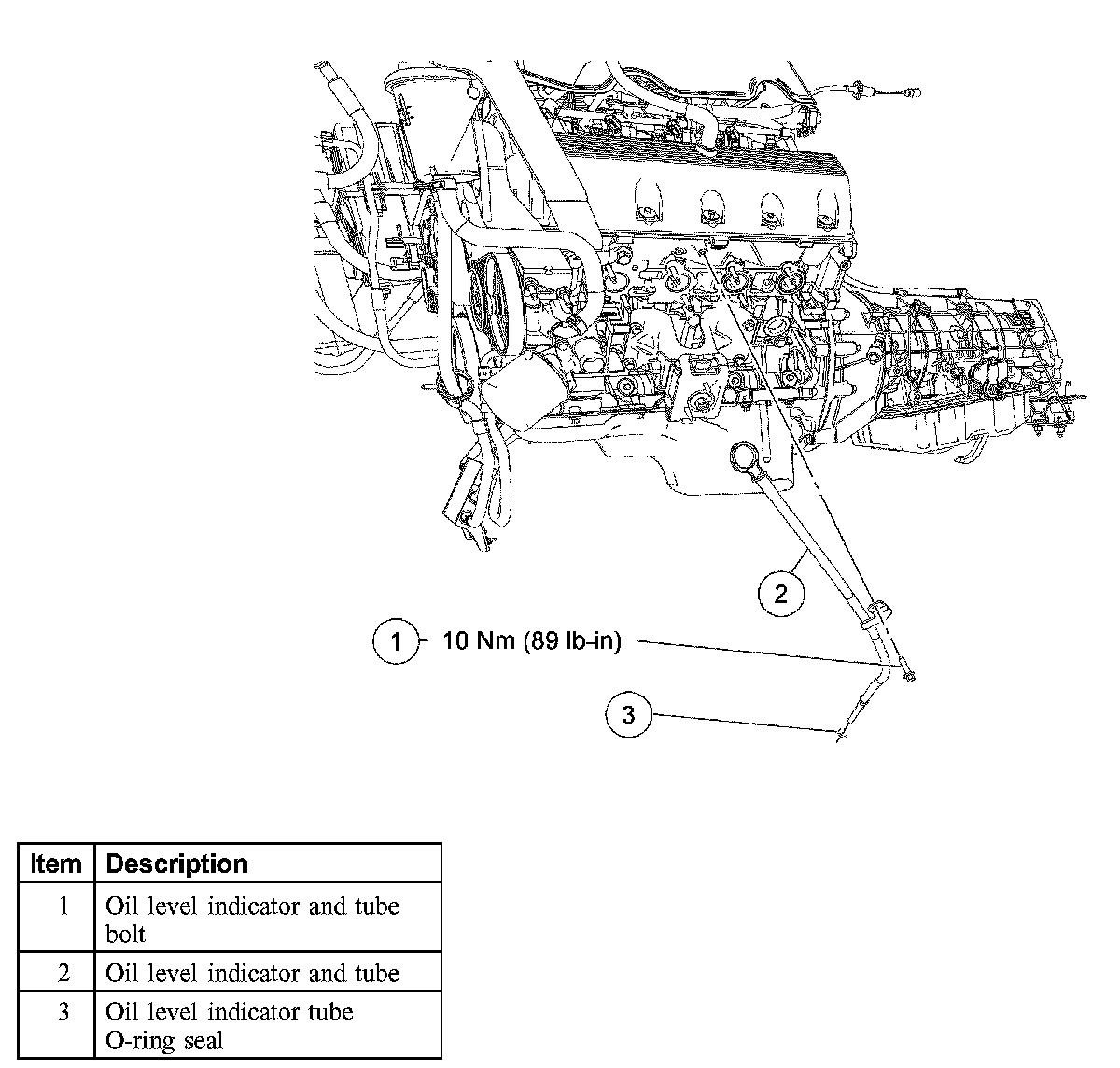

2. Remove the bolt and the oil level indicator and tube.
^ To install, tighten to 10 Nm (89 inch lbs.).

3. Remove and discard the oil level indicator tube O-ring seal.

4. NOTE: Install a new oil level indicator tube O-ring seal and lubricate it with clean engine oil.

To install, reverse the removal procedure.
