Idler Pulley: Service and Repair

Accessory Drive Belt Idler Pulley 4.6L (2V)

Removal and Installation

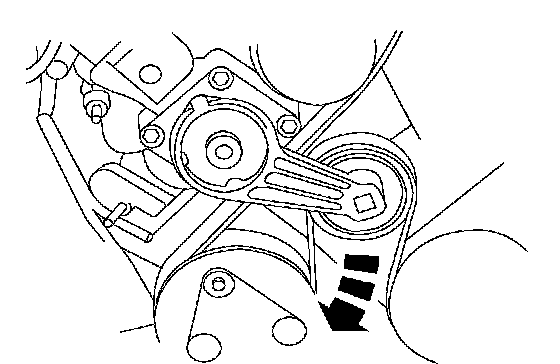

1. Rotate the drive belt tensioner clockwise and remove the drive belt.

2. NOTE: The 4.6L (2V) engine has 3 idler pulleys, an upper RH, an upper LH and a lower LH.

Remove the bolt and the idler pulley.
^ To install, tighten to 25 Nm (18 ft. lbs.).

3. To install, reverse the removal procedure.
^ For correct belt routing, refer to Accessory Drive, Component Locations 4.6L (2V) in the Description and Operation.
