Drive Belt Tensioner: Service and Repair

Accessory Drive Belt Tensioner 4.6L (2V)

Removal and Installation

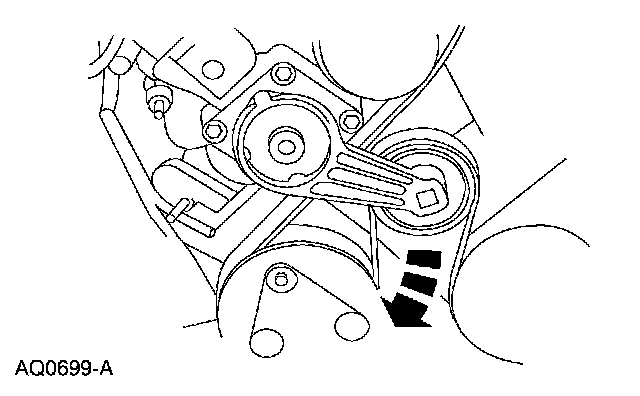

1. Rotate the drive belt tensioner clockwise and remove the drive belt.
2. Remove the bolts and the drive belt tensioner.
^ To install, tighten to 25 Nm (18 ft. lbs.).

3. To install, reverse the removal procedure.
^ For correct belt routing, refer to Accessory Drive, Component Locations 4.6L (2V) in the Description and Operation.
