Drive Belt: Service and Repair

Accessory Drive Belt 4.6L (2V)

Removal and Installation

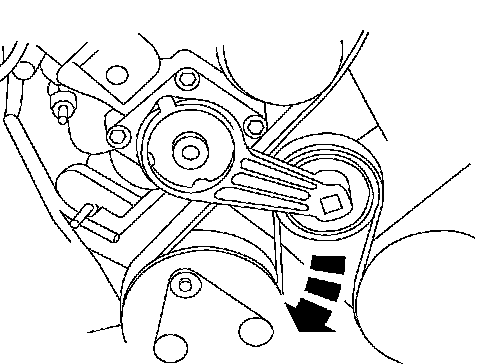

1. Rotate the drive belt tensioner clockwise and remove the drive belt.
2. To install, reverse the removal procedure.
^ For correct belt routing, refer to Accessory Drive, Component Locations 4.6L (2V) in the Description and Operation.
