Four Wheel Drive Selector Switch: Description and Operation

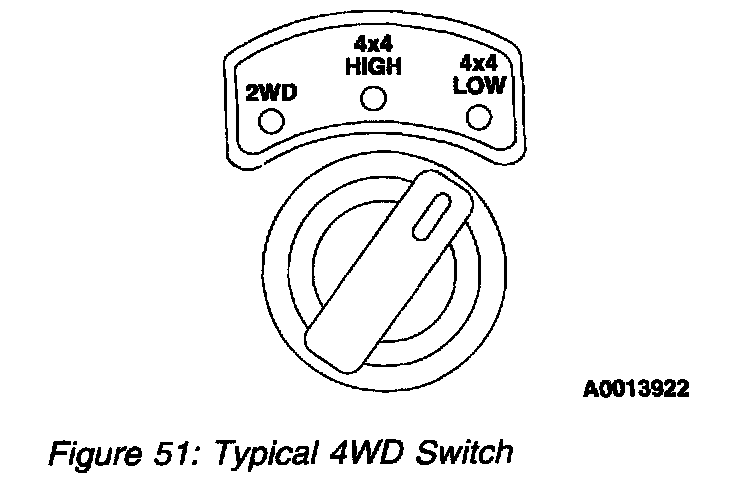

FOUR-WHEEL DRIVE (4WD) MODE SWITCHTypical 4WD Switch:
The 4WD control module provides the PCM with an indication of 4WD Low. This input is used to adjust the shift schedule. A 5.0-volt module pull-up indicates 4WD High or 2WD.
