Wheel Speed Sensor Front

Wheel Speed Sensor Front

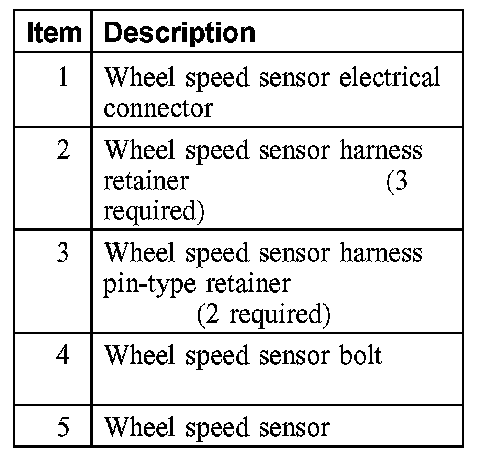

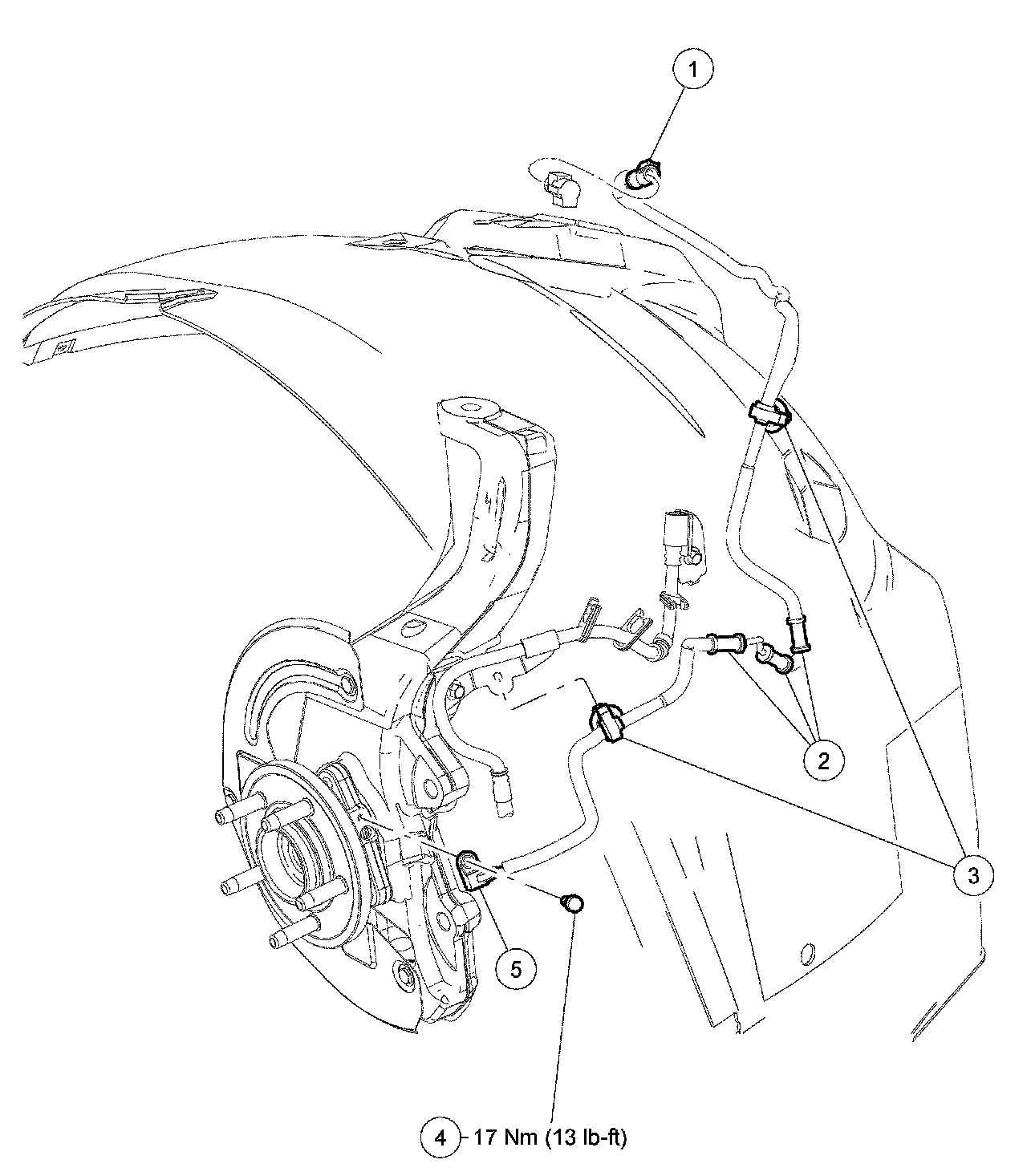

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the front brake disc.
3. Disconnect the wheel speed sensor electrical connector.
4. Remove the 3 wheel speed sensor harness retainers.
5. Remove the 2 wheel speed sensor harness pin type retainers.
6. Remove the wheel speed sensor bolt.
^ To install, tighten to 17 Nm (13 ft. lbs.).

7. Remove the wheel speed sensor and the harness.
8. To install, reverse the removal procedure.
