Torque Specifications

TORQUE SPECIFICATIONS

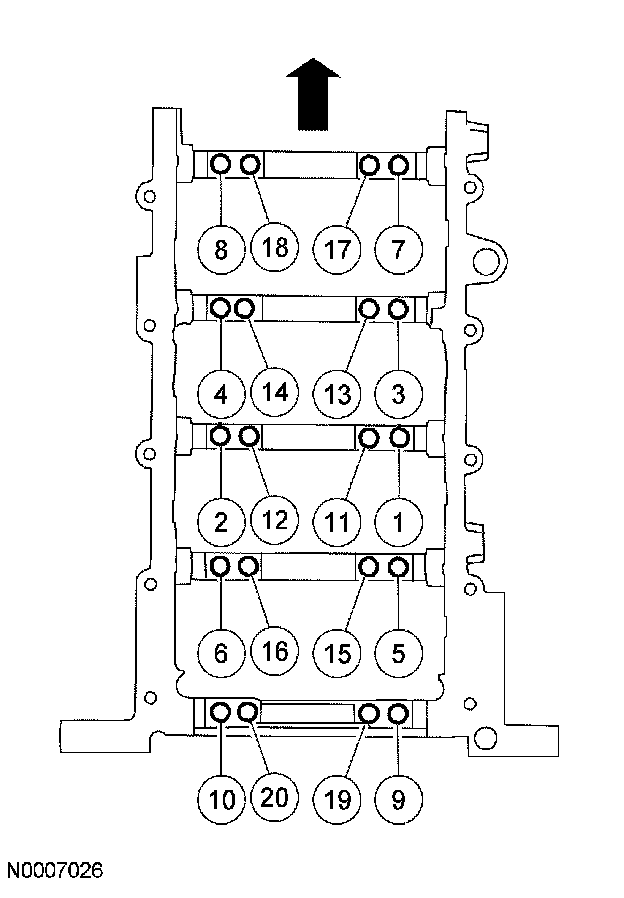

Main Bearing Cap Bolts
Stage 1 1 through 20 in sequence to 10 Nm (89 inch lbs.)
Stage 2 1 through 10 in sequence to 25 Nm (18 ft. lbs.
Stage 3 11 through 20 in sequence to 40 Nm (30 ft. lbs.)
Stage 4 1 through 20 in sequence an additional 90 degrees

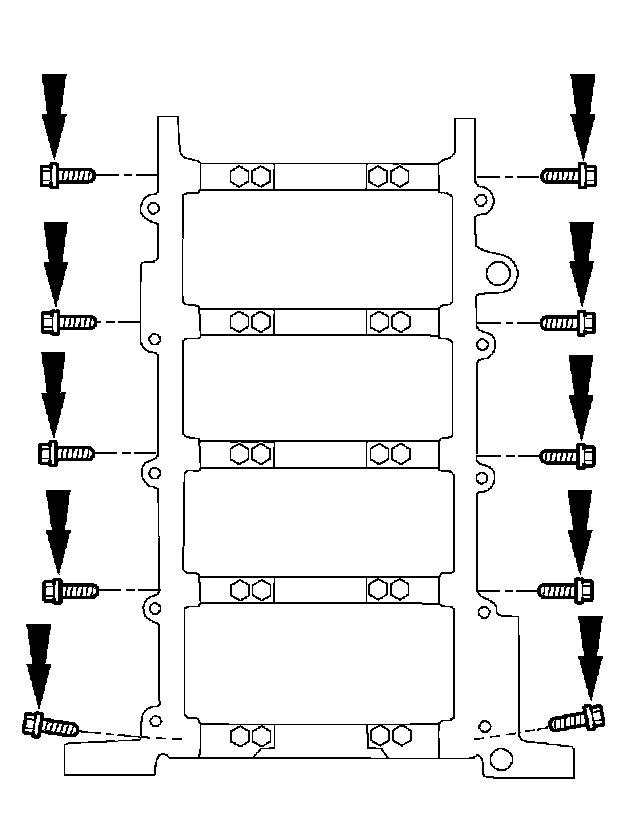

Cross mounted bolts
Stage 1 40 Nm (30 ft. lbs.)
Stage 2 additional 90 degrees
Crankshaft Pulley
Stage 1 90 Nm (66 ft. lbs.)
Stage 2 360 degrees
Stage 3 50 Nm (37 ft. lbs.)
Stage 4 additional 90 degrees
