Piston

Piston

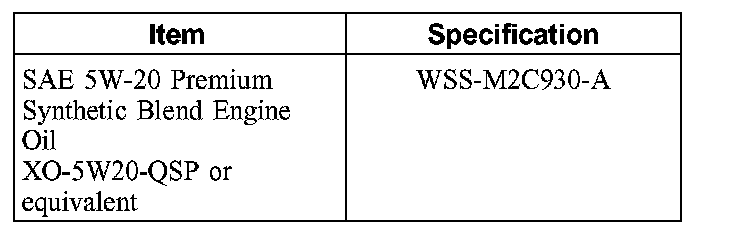

Material:

Material

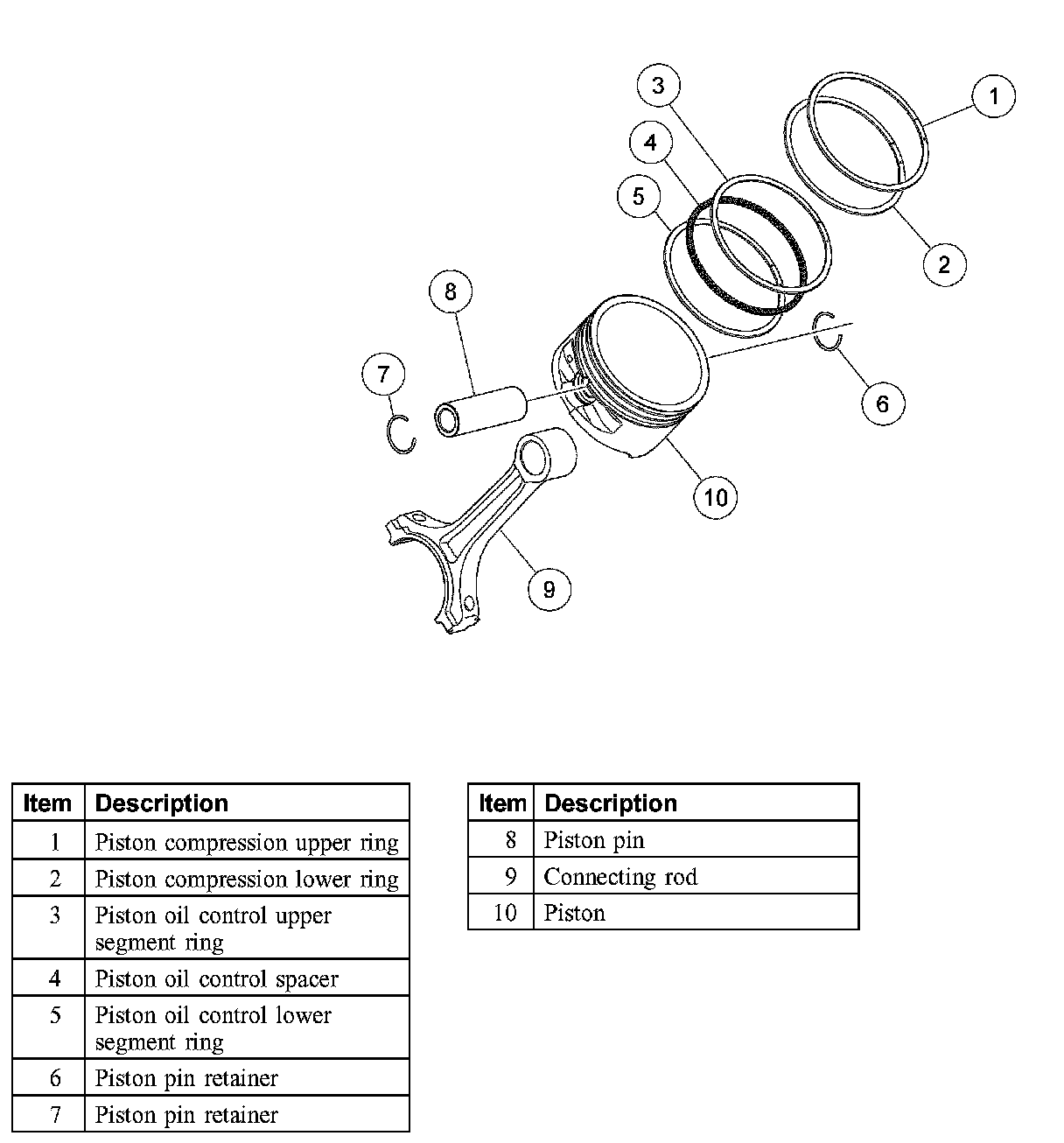

Disassembly and Assembly
1. Remove the 2 compression rings, the 2 oil control rings and the oil control spacer.
2. Remove the piston pin retainers and the piston pin.
3. Remove the piston from the connecting rod.






4. NOTE: Lubricate all of the components with clean engine oil.

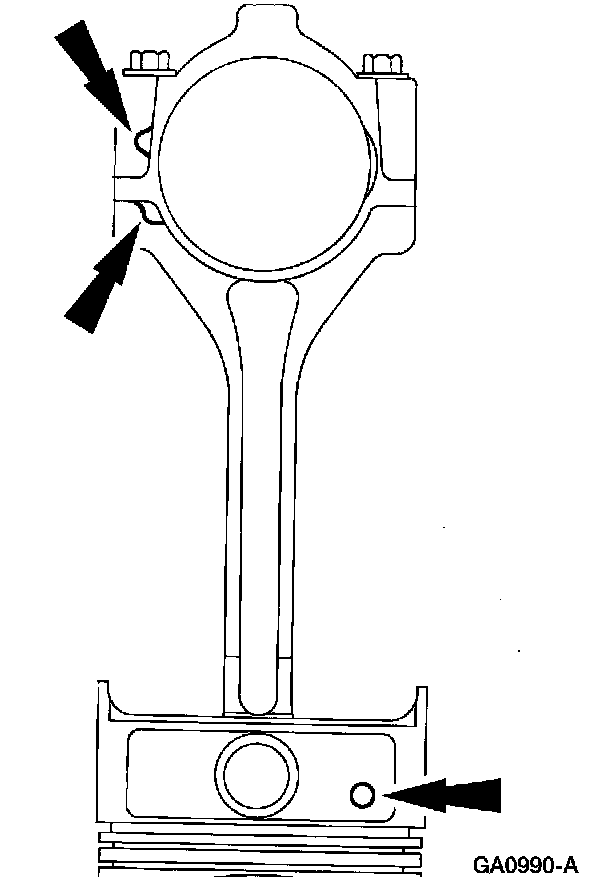

NOTE: The connecting rod must be installed into the piston with identification markings toward the front.

To assemble, reverse the disassembly procedure.
