Tests DC: Mass Air Flow (MAF) Sensor



PINPOINT TEST DC: MASS AIR FLOW (MAF) SENSOR

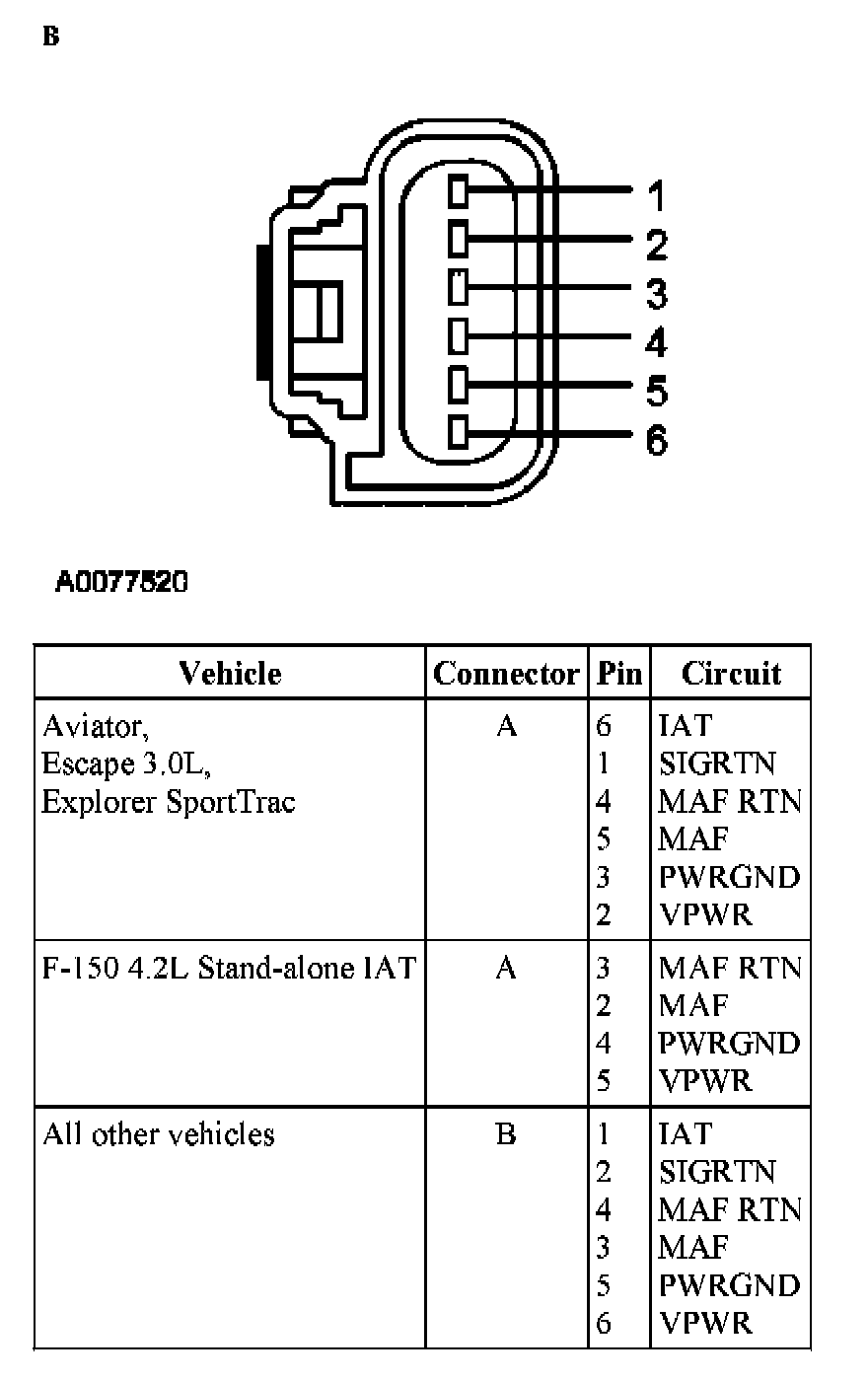

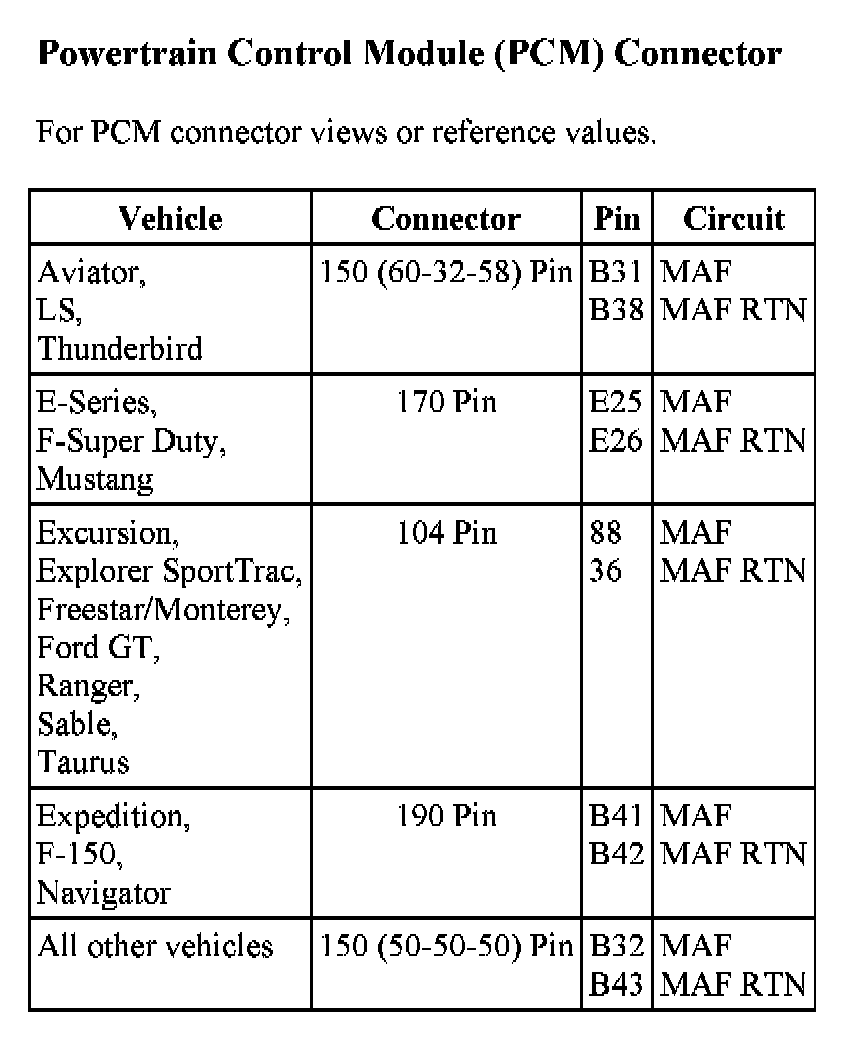

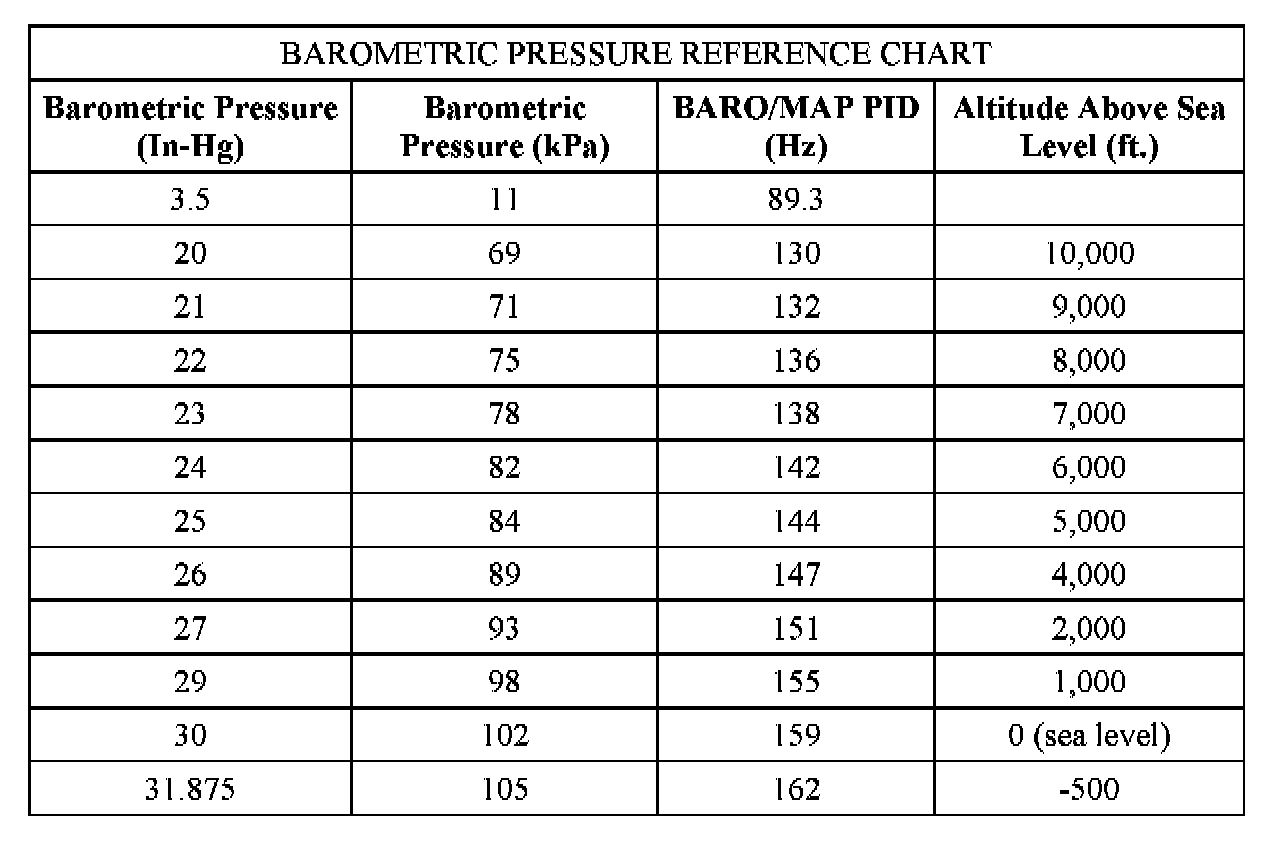

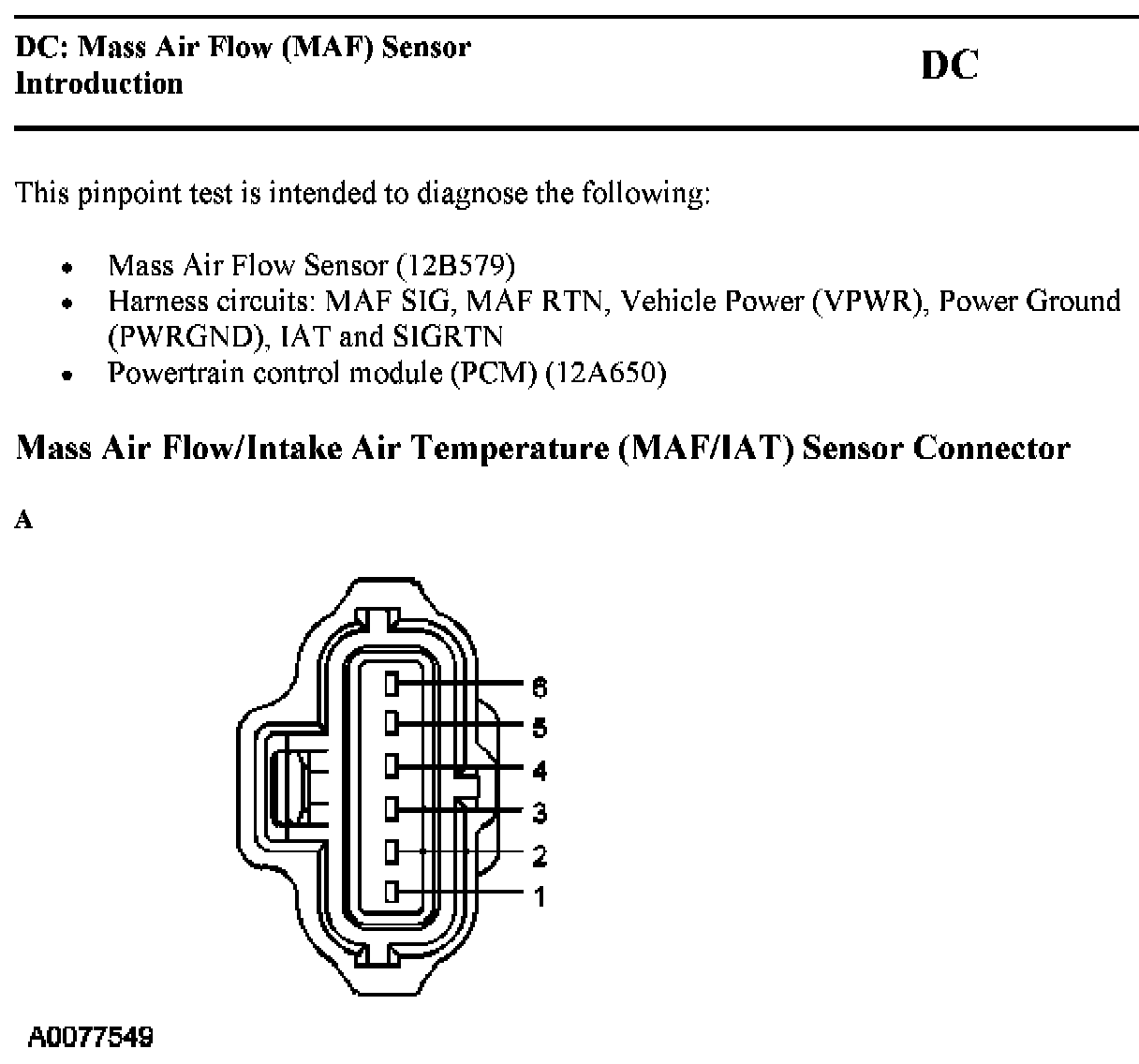

DC Introduction:





DC Introduction:





DC Introduction:





DC Introduction:

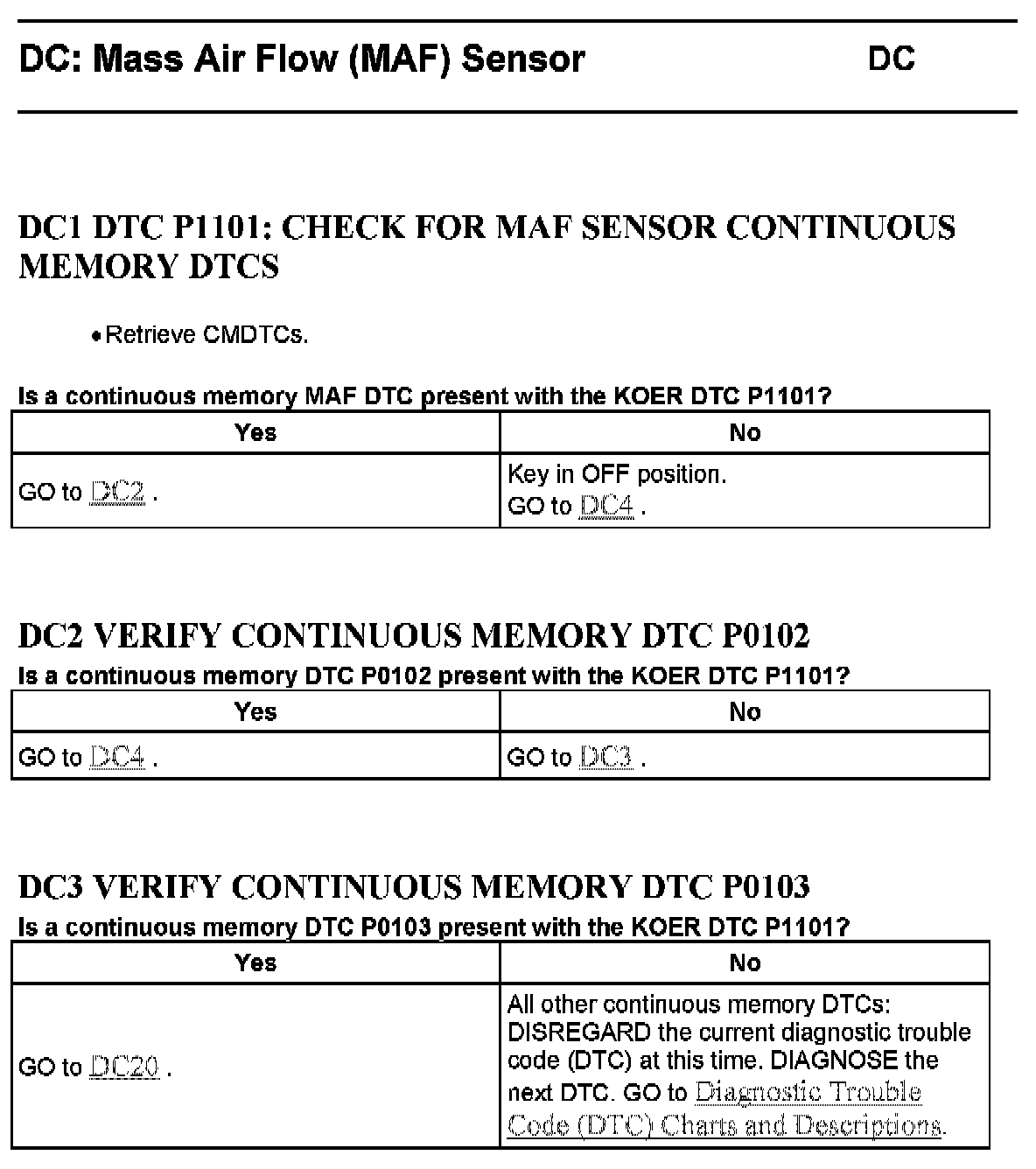

DC1 - DC3:

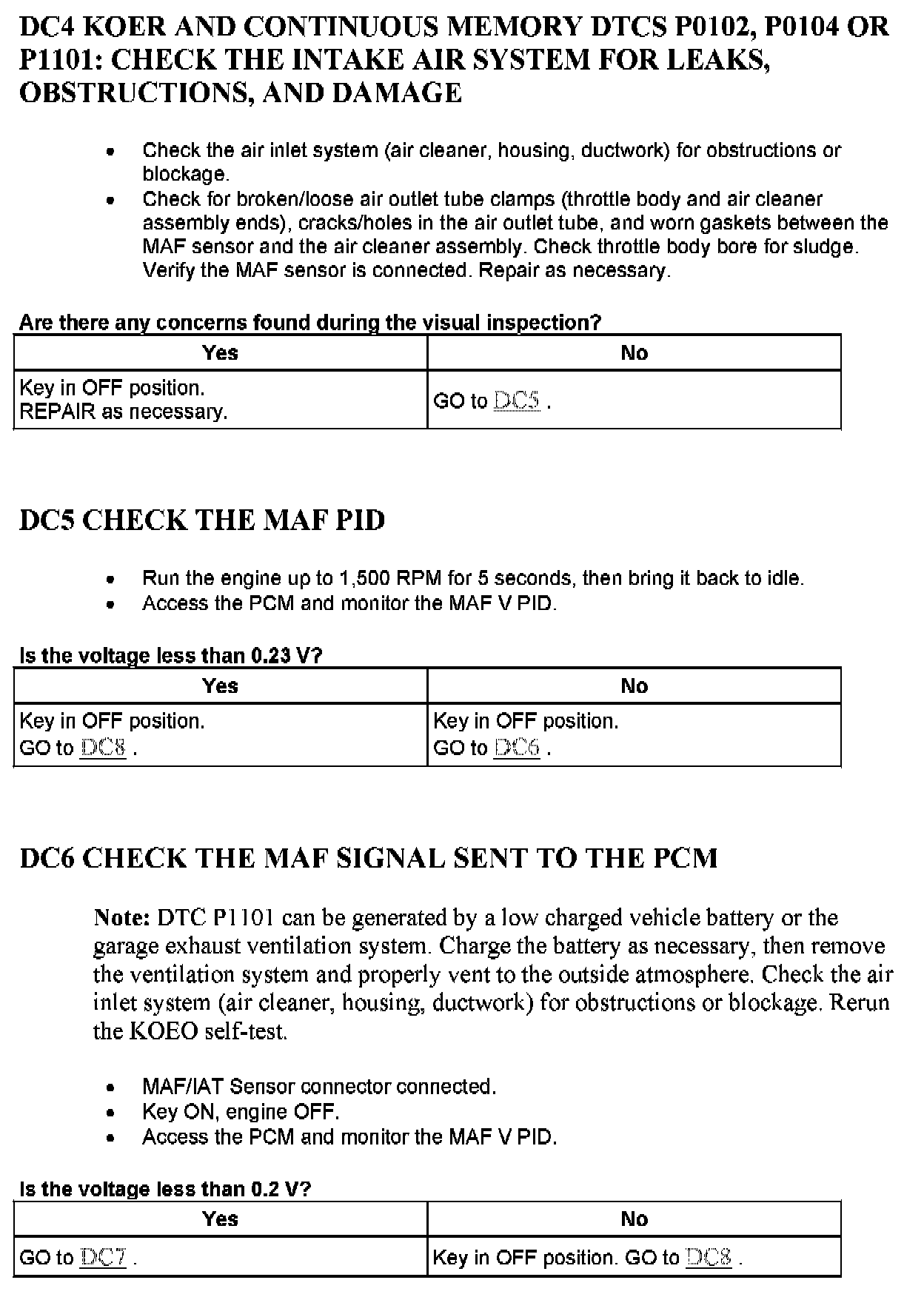

DC4 - DC6:

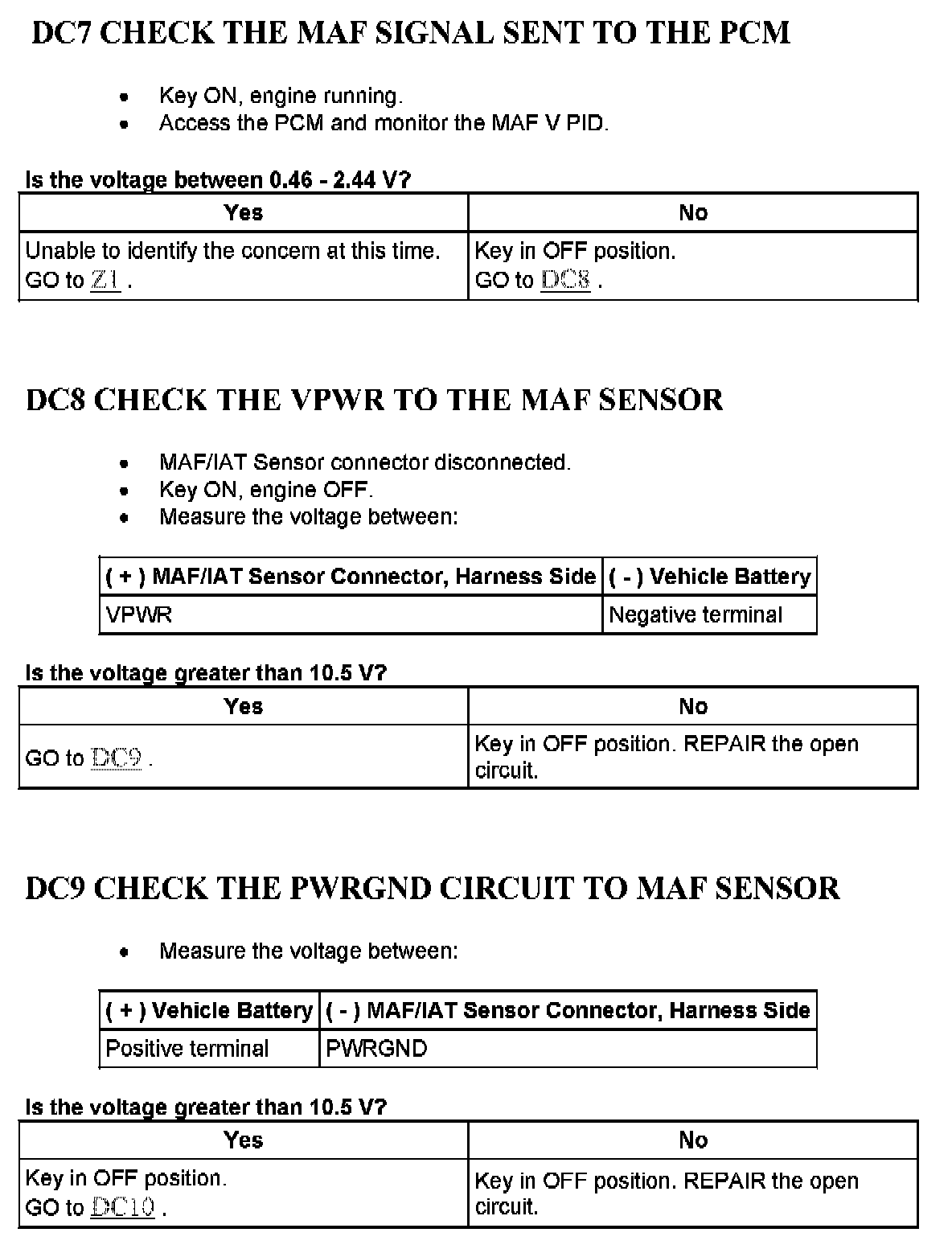

DC7 - DC9:

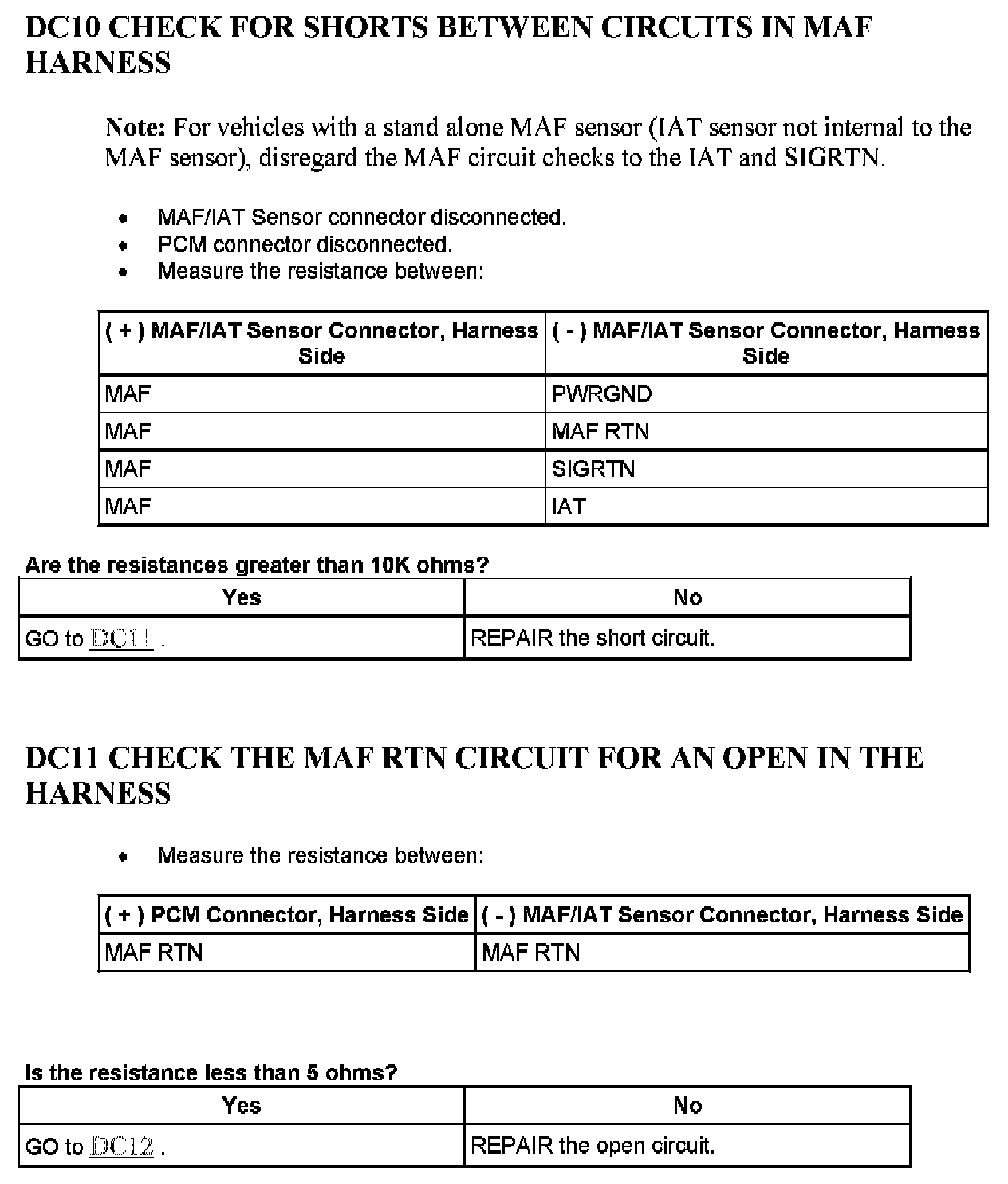

DC10 - DC11:

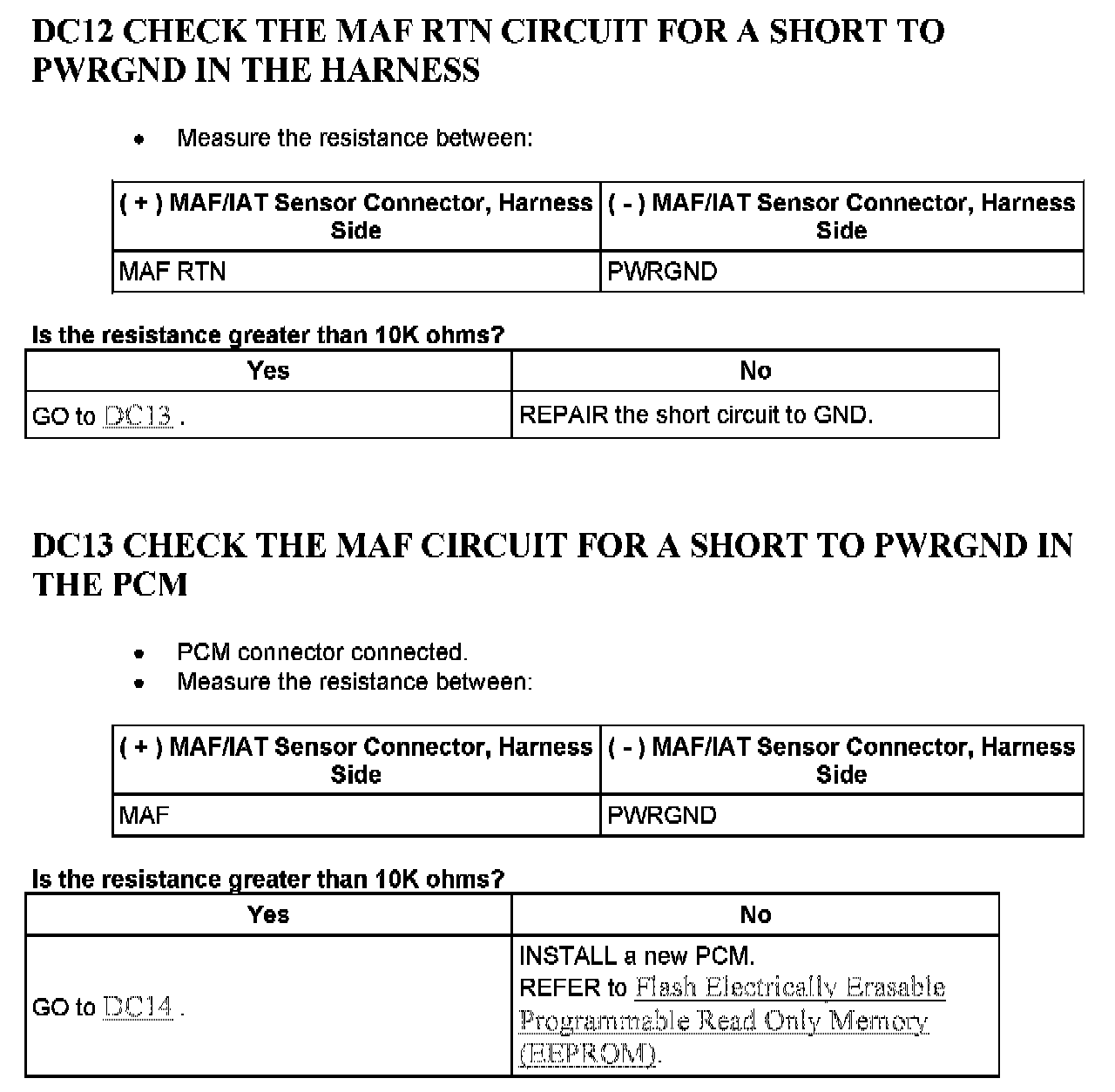

DC12 - DC13:

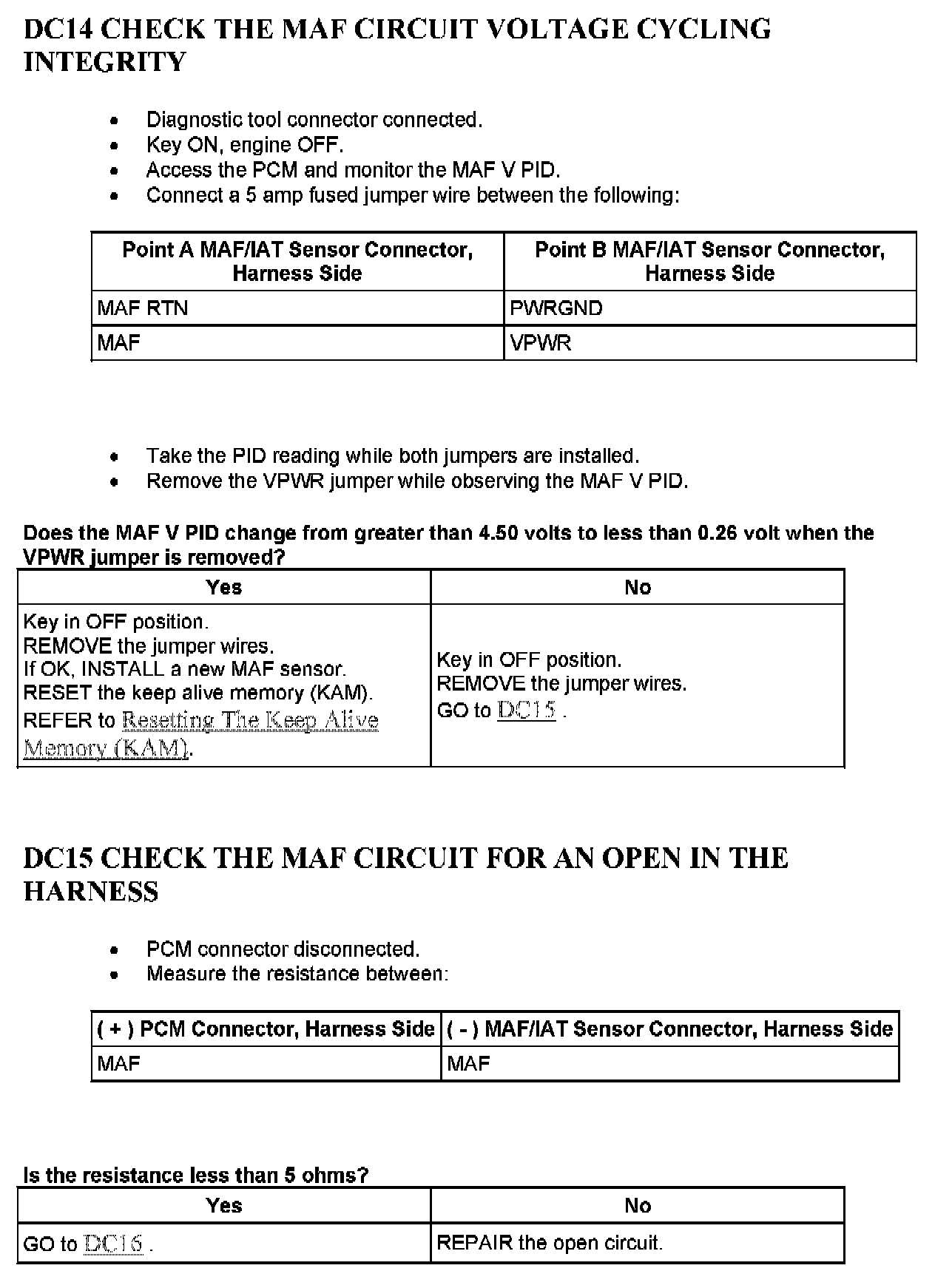

DC14 - DC15:

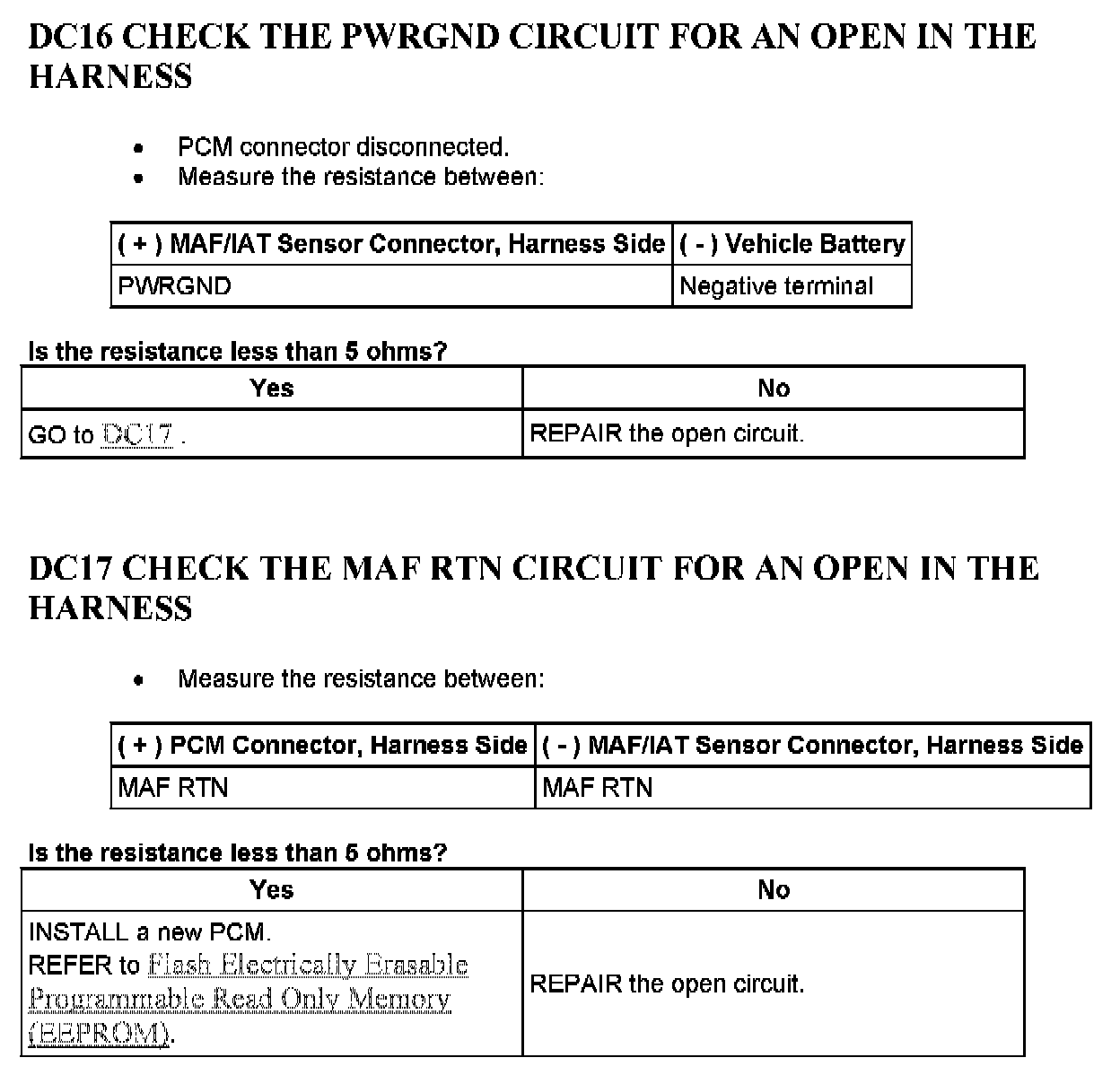

DC16 - DC17:

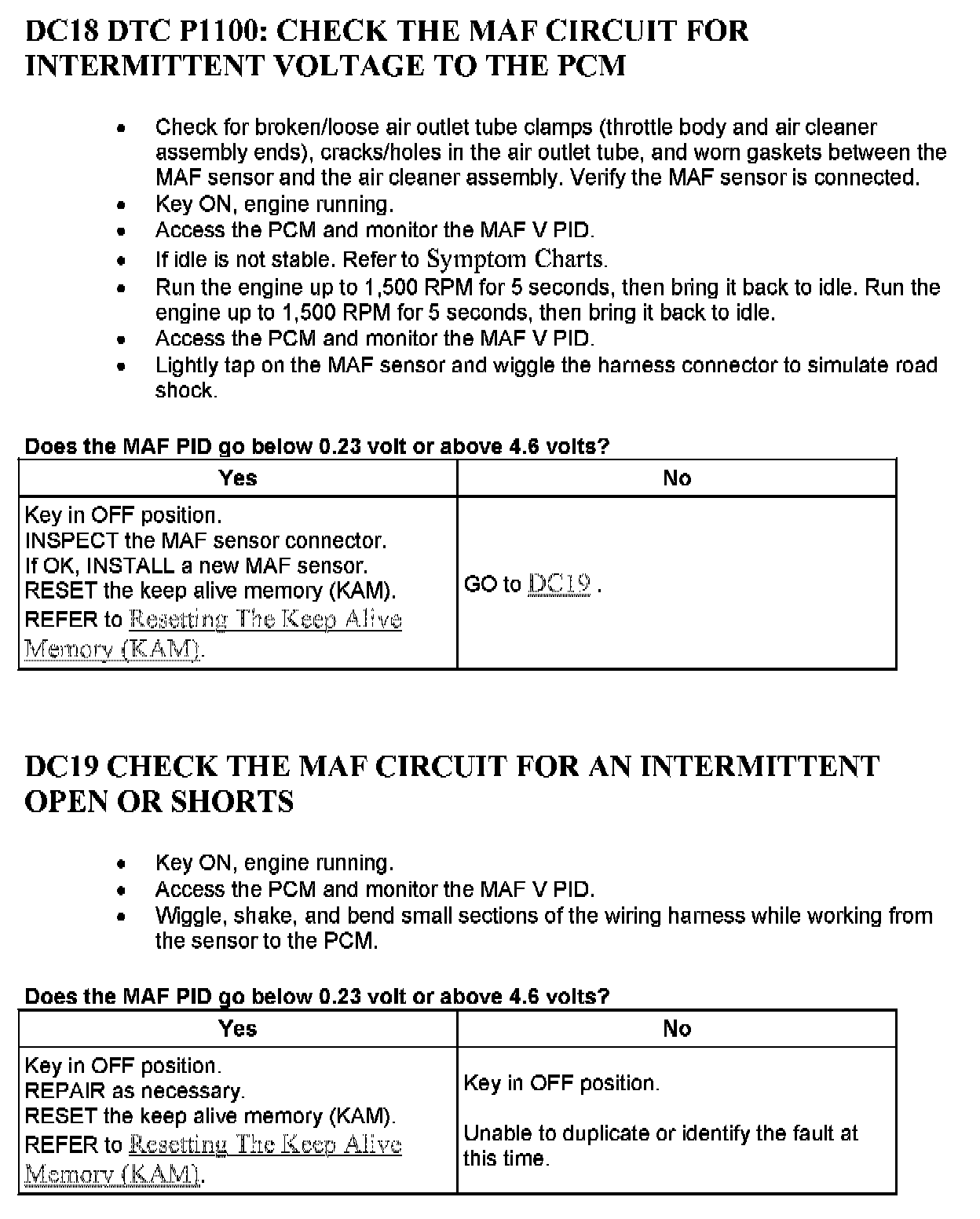

DC18 - DC19:

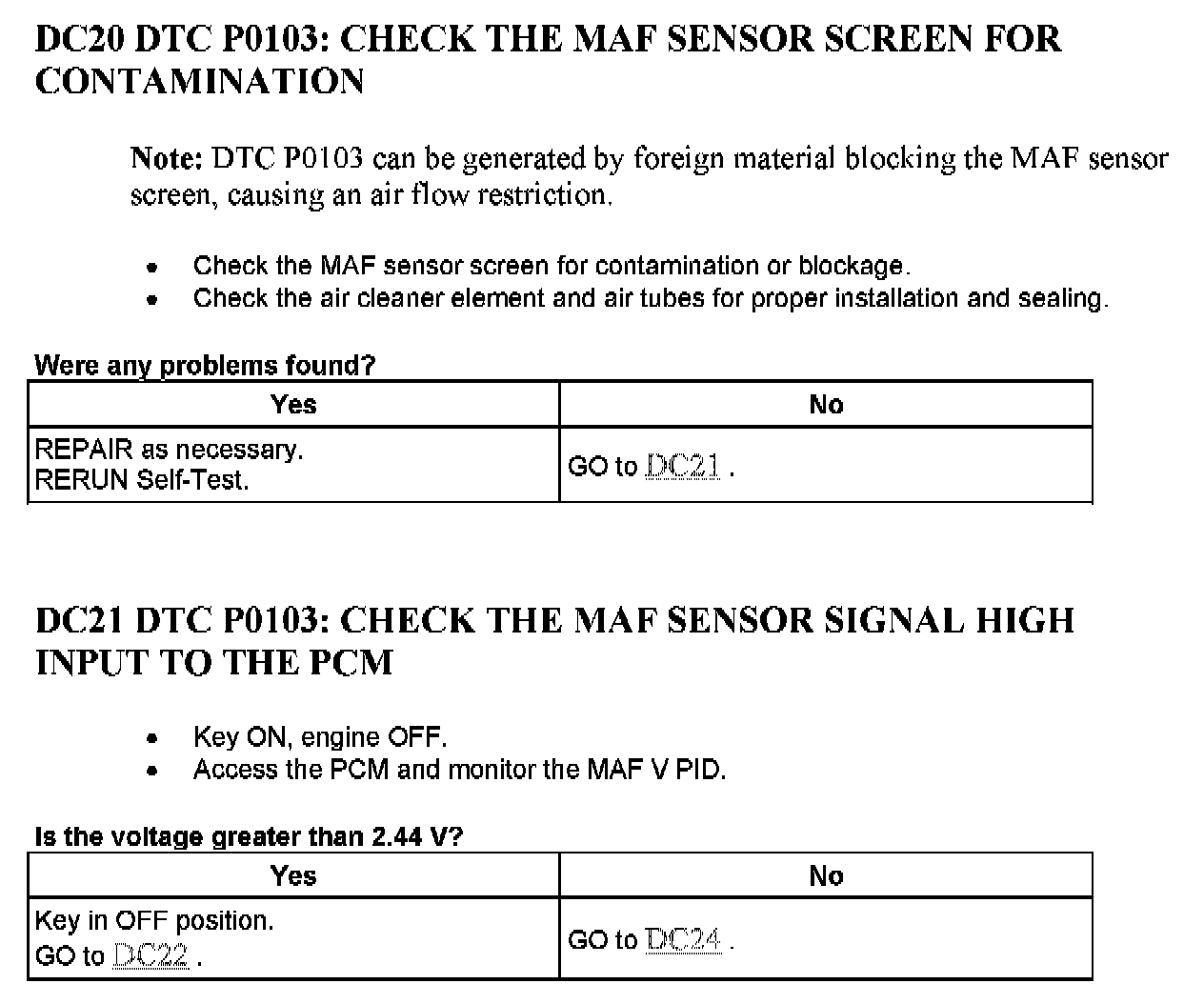

DC20 - DC21:

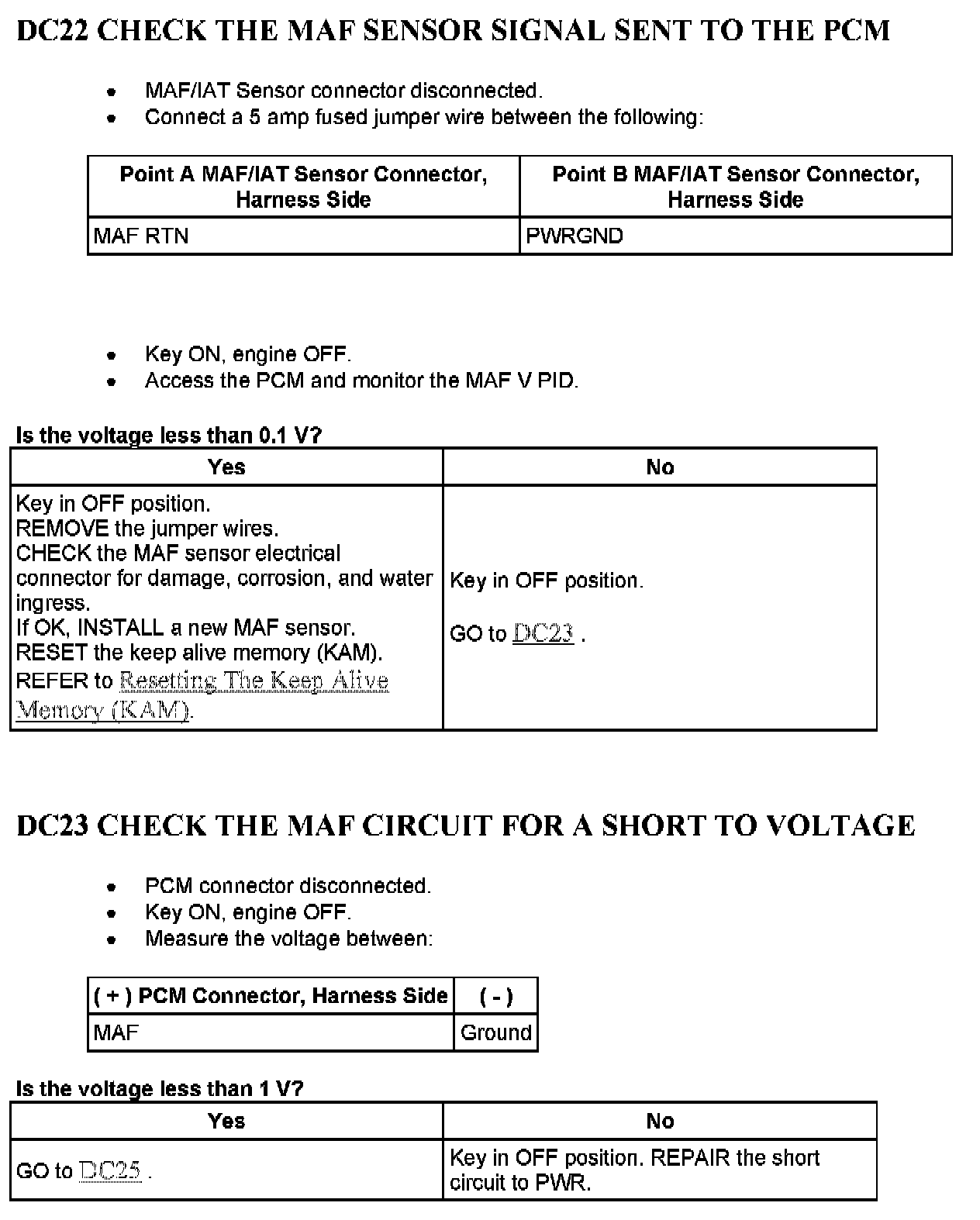

DC22 - DC23:

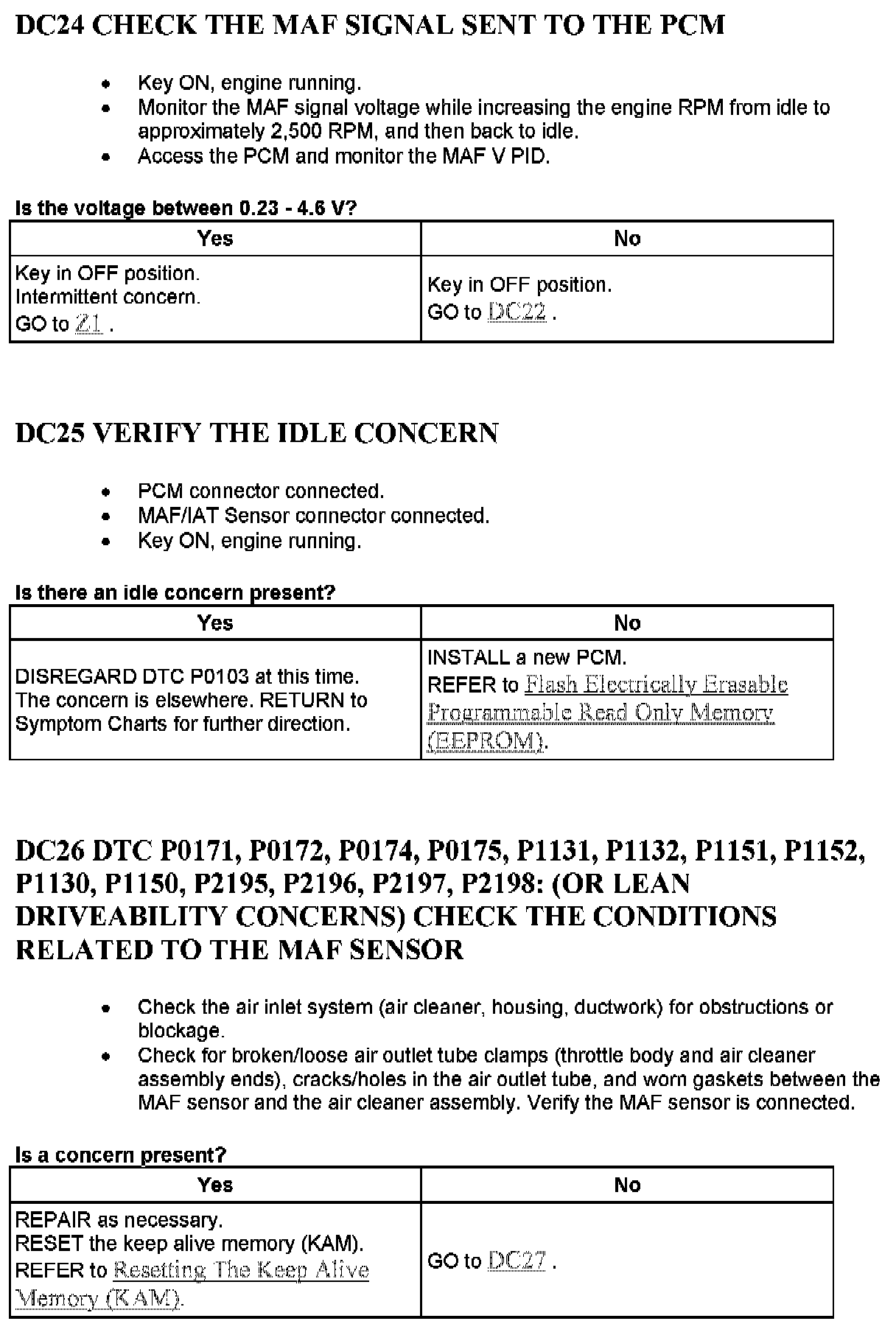

DC24 - DC26:

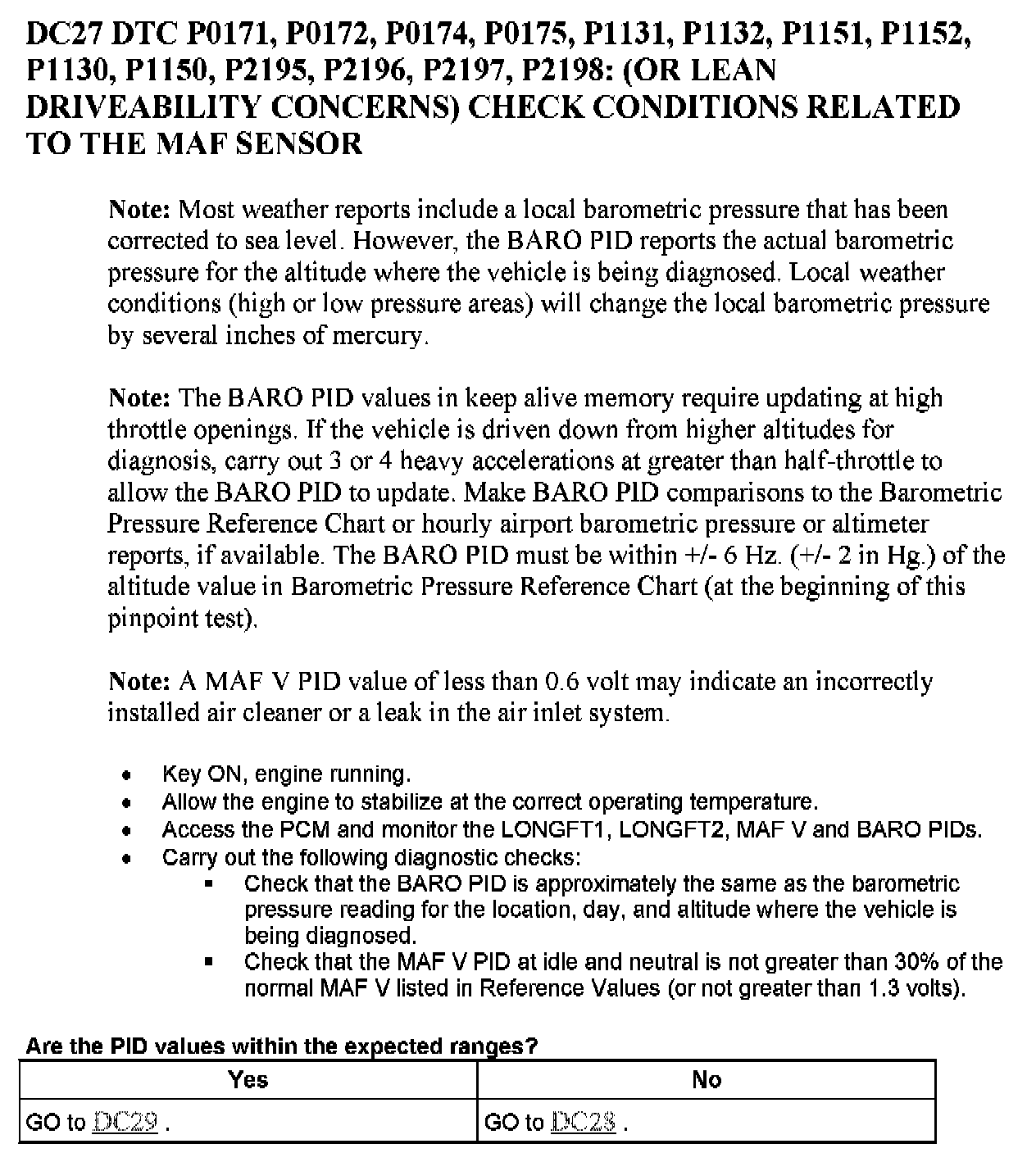

DC27:

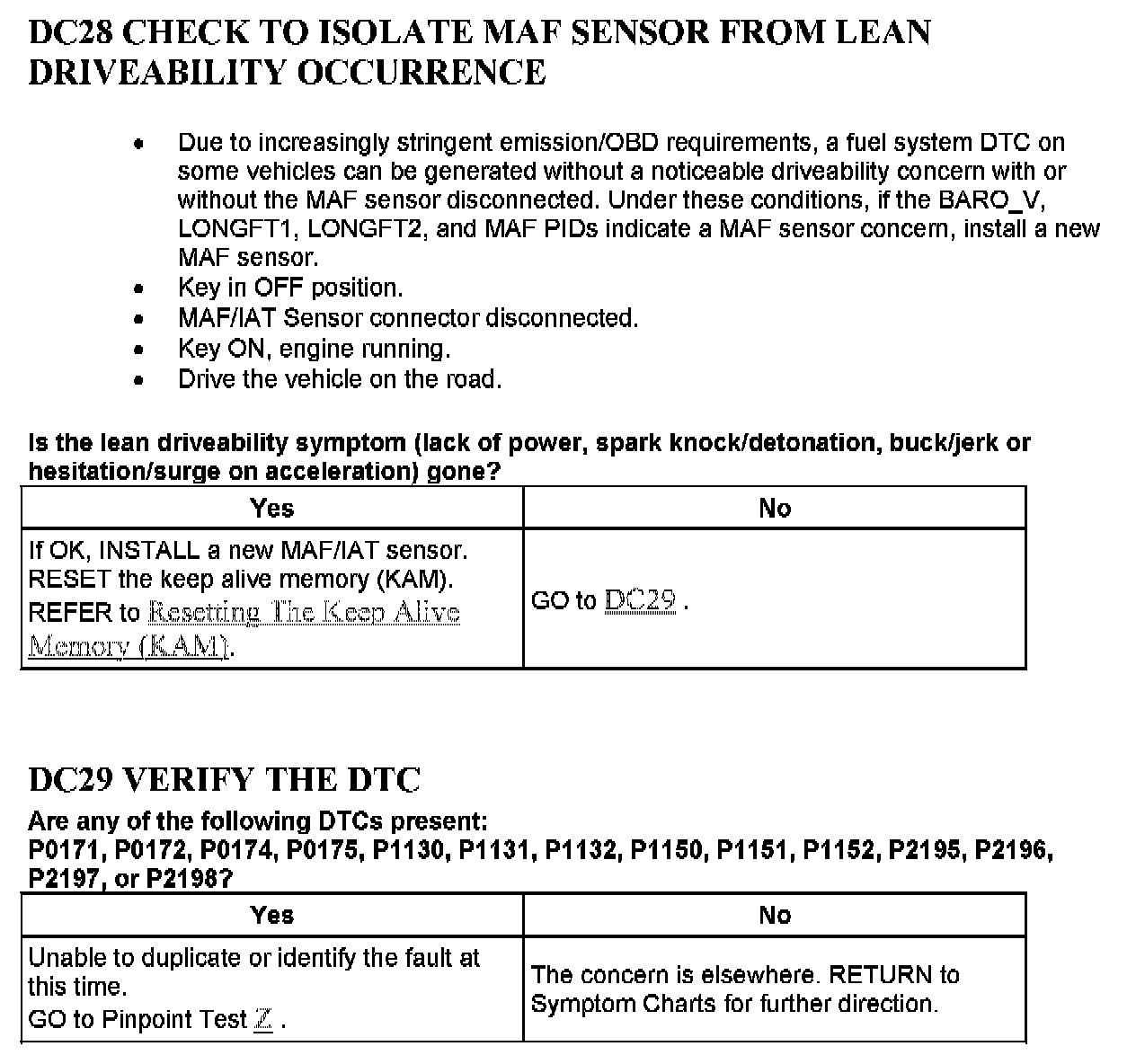

DC28:
