Tests DG: Knock Sensor



PINPOINT TEST DG: KNOCK SENSOR

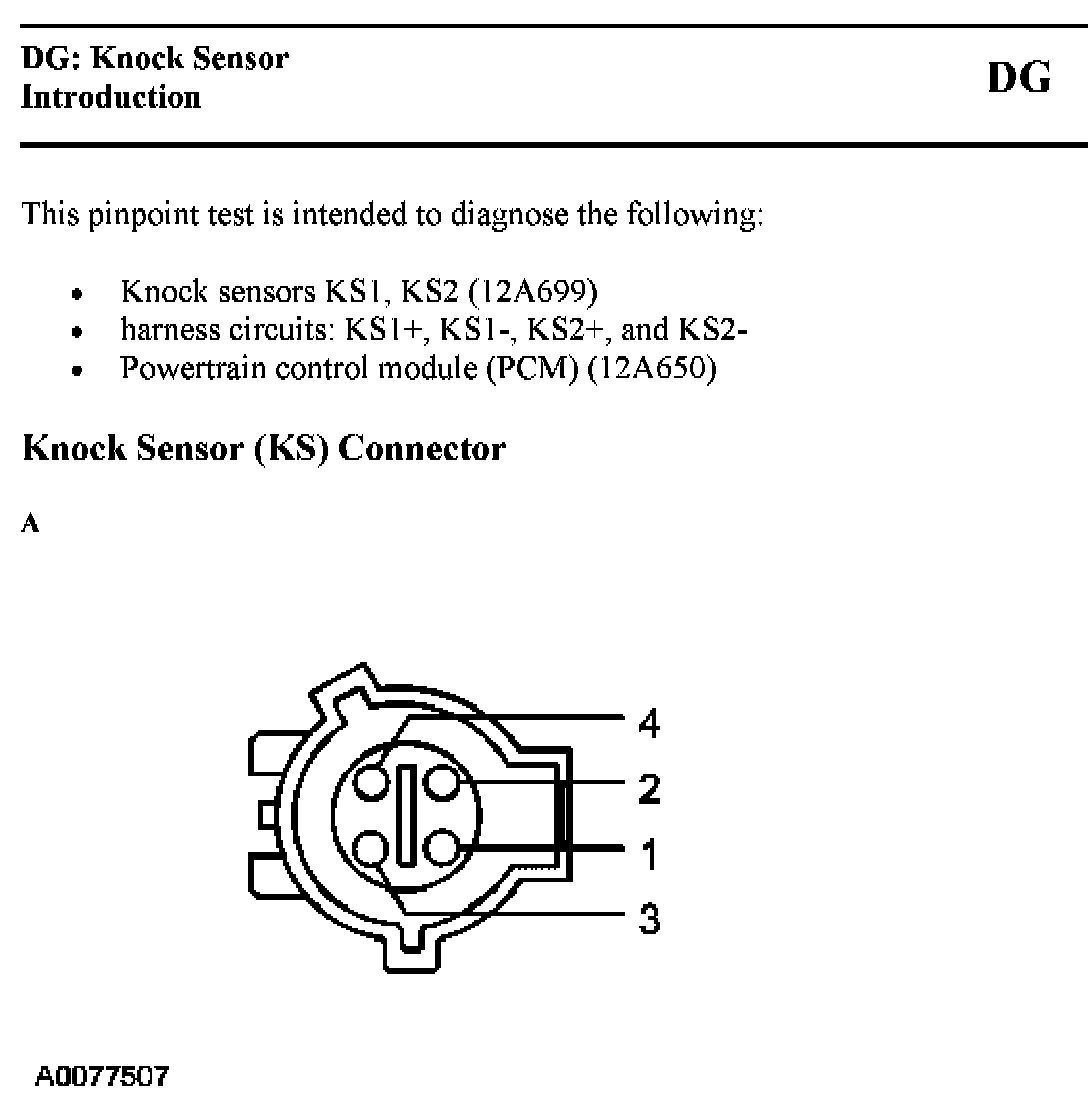

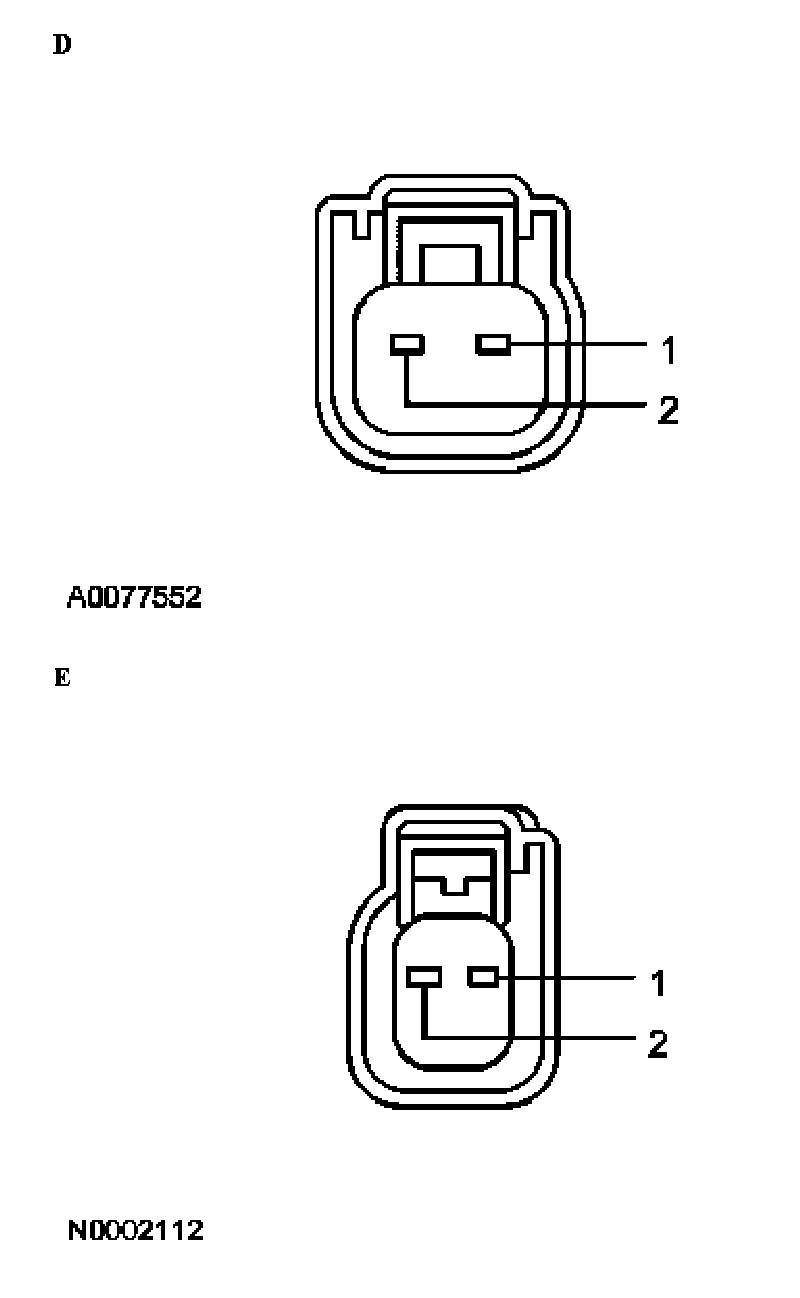

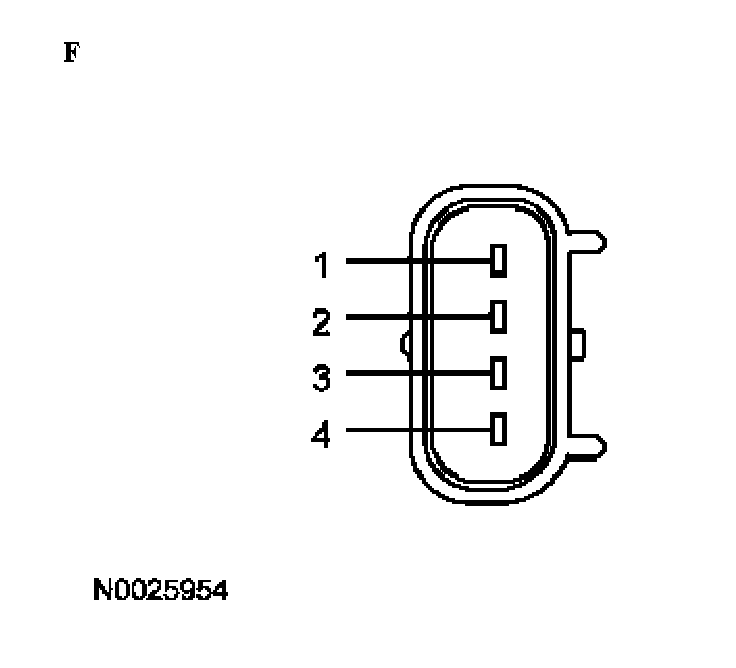

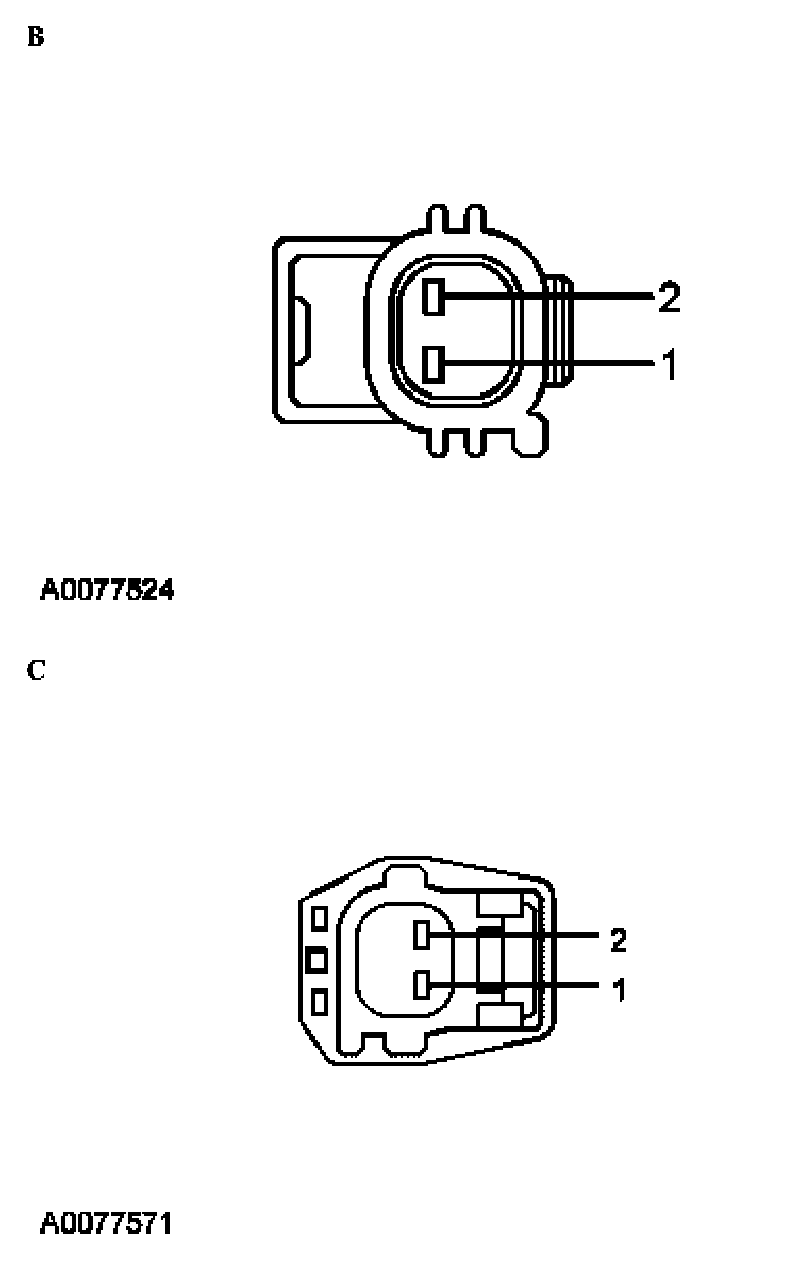

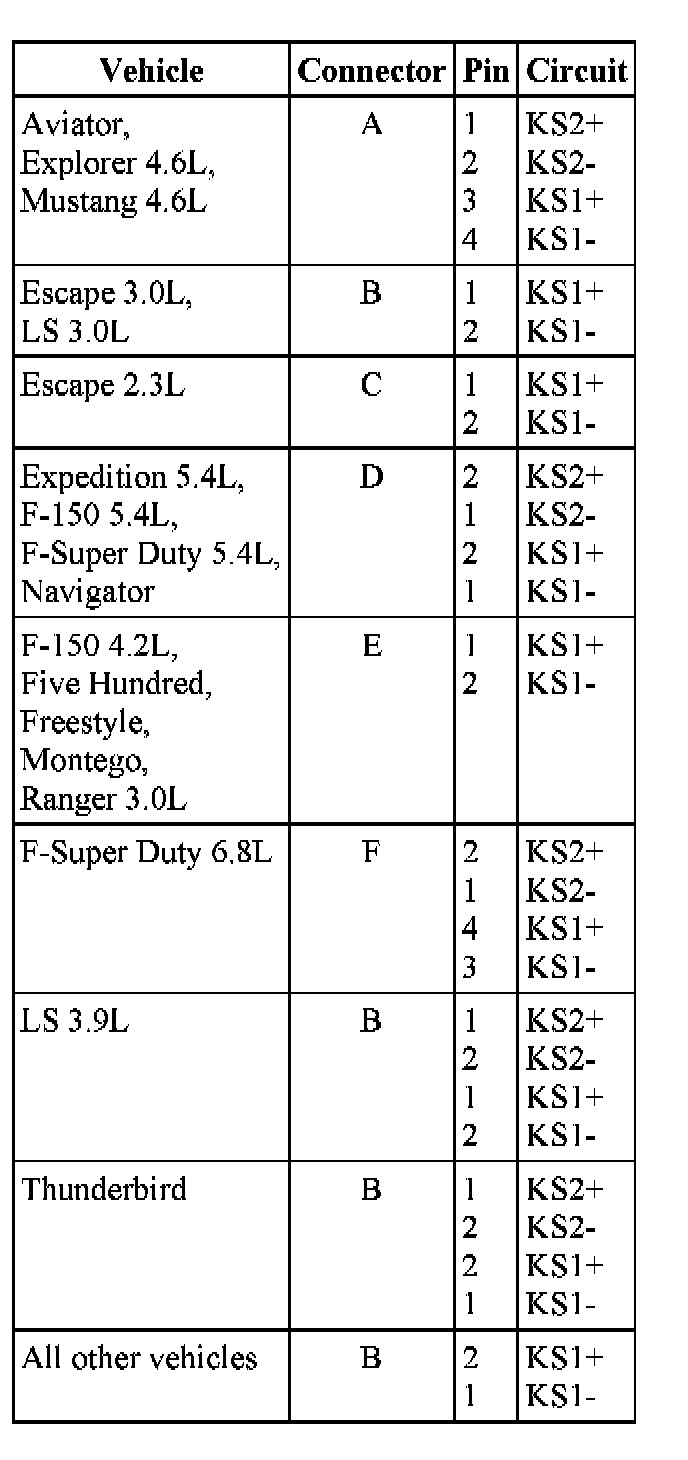

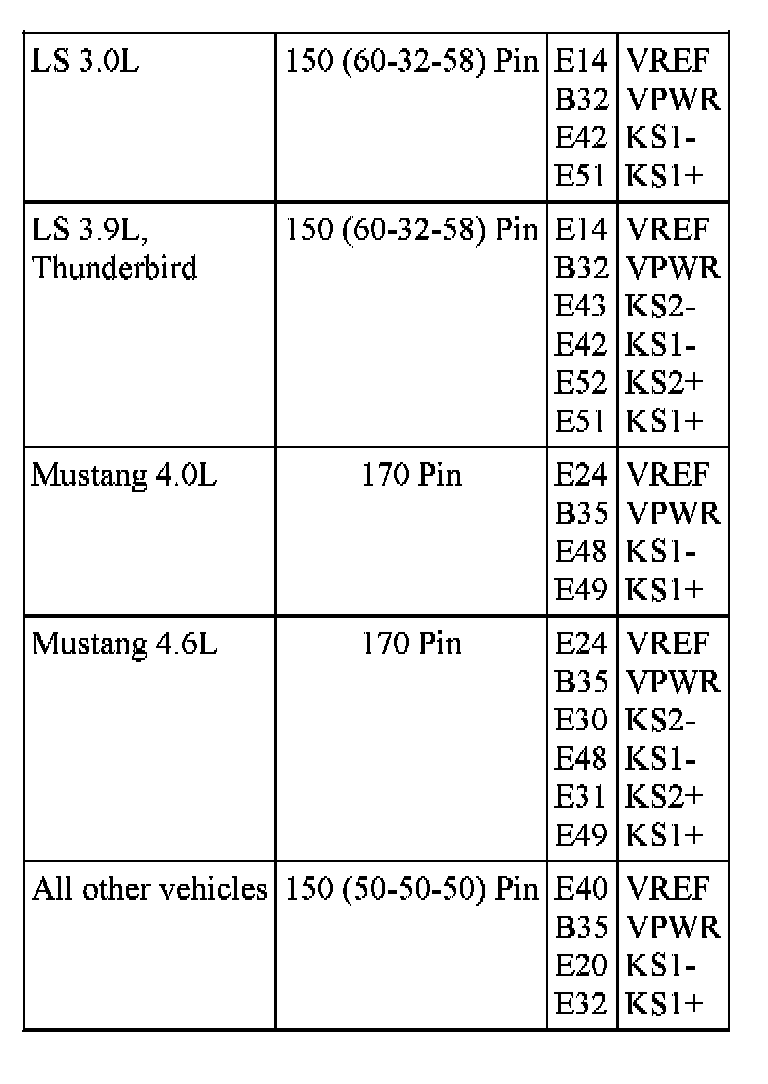

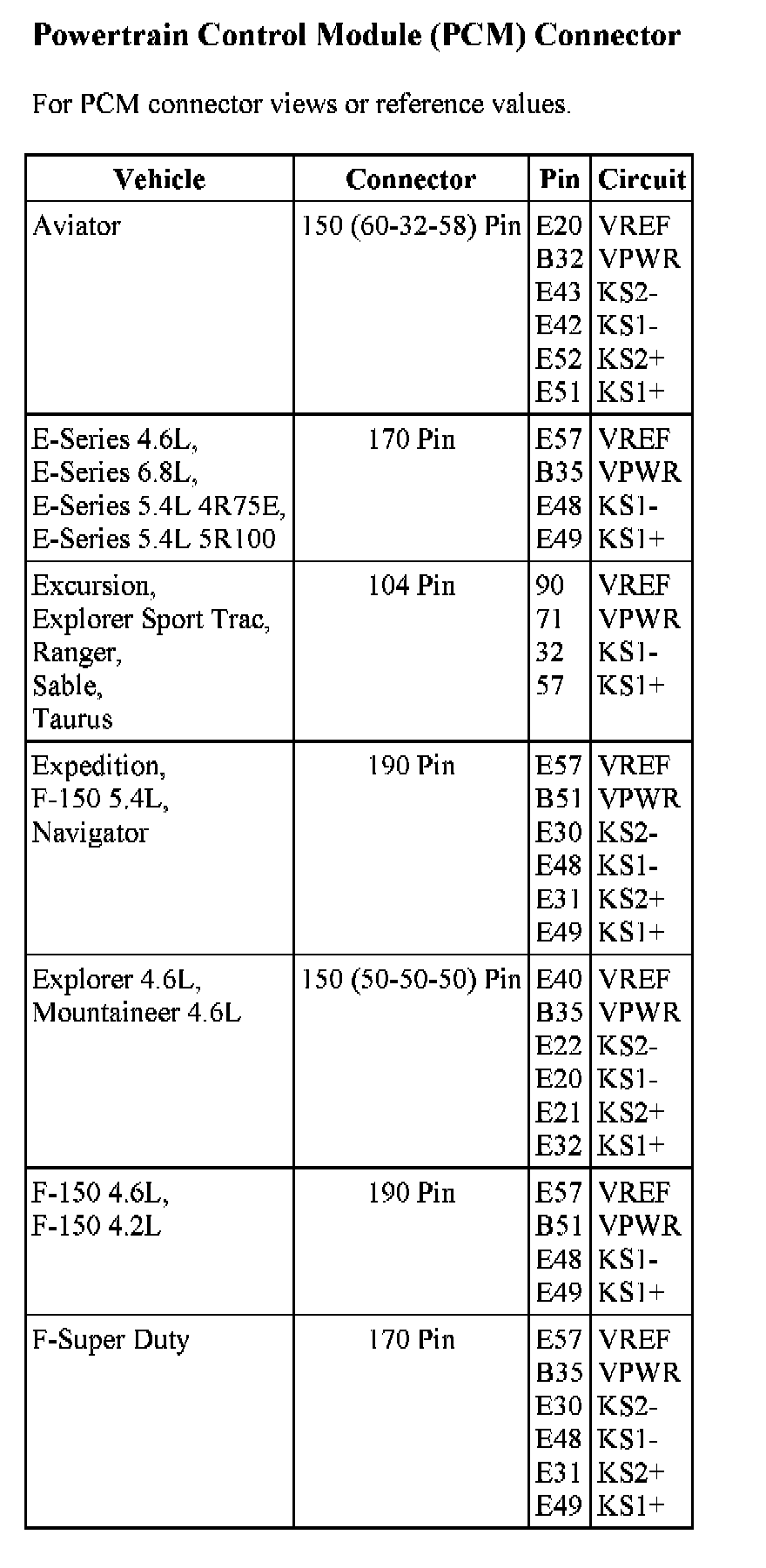

DG Introduction:





DG Introduction:





DG Introduction:





DG Introduction:





DG Introduction:





DG Introduction:





DG Introduction:

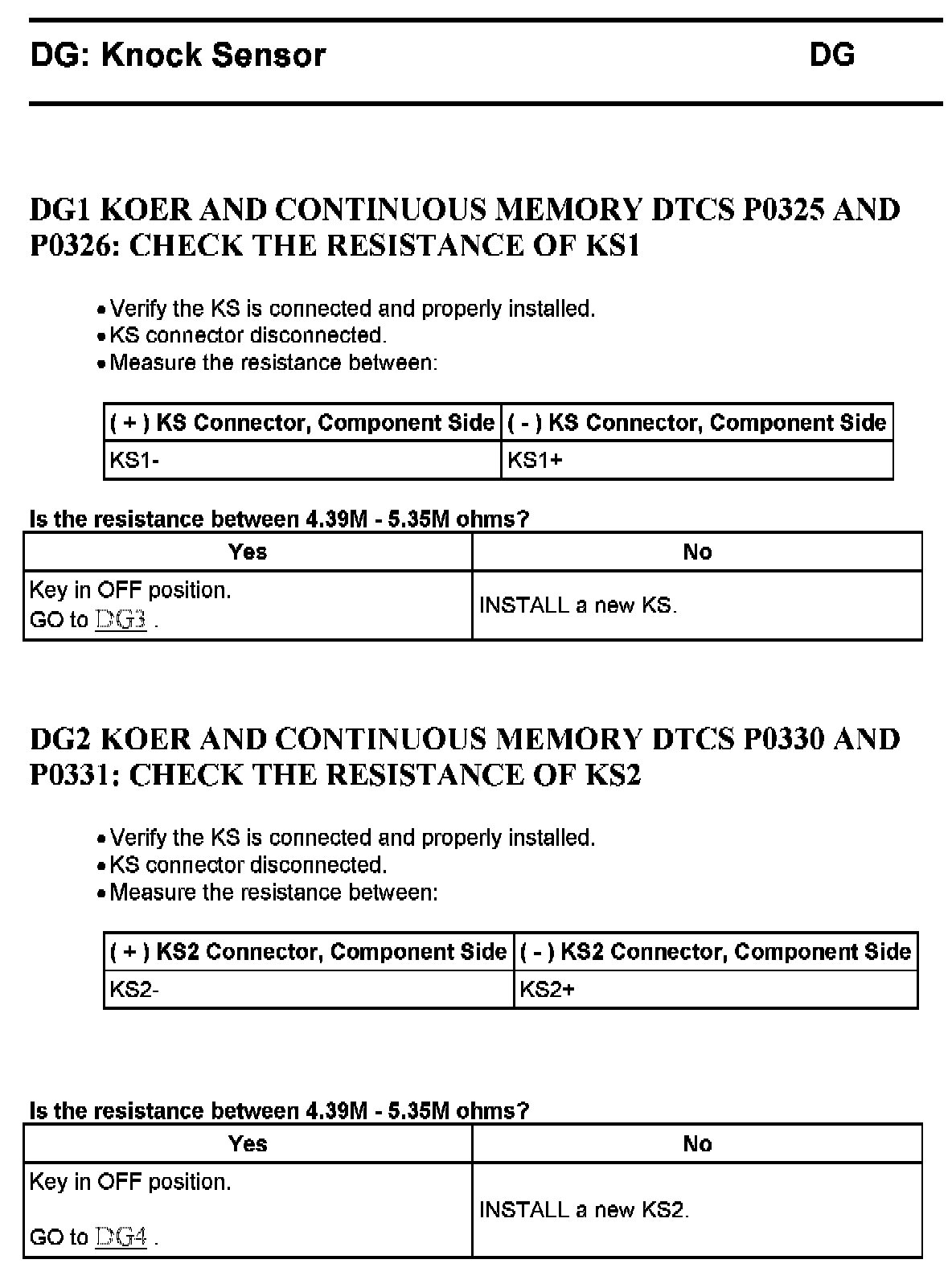

DG1 - DG2:

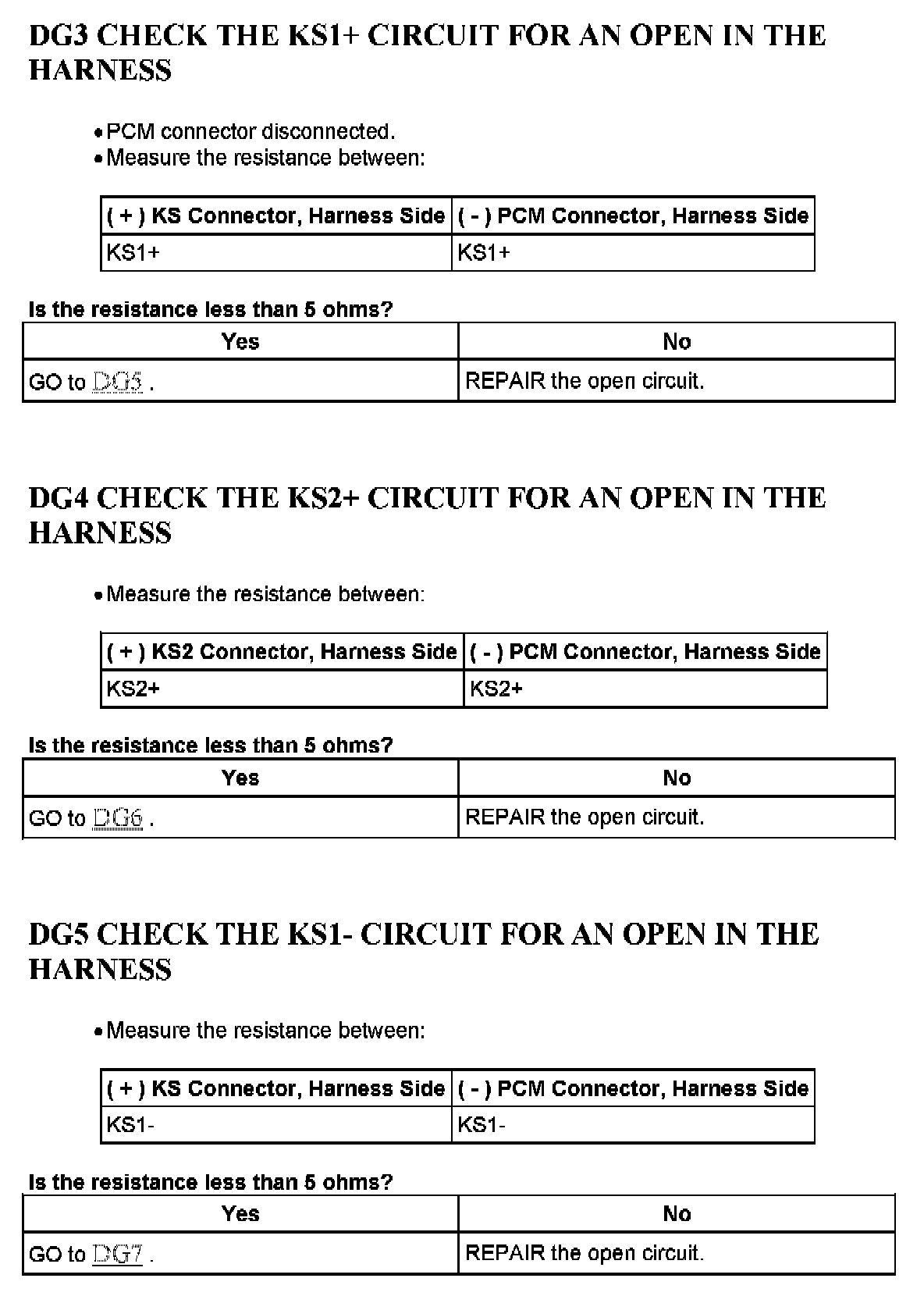

DG3 - DG5:

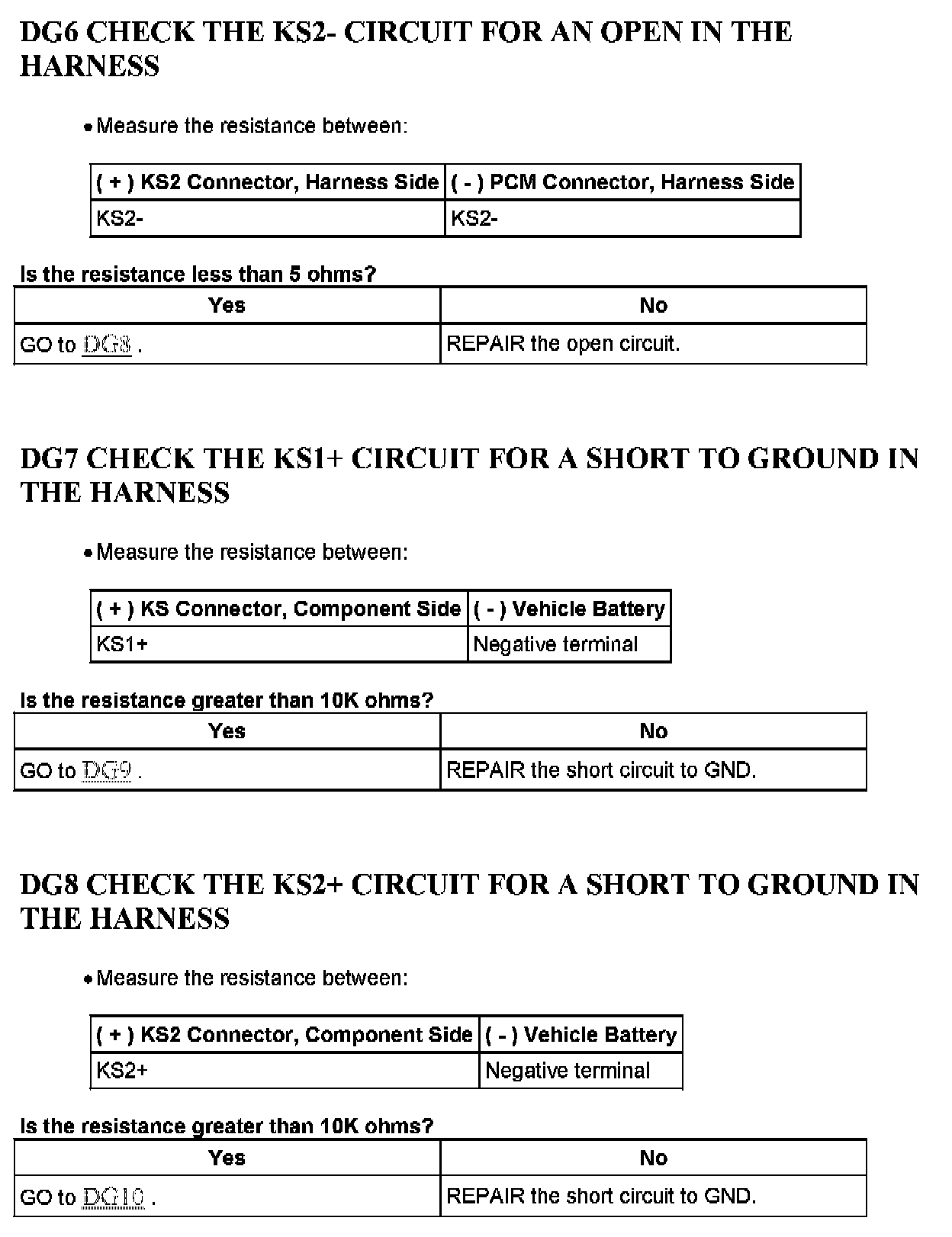

DG6 - DG8:

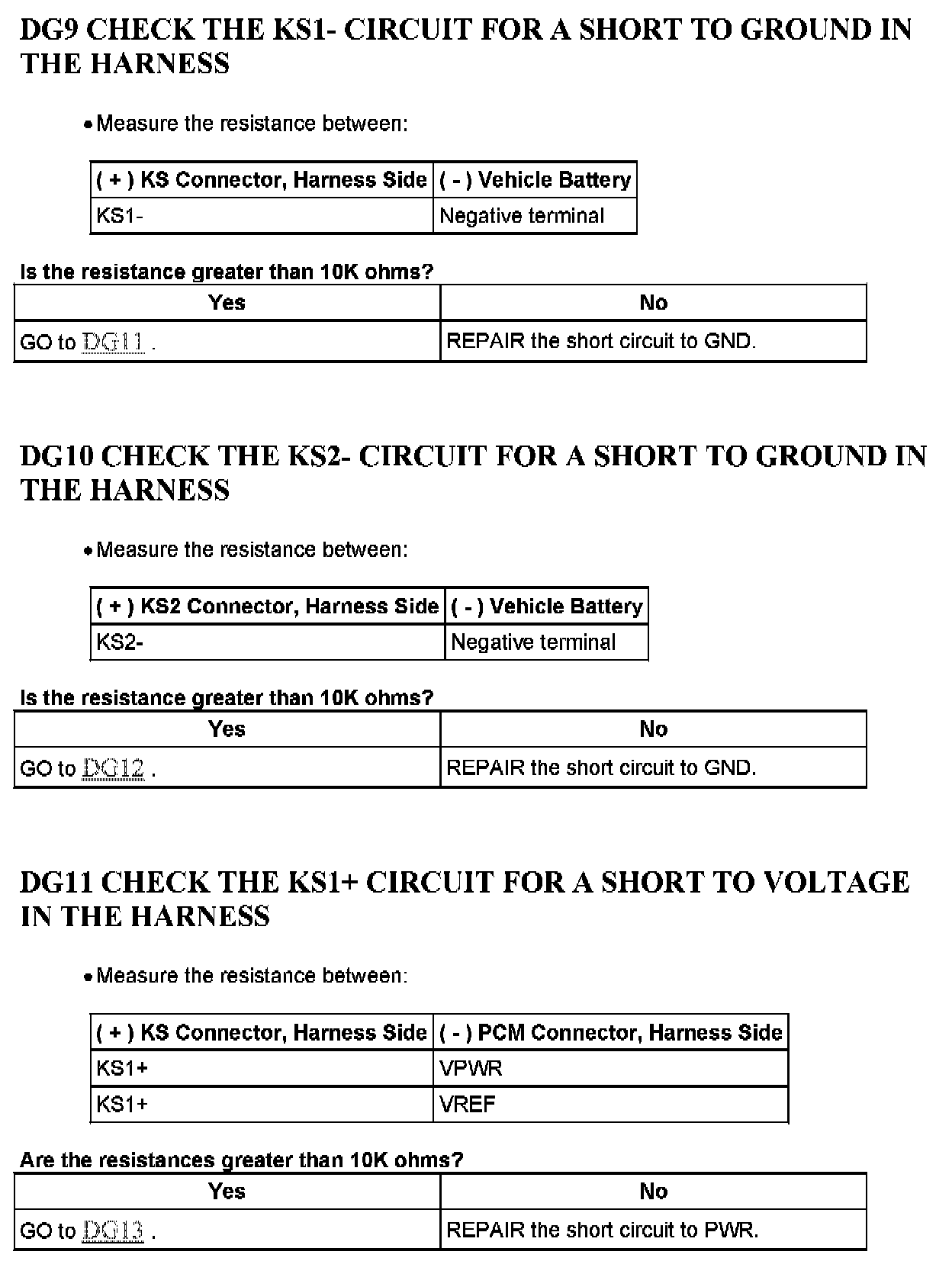

DG9 - DG11:

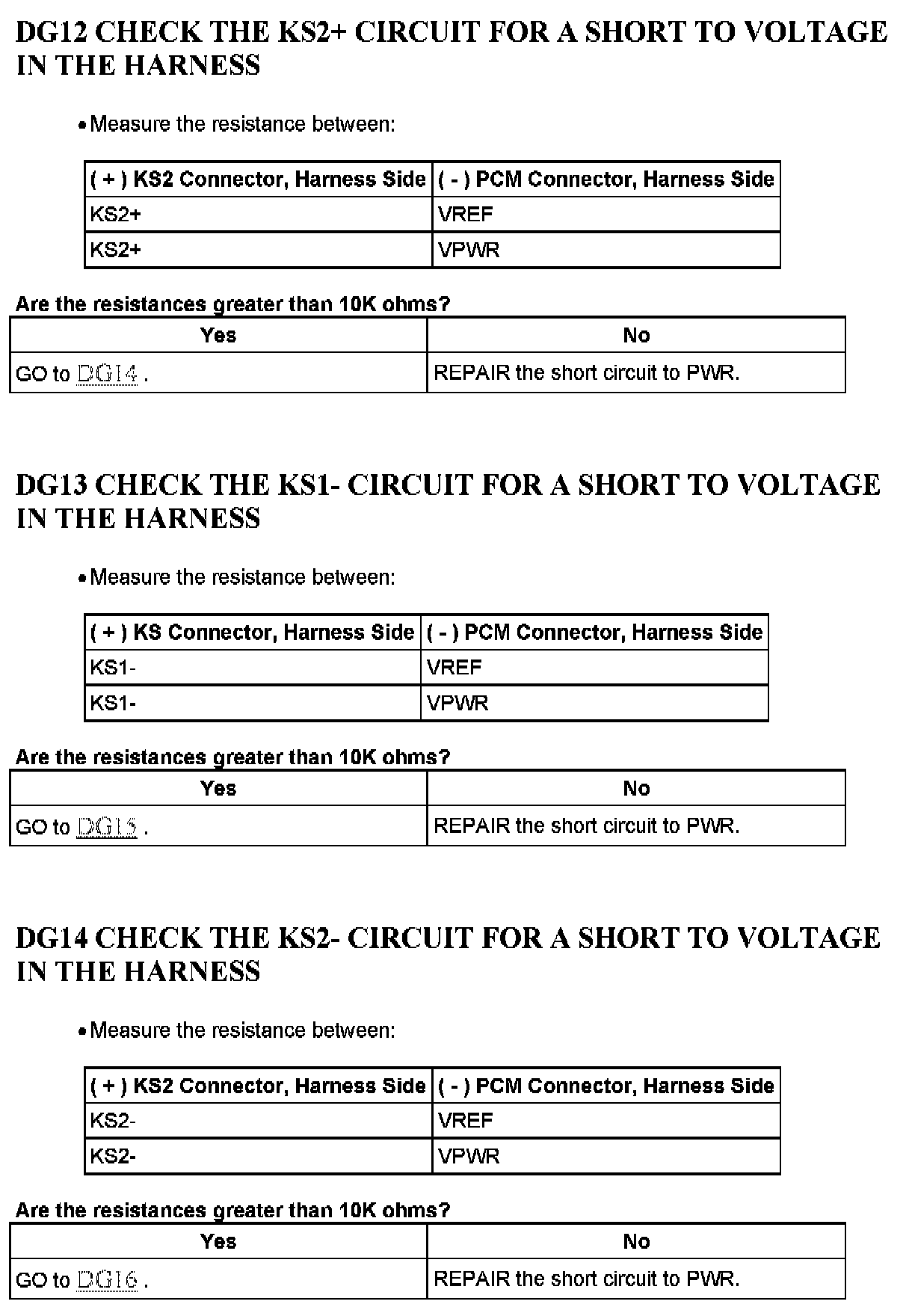

DG12 - DG14:

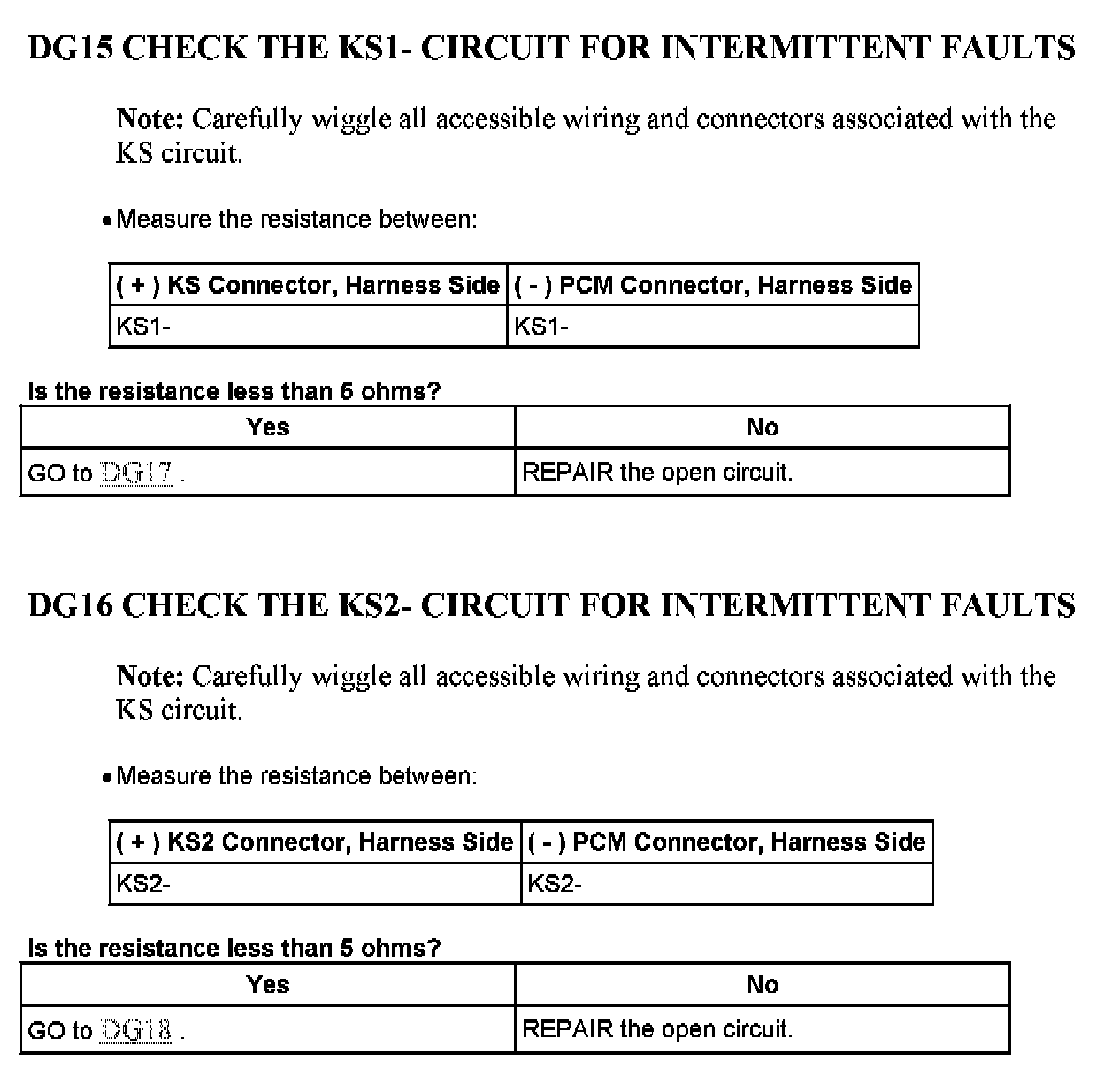

DG15 - DG16:

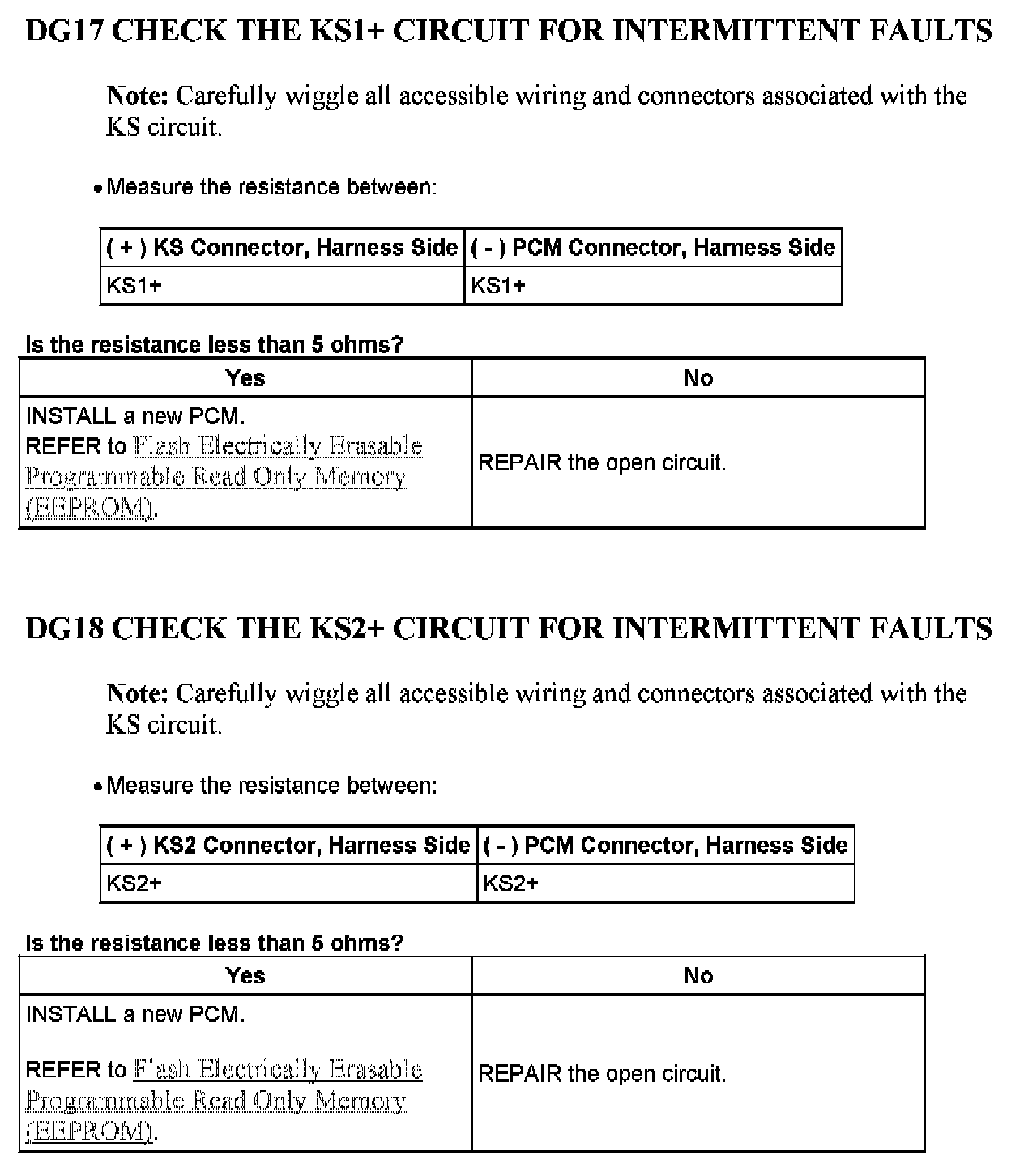

DG17 - DG18:
