Tests DU: Intake Air Temperature 2 (IAT2) Sensor



PINPOINT TEST DU: INTAKE AIR TEMPERATURE 2 (IAT2) SENSOR

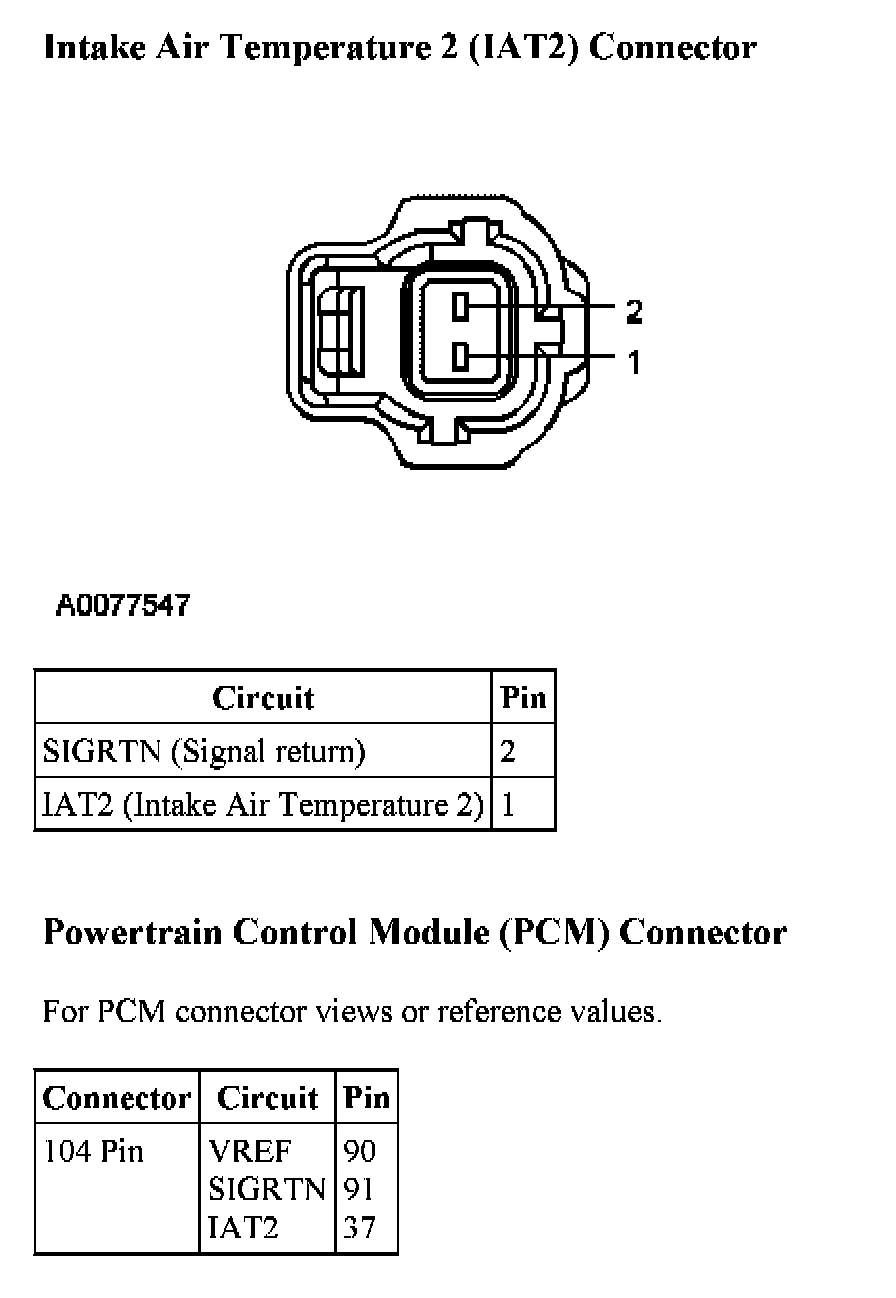

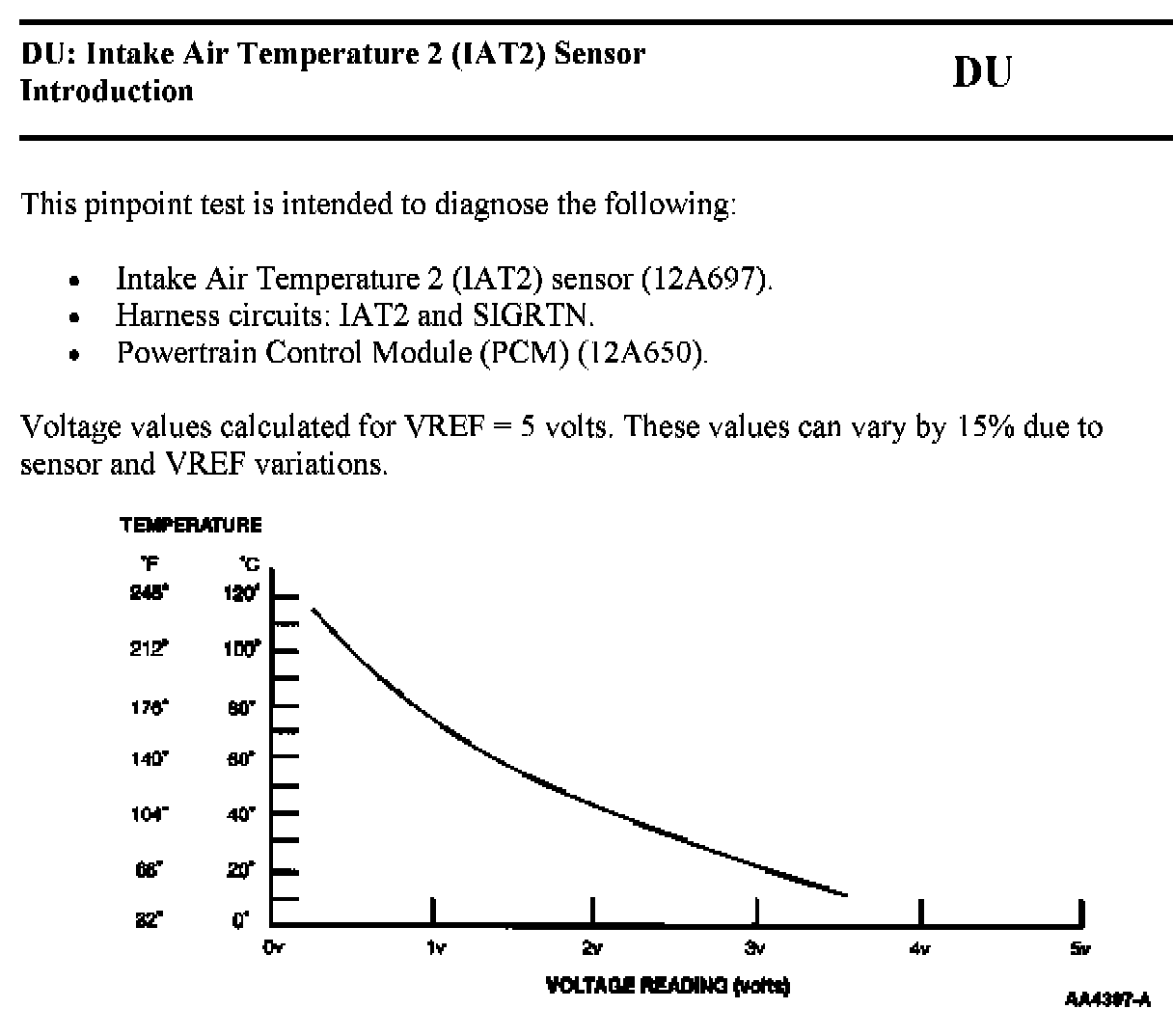

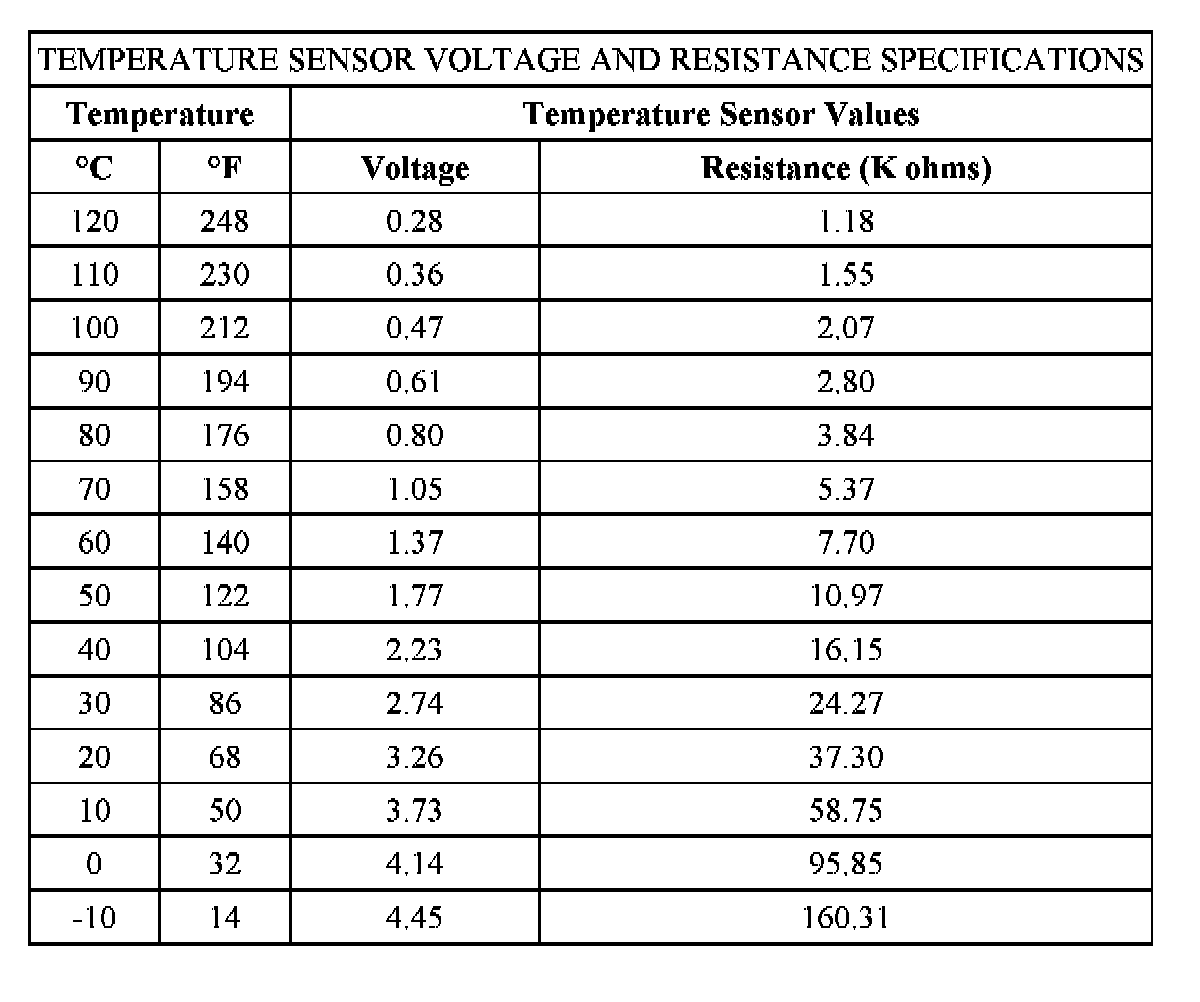

DU Introduction:





DU Introduction:





DU Introduction:

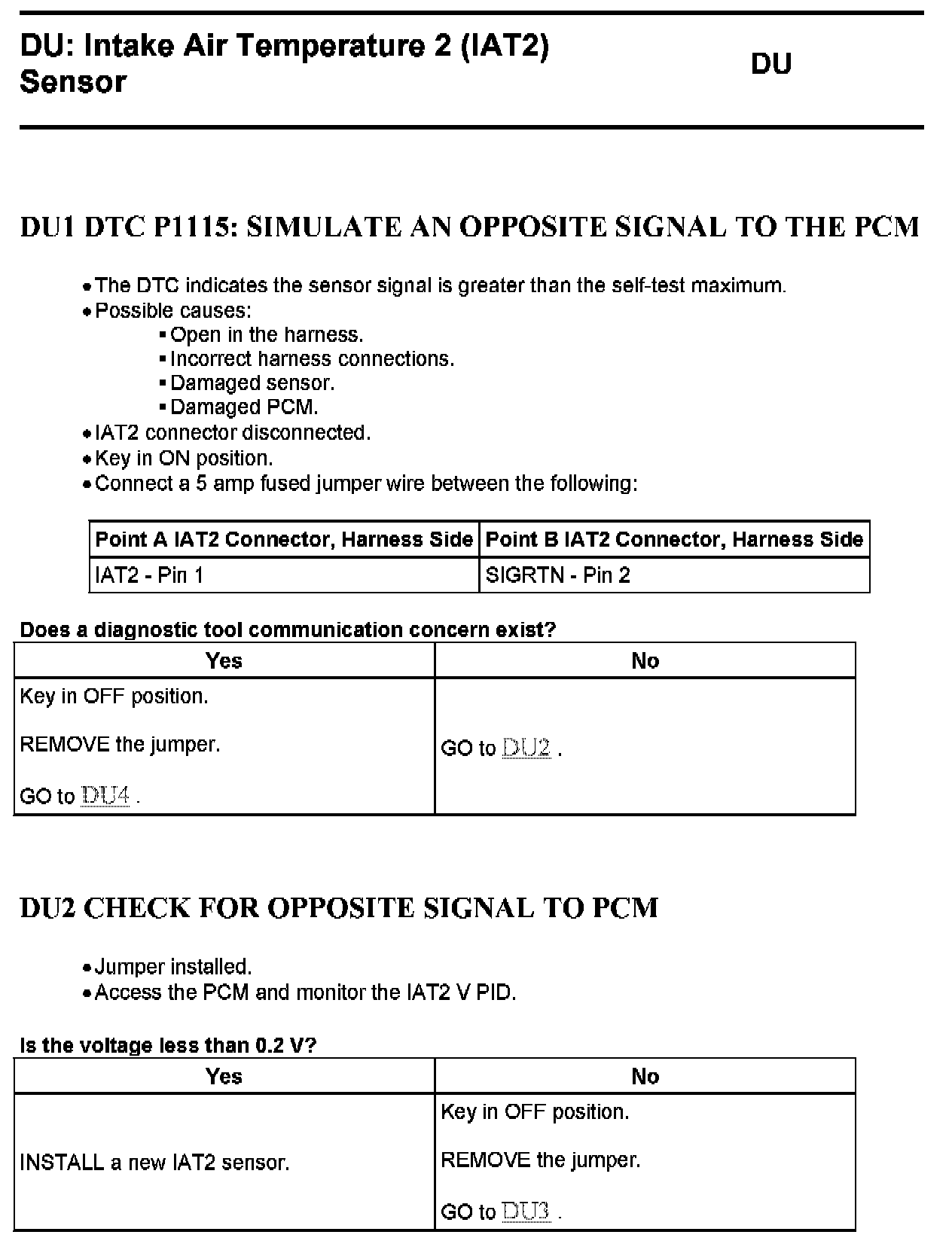

DU1 - DU2:

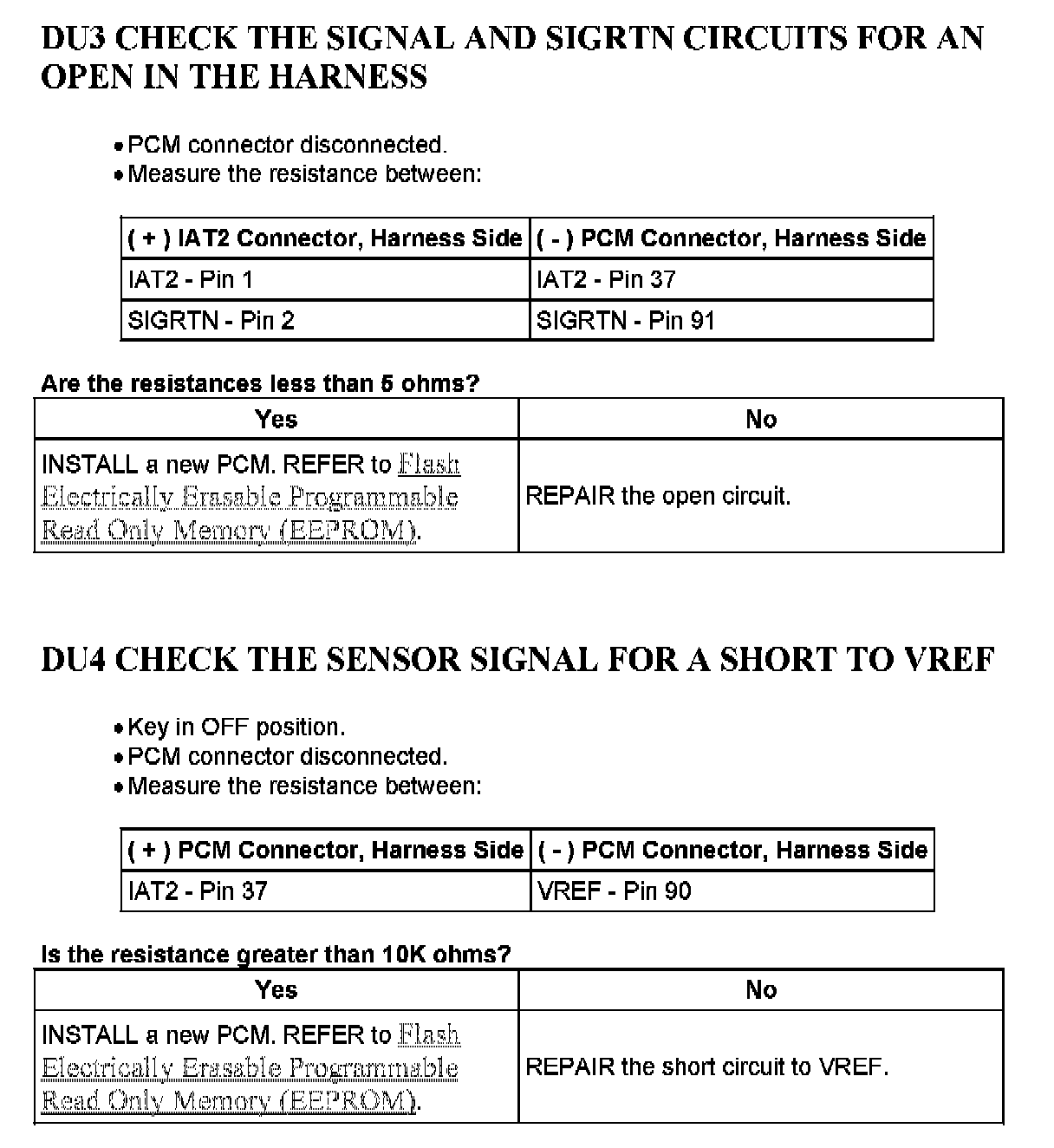

DU3 - DU4:

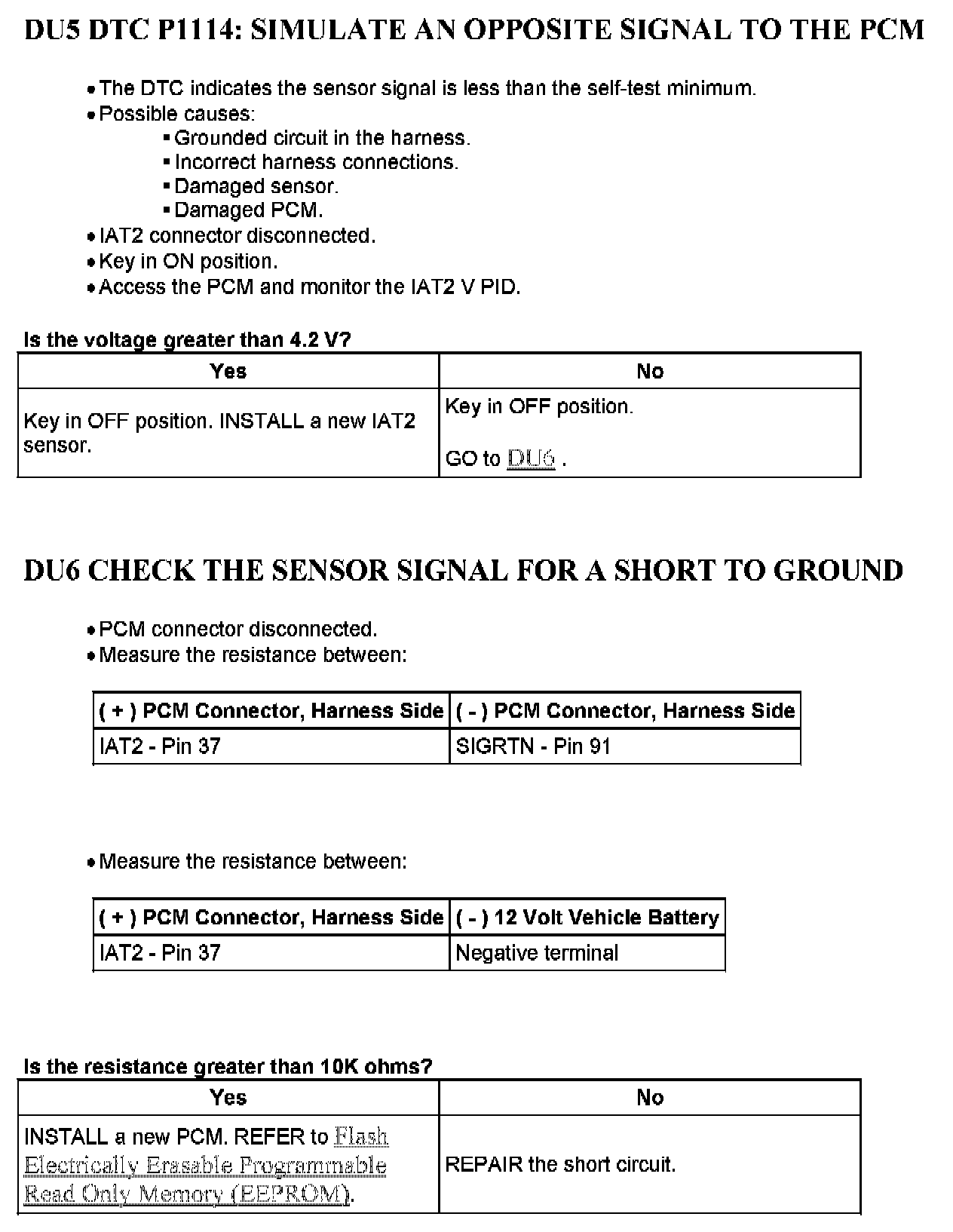

DU5 - DU6:

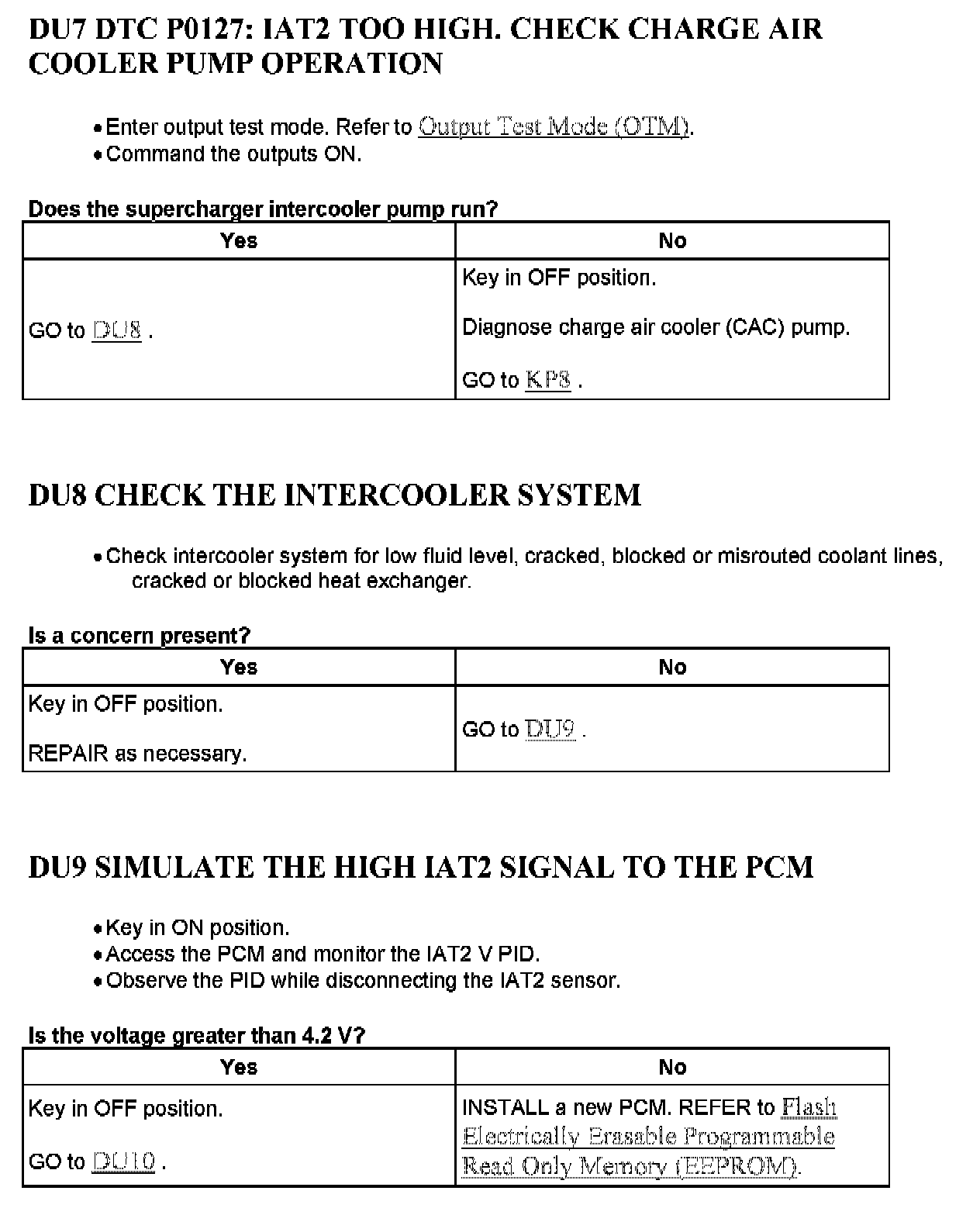

DU7 - DU9:

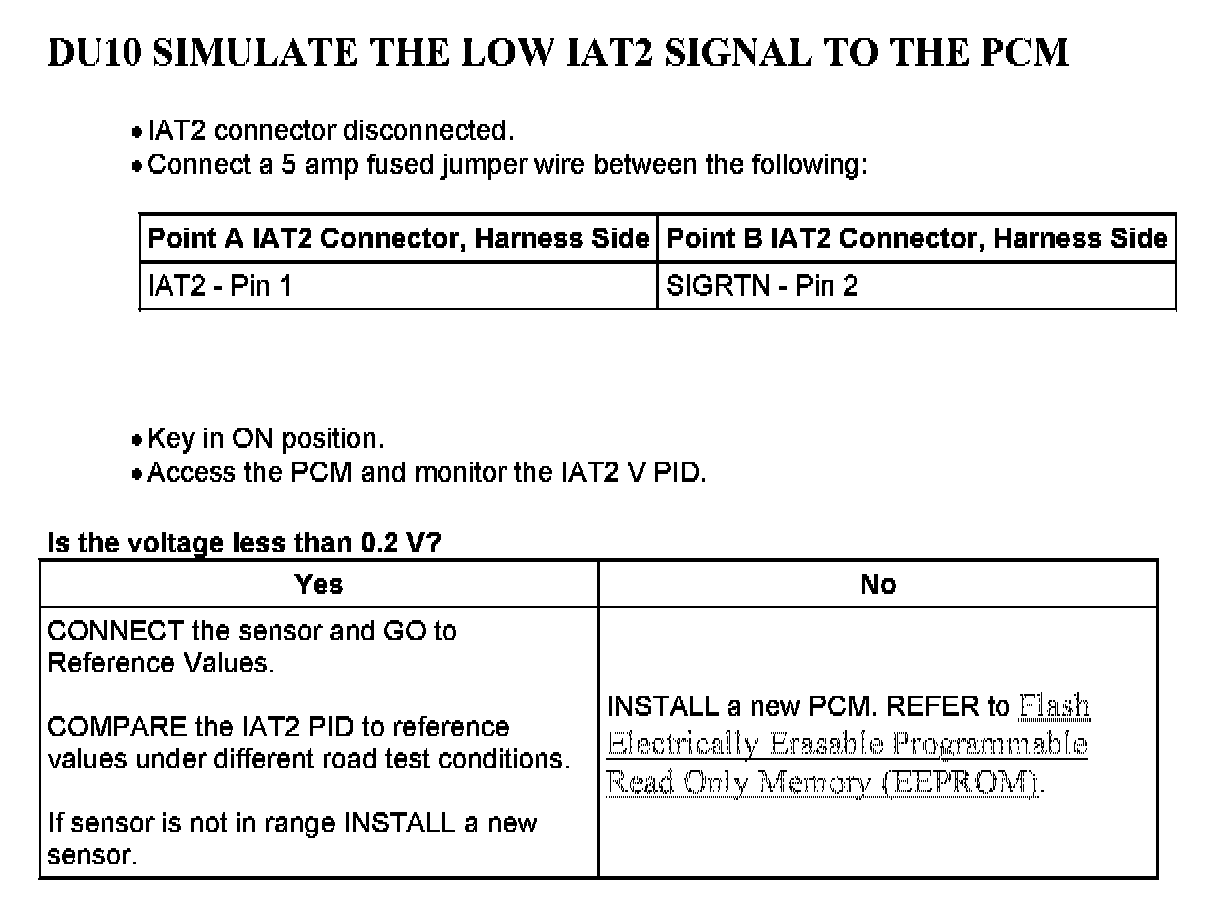

DU10:
