Tests FD: Brake Pedal Inputs



PINPOINT TEST FD: BRAKE PEDAL INPUTS

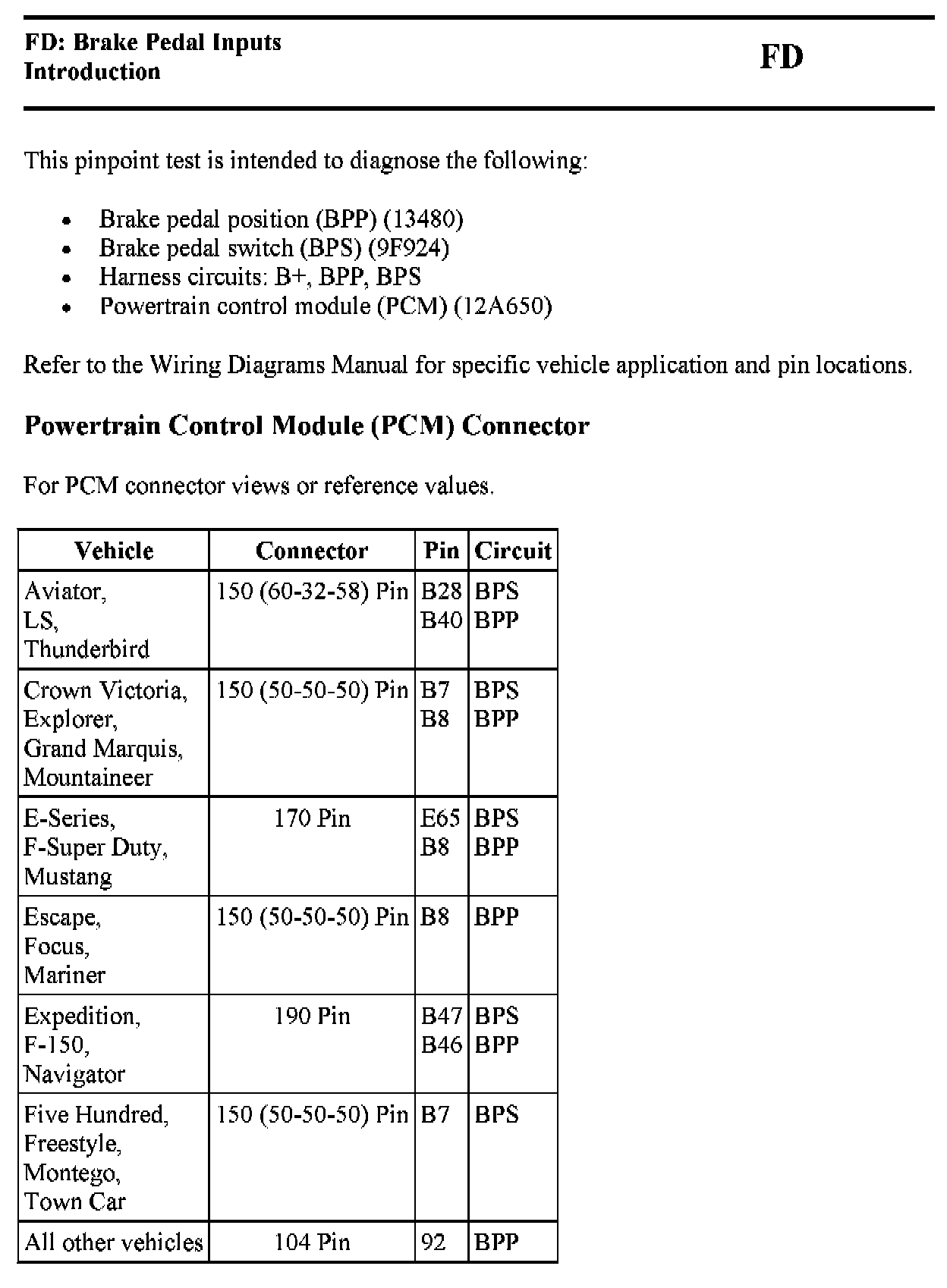

FD Introduction:

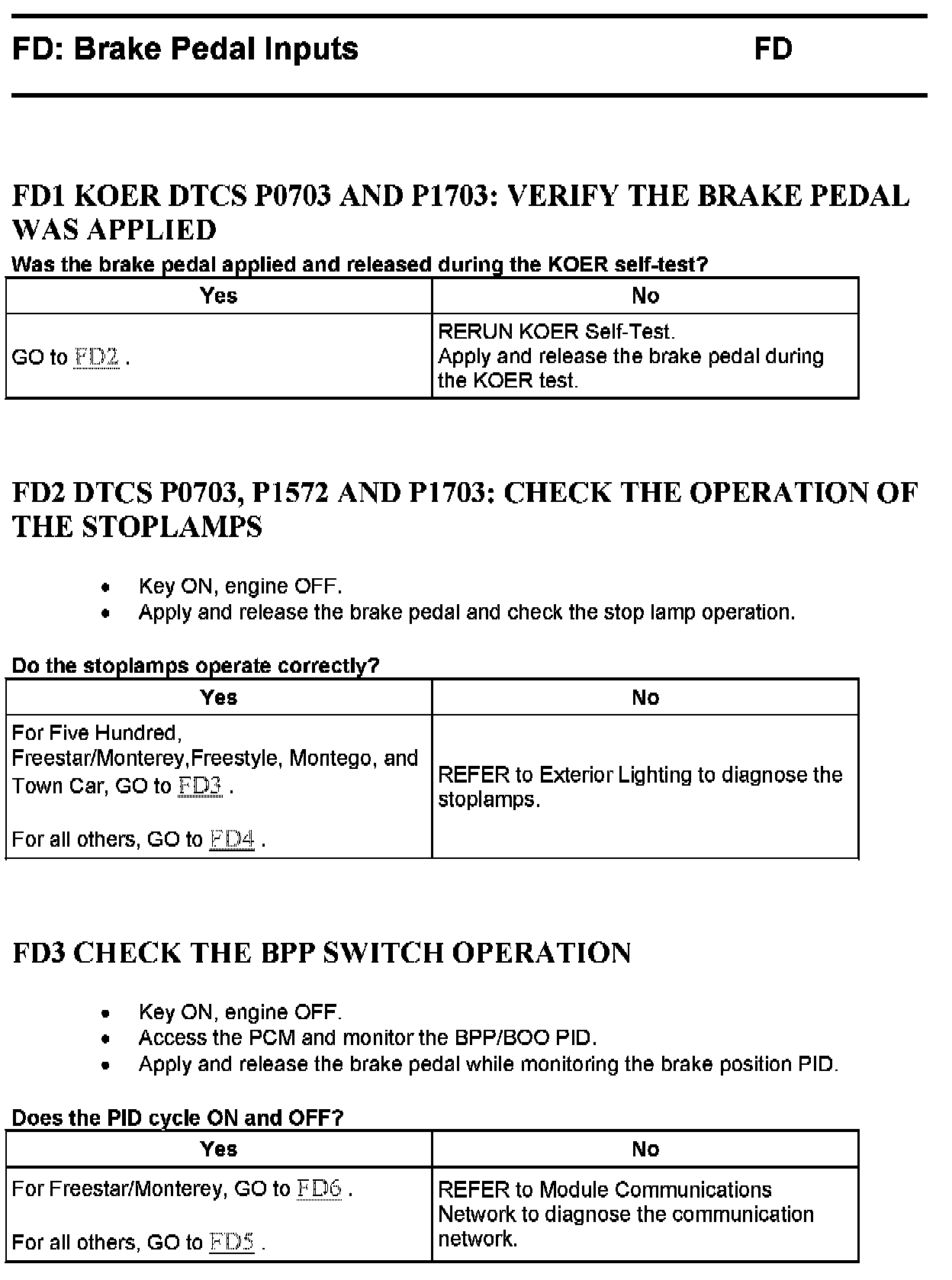

FD1 - FD3:

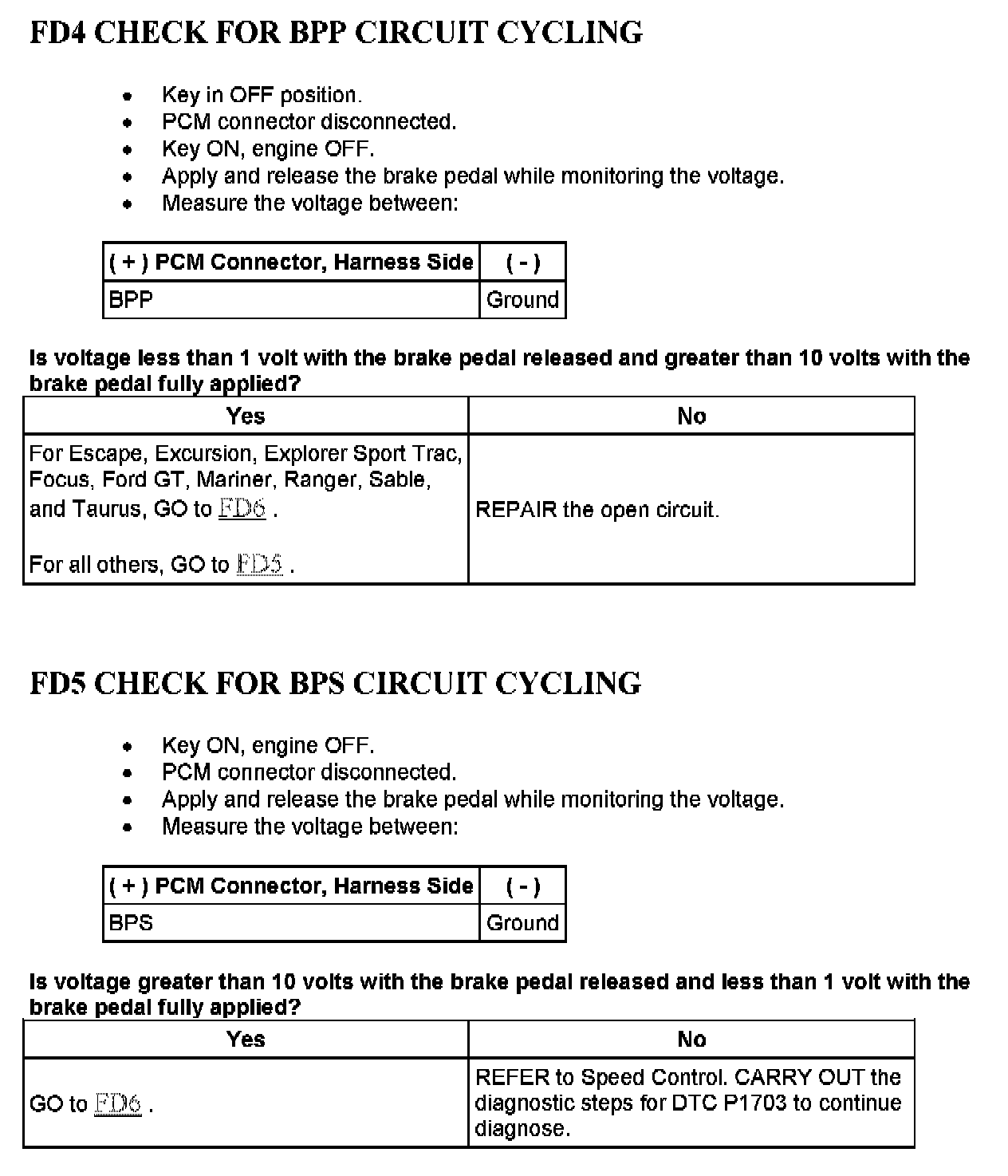

FD4 - FD5:

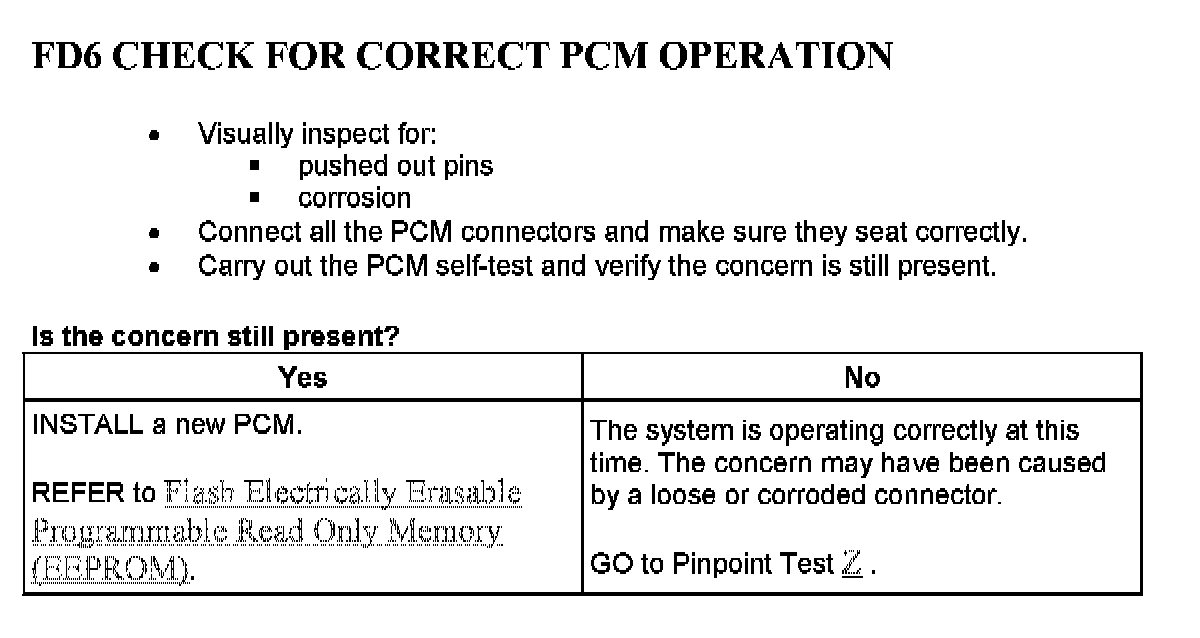

FD6:
