Tests HK: Variable Cam Timing (VCT)



PINPOINT TEST HK: VARIABLE CAM TIMING (VCT)

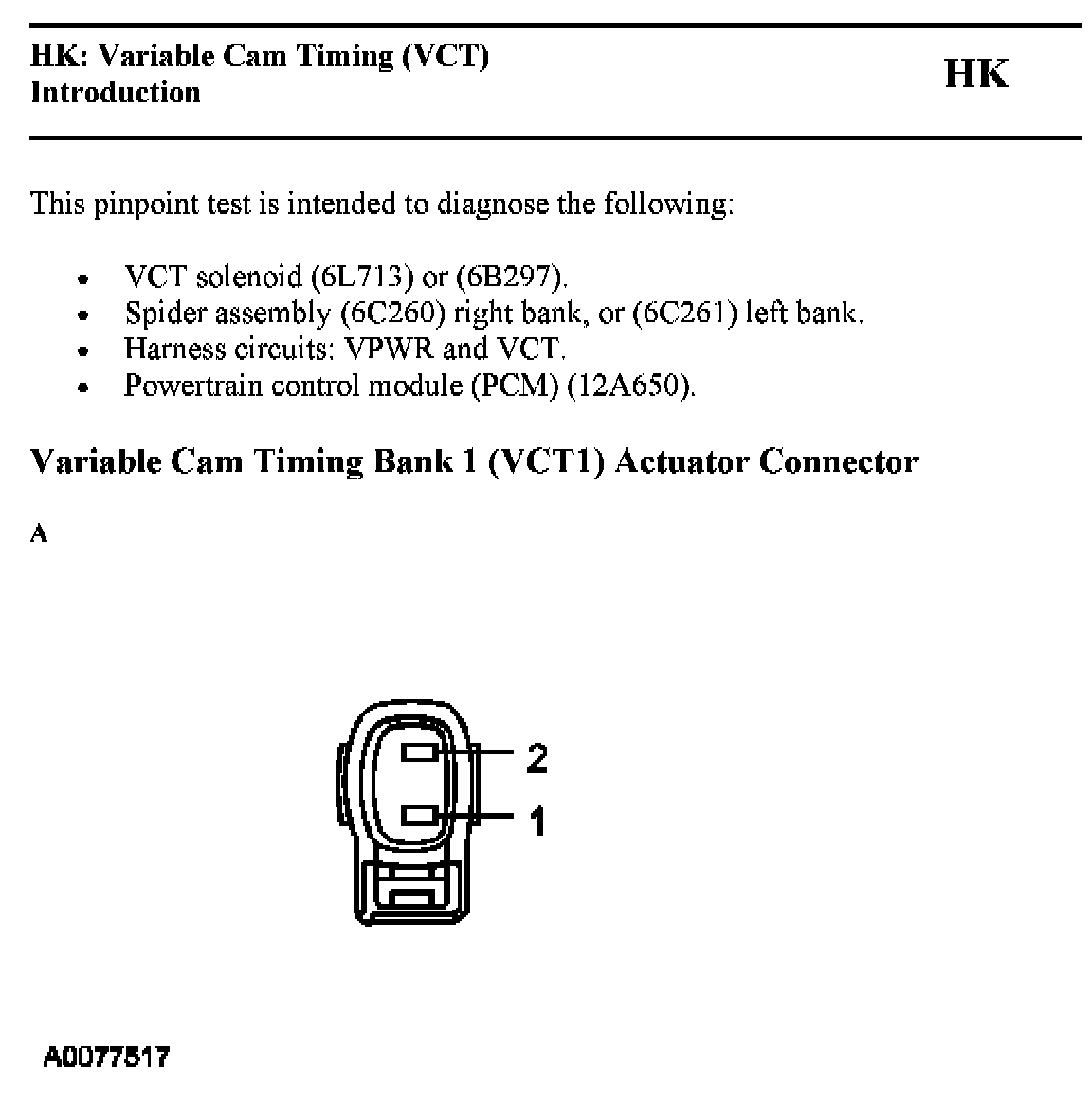

HK Introduction:

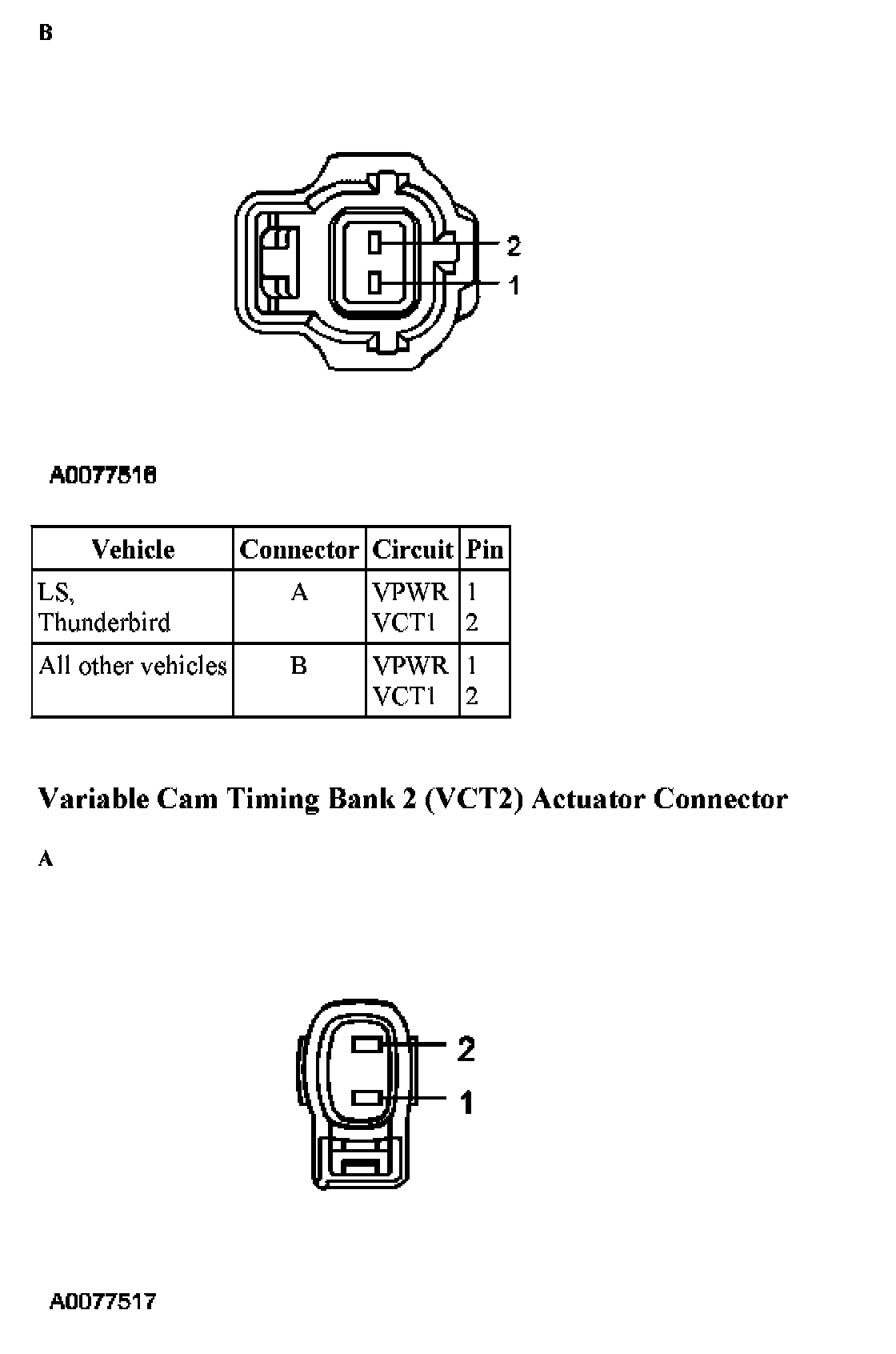

HK Introduction:

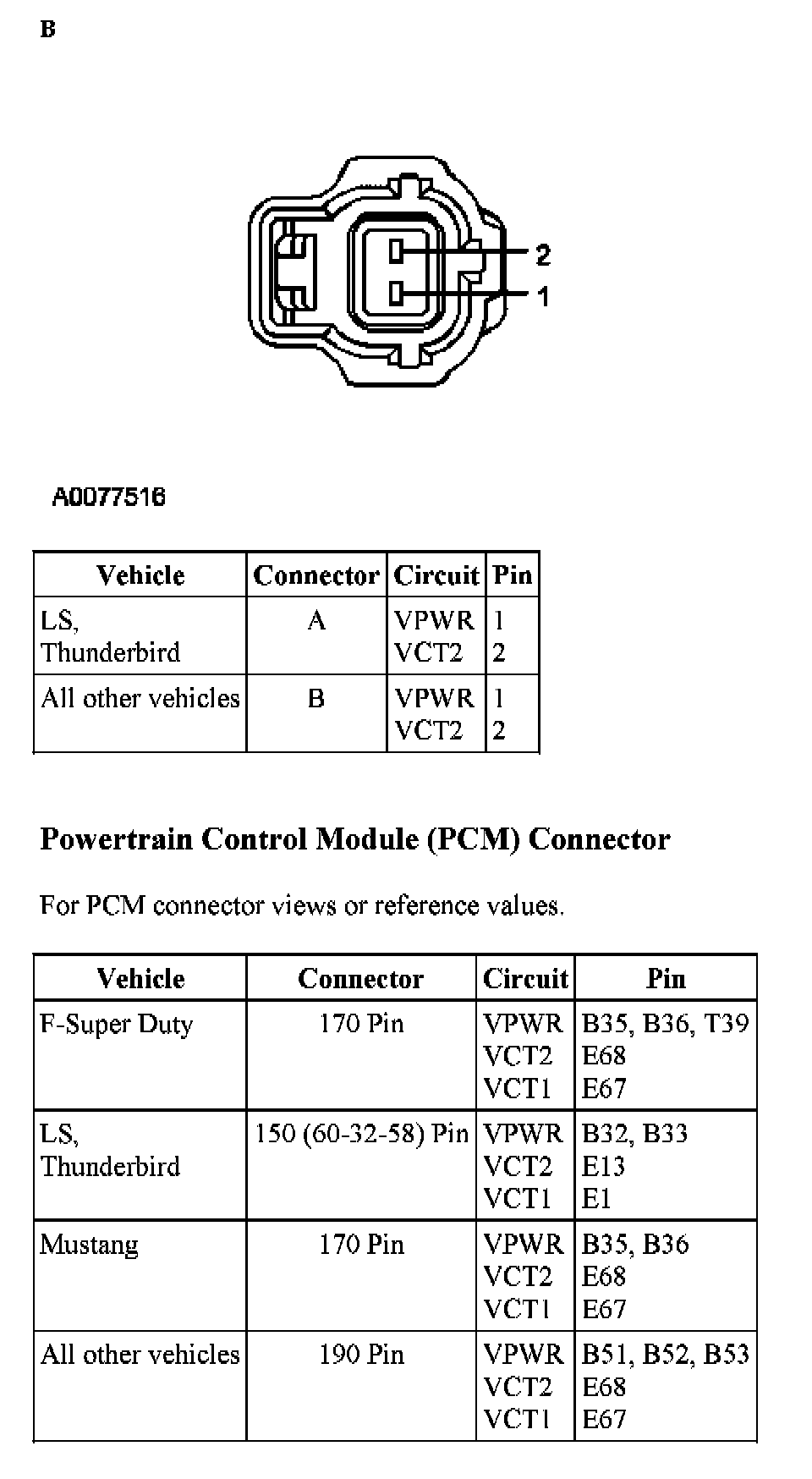

HK Introduction:

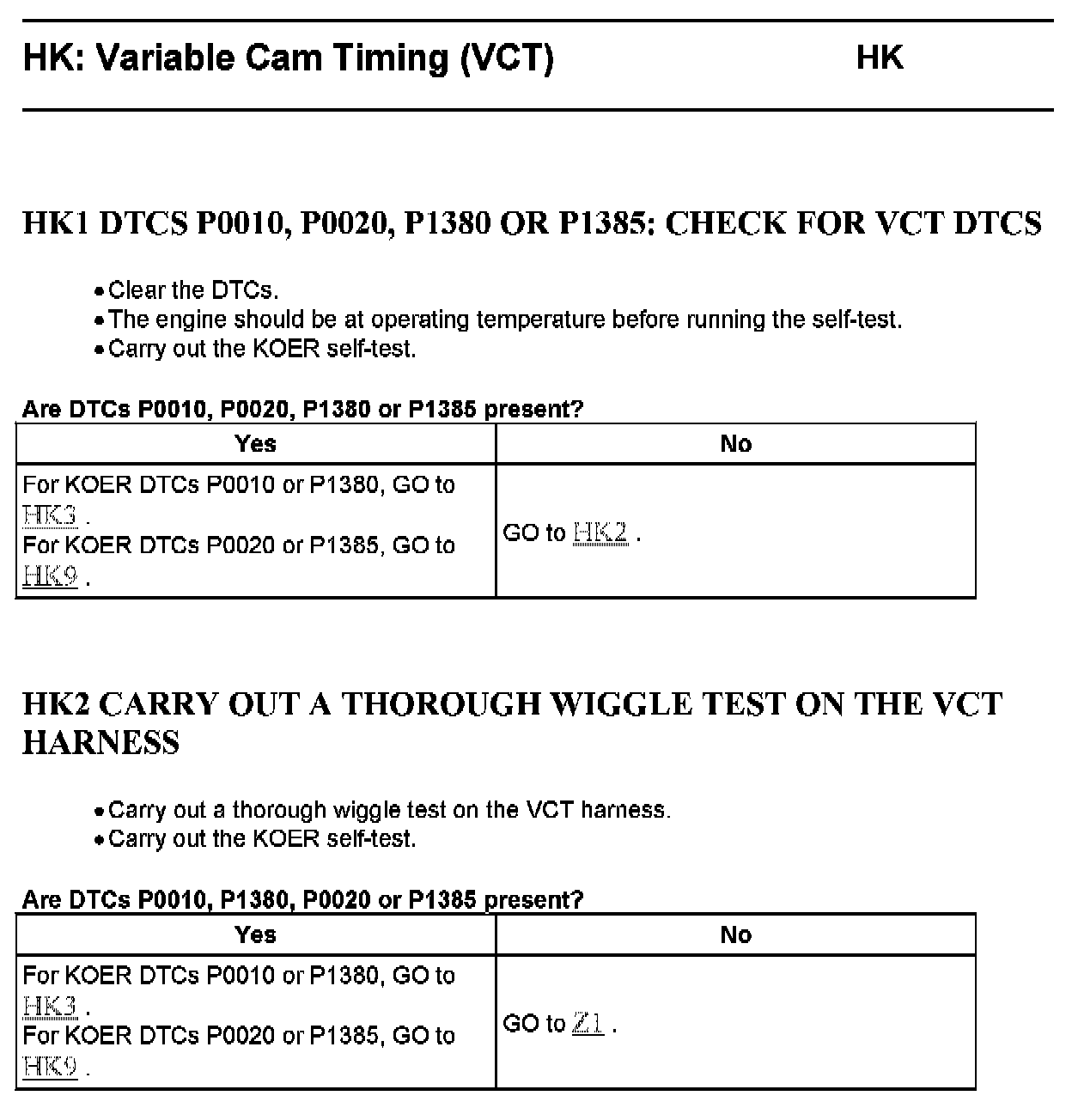

HK1 - HK2:

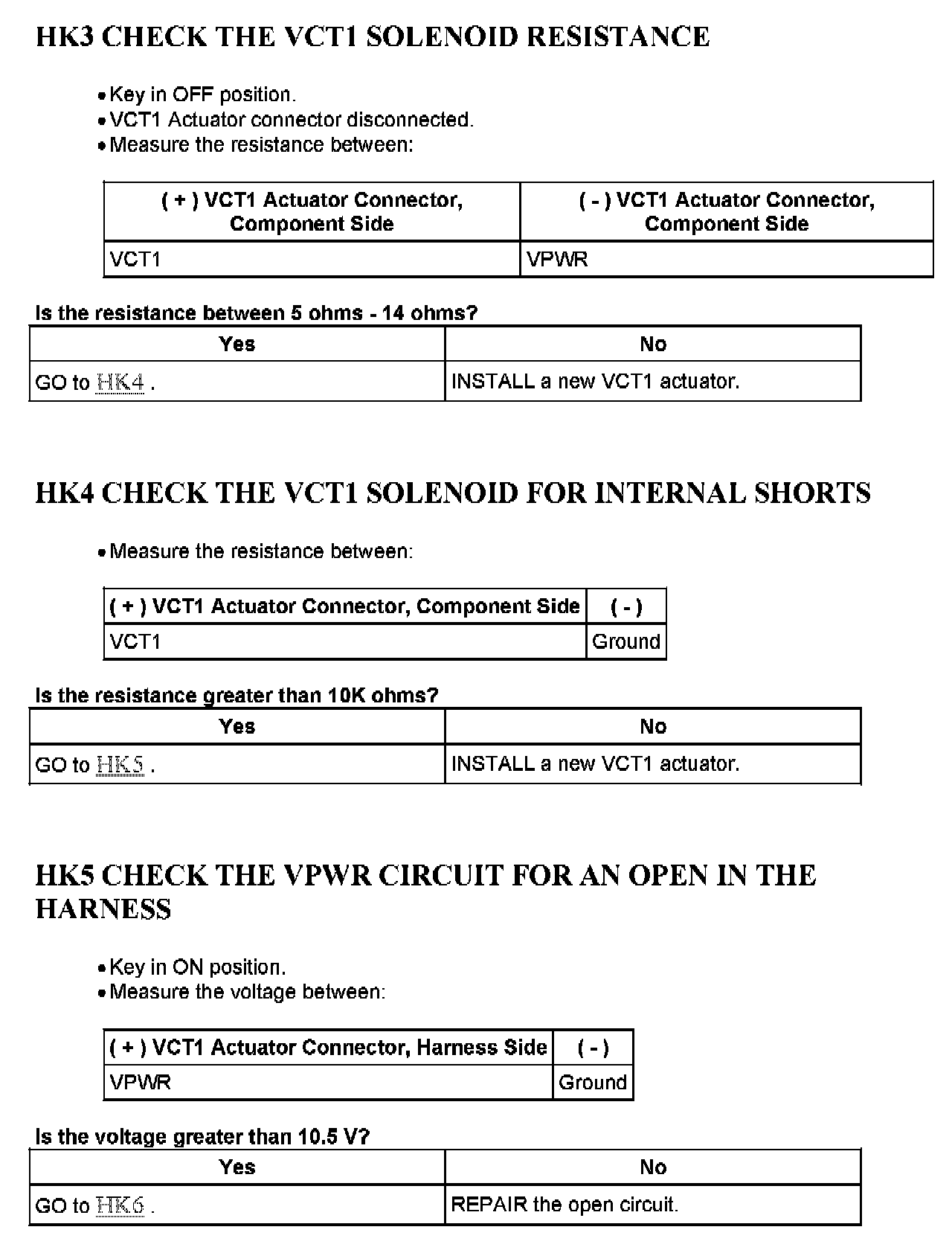

HK3 - HK5:

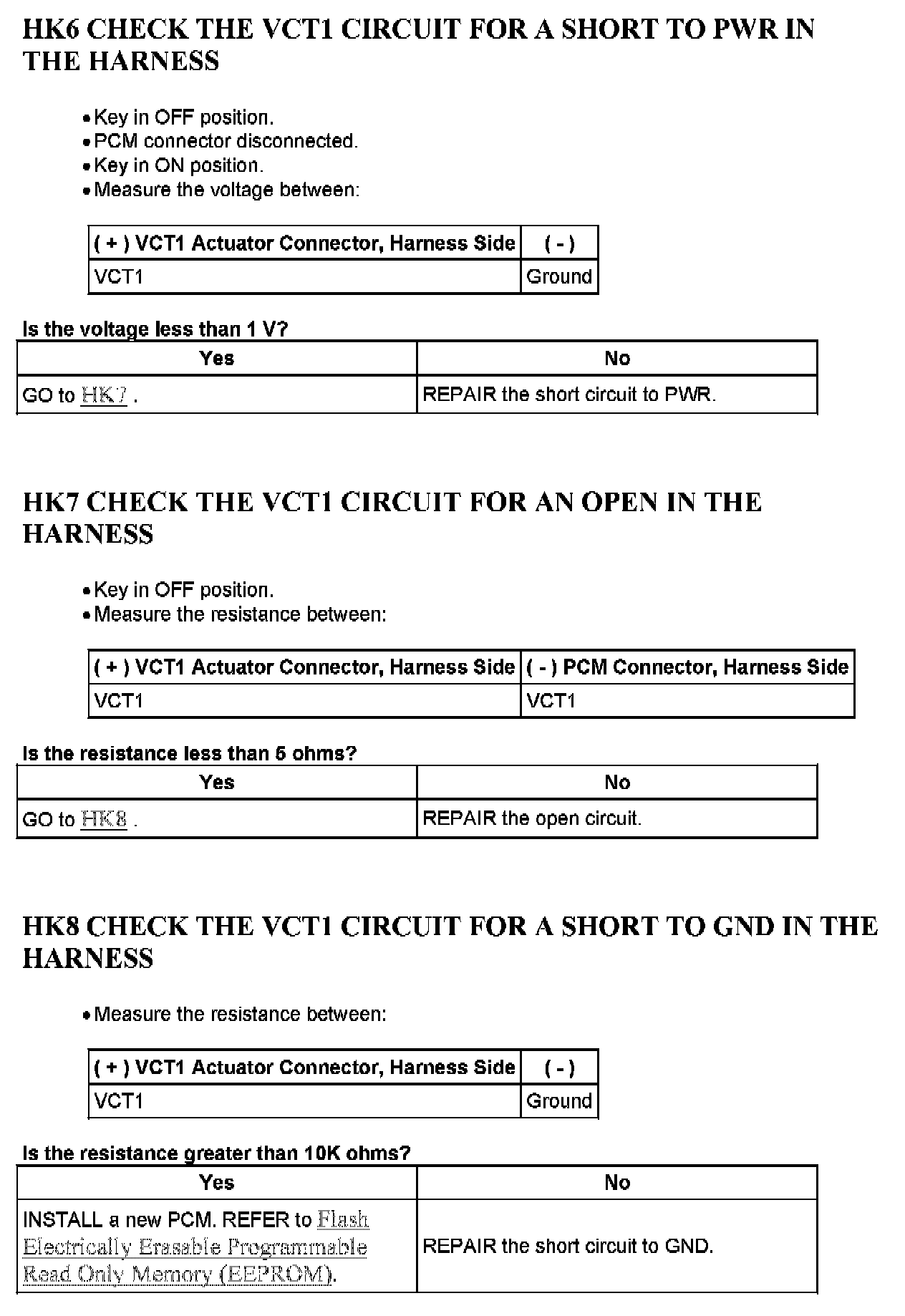

HK6 - HK8:

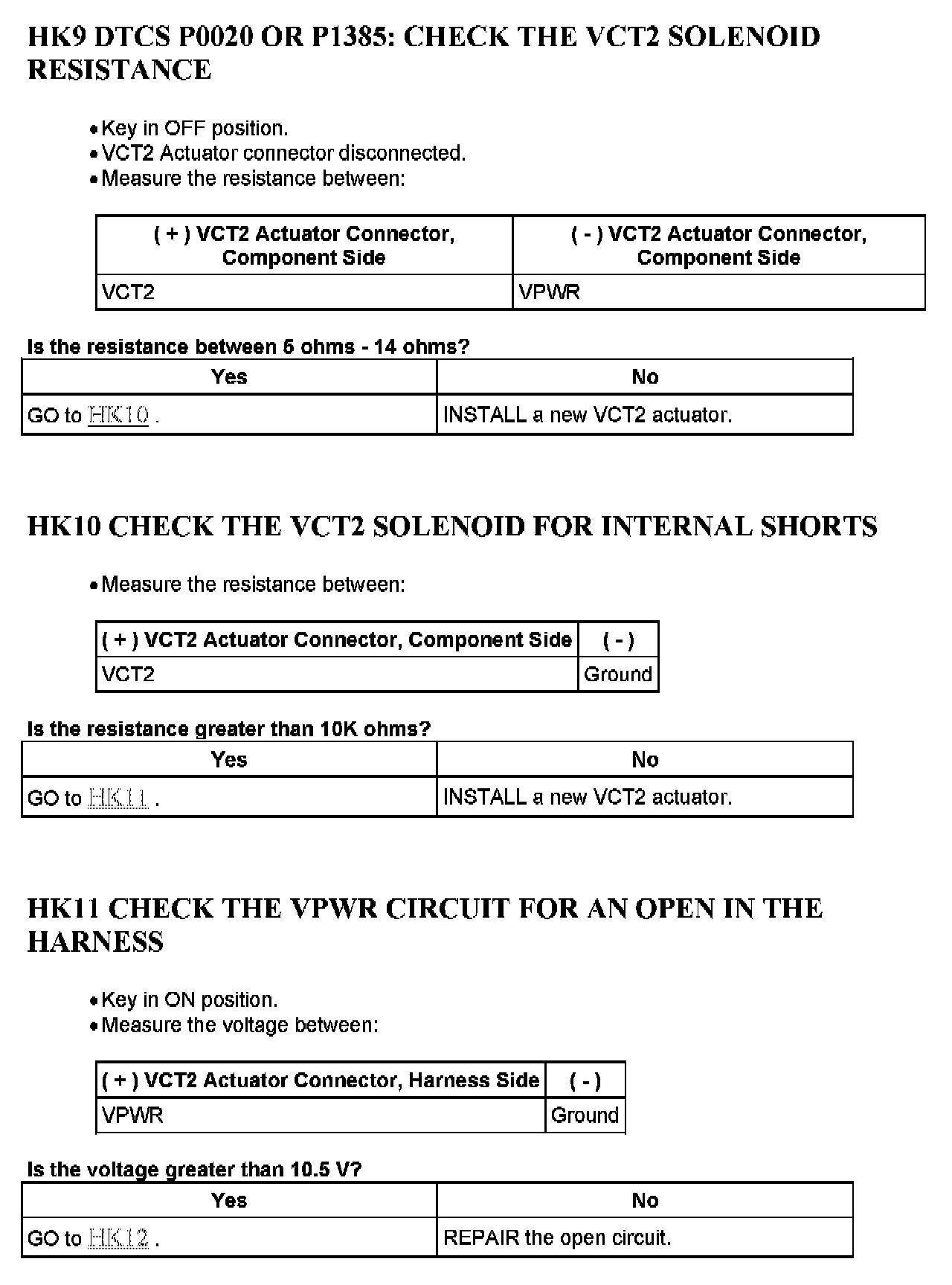

HK9 - HK11:

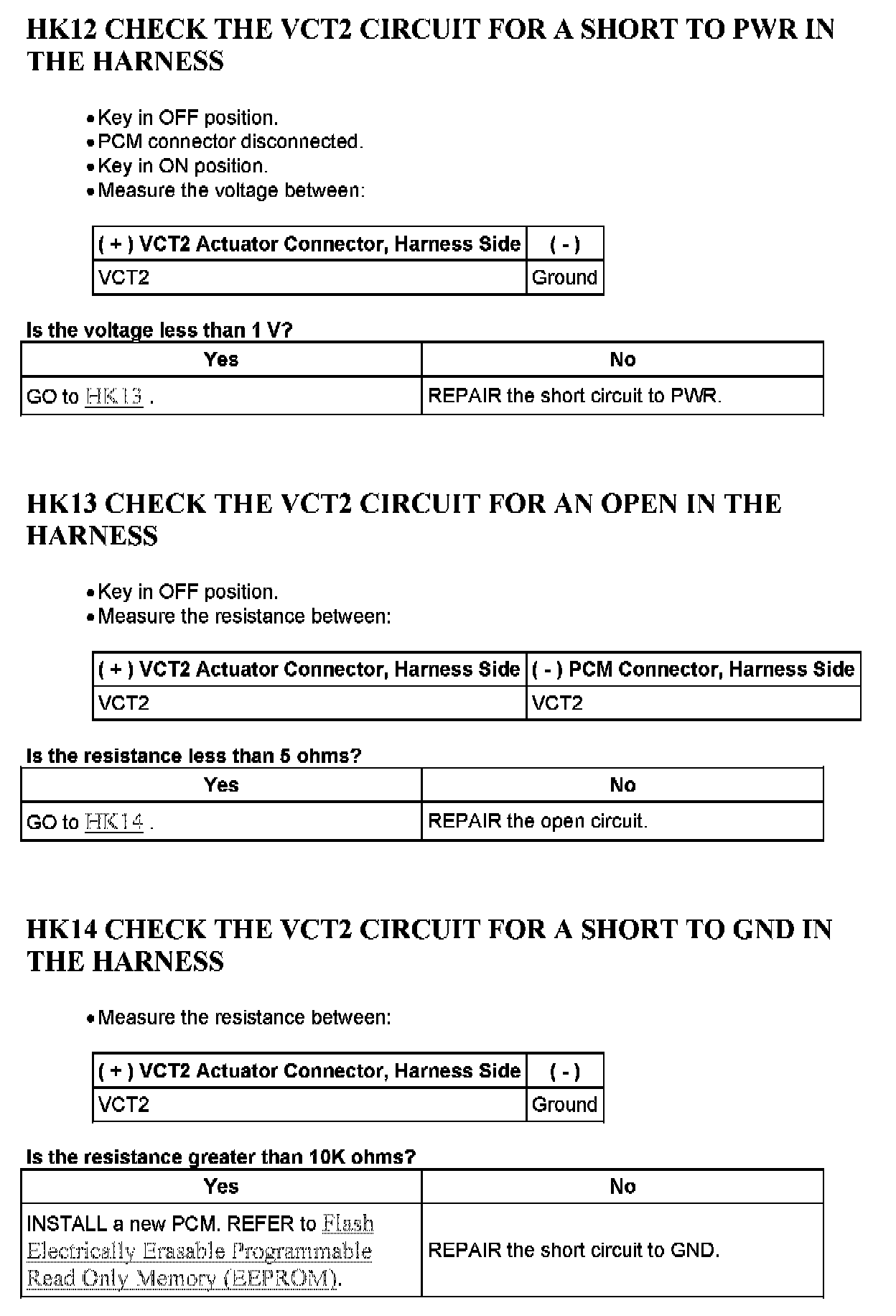

HK12 - HK14:

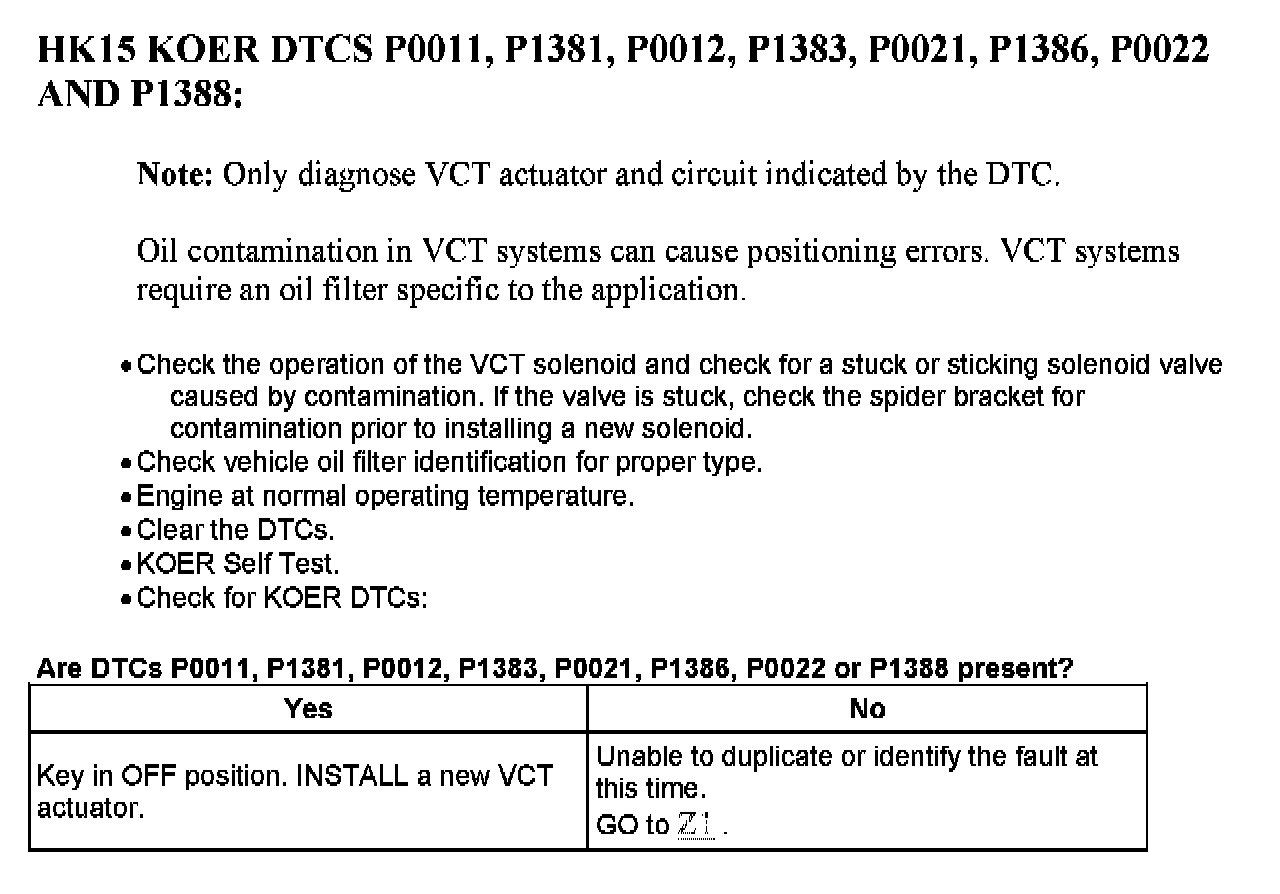

HK15:
