Tests JD: Crankshaft Position (CKP) Sensor



PINPOINT TEST JD: CRANKSHAFT POSITION (CKP) SENSOR

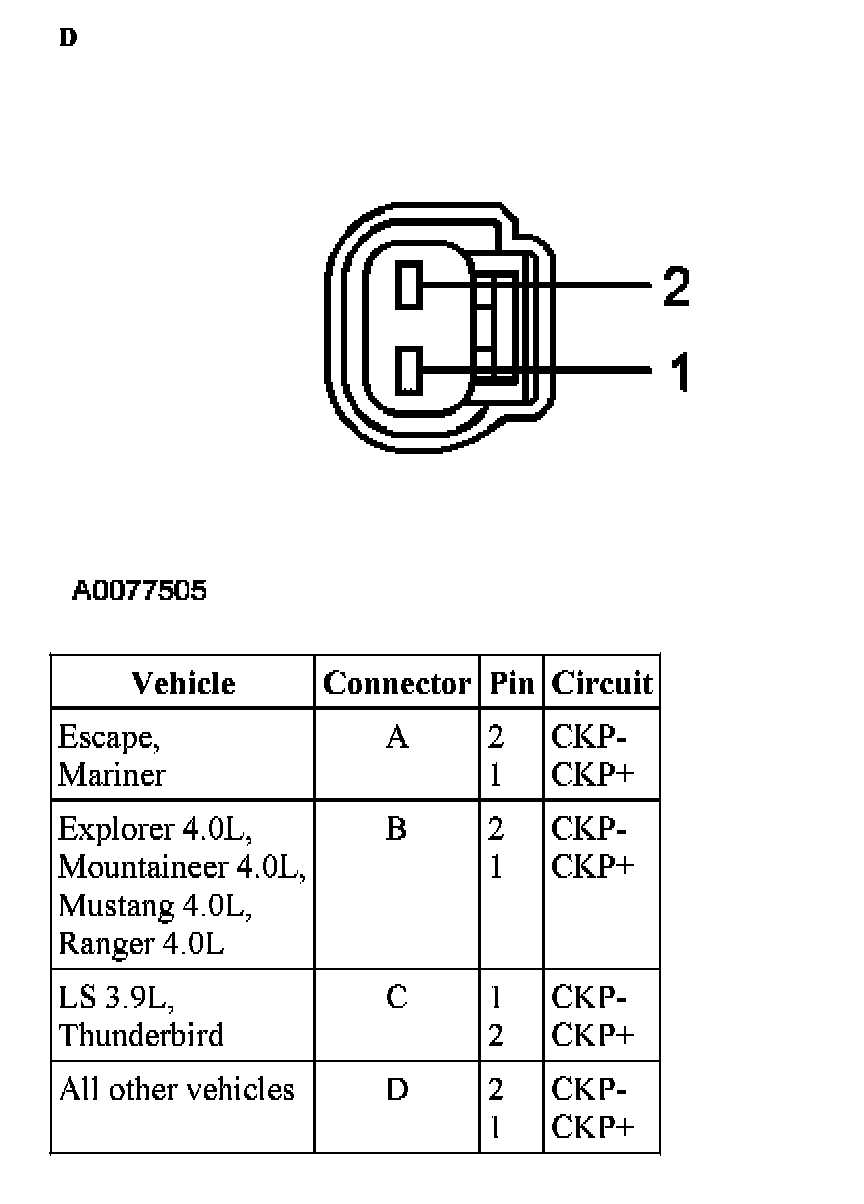

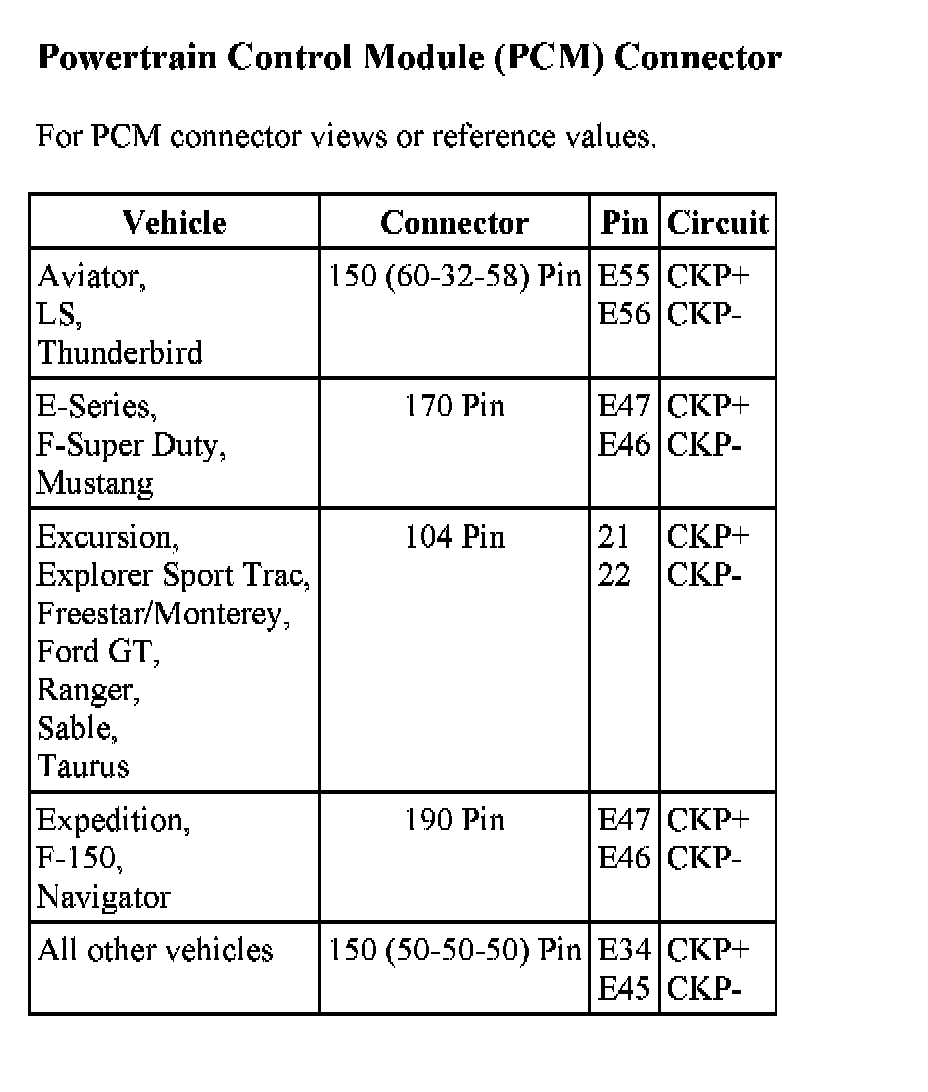

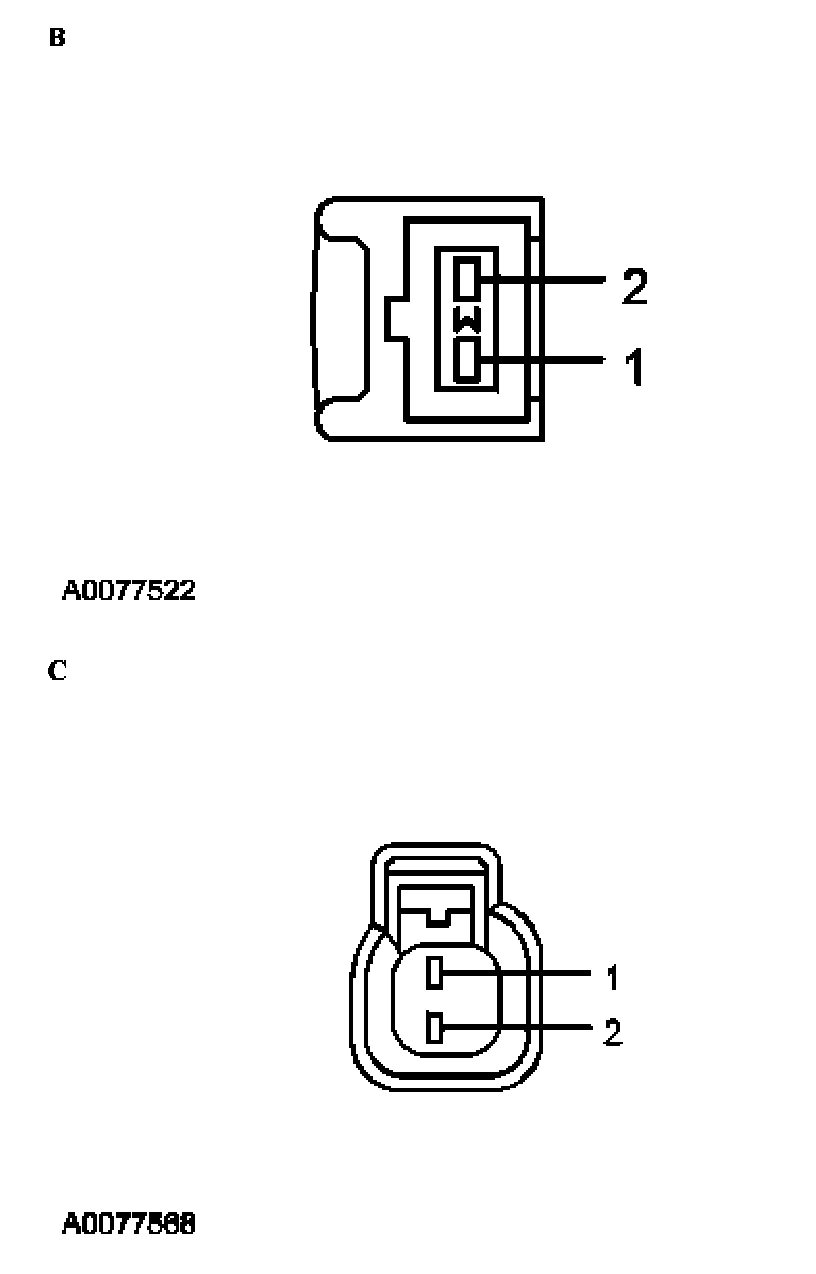

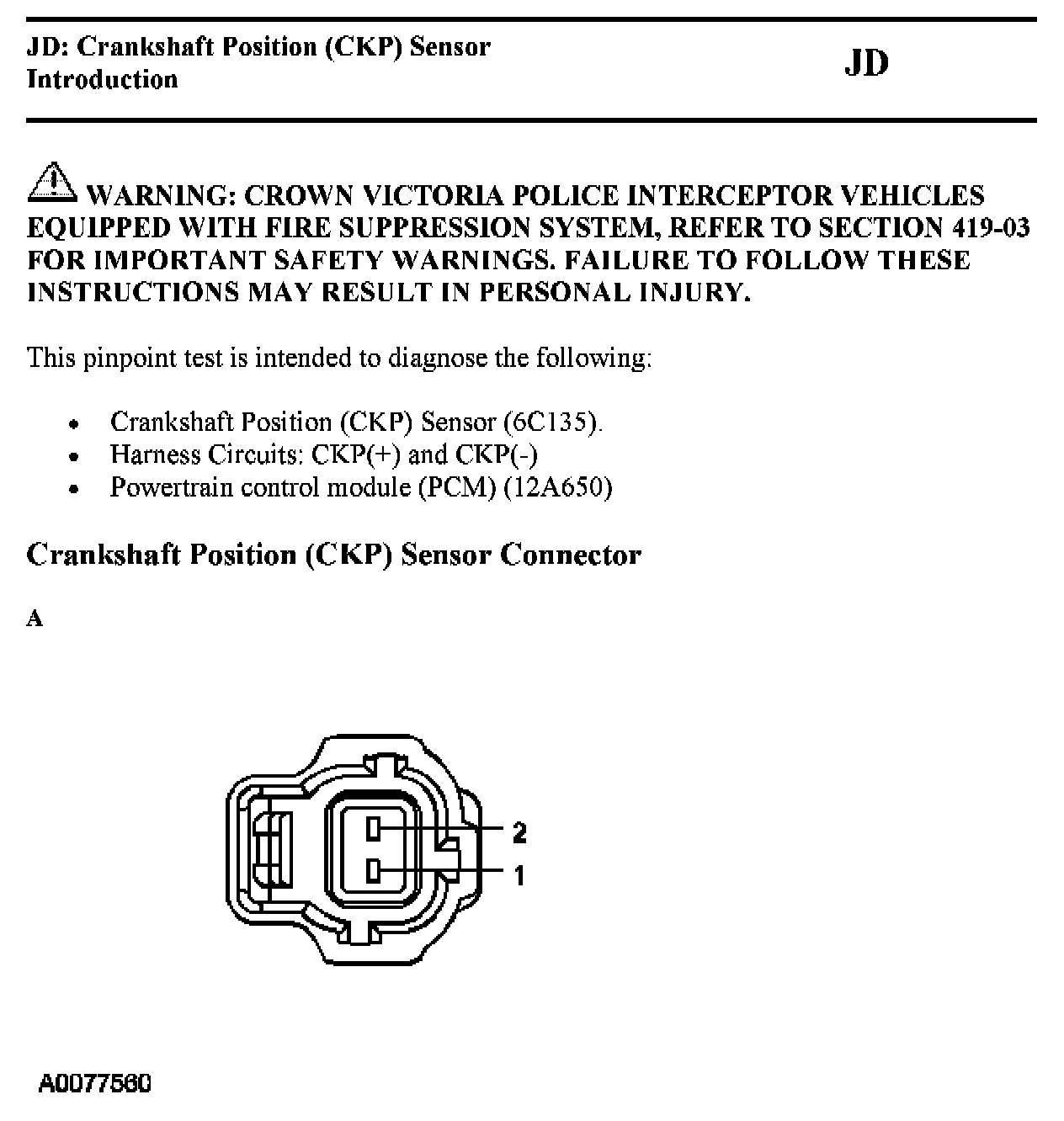

JD Introduction:





JD Introduction:





JD Introduction:





JD Introduction:

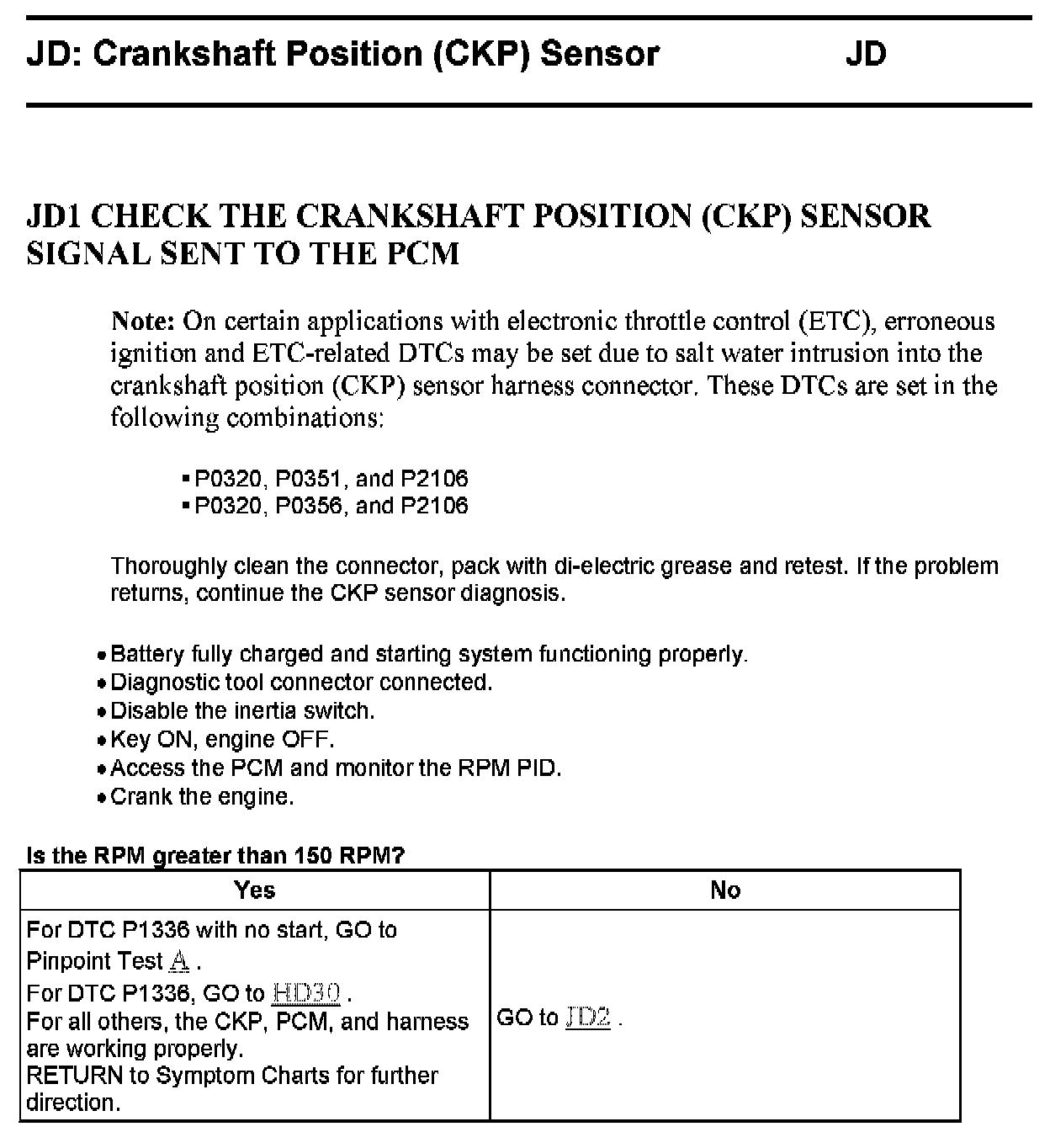

JD1:

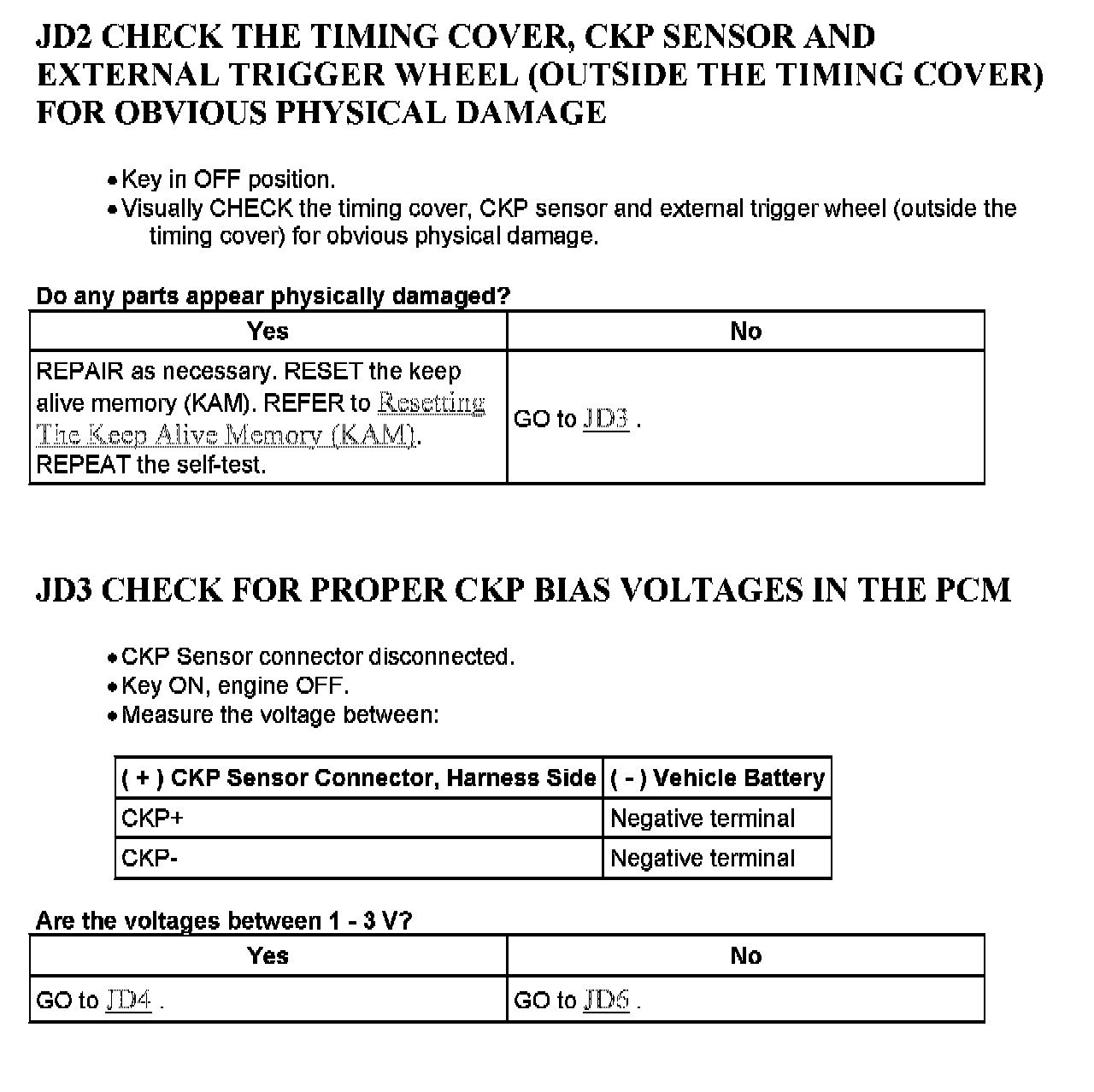

JD2 - JD3:

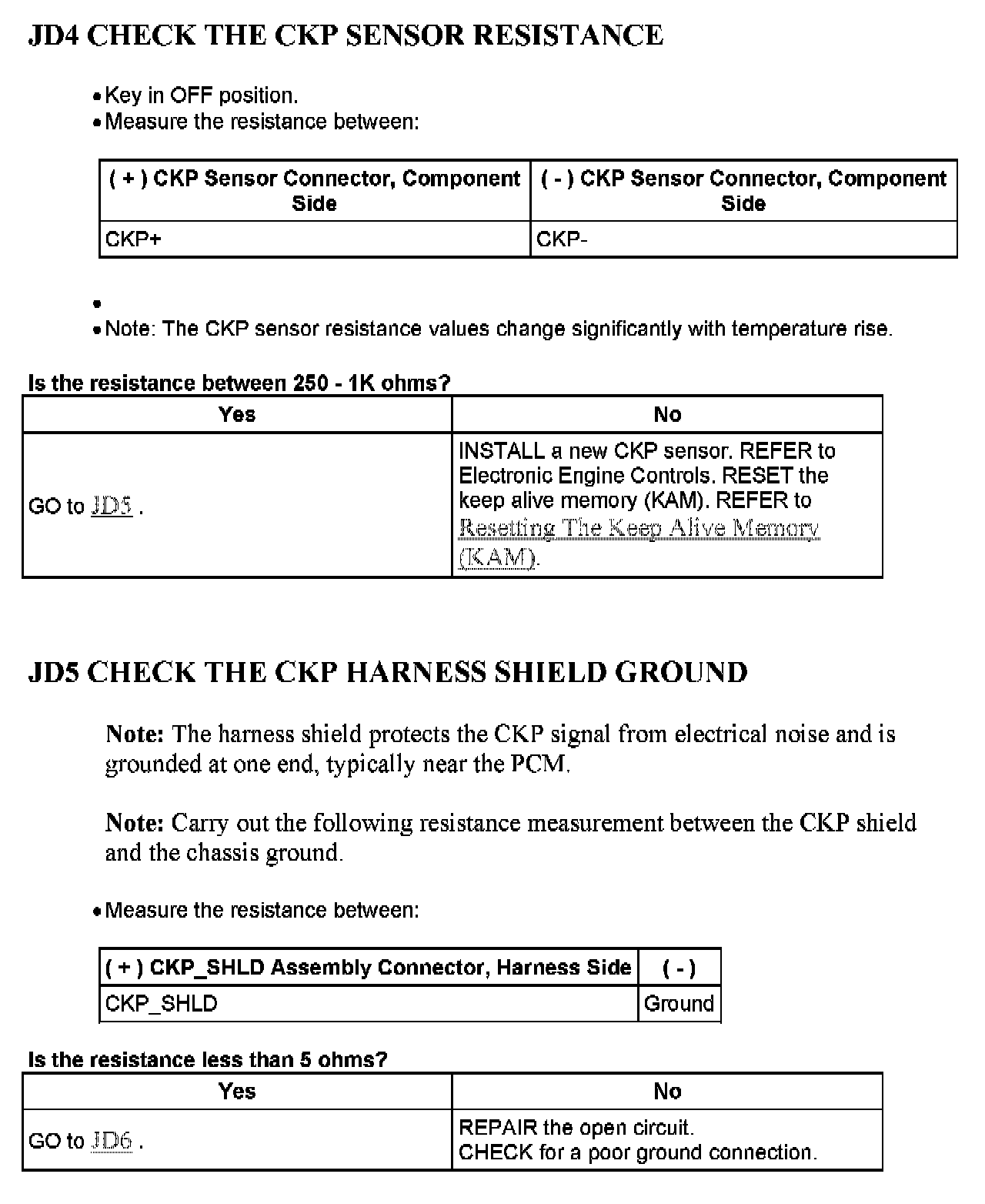

JD4 - JD5:

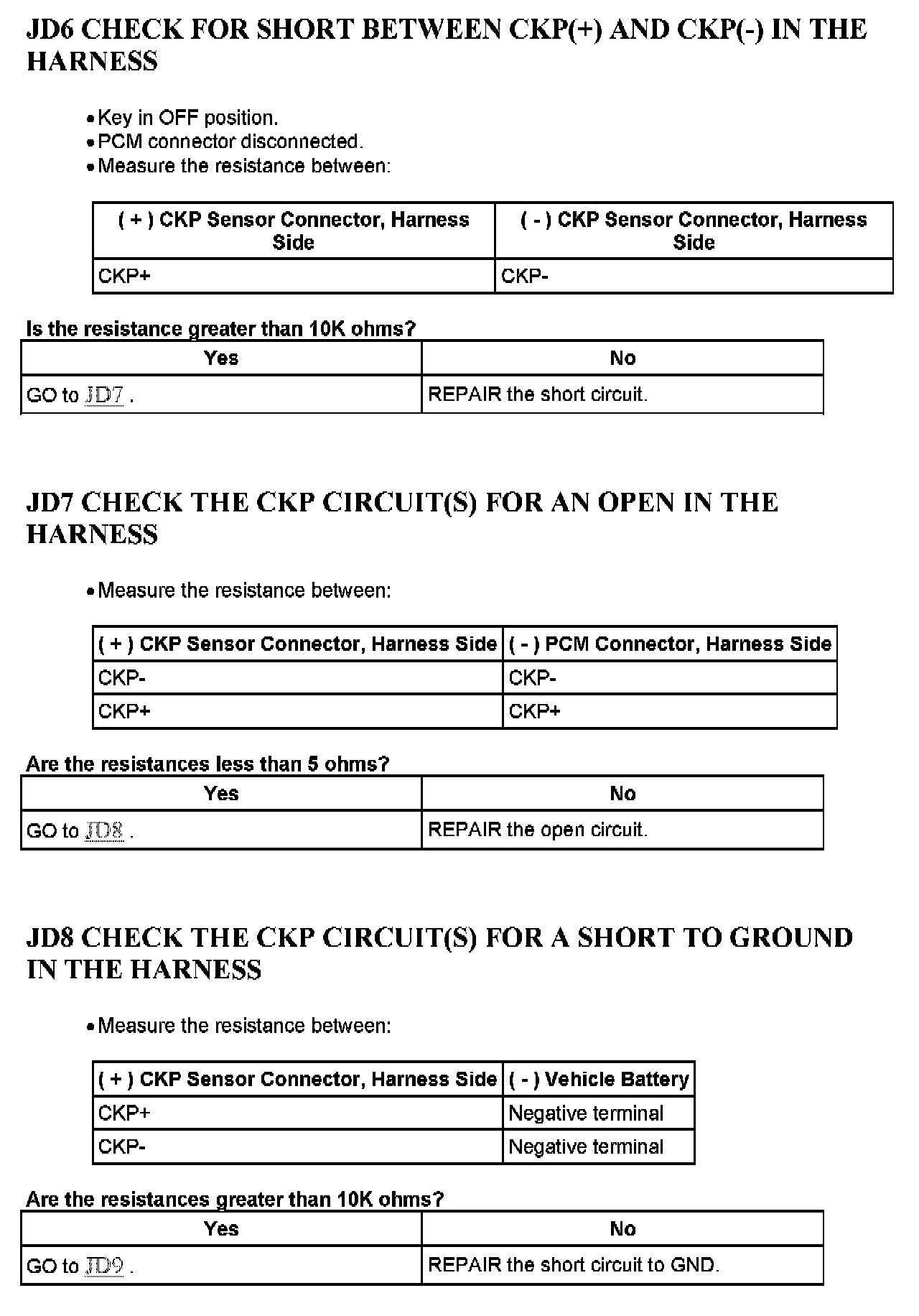

JD6 - JD8:

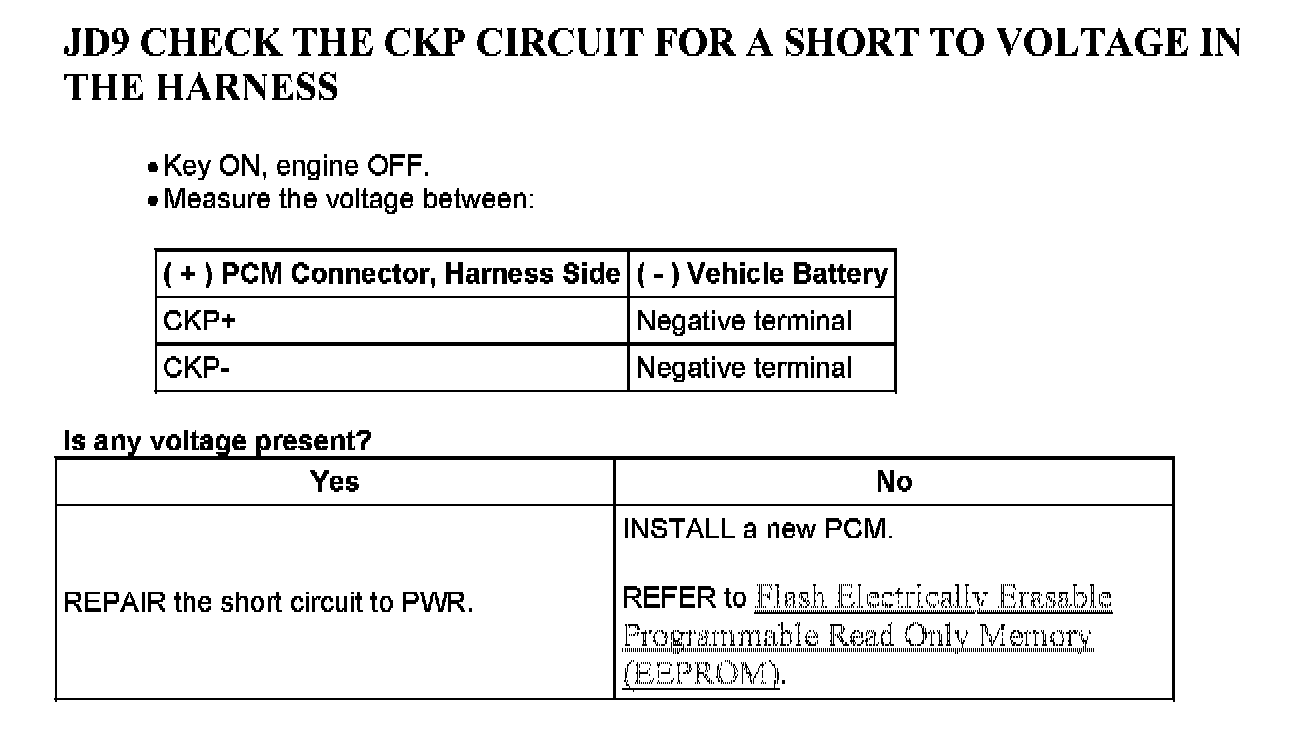

JD9:
