Tests JF: Integrated Ignition Coil On Plug Coil A Through J Failure



PINPOINT TEST JF: INTEGRATED IGNITION COIL ON PLUG COIL A THROUGH J FAILURE

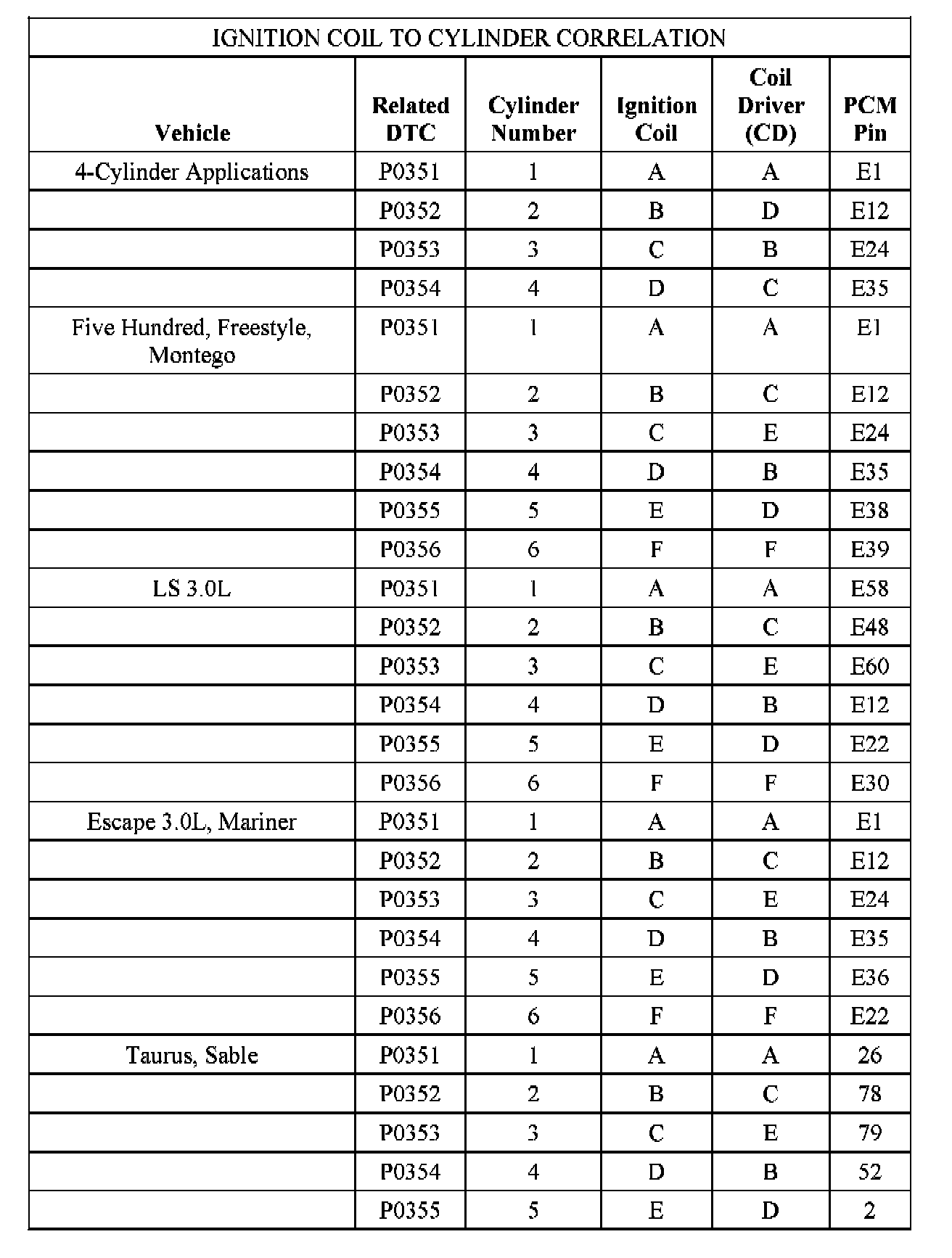

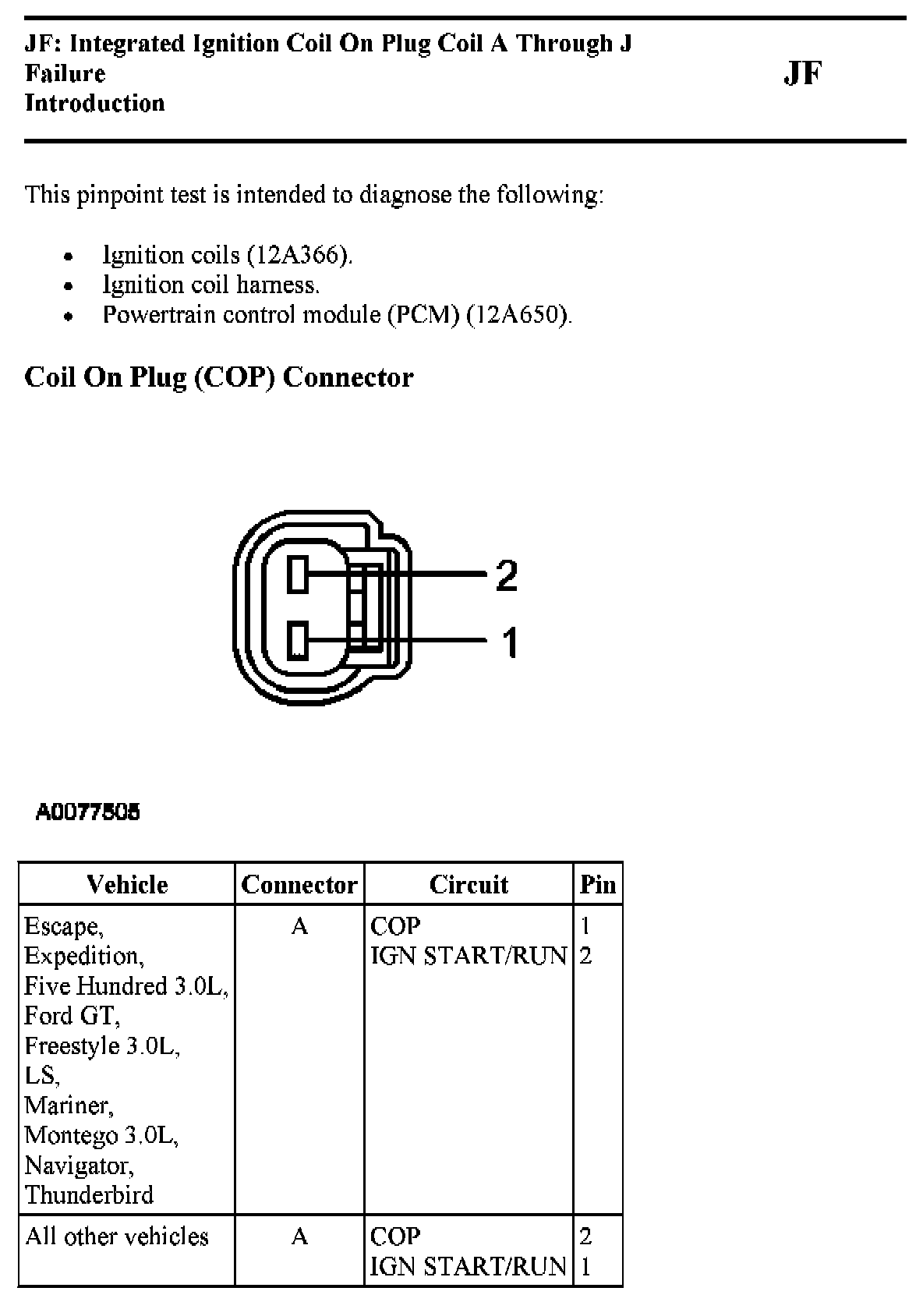

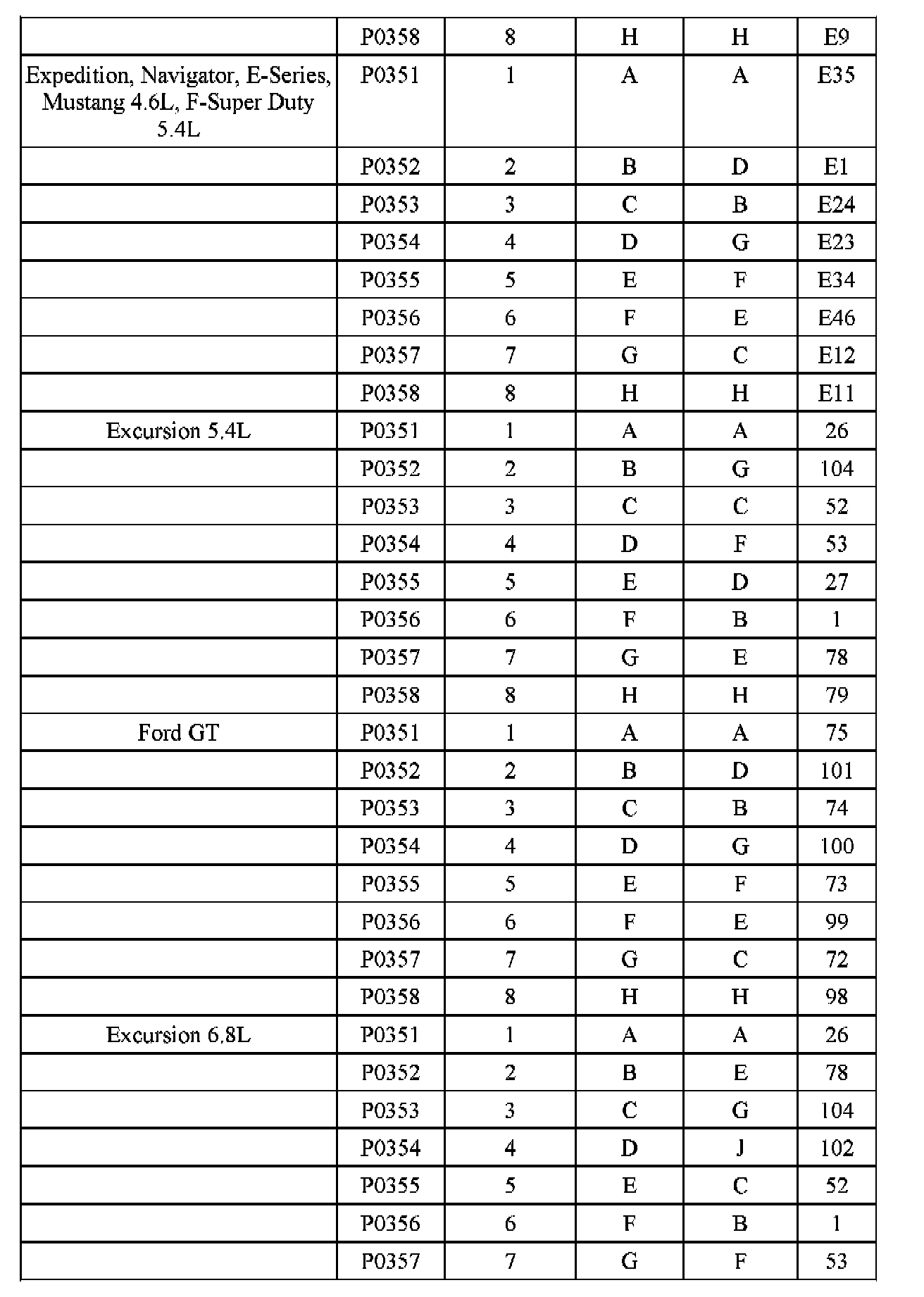

JF Introduction:

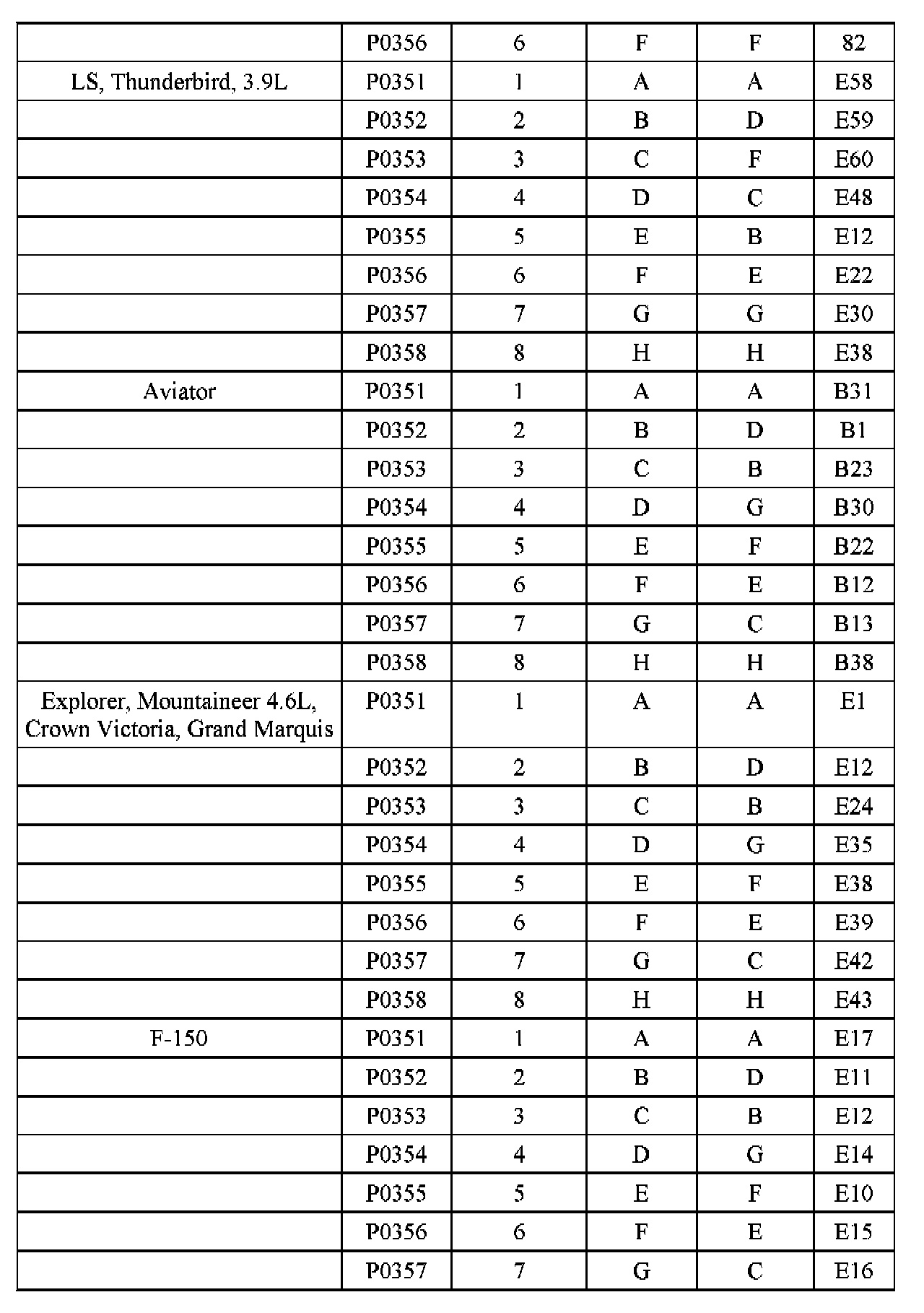

JF Introduction:

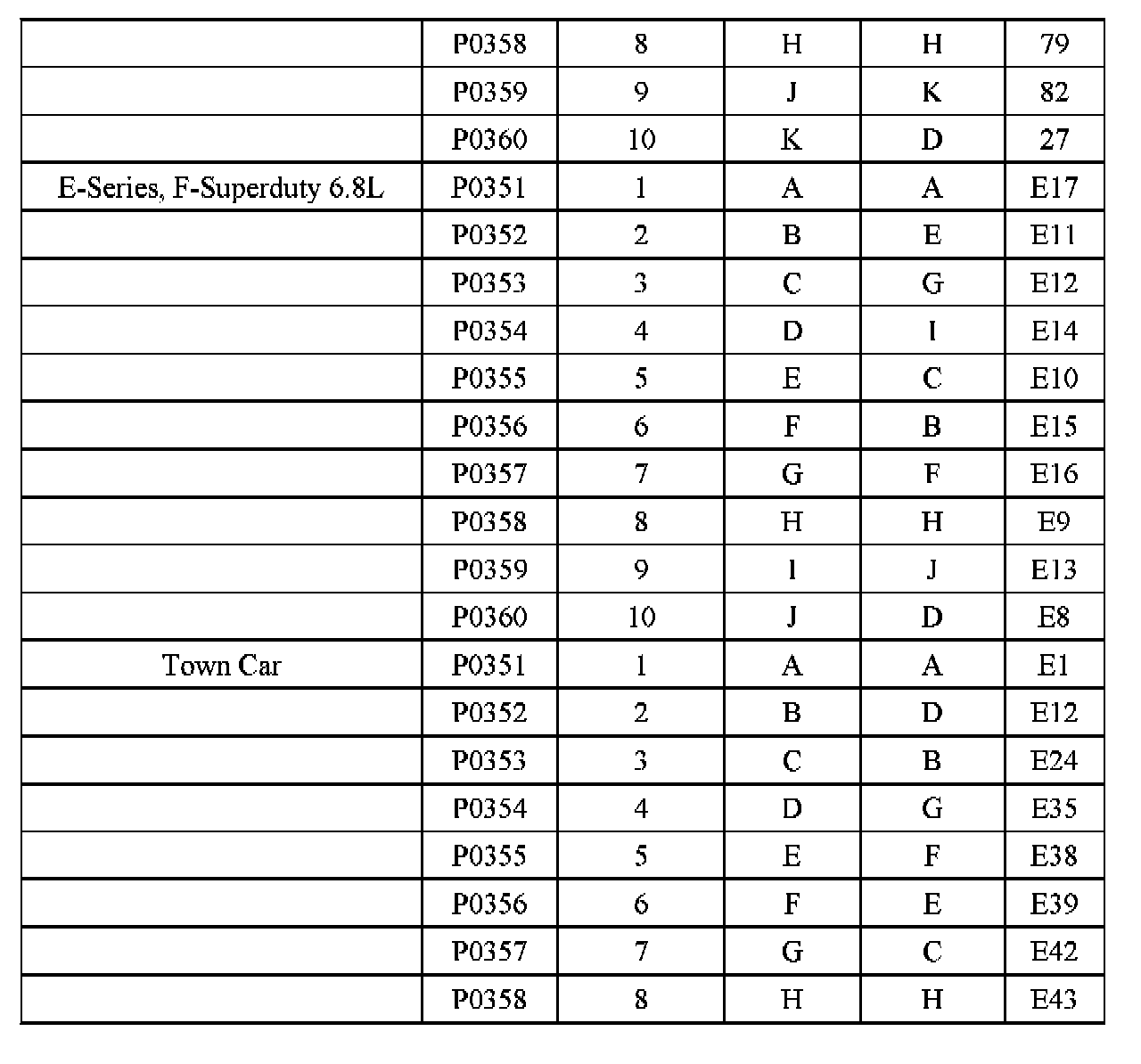

JF Introduction:





JF Introduction:





JF Introduction:

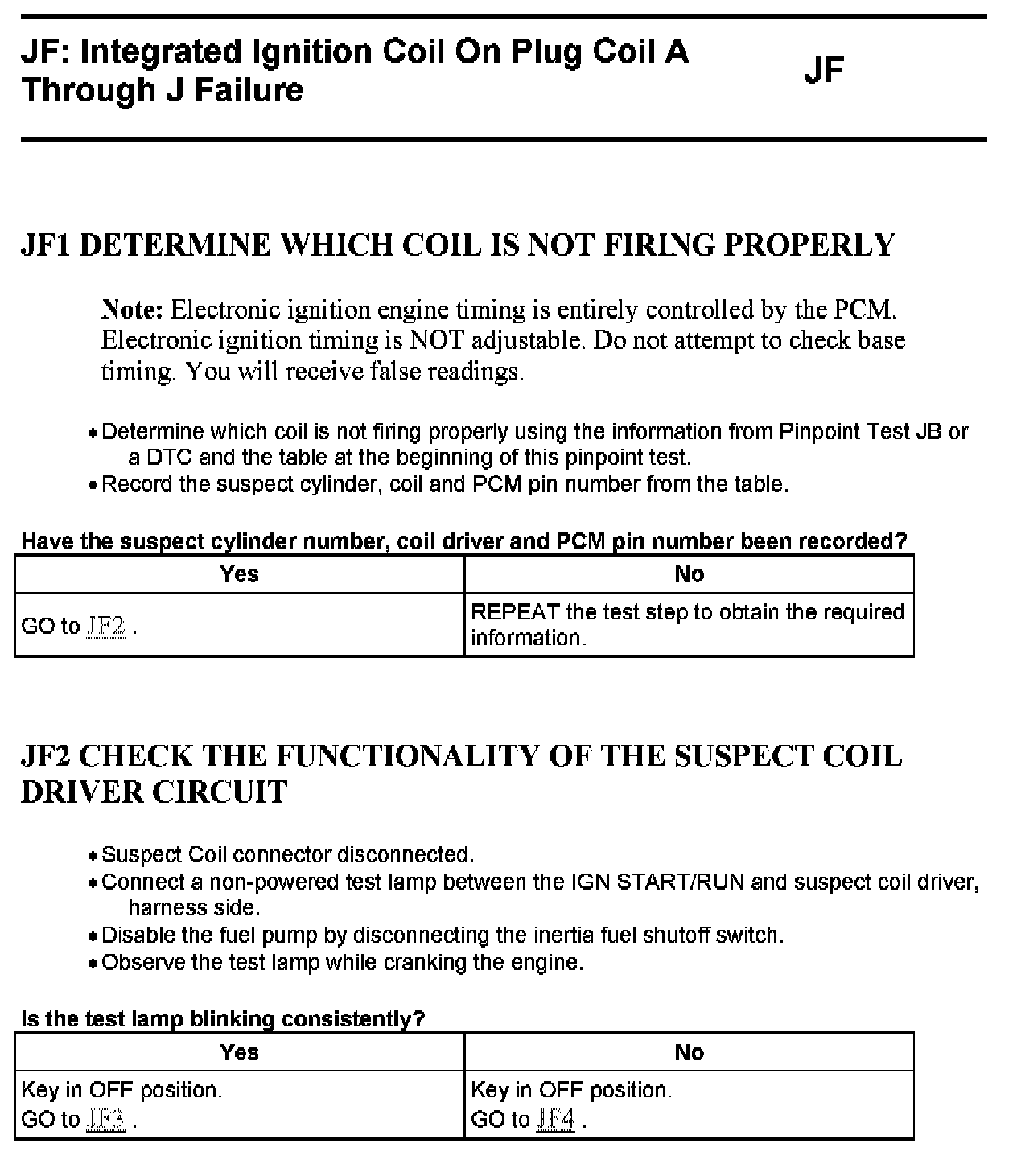

JF1 - JF2:

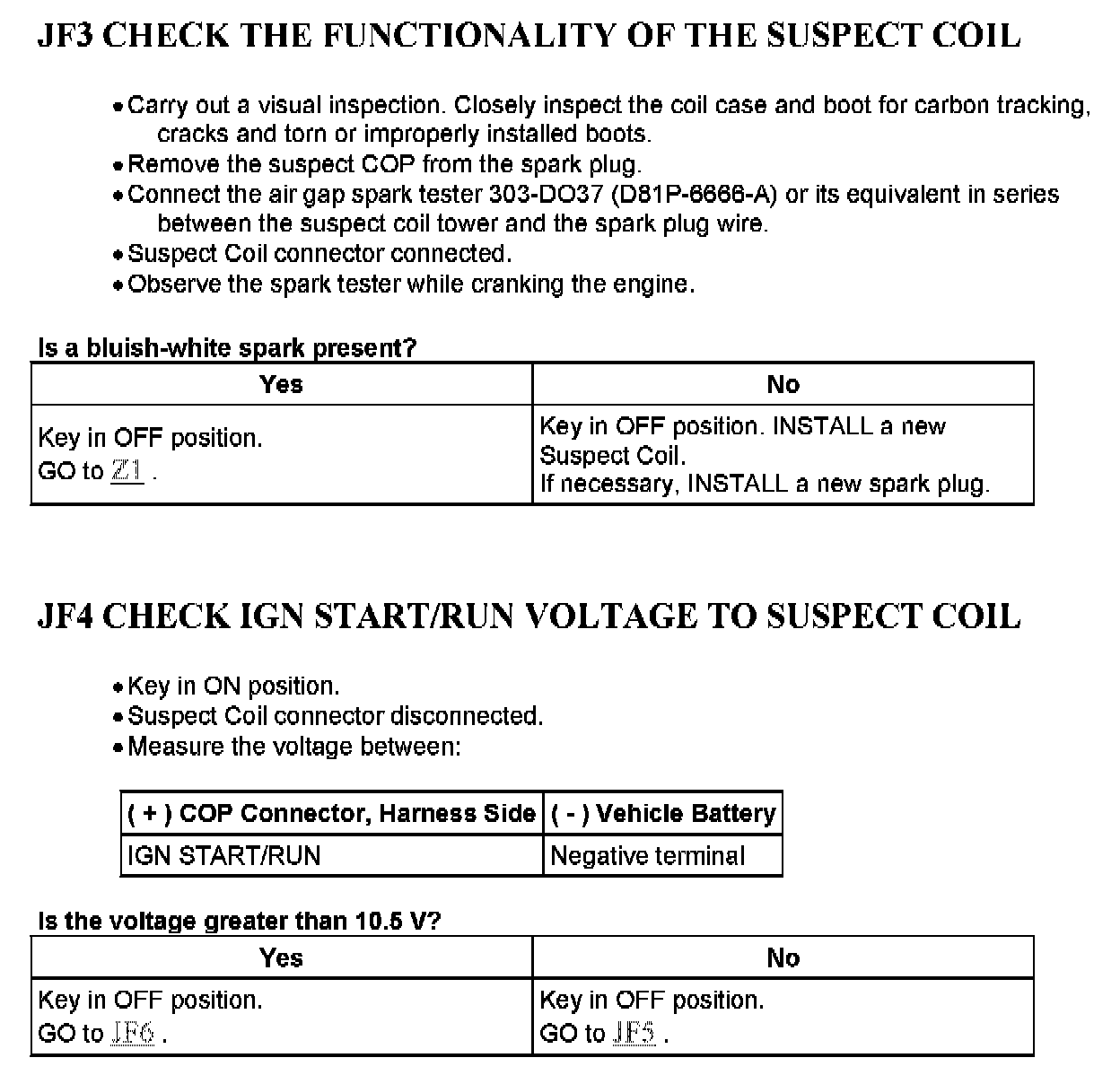

JF3 - JF4:

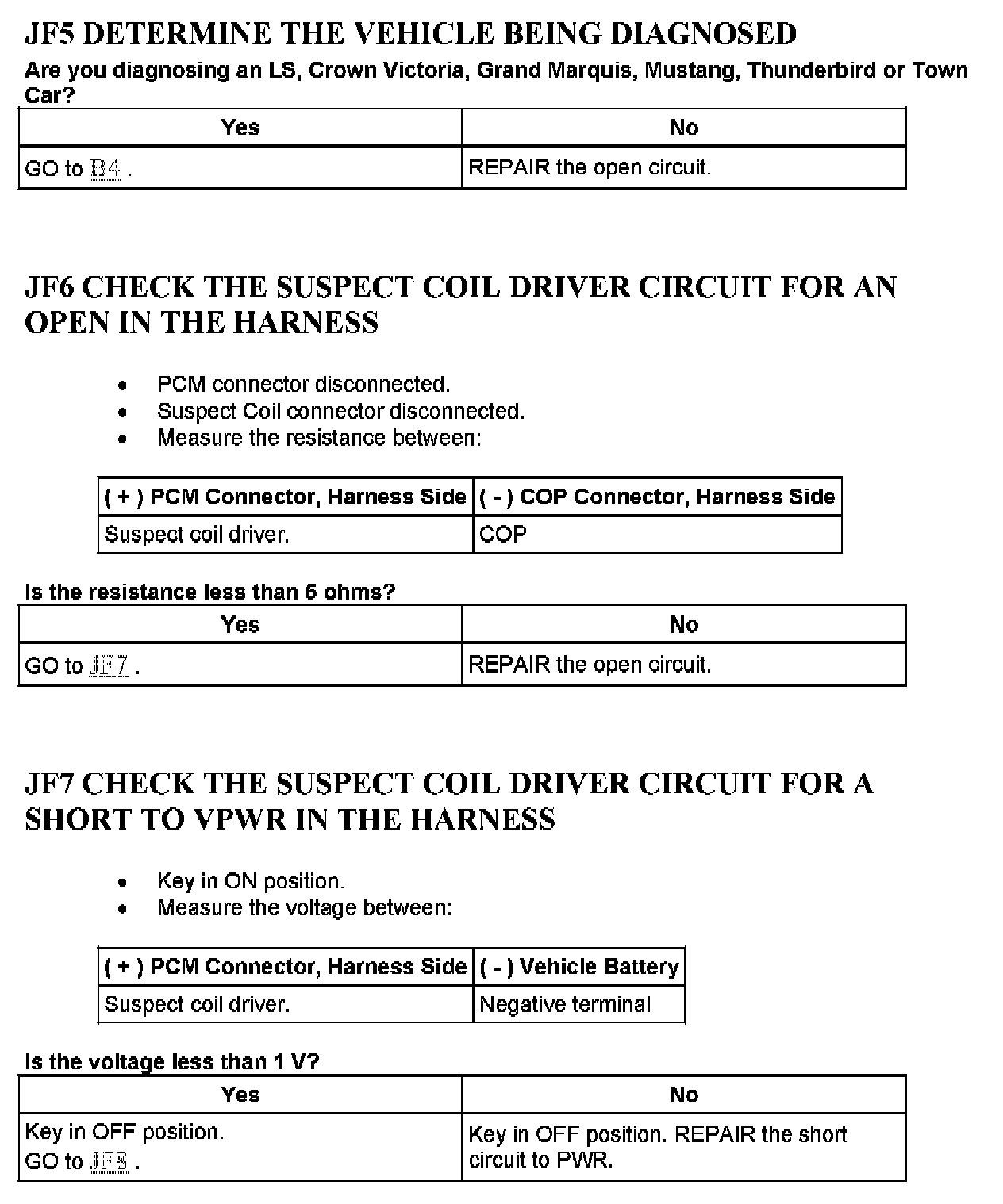

JF5 - JF7:

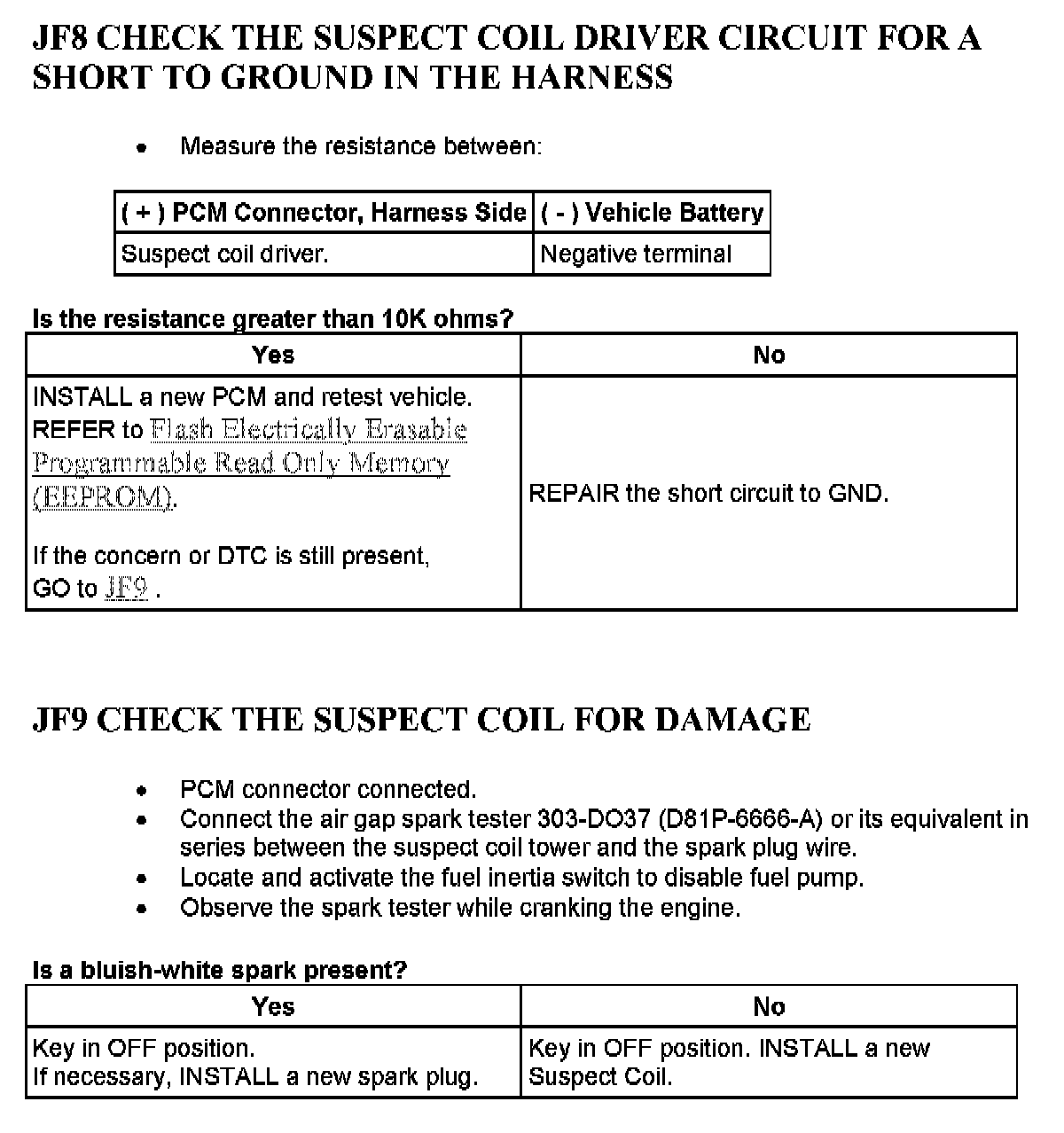

JF8 - JF9:
