Tests KM: Air Conditioning Clutch Relay (A/CCR) Circuit



PINPOINT TEST KM: AIR CONDITIONING CLUTCH RELAY (A/CCR) CIRCUIT

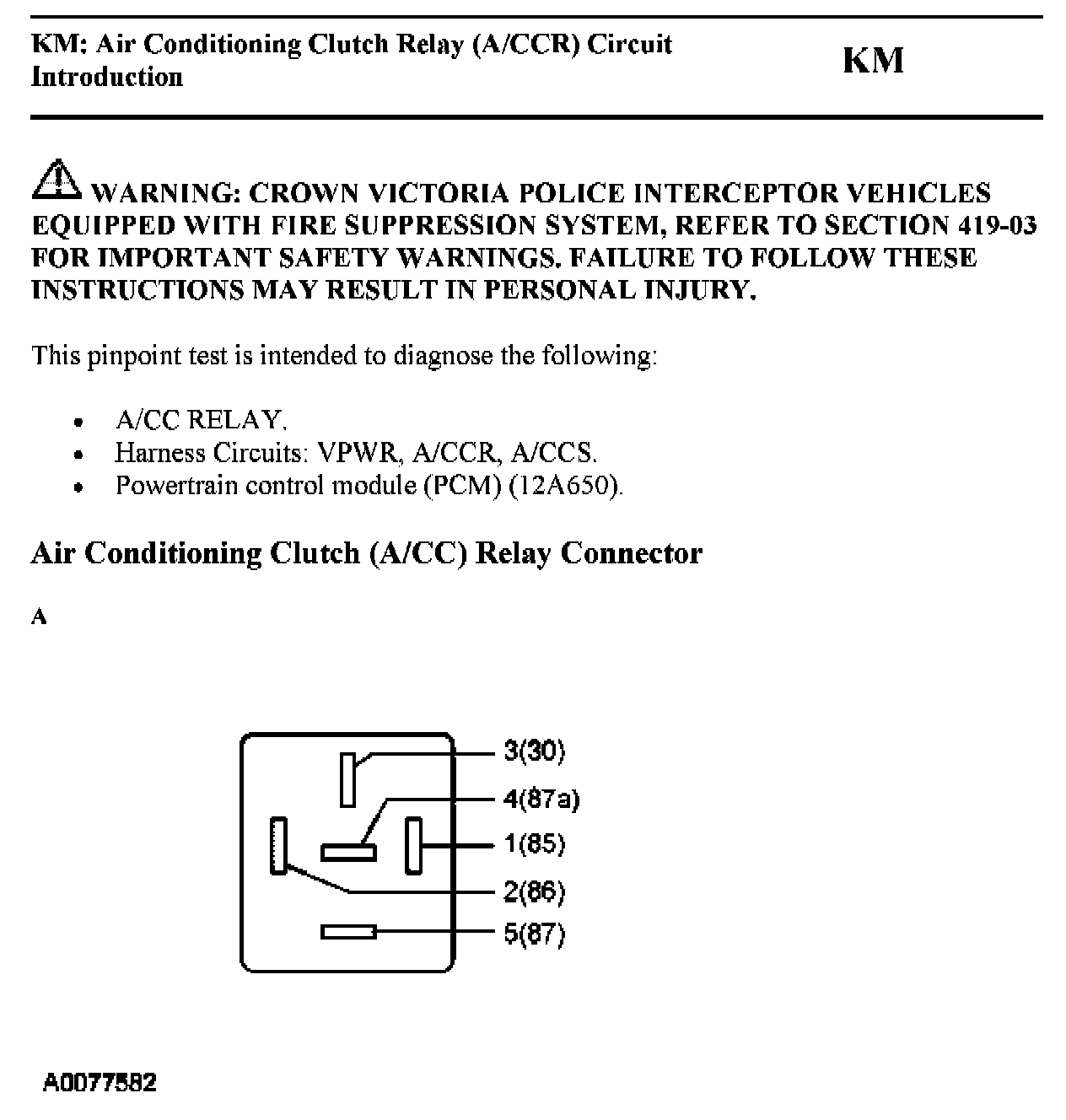

KM Introduction:

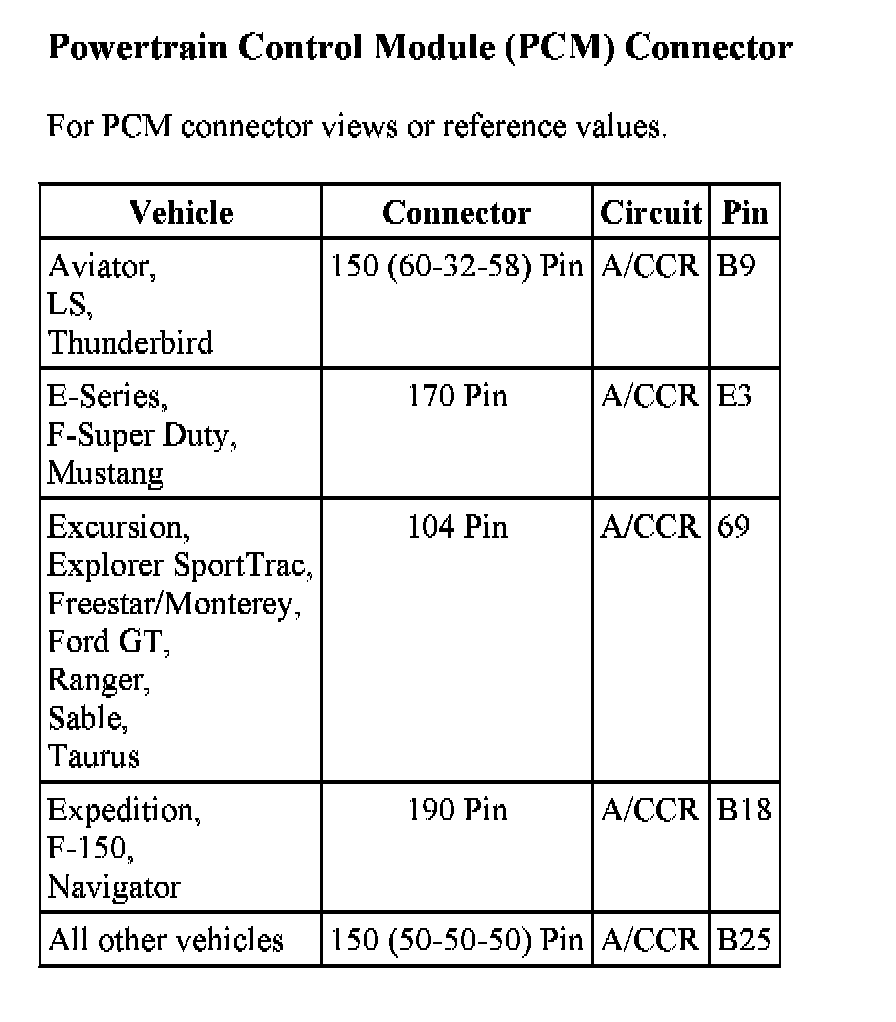

KM Introduction:

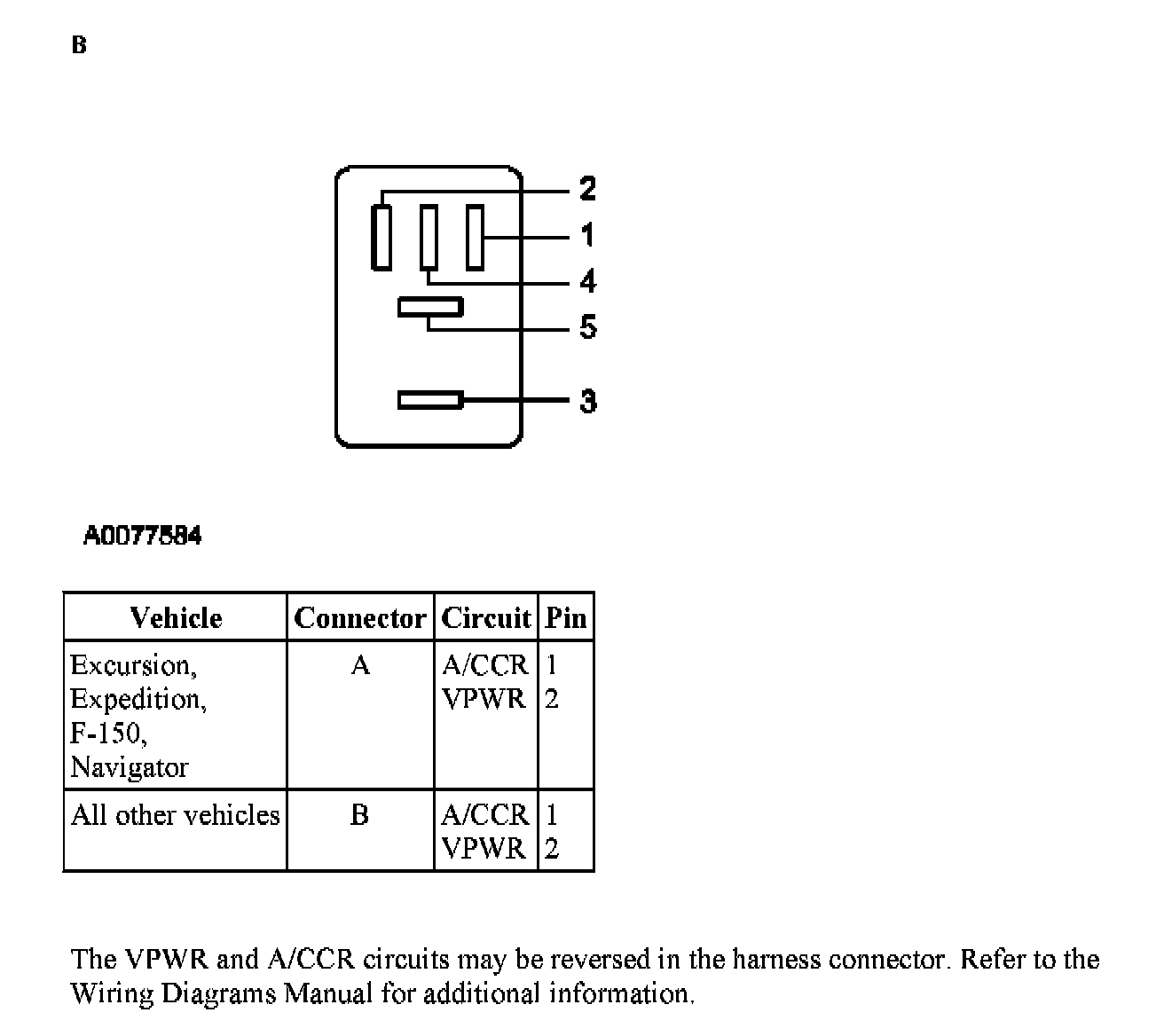

KM Introduction:

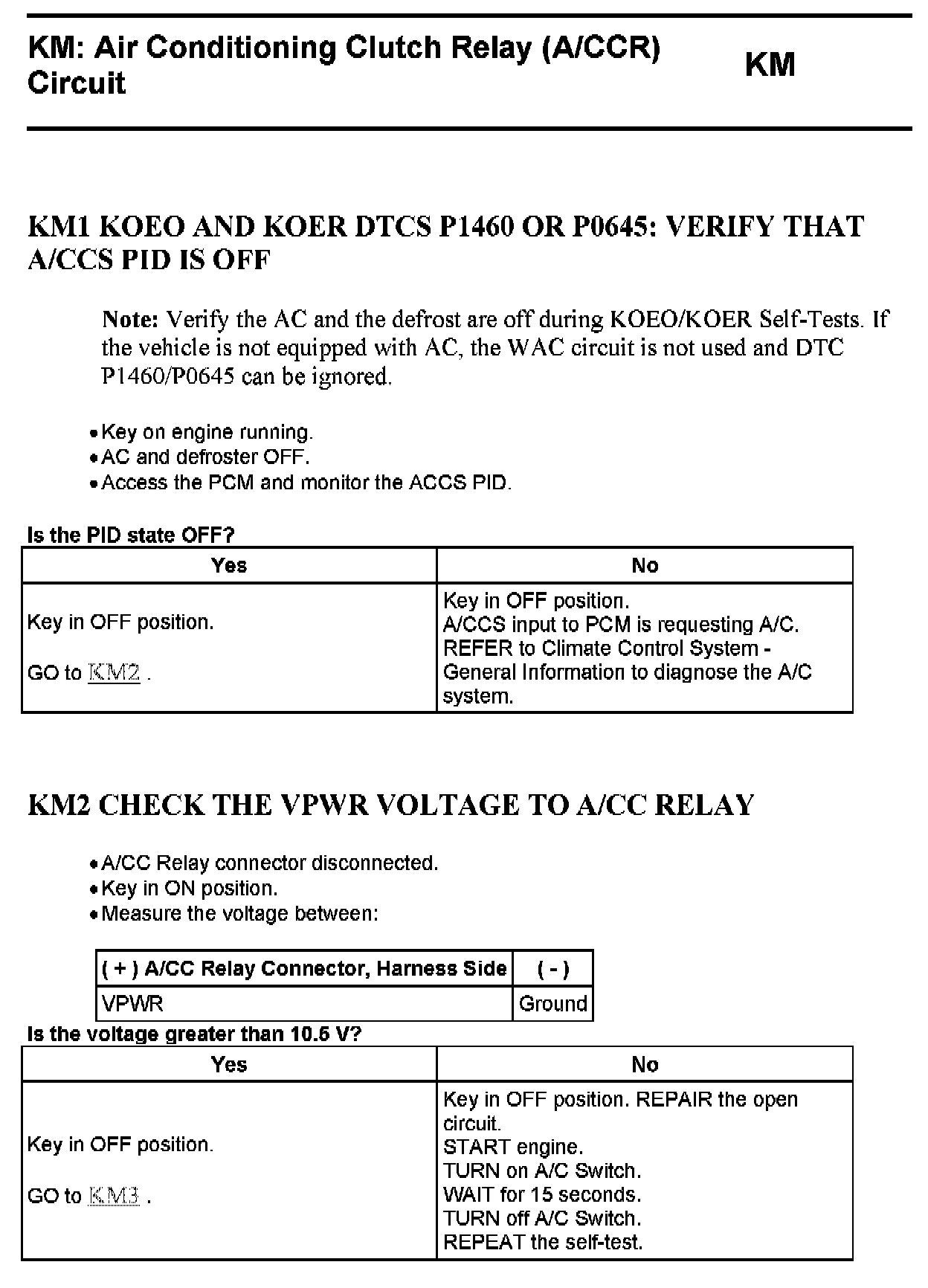

KM1 - KM2:

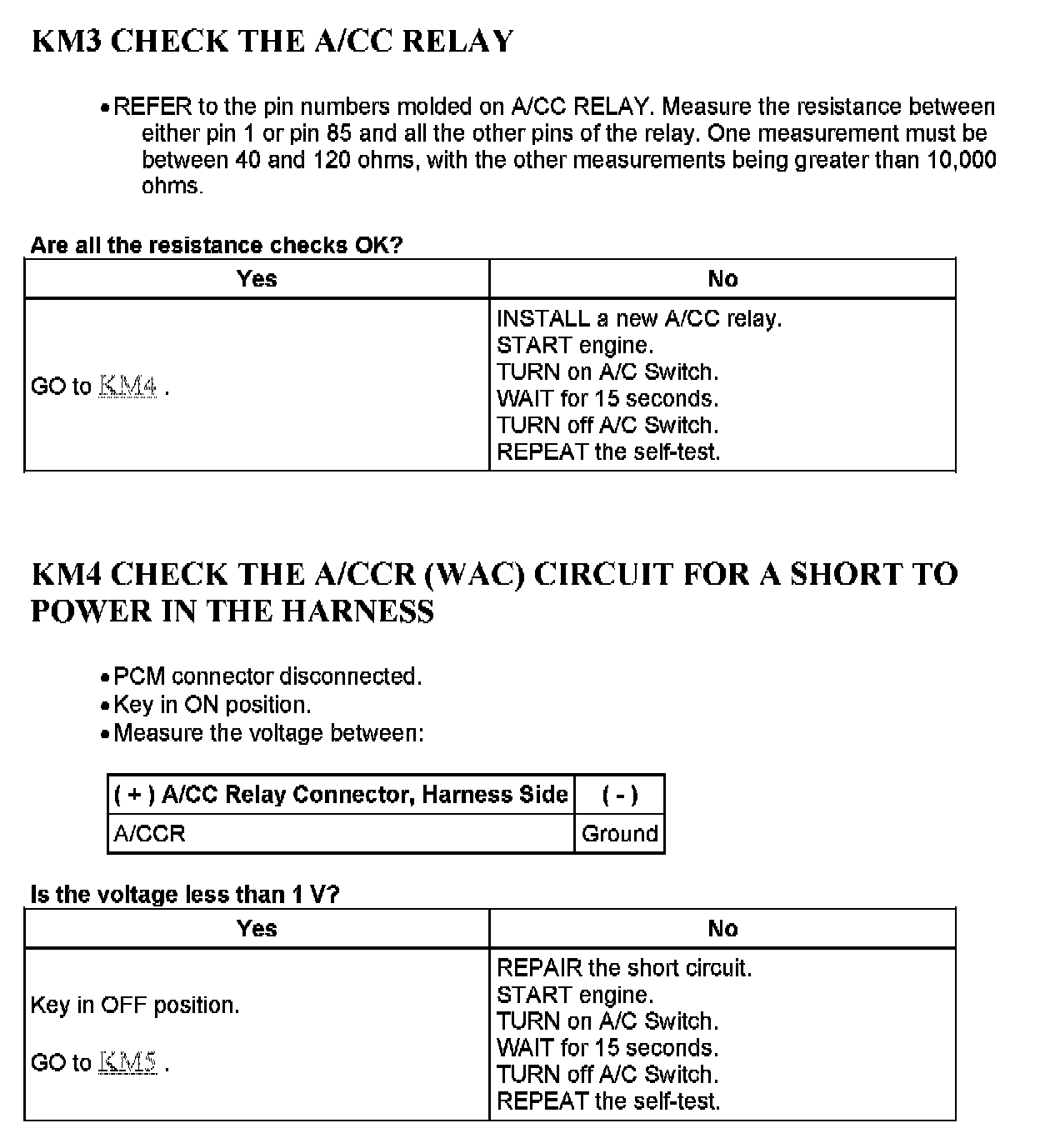

KM3 - KM4:

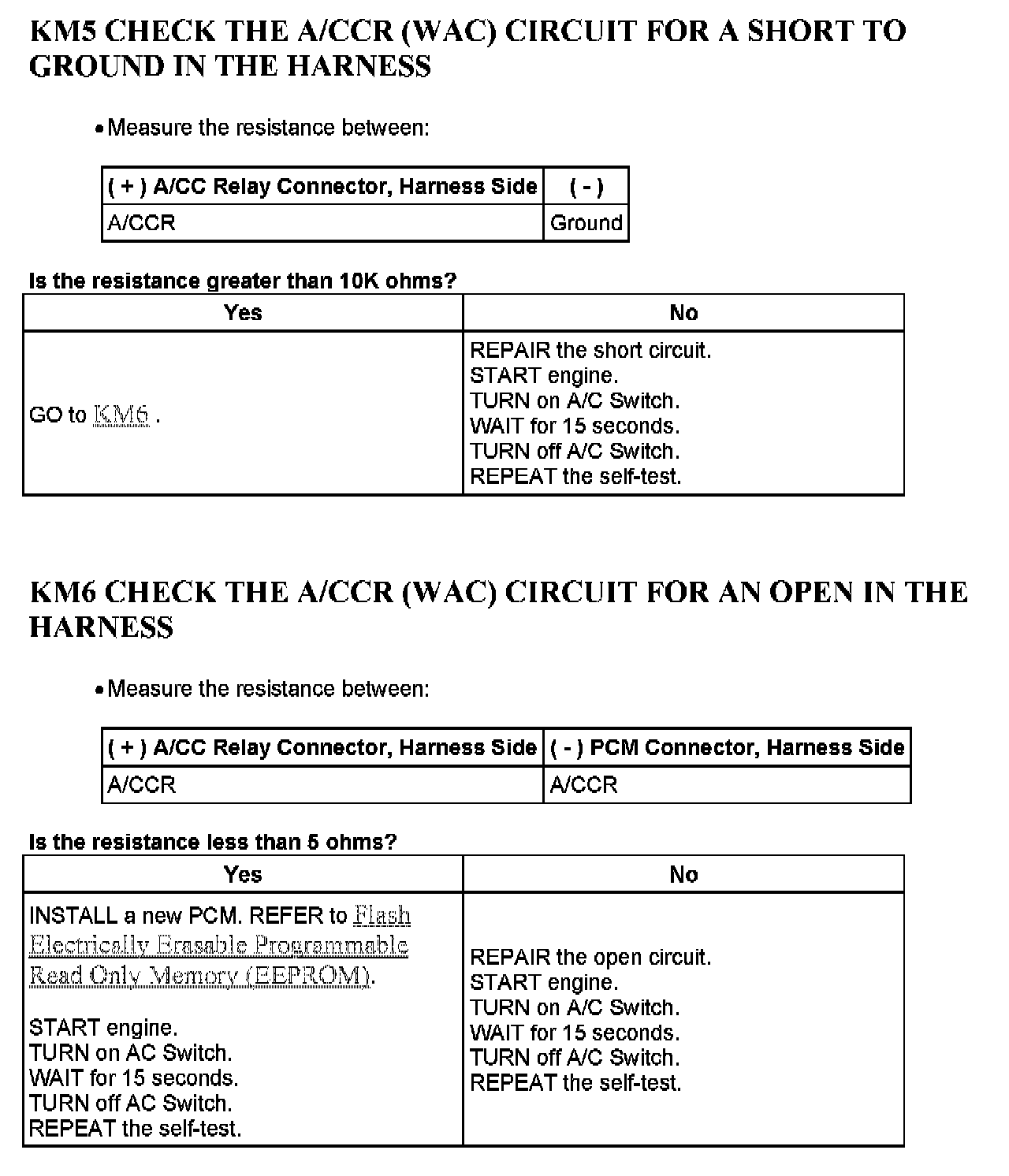

KM5 - KM6:

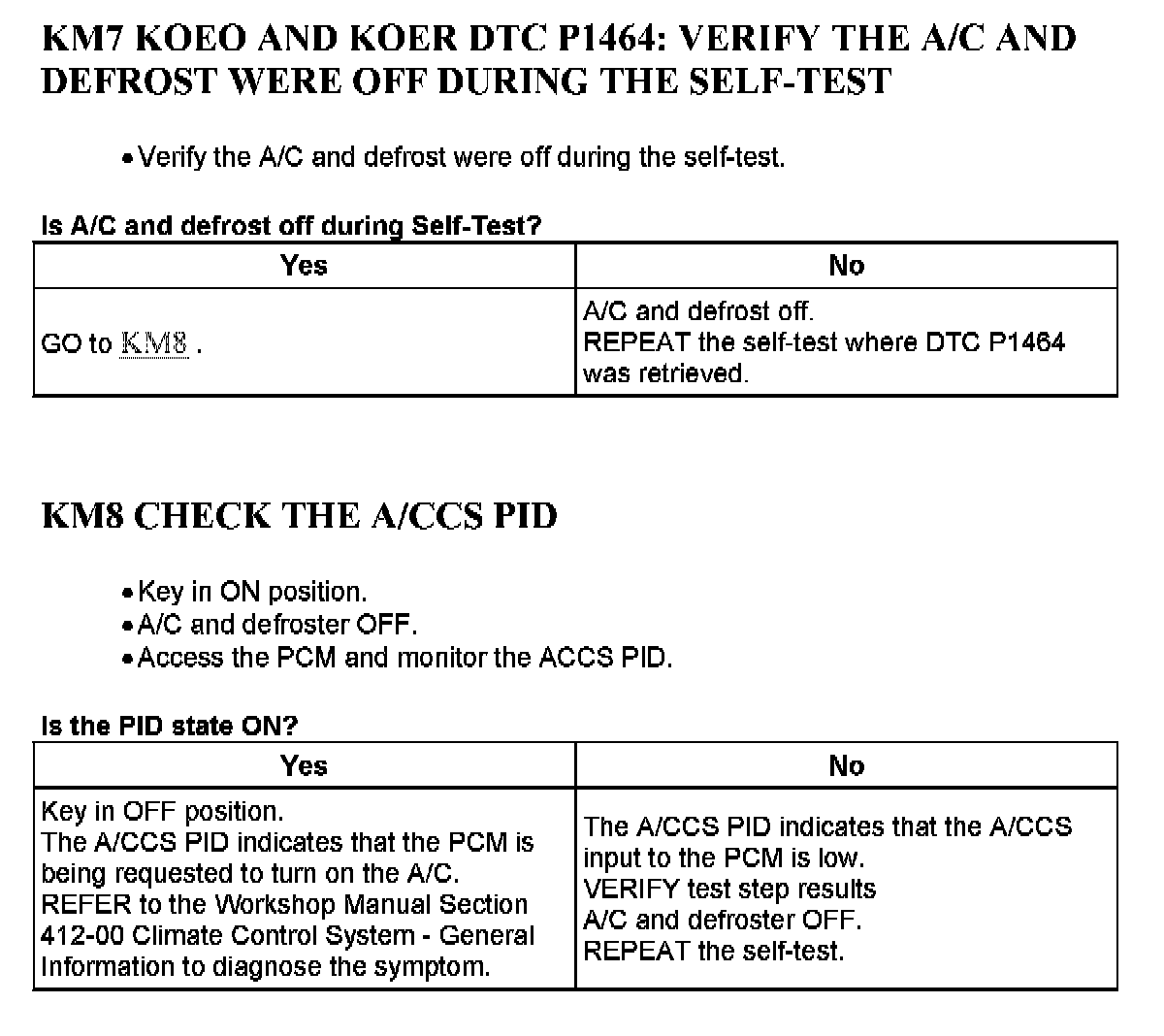

KM7 - KM8:

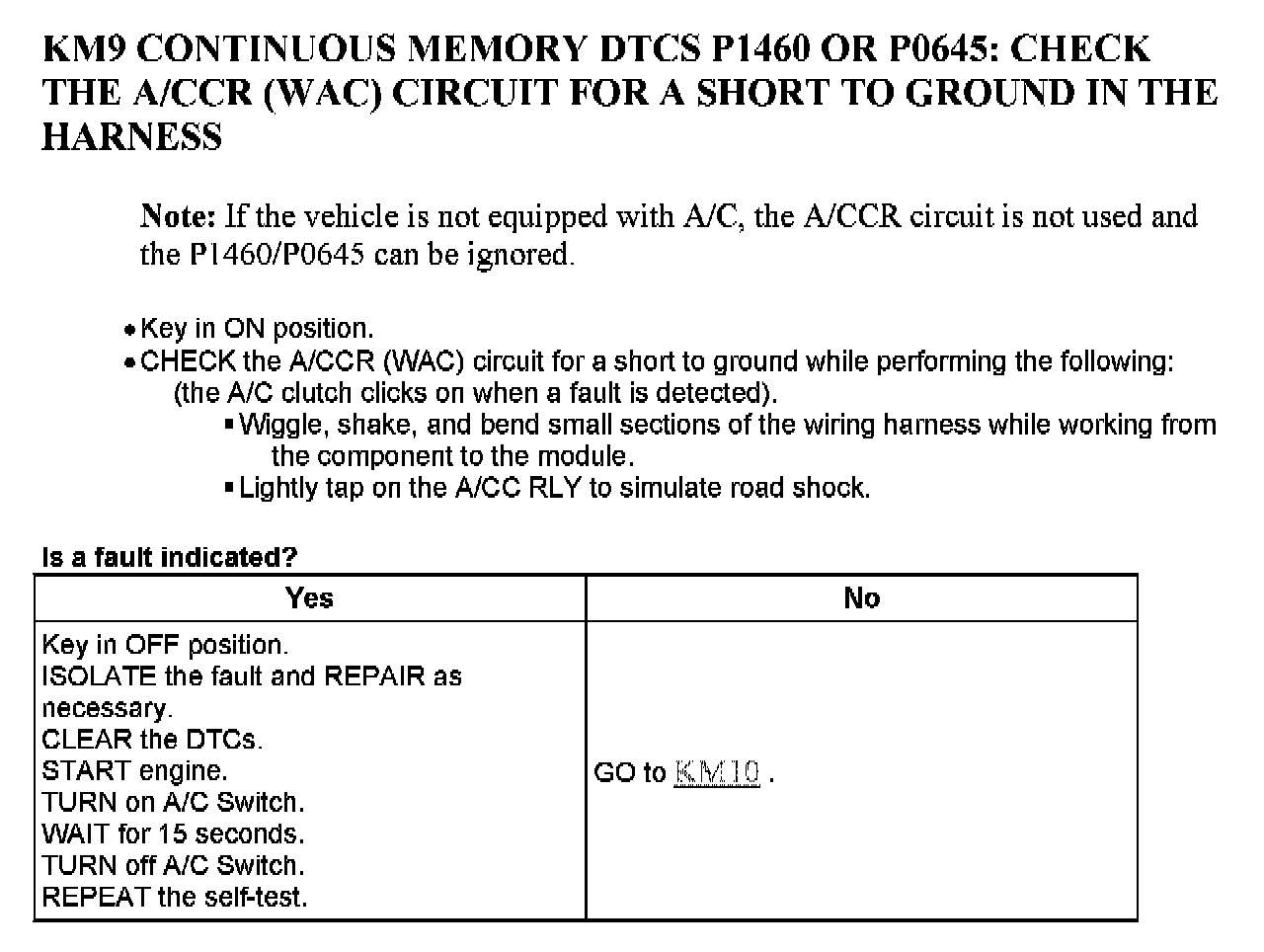

KM9:

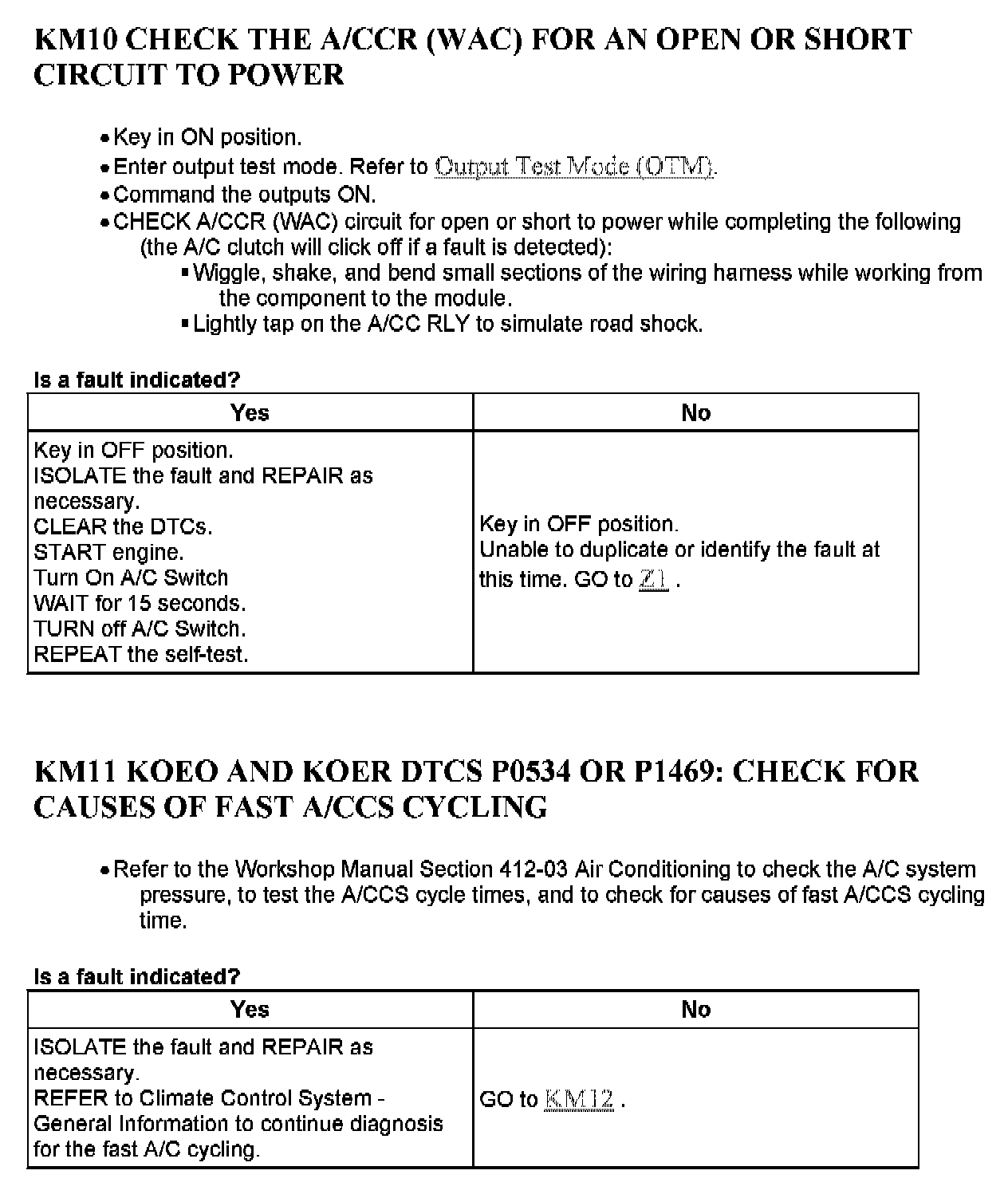

KM10 - KM11:

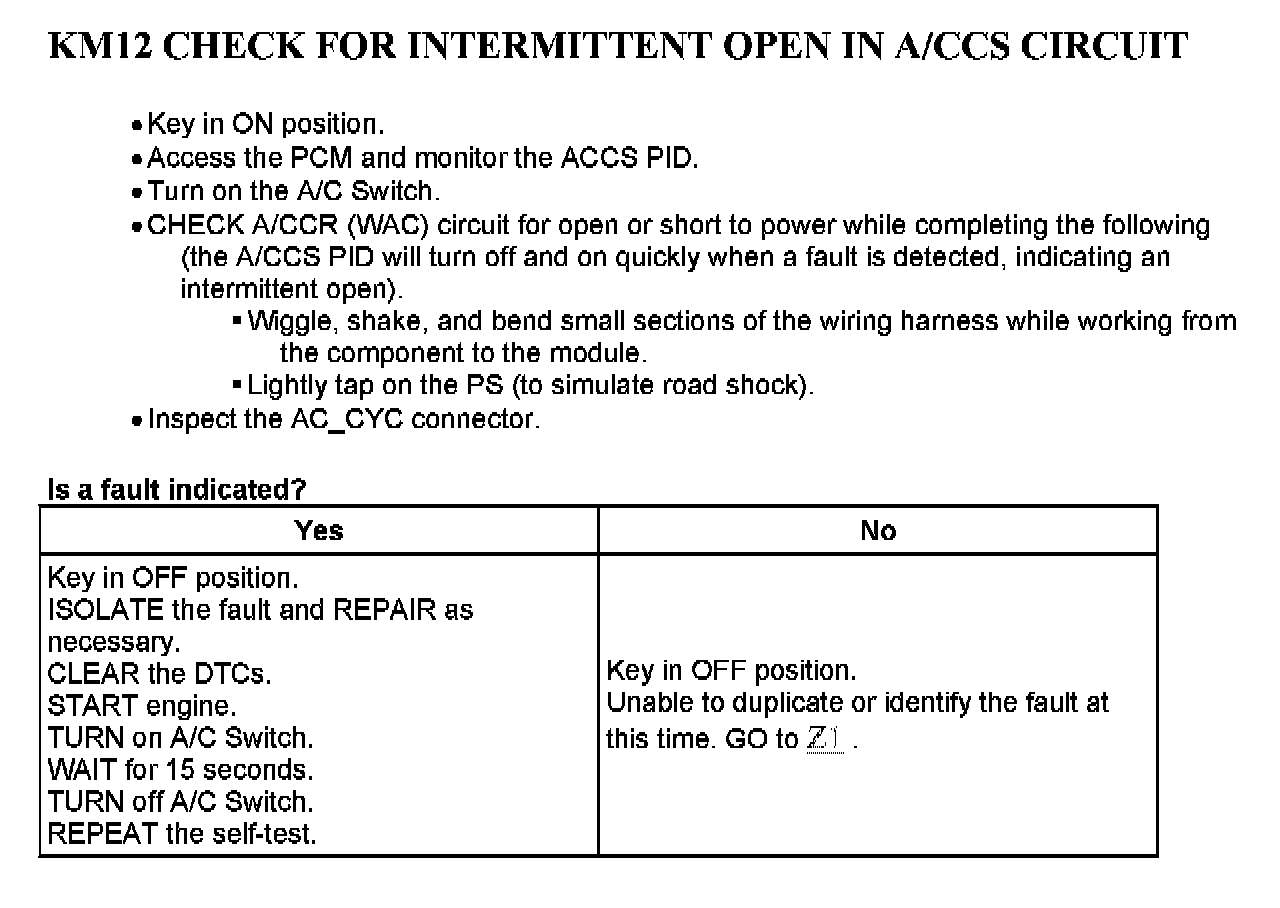

KM12:
