Tests TG: 4X4 Low Switch (4X4LSW) and Four Wheel Drive (4WD) Switch



PINPOINT TEST TG: 4X4 LOW SWITCH (4X4LSW) AND FOUR WHEEL DRIVE (4WD) SWITCH

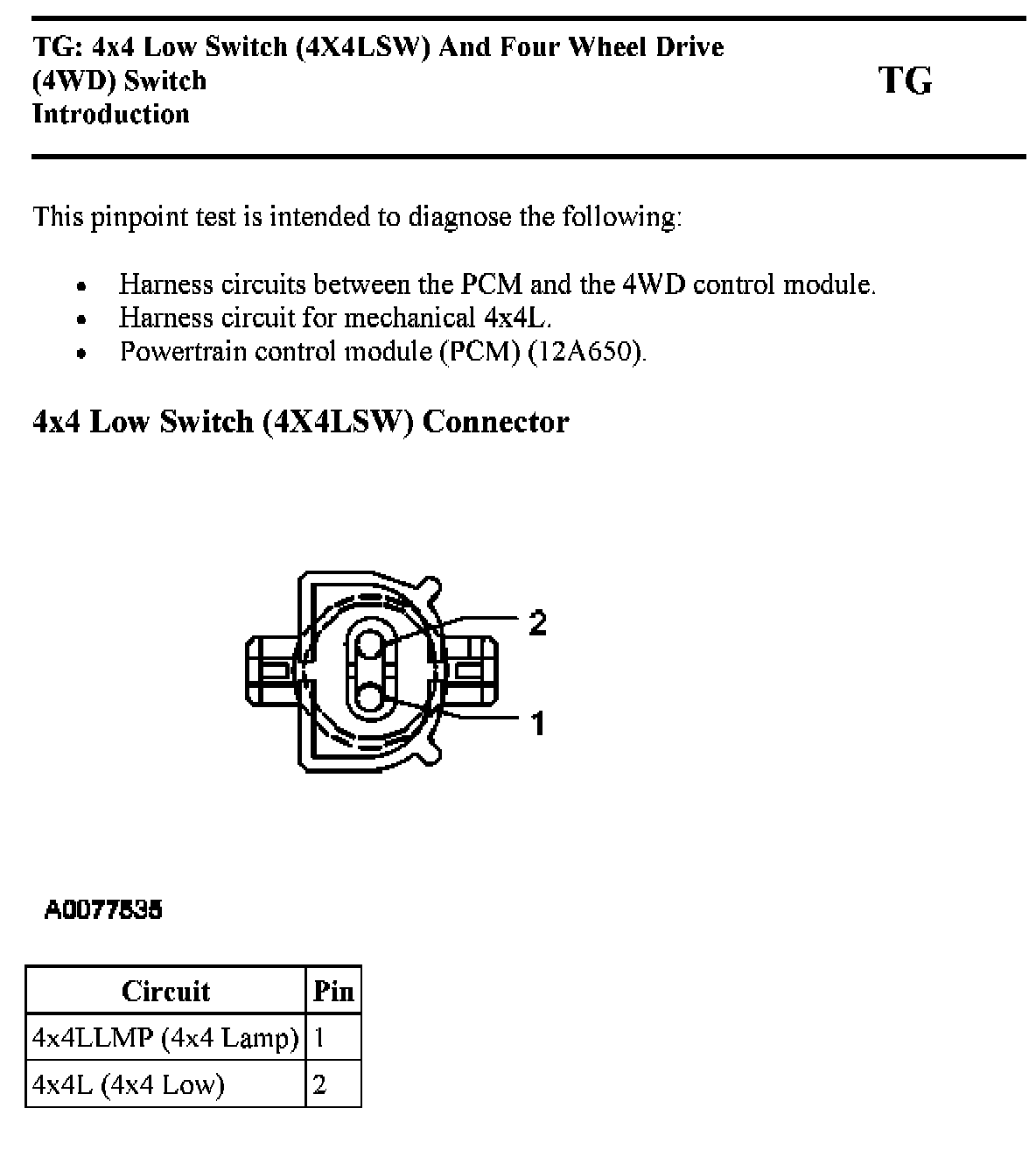

TG Introduction:

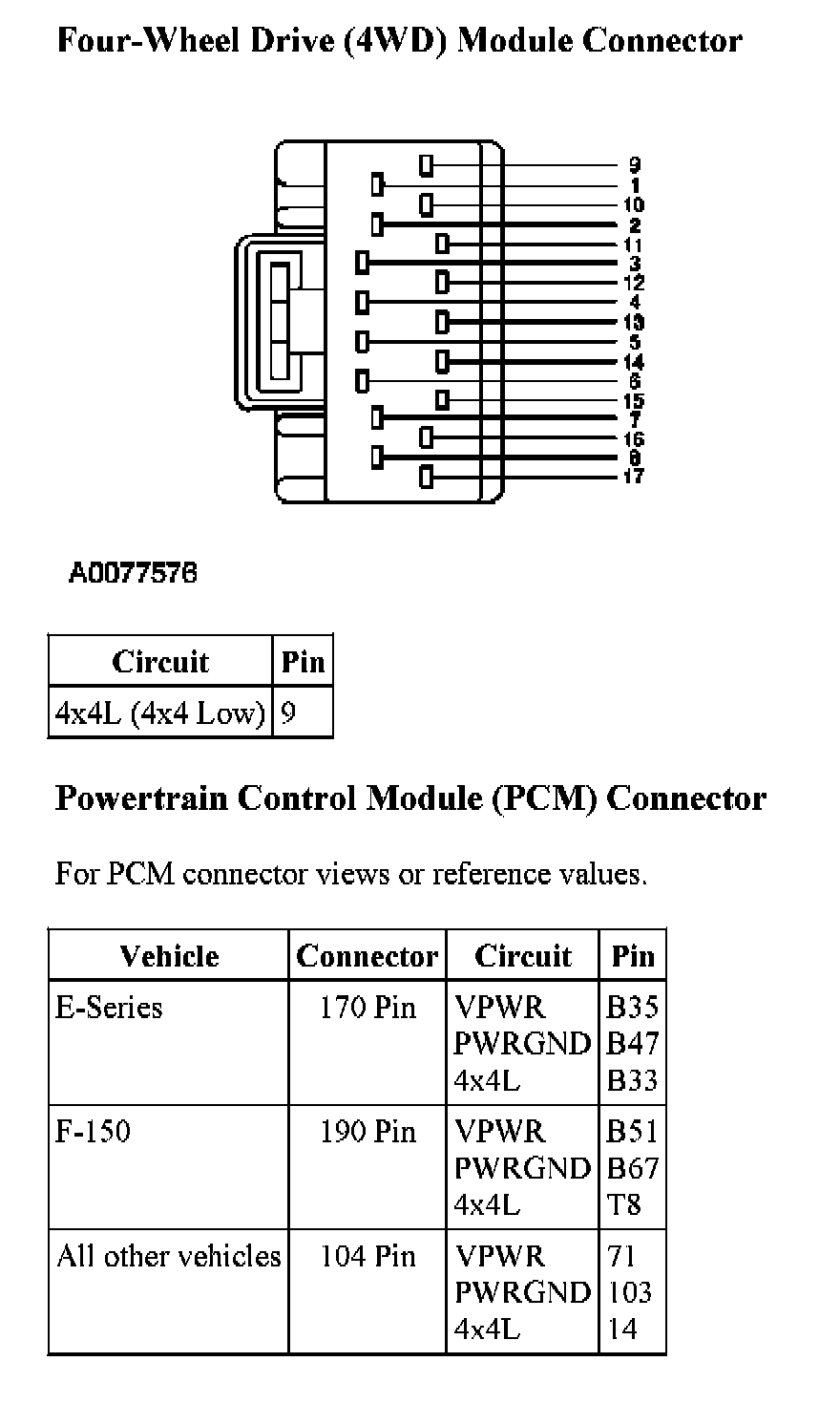

TG Introduction:

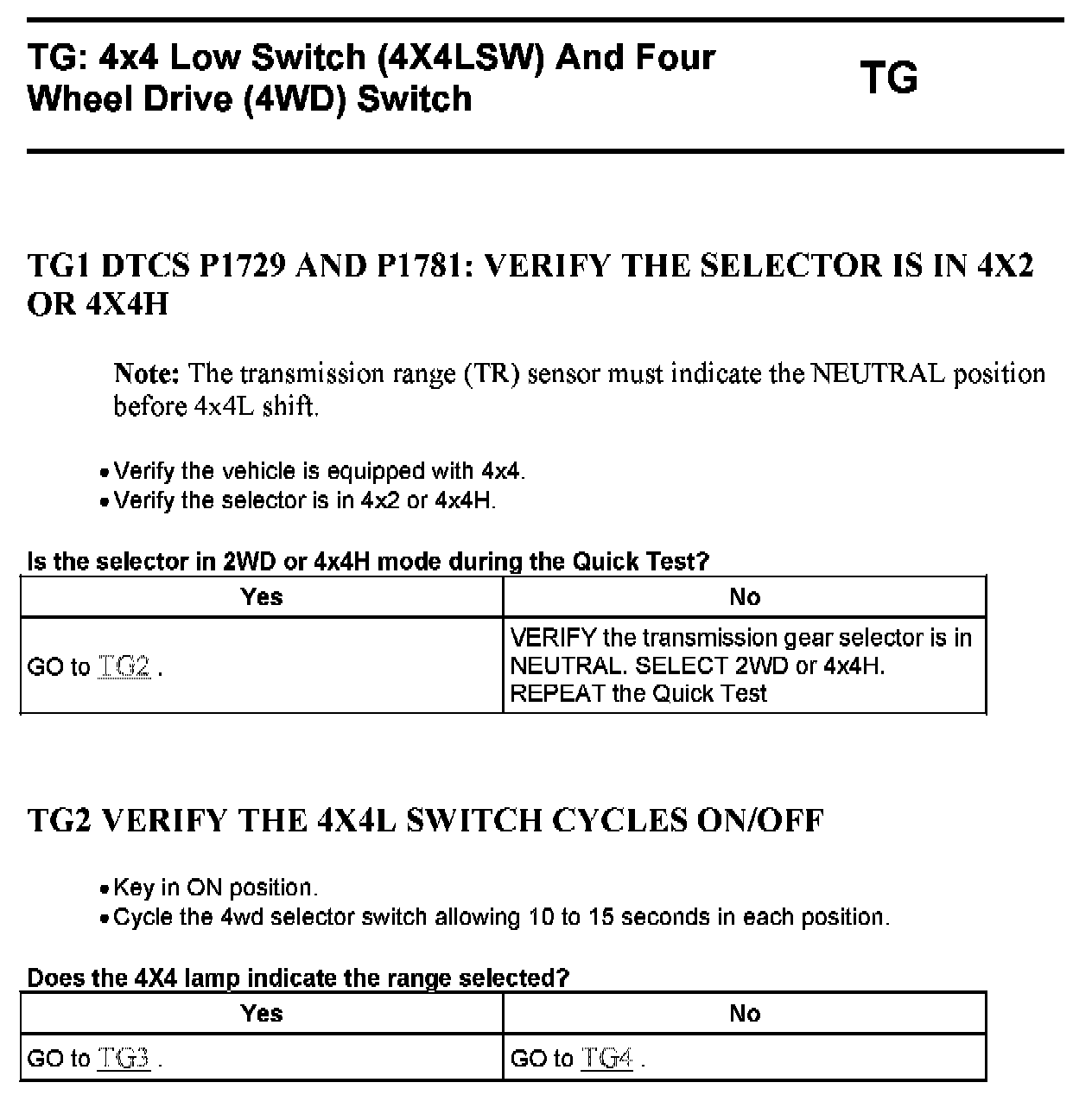

TG1 - TG2:

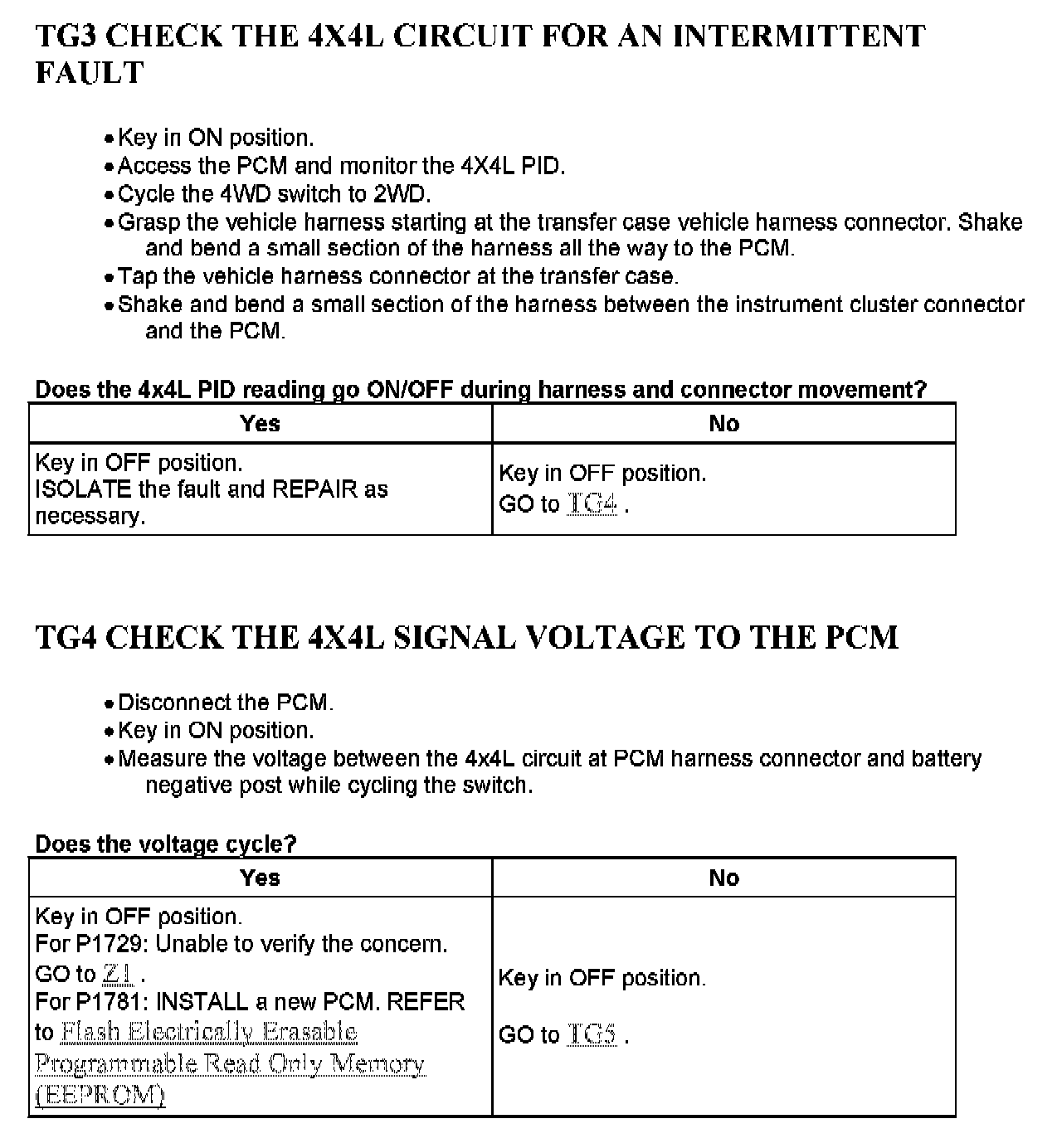

TG3 - TG4:

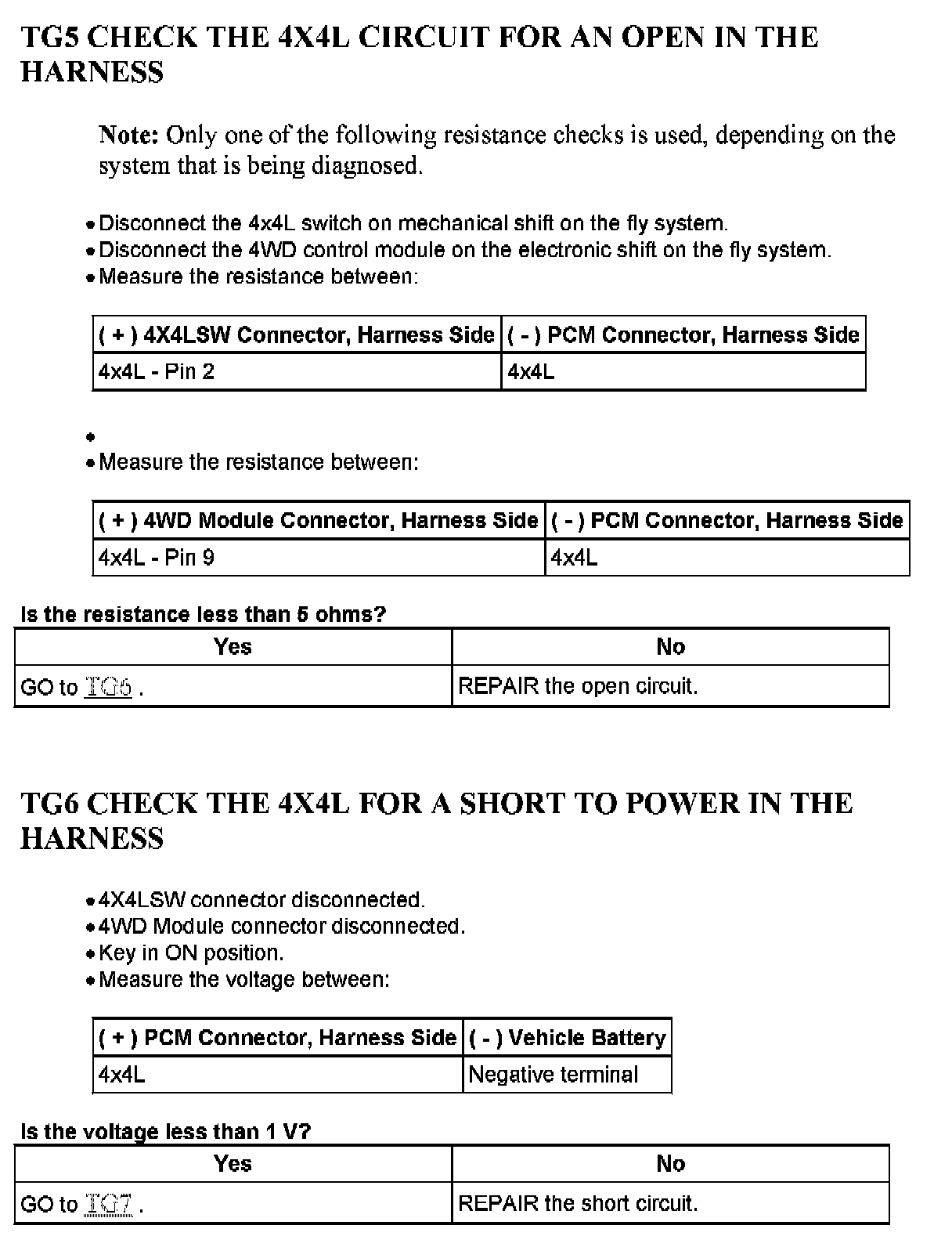

TG5 - TG6:

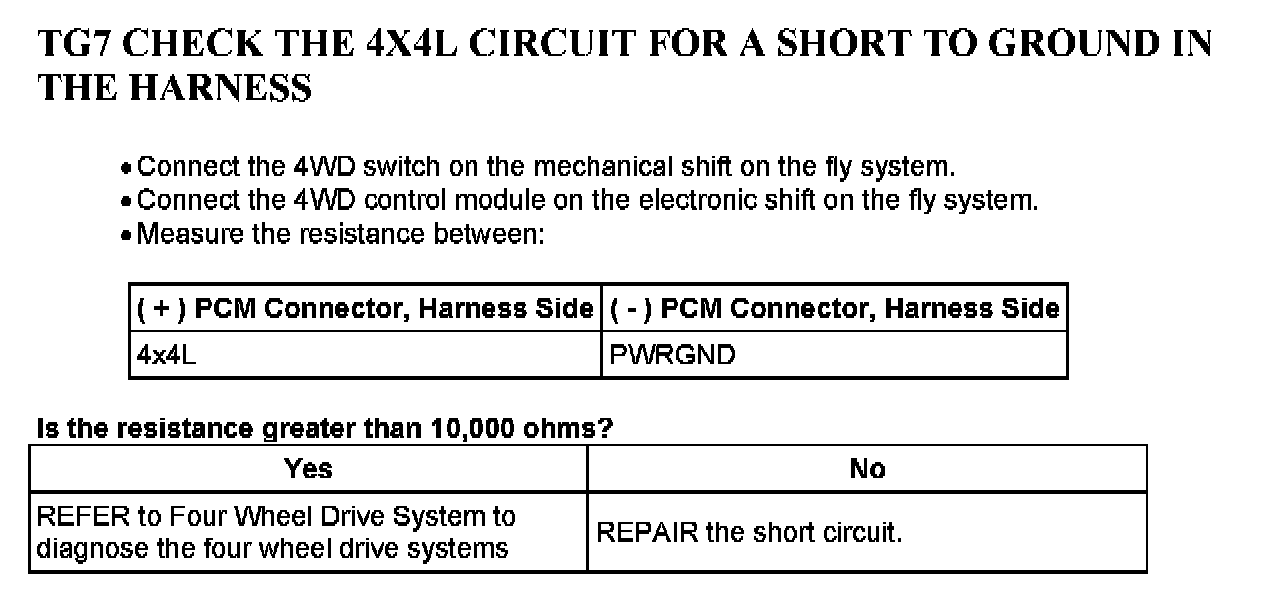

TG7:
