Transmission Description

Transmission Description
This transmission has the following features:
^ 5 forward speeds
^ Electronic shift, pressure and torque converter clutch controls
^ 3 compound planetary gear sets
^ 3 bands
^ 3 multi-plate clutches
^ 2 one-way clutches

All hydraulic functions are directed by electronic solenoids. The solenoids control:
^ static engagement feel.
^ shift feel.
^ shift scheduling.
^ modulated Torque Converter Clutch (TCC) applications.
^ engine braking utilizing the coast clutch and band.
^ manual 1st and 2nd timing.
^ reverse inhibit timing.

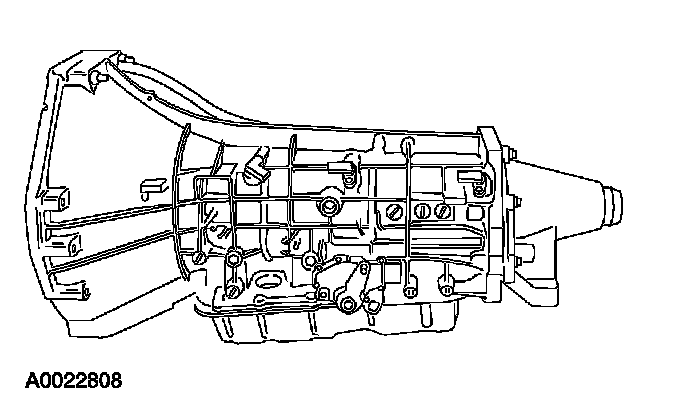

Transmission View
