Shift Solenoid Failure Mode Chart

Shift Solenoid Failure Mode Chart
Failed ON or OFF due to Powertrain Control Module (PCM) and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically shack ON or OFF.

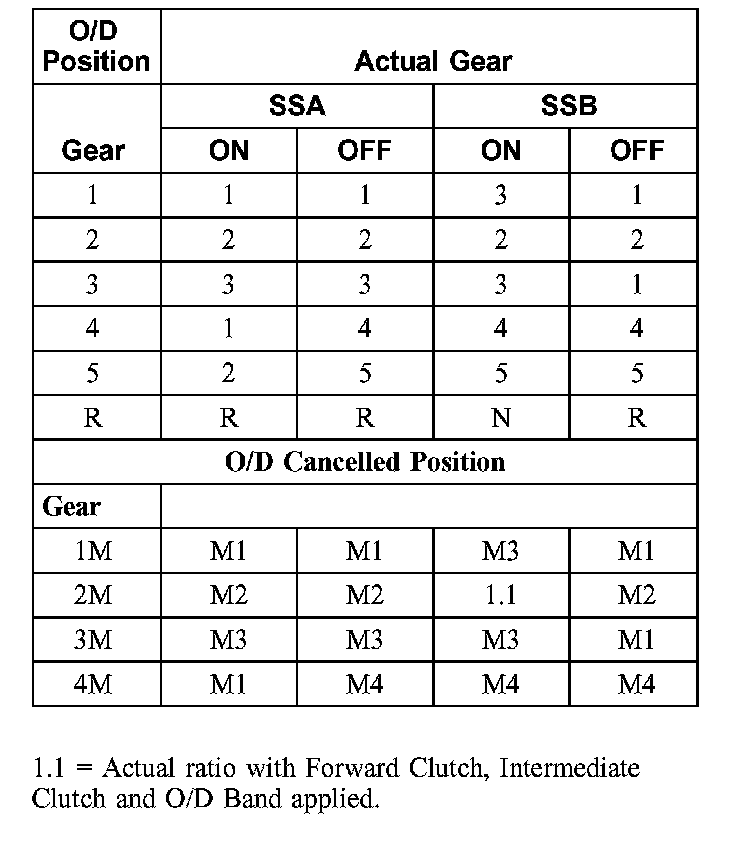

SSA. SSB

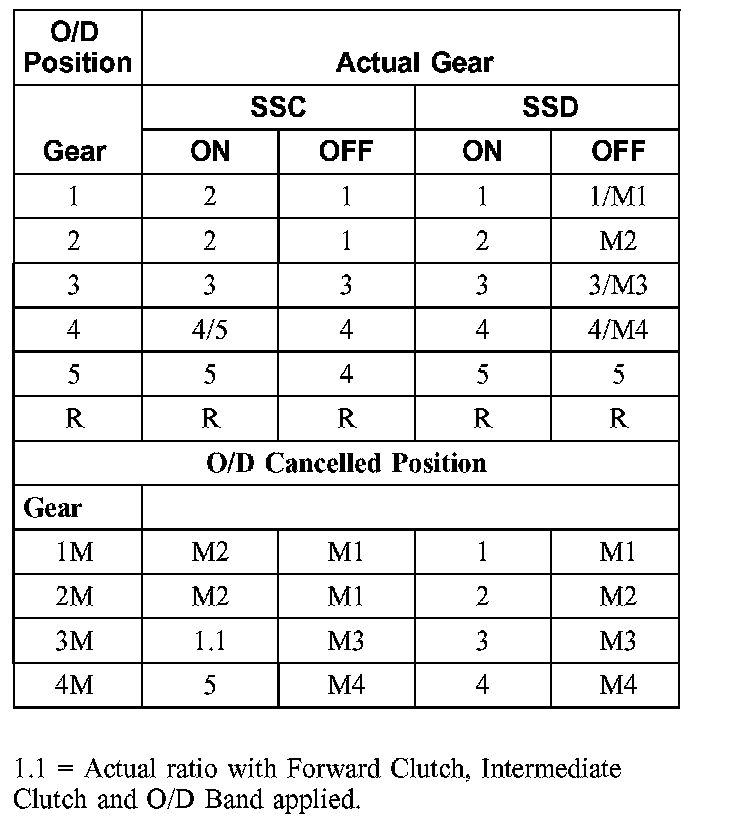

SC, SSD

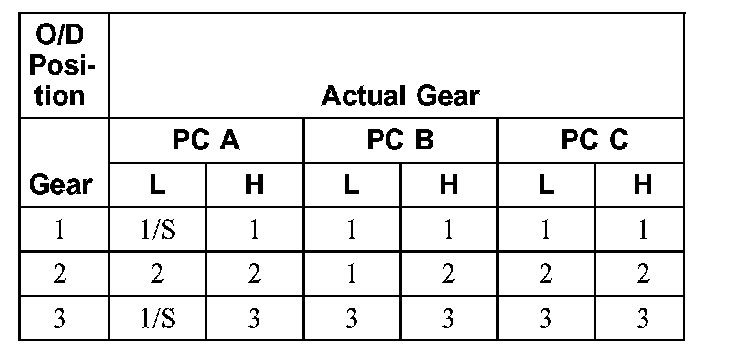

Part 1:

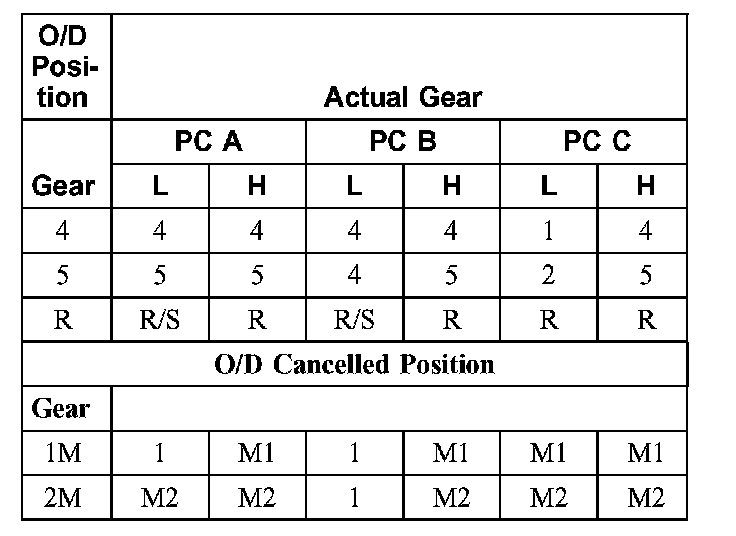

Part 2:

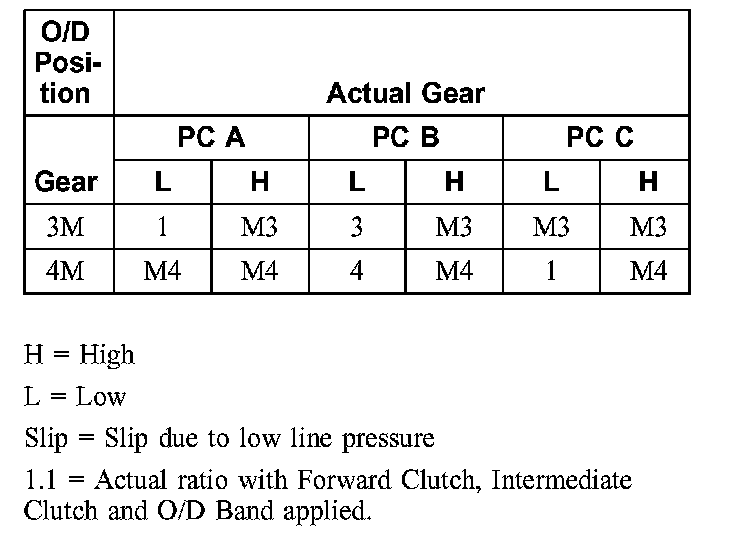

Part 3:





PC A, PC B. PC C
