Test A: Shift and Torque Converter Clutch Solenoids

PINPOINT TEST A: SHIFT AND TORQUE CONVERTER CLUTCH SOLENOIDS

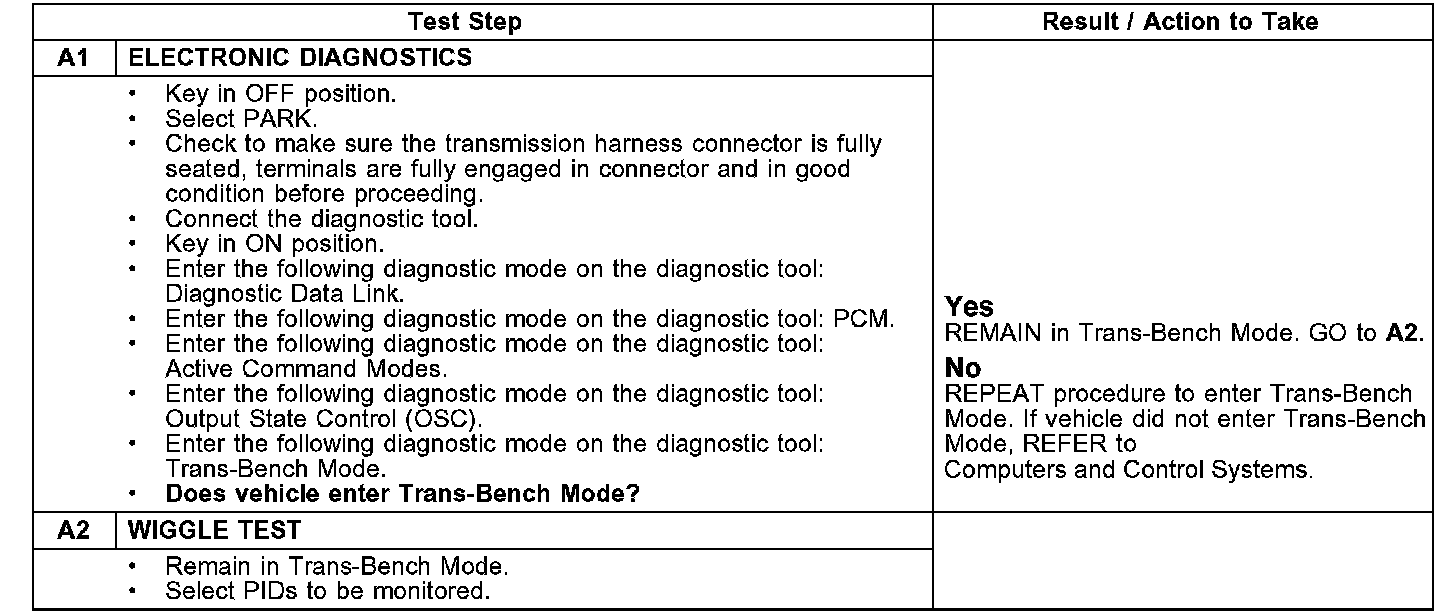

Test A1-A2:

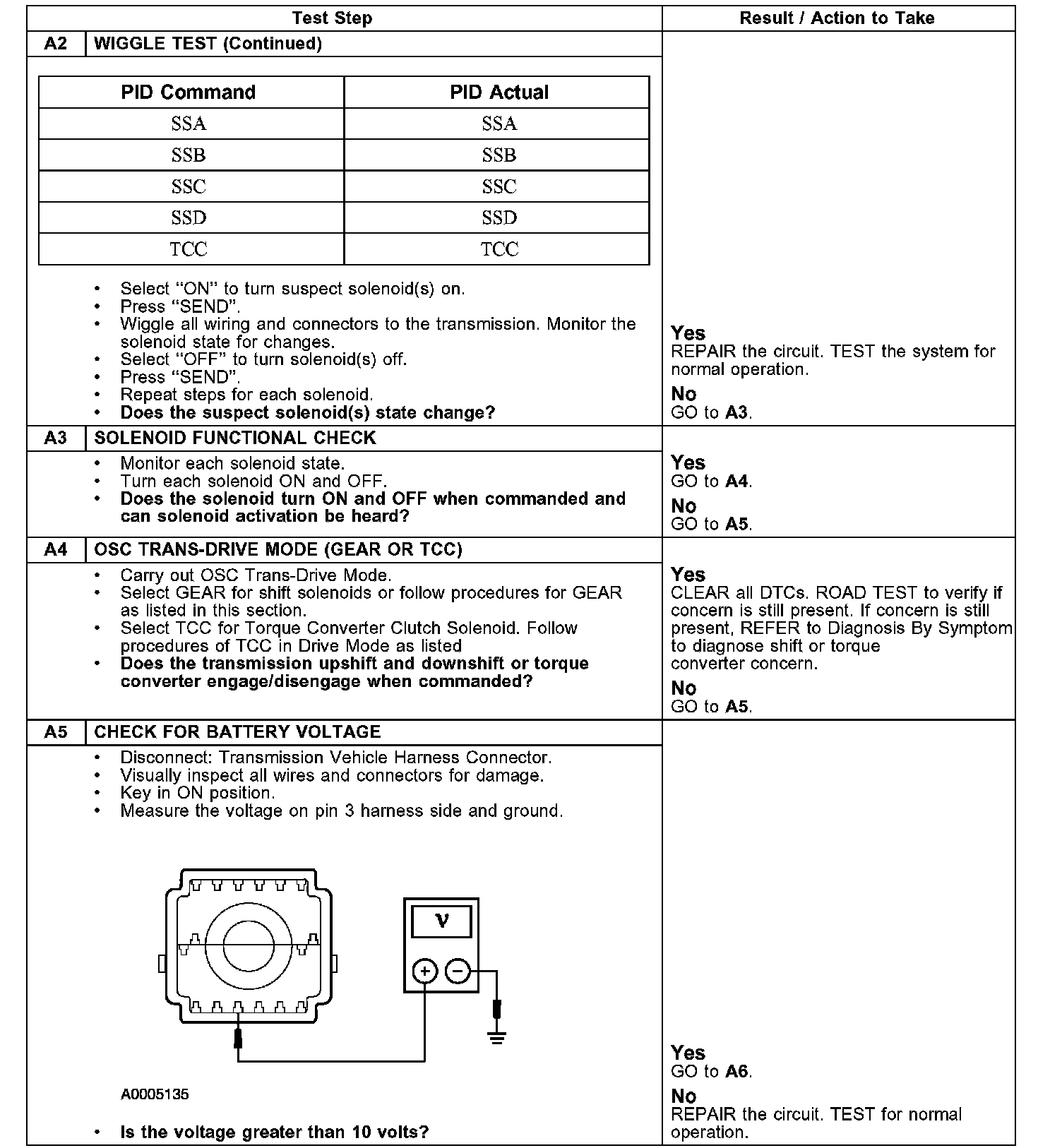

Test A2-A5:

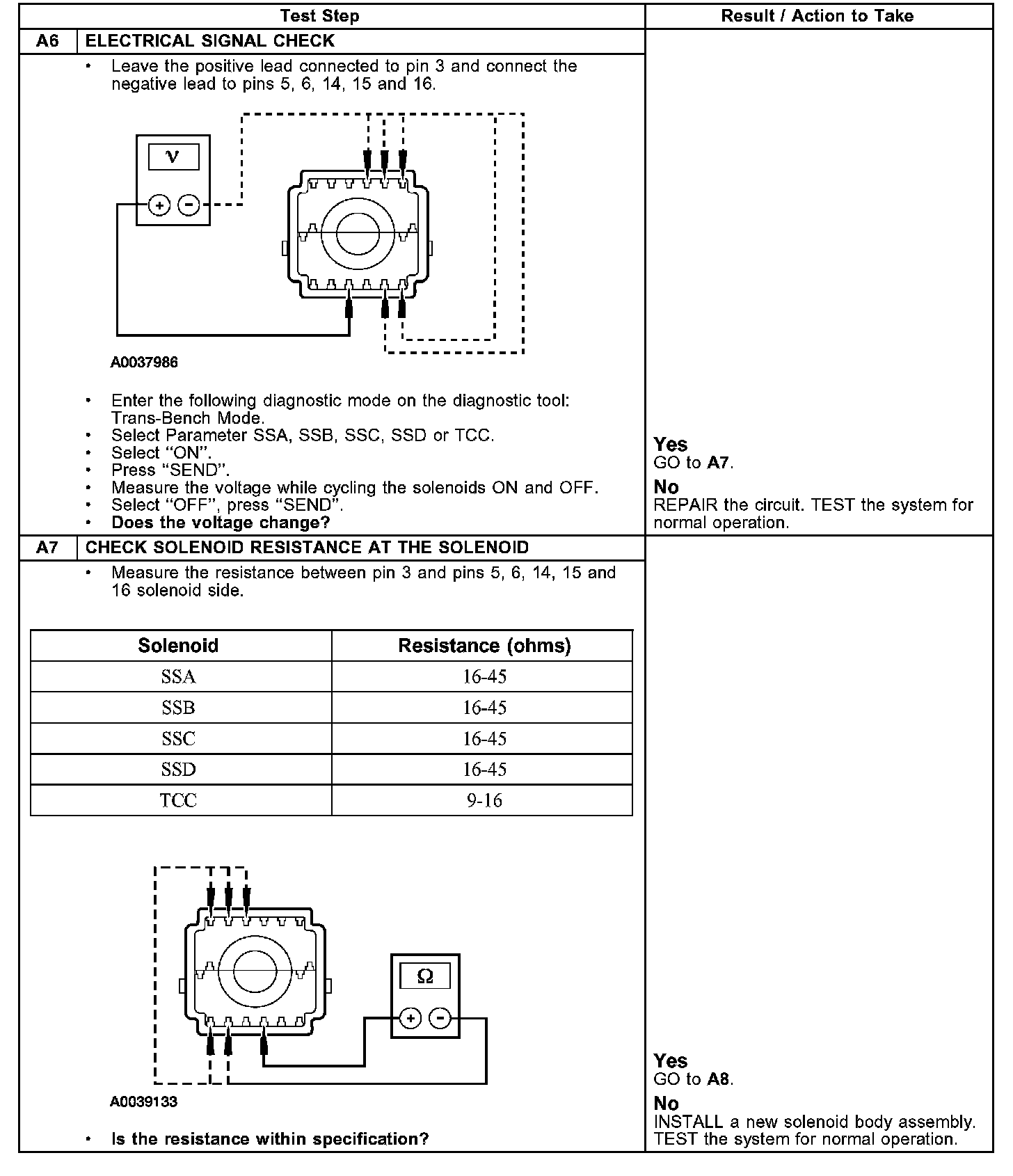

Test A6-A7:

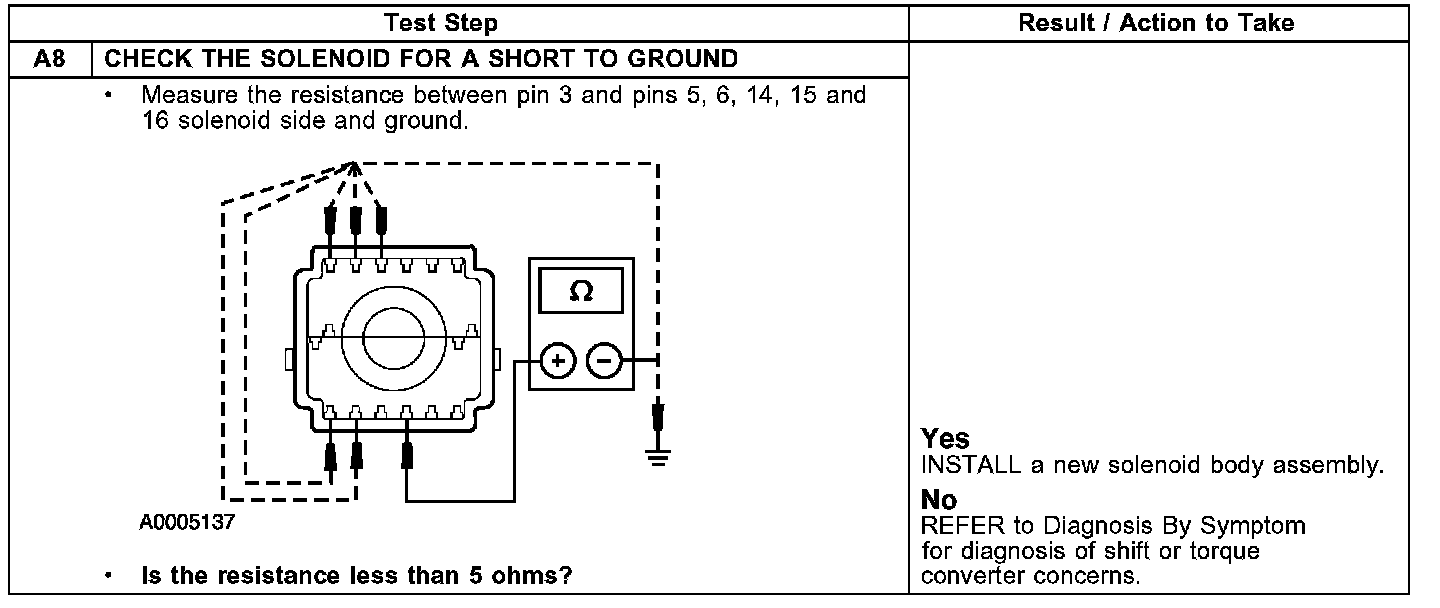

Test A8:

NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests. Transmission Connector Layouts

NOTE: Refer to the Internal Harness Diagram illustration preceding these pinpoint tests. Transmission Connector Layouts

NOTE: Read and record all DTC's. All Digital TR Sensor and VSS DTC's must be repaired before entering Output State Control (OCS).
