Test B: Transmission Fluid Temperature (TFT) Sensor

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR

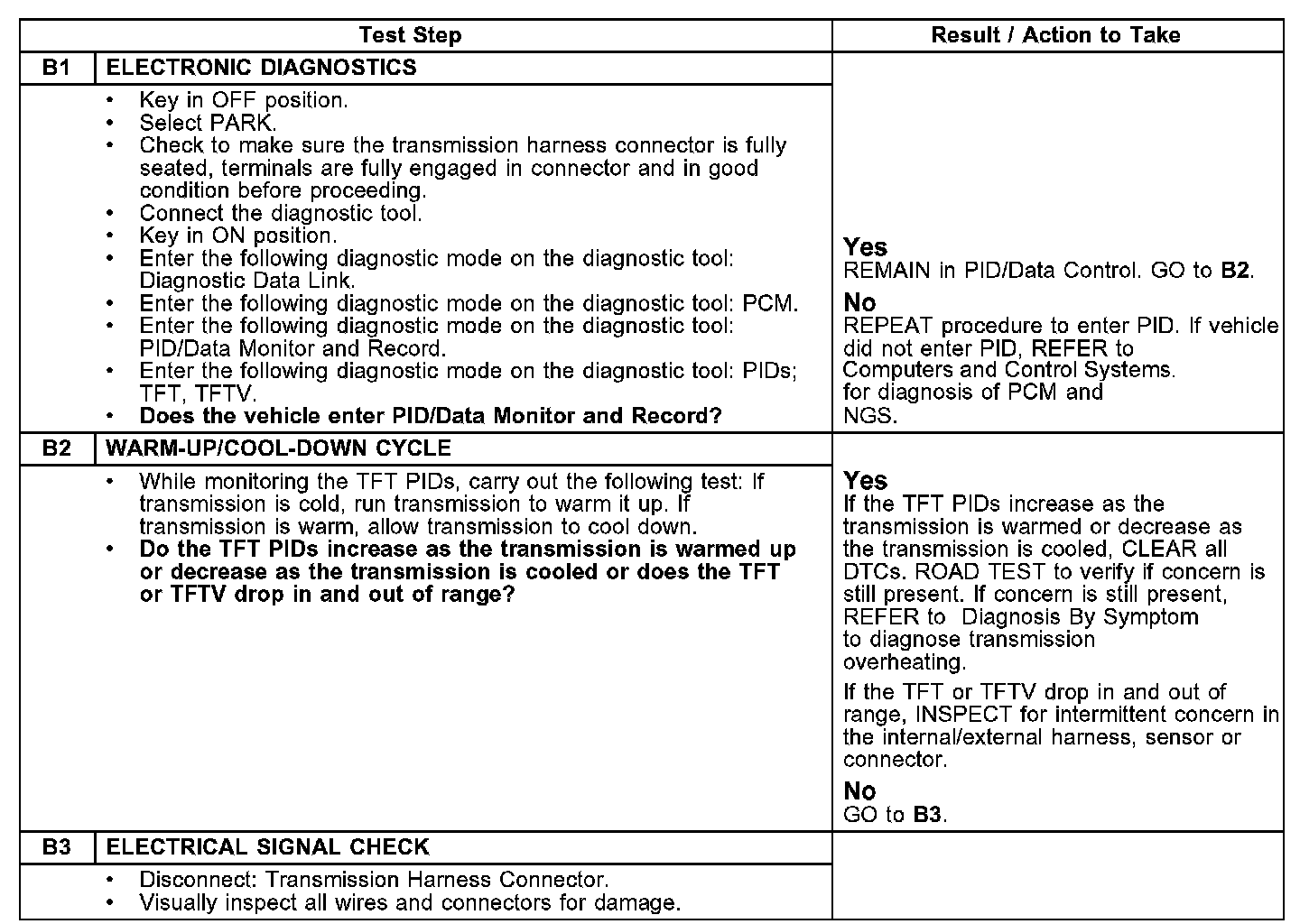

Test B1-B3:

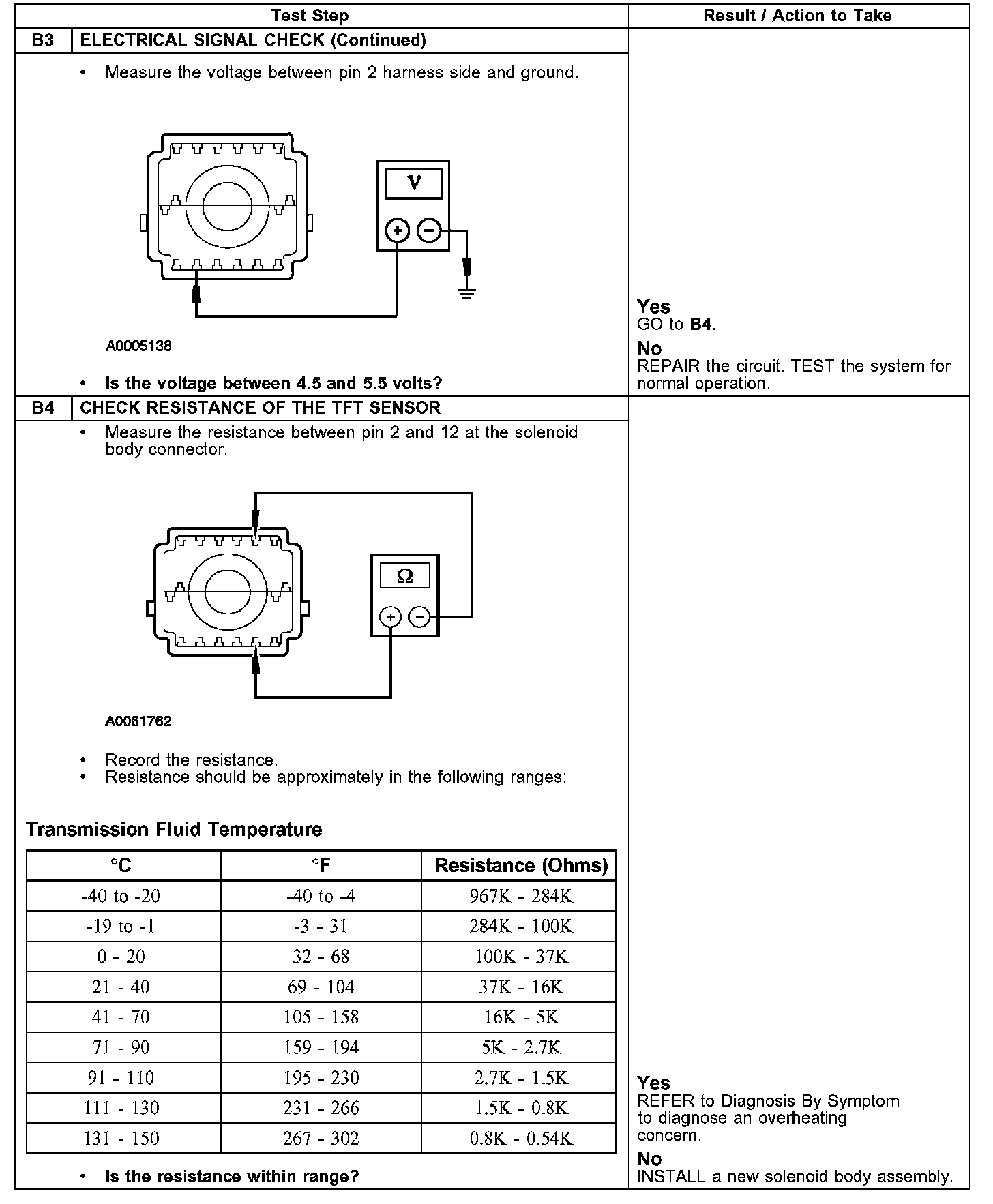

Test B3-B4:





NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests. Transmission Connector Layouts
