Test D: Pressure Control (PC) Solenoids (PCA, PCB, PCC)

PINPOINT TEST D: PRESSURE CONTROL (PC) SOLENOIDS (PCA, PCB, PCC)

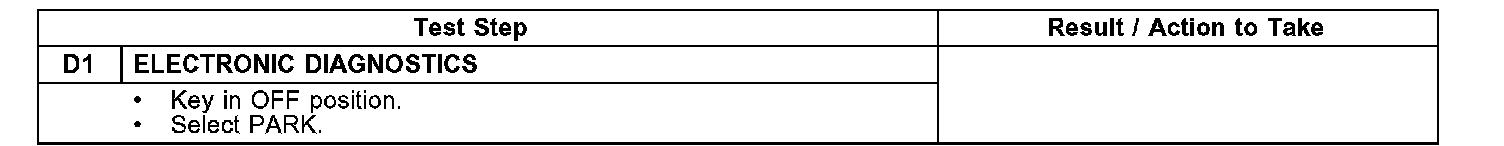

Test D1:

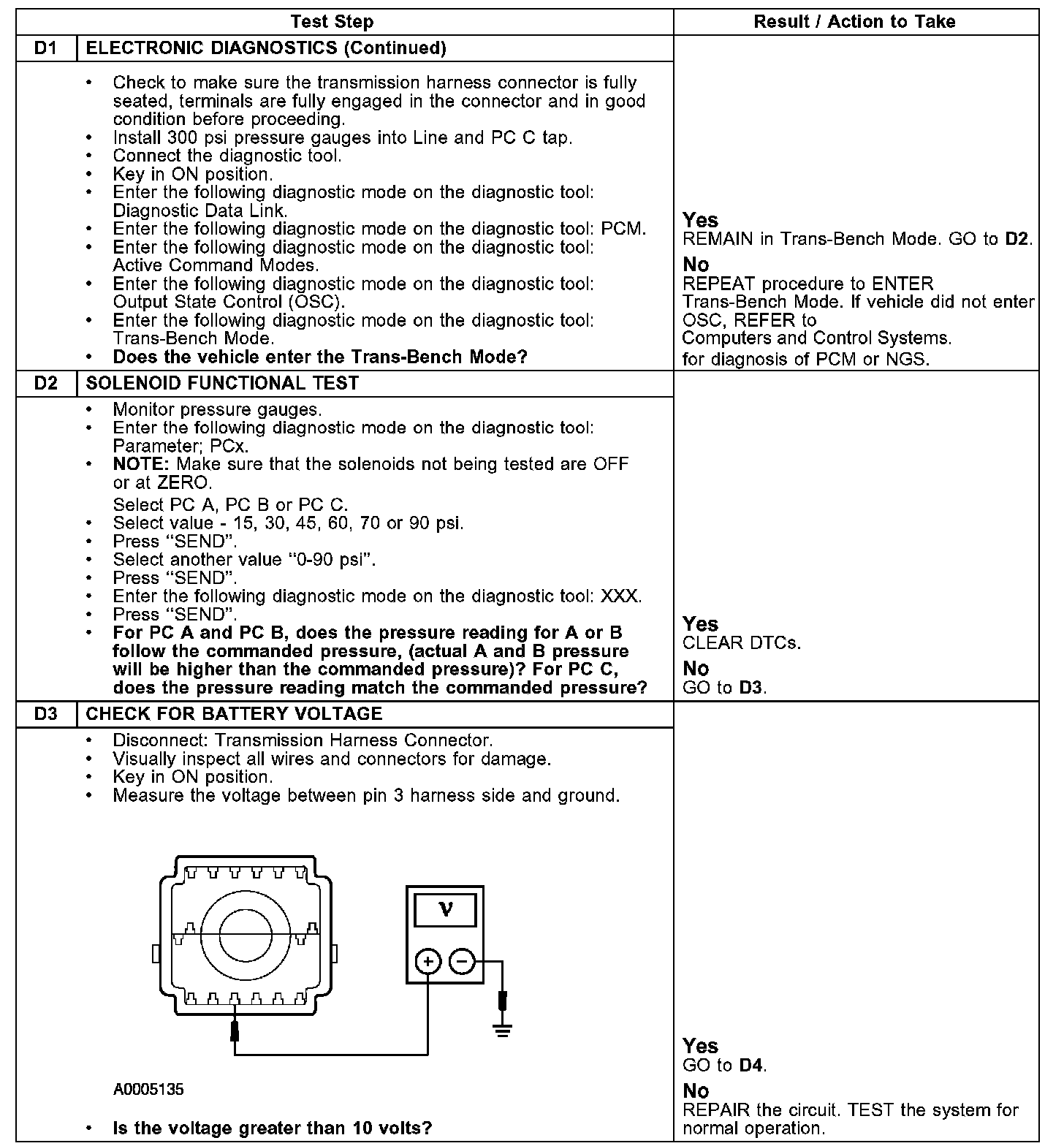

Test D1-D3:

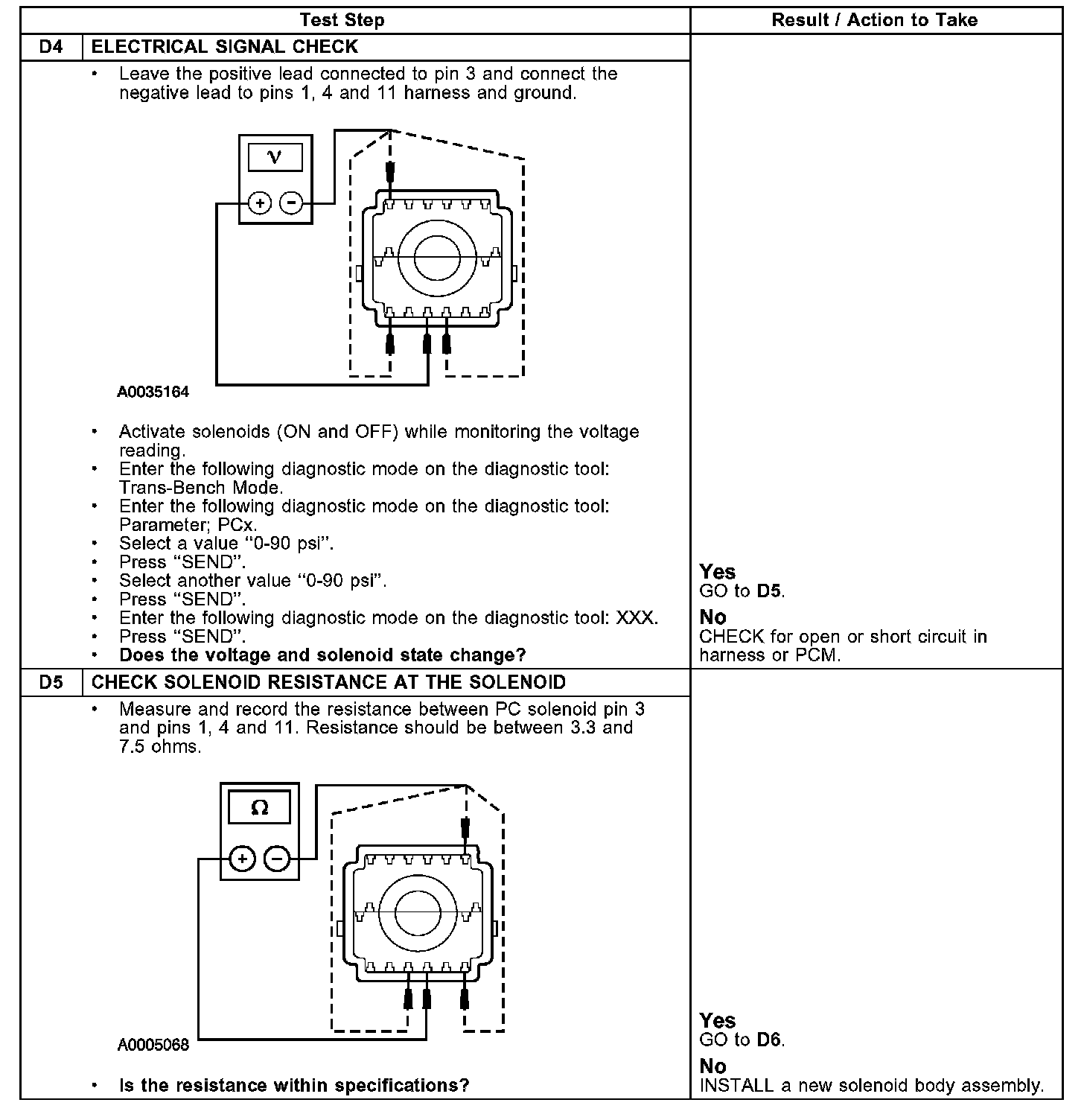

Test D4-D5:

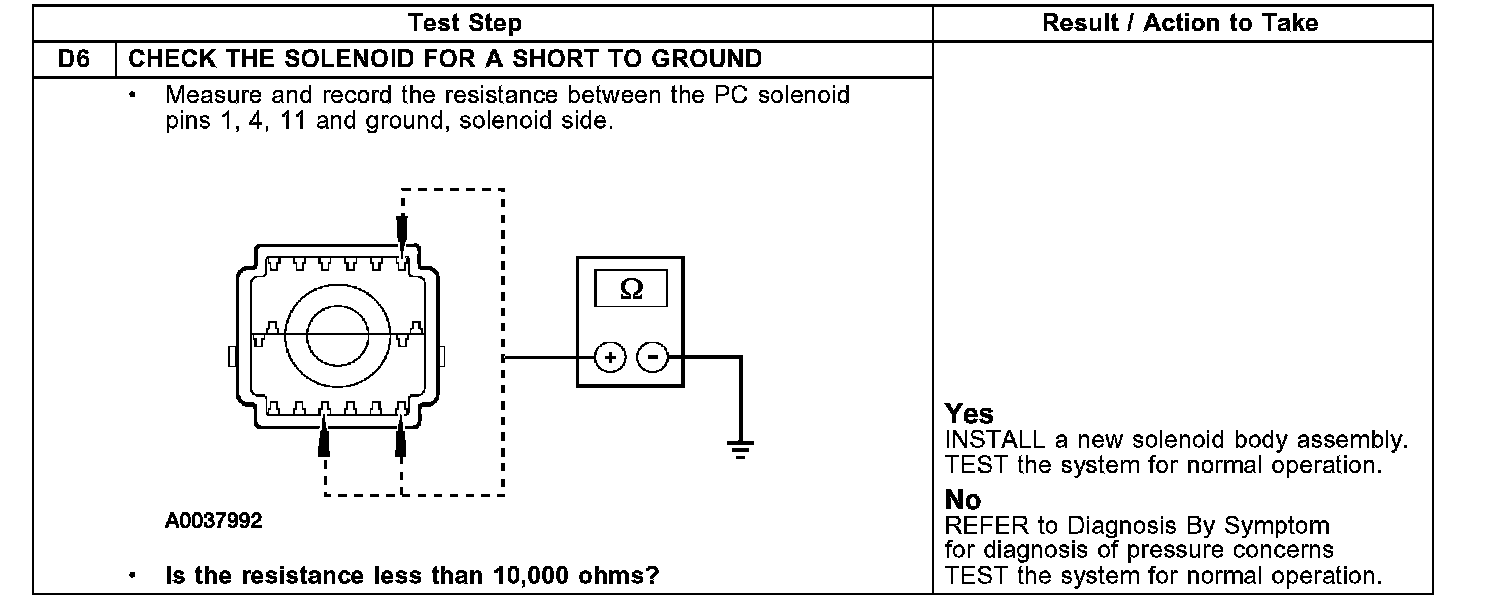

Test D6:

NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests. Transmission Connector Layouts

NOTE: Read and record all DTC's. All digital TR Sensor and VSS DTC's must be repaired before entering Output State Control (OSC).
