Test E: Turbine Shaft Speed (TSS), Intermediate Shaft Speed And Output Shaft Speed (OSS) Sensors

Pinpoint Test E: Turbine Shaft Speed (TSS), Intermediate Shaft Speed And Output Shaft Speed (OSS) Sensors

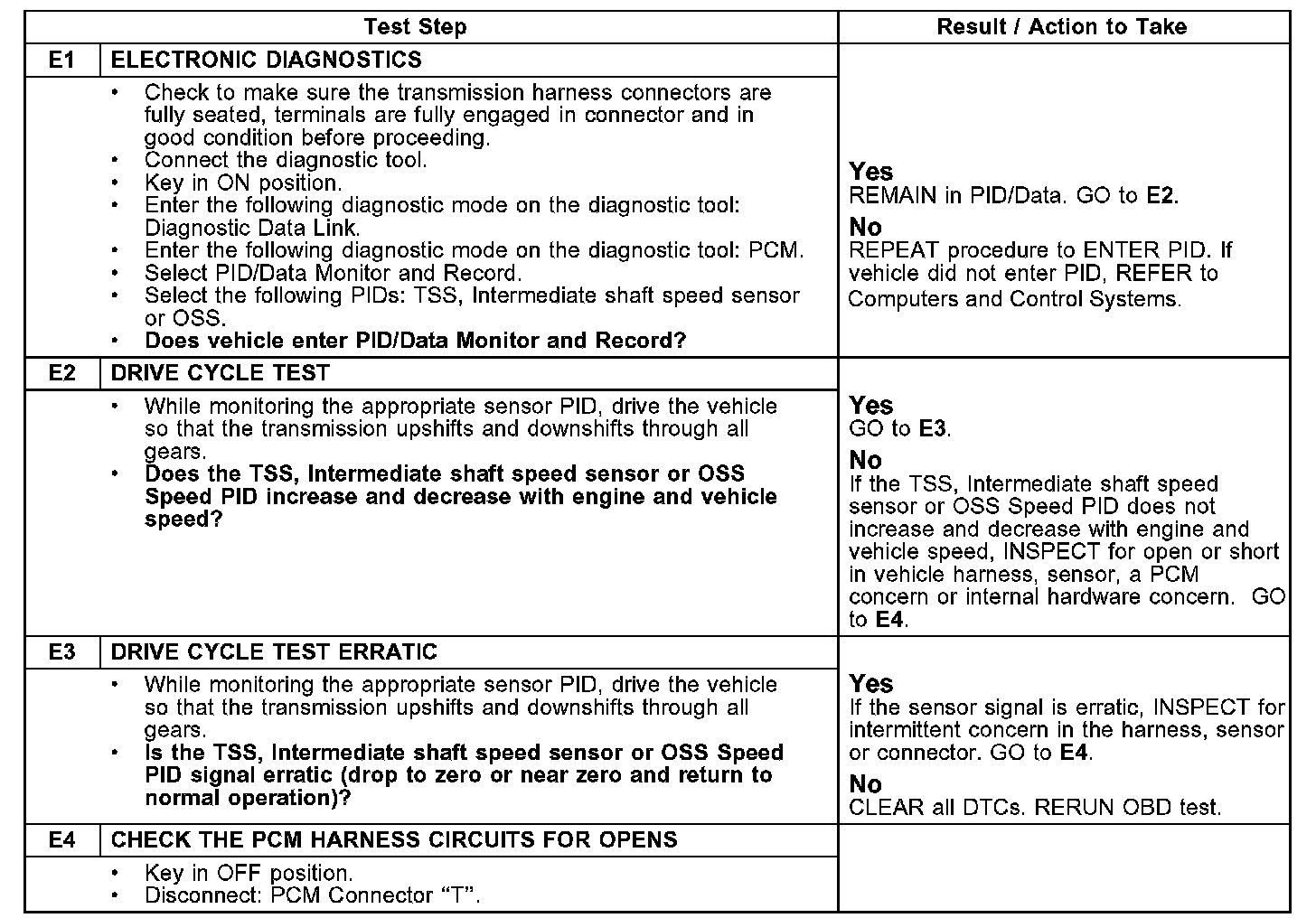

Test E1-E4:

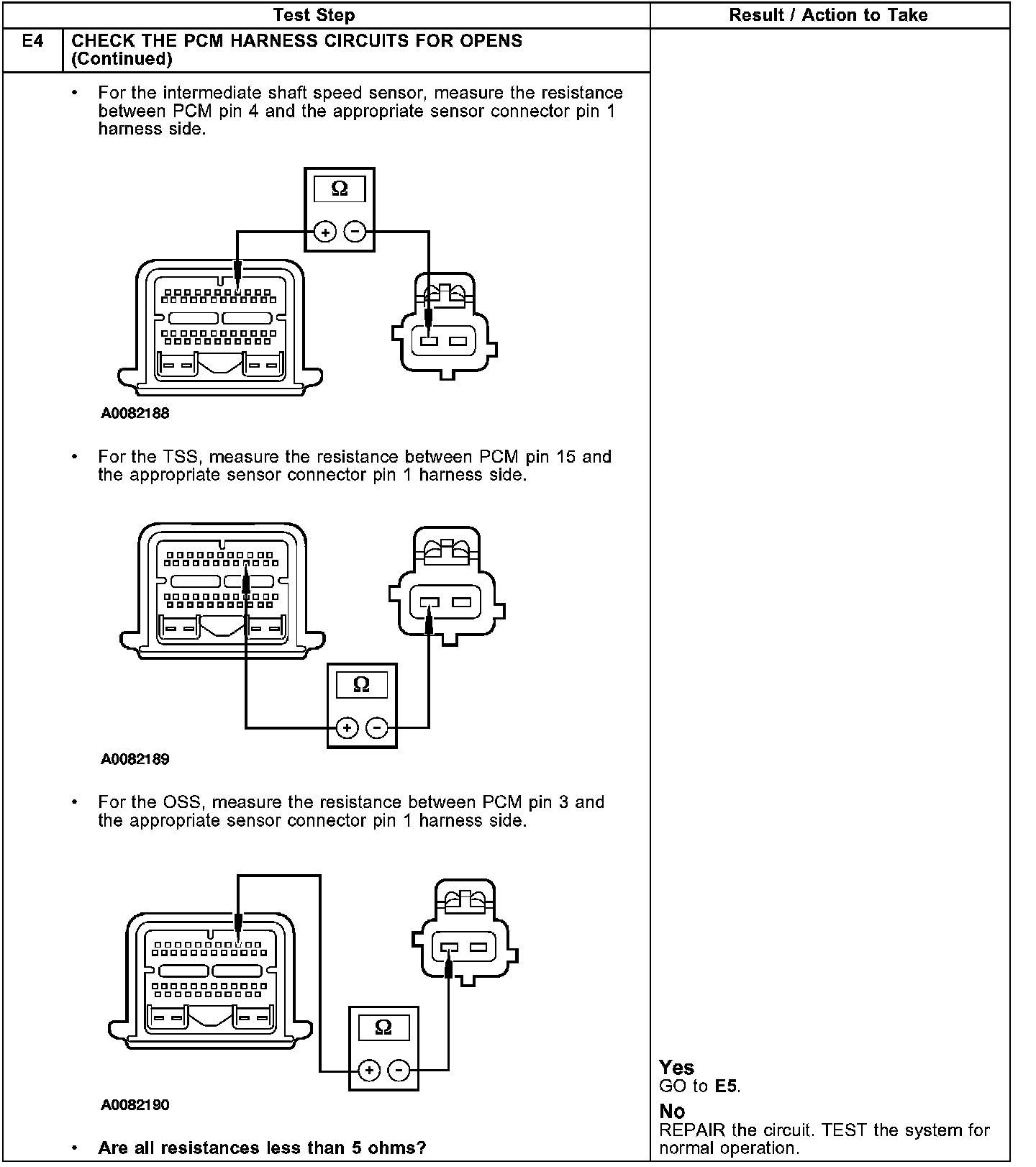

Test E4:

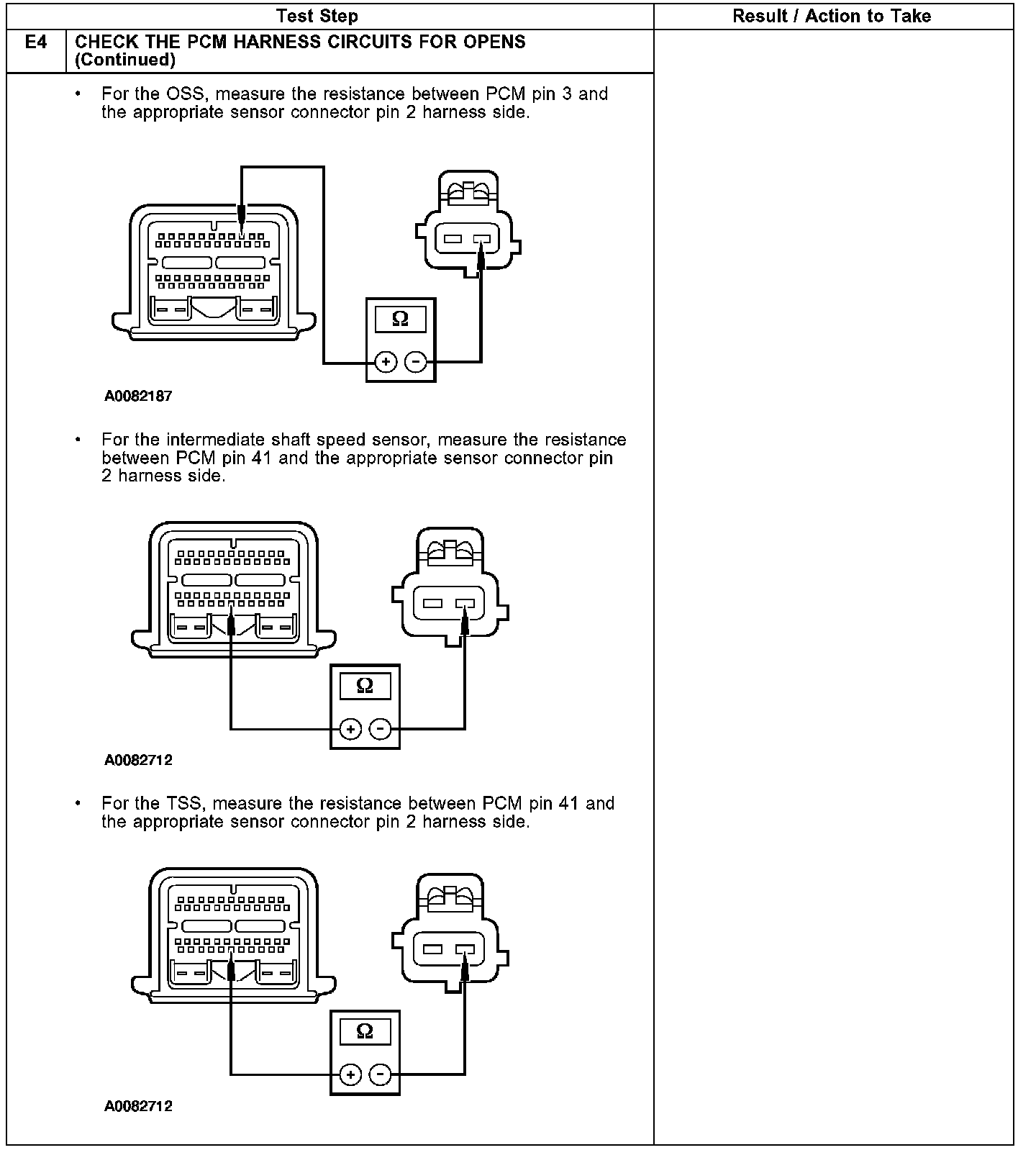

Test E4:

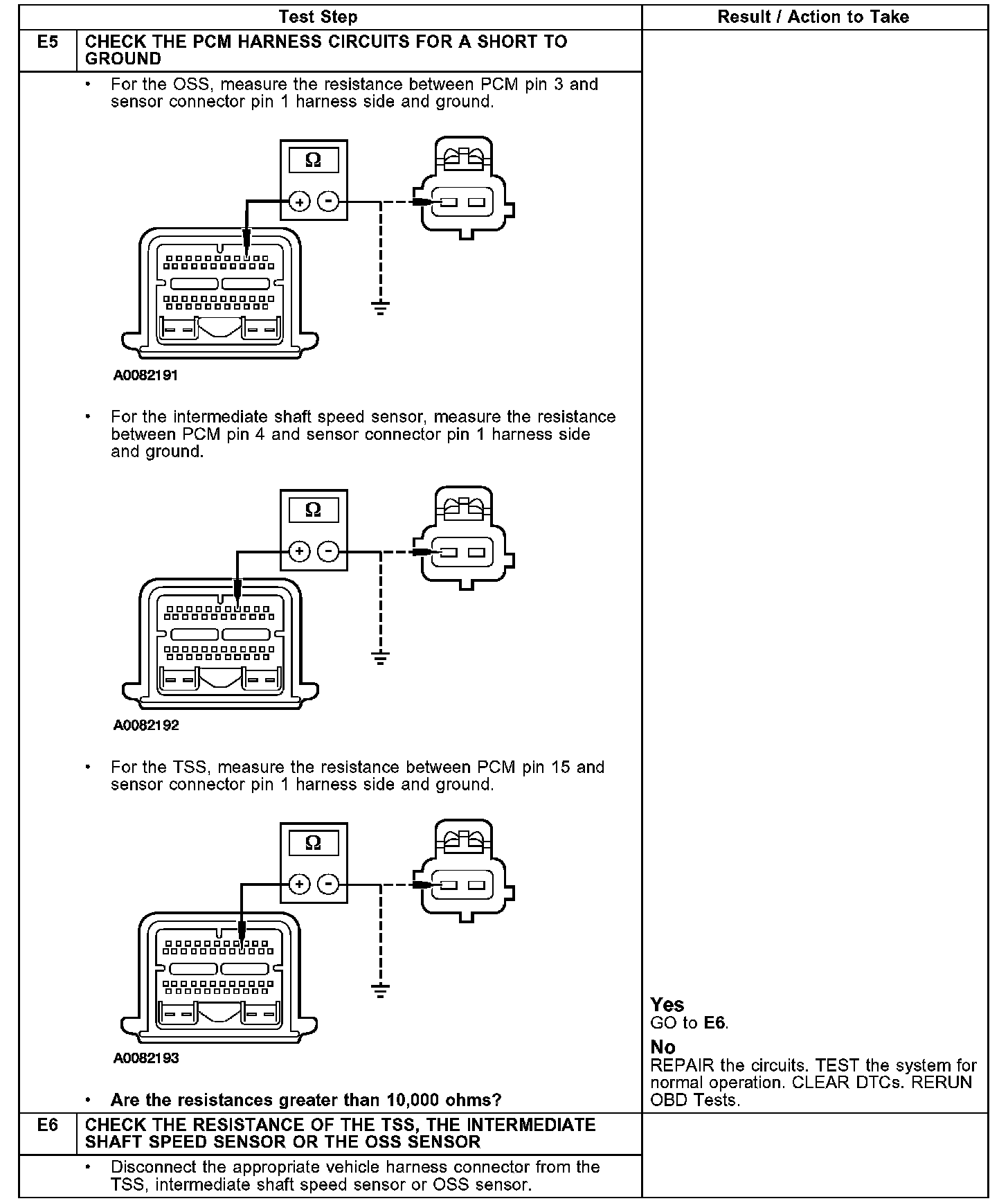

Test E5-E6:

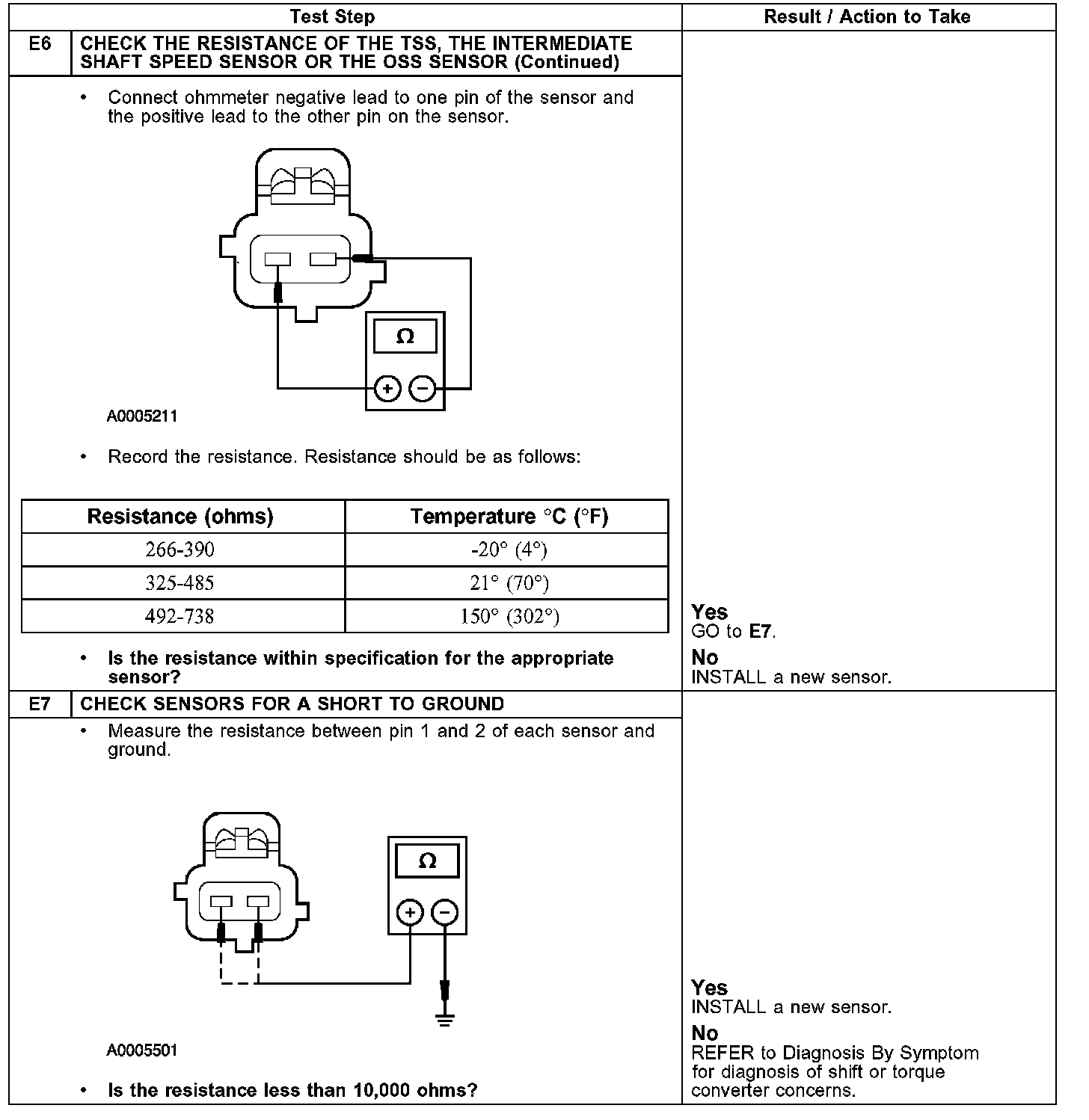

Test E6-E7:

NOTE: Refer to the Turbine Shaft Speed (TSS), intermediate shaft speed and Output Shaft Speed (OSS) sensor connector illustrations preceding these pinpoint tests. Transmission Connector Layouts
