Transmission Connector Layouts

Transmission Connector Layouts
Connector Reference

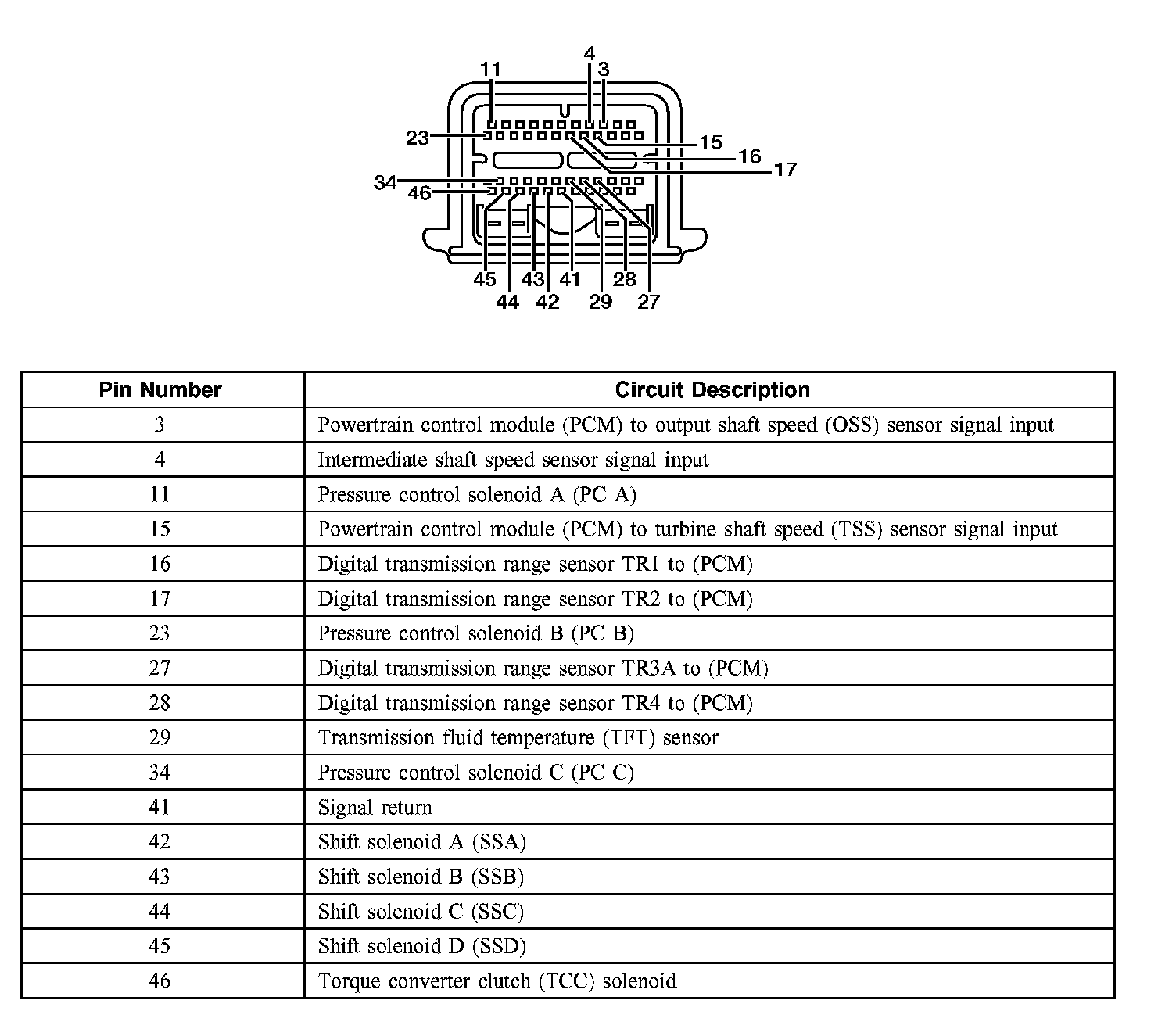

150 Pin Powertrain Control Module (PCM) Transmissions

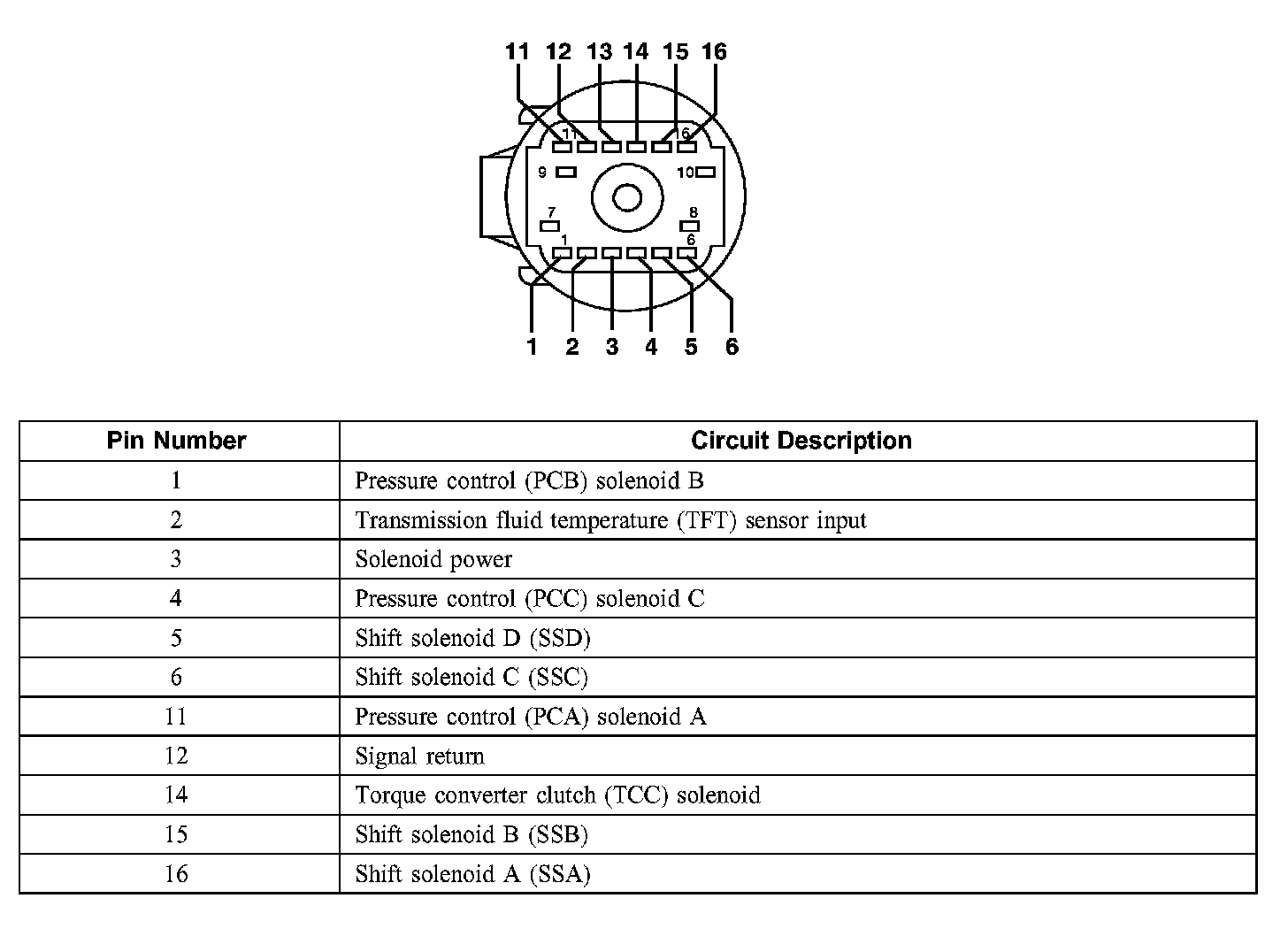

Transmission Vehicle Harness

Part 1:




Part 2:

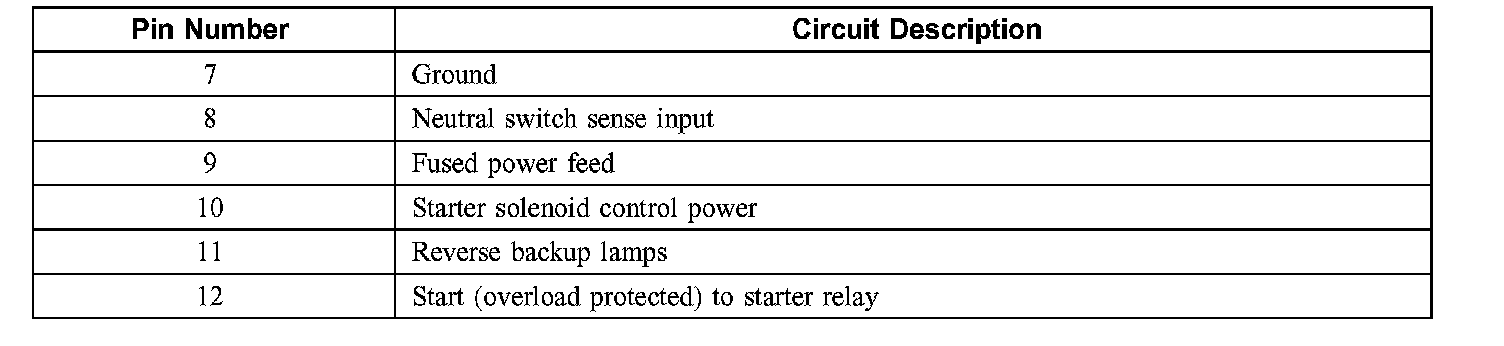

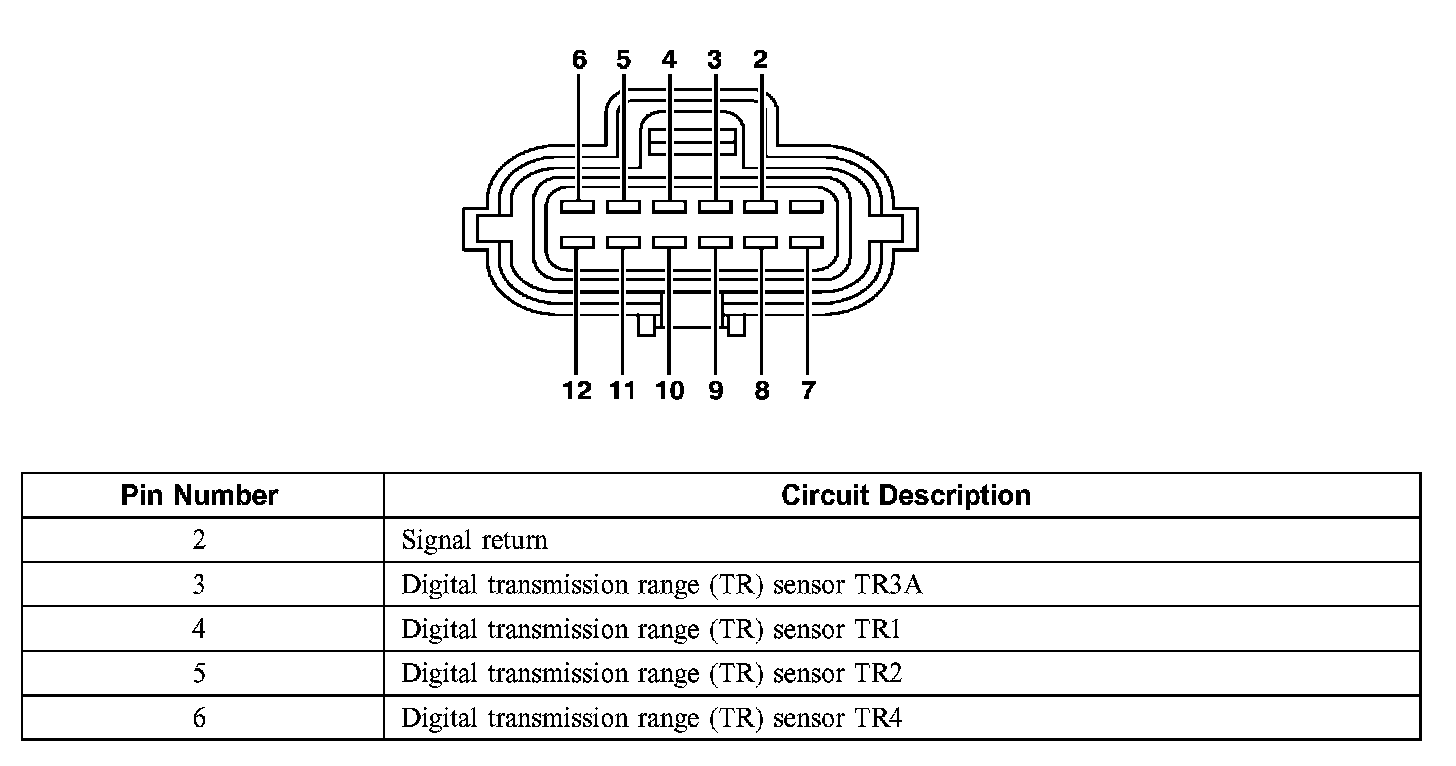

Digital Transmission Range (TR) Sensor

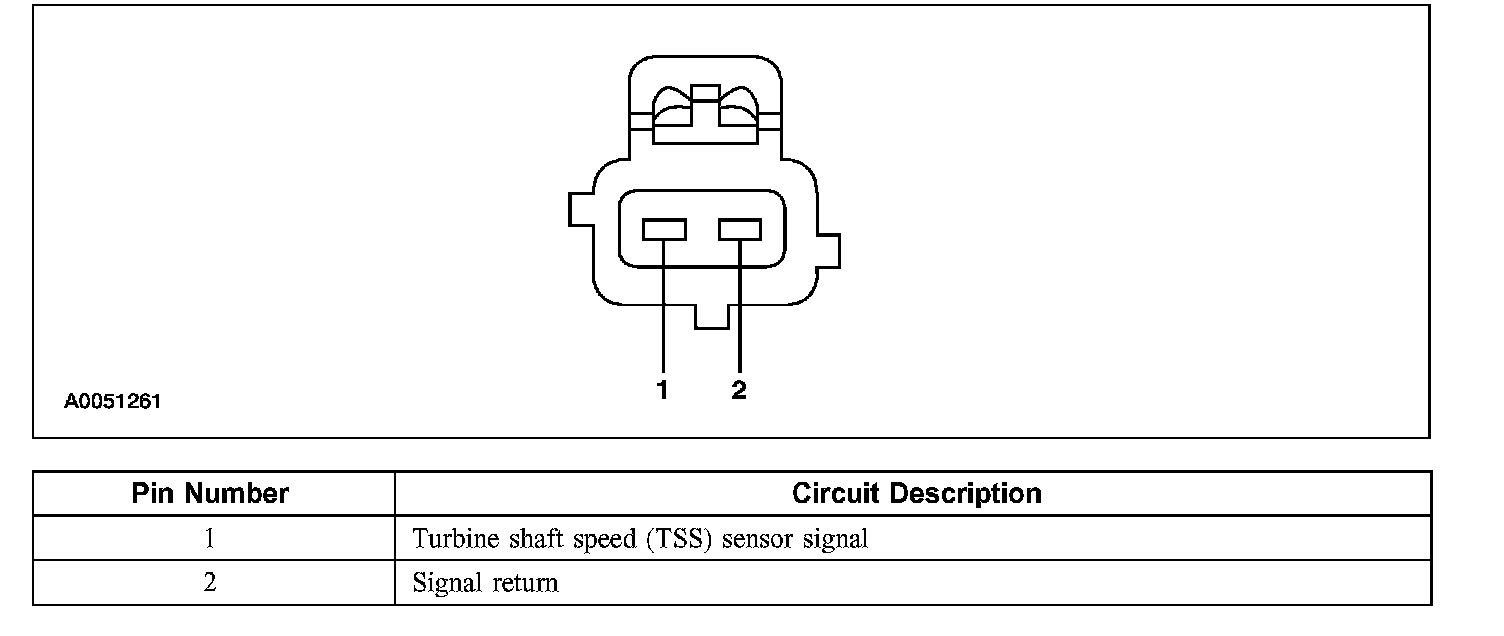

Turbine Shaft Speed (TSS) Sensor

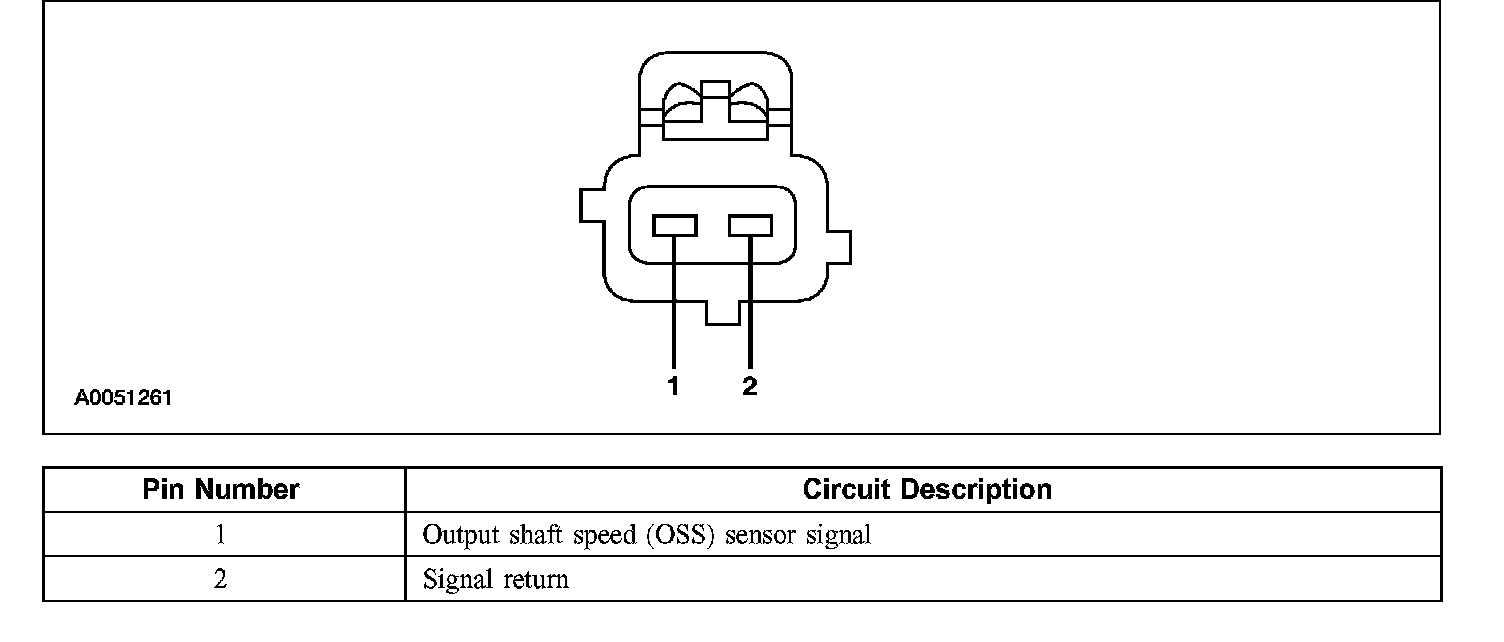

Output Shaft Speed (OSS) Sensor

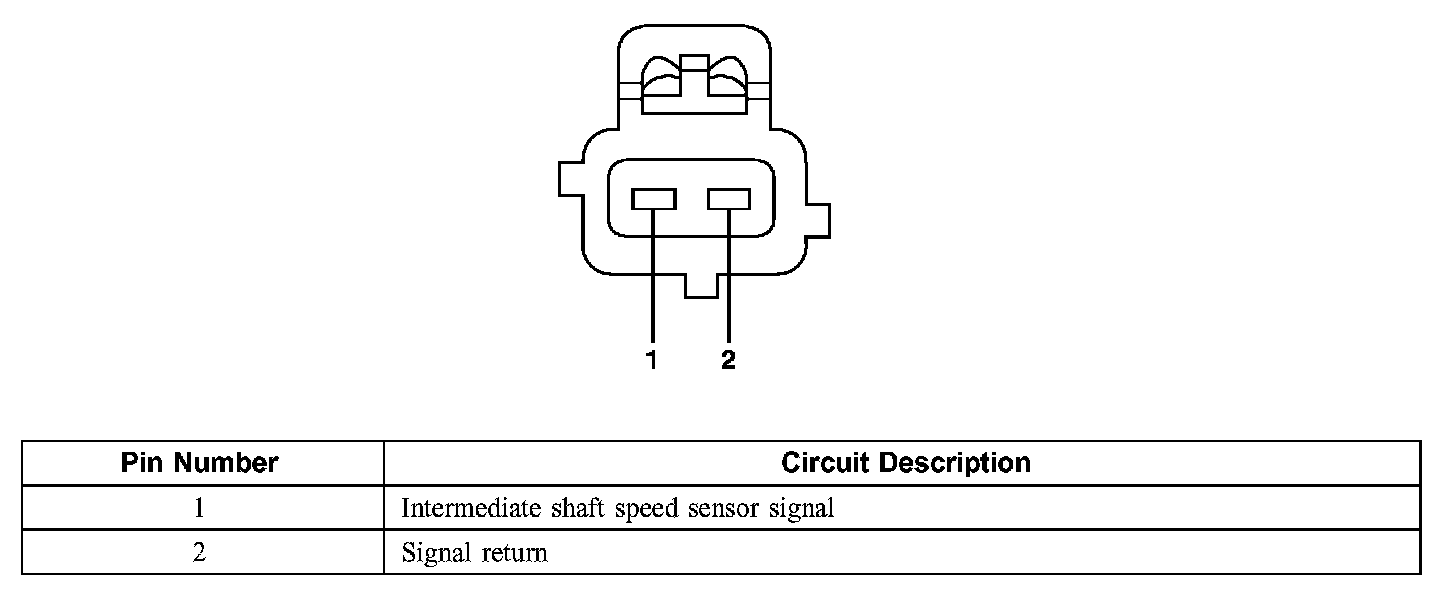

Intermediate Shaft Speed Sensor Harness Connector
