Transmission Connector Layouts

Connector Circuit Reference

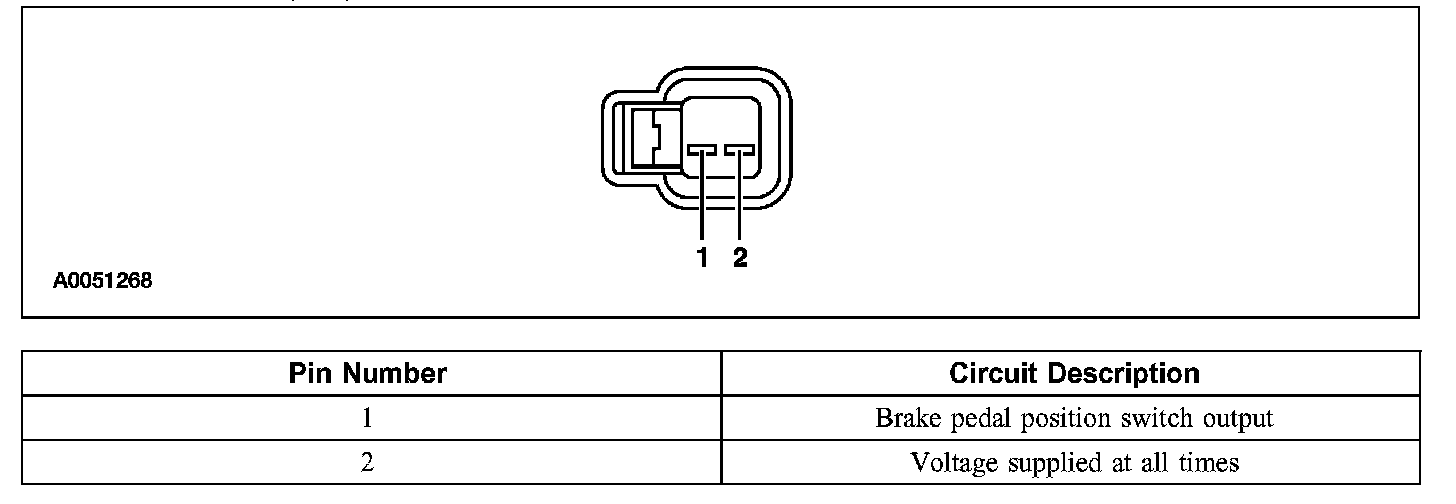

Brake Pedal Position (BPP) Switch

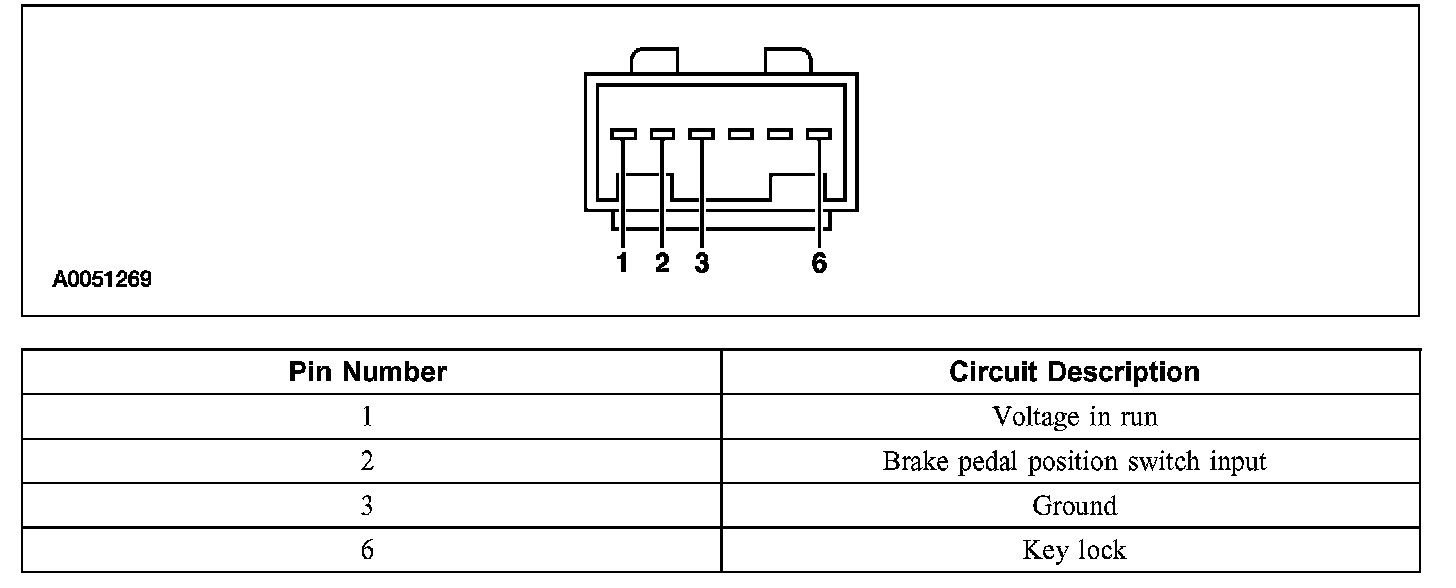

Brake Shift Interlock Switch

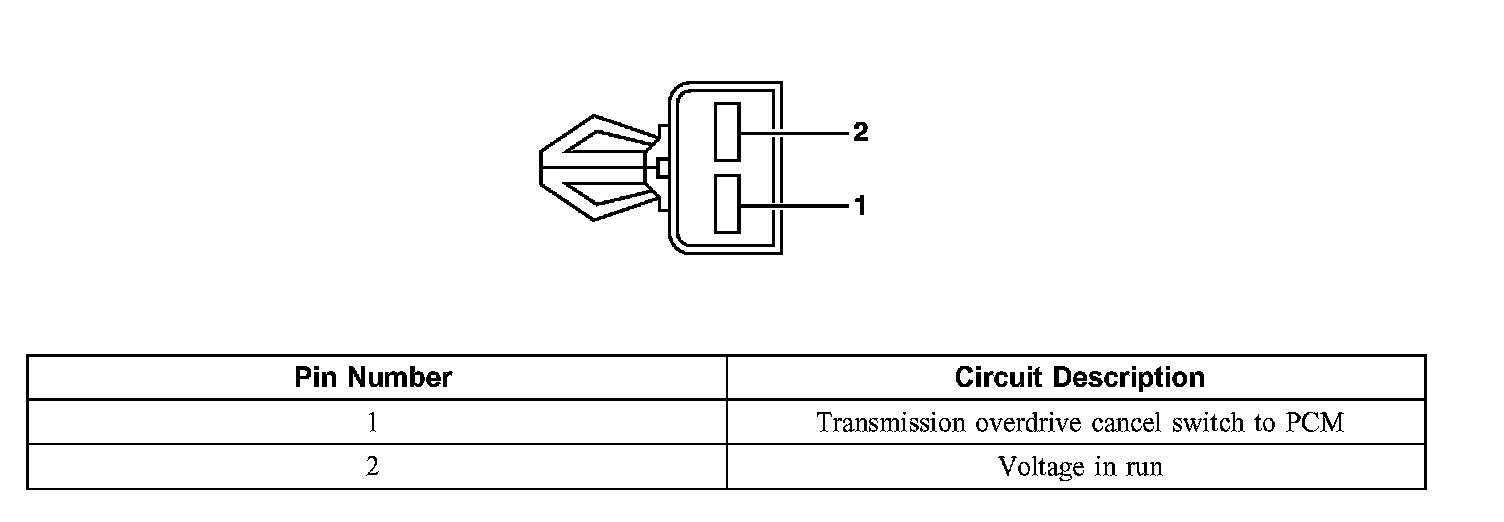

Transmission Control Switch (TCS)

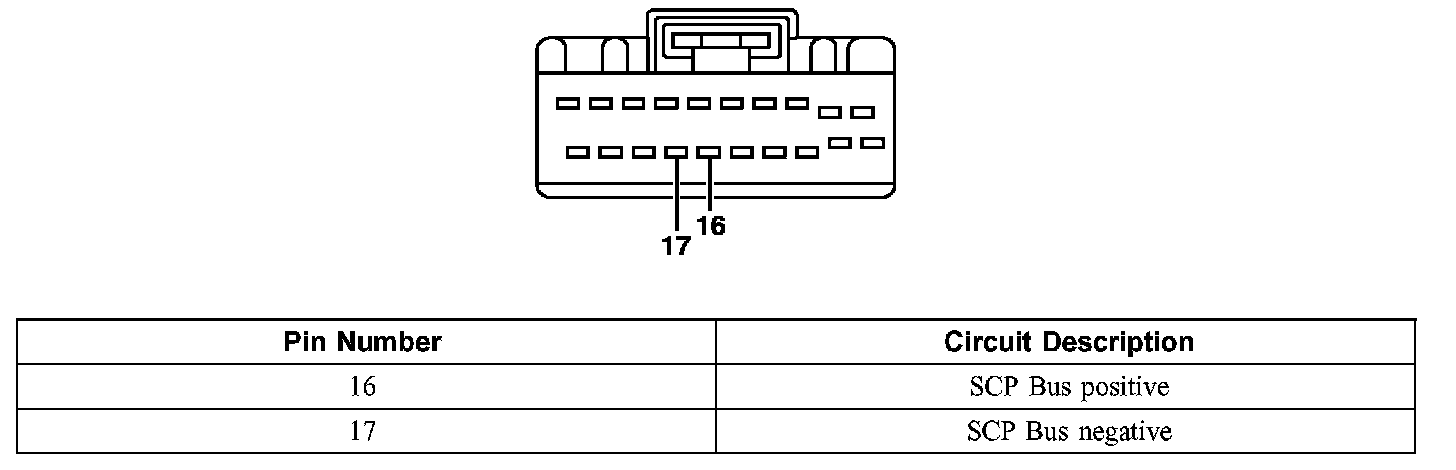

Instrument Cluster

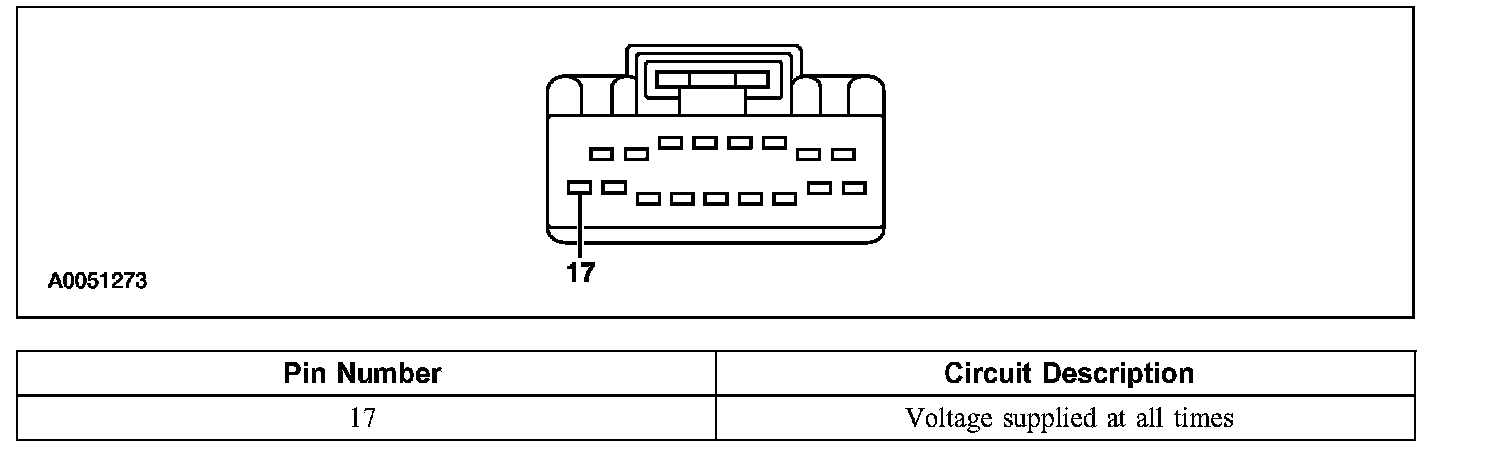

Instrument Cluster C220a

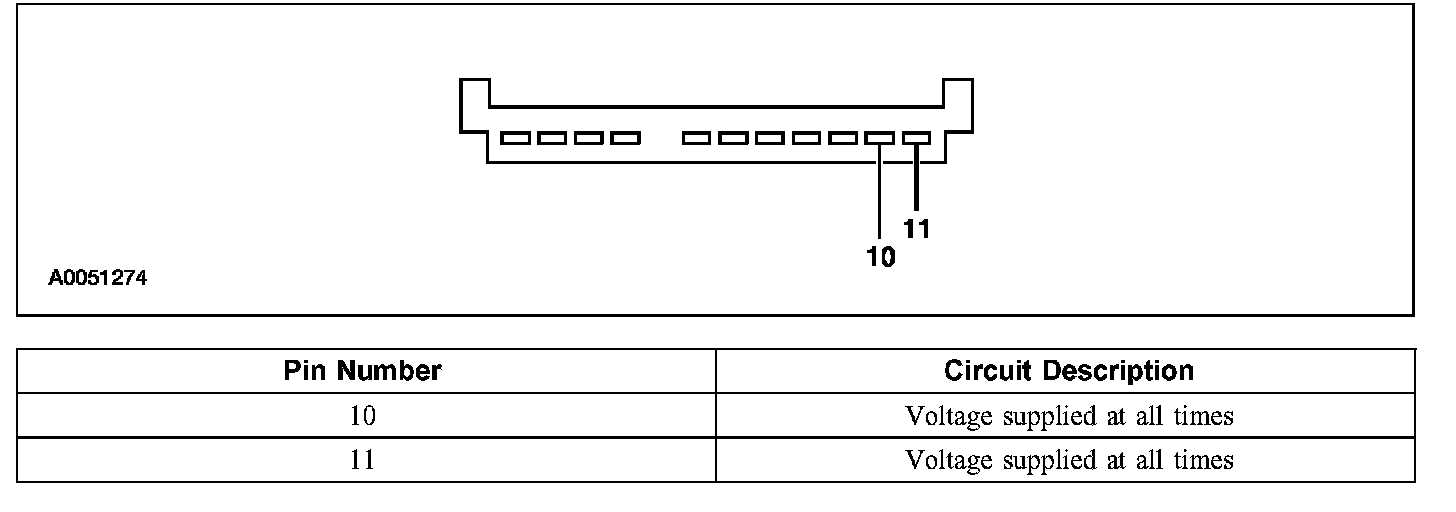

Battery Junction Box C1117
