B: B1483 Brake Pedal Input Circuit Failure

Pinpoint Test B: DTC B1483 Brake Pedal Input Circuit Failure

Normal Operation
When the brake pedal is pressed, the stoplamp switch routes voltage through circuit 511 (LG) to the Anti-Lock Brake System (ABS) module.

Possible Causes
^ circuit 511 (LG) open
^ ABS module

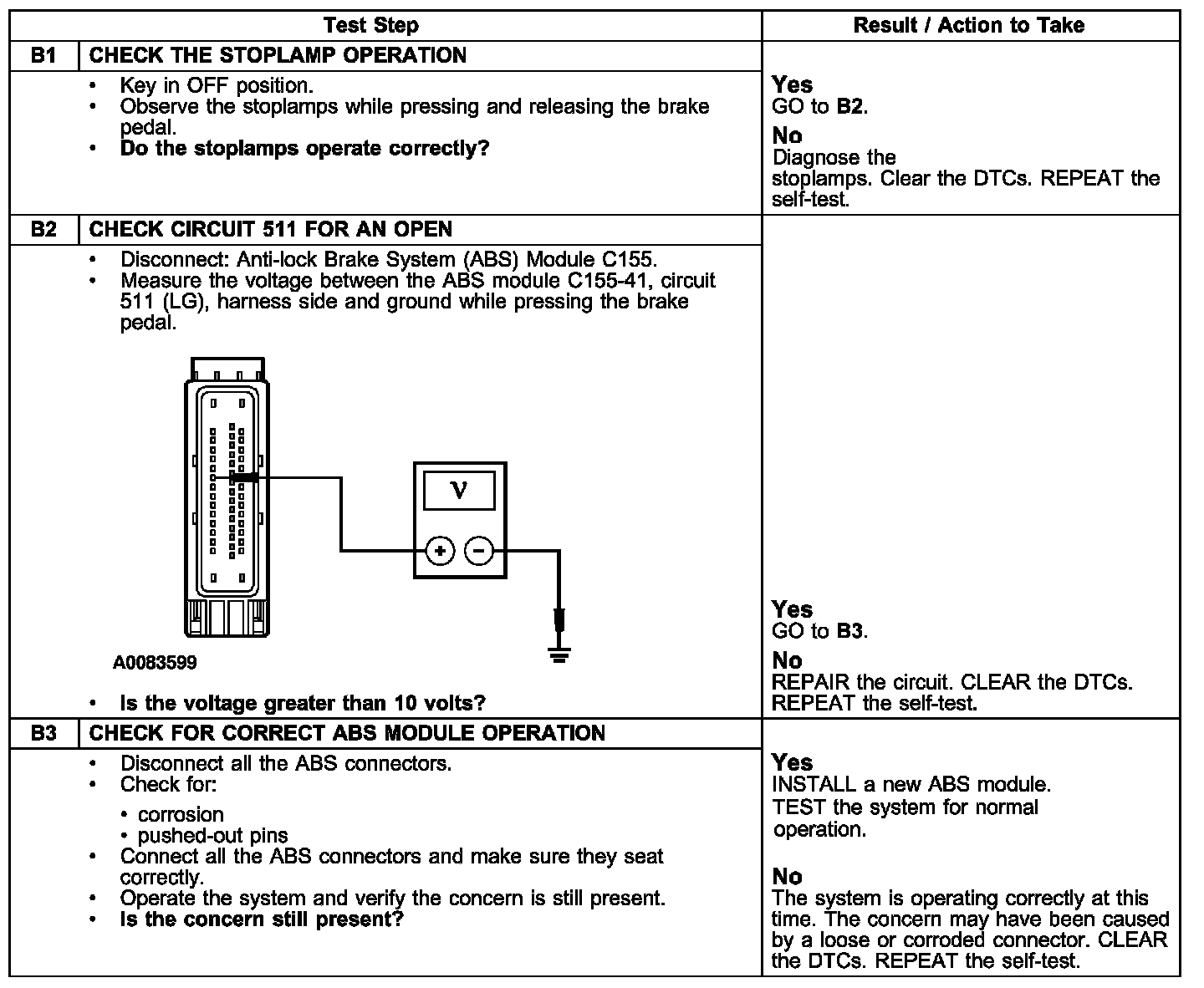

Tests B1 - B3:

PINPOINT TEST B: DTC B1483 BRAKE PEDAL INPUT CIRCUIT FAILURE

CAUTION: Use the flex probe kit for all test connections to prevent damage to the Wiring terminals. Do not use standard multimeter probes.
