C: B1676 - Battery Pack Voltage Out of Range

Pinpoint Test C: DTC B1676 Battery Pack Voltage Out Of Range

Normal Operation
The vehicle electrical system supplies 12 volts to the anti-lock brake system (ABS) module.

Voltage is supplied by circuit 493 (BK/PK) (hot at all times). Ground is provided through circuit 274 (BK/WH).

Possible Causes
^ charging system
^ circuit 274 (BK/WH) open
^ circuit 493 (BK/PK) open
^ ABS module

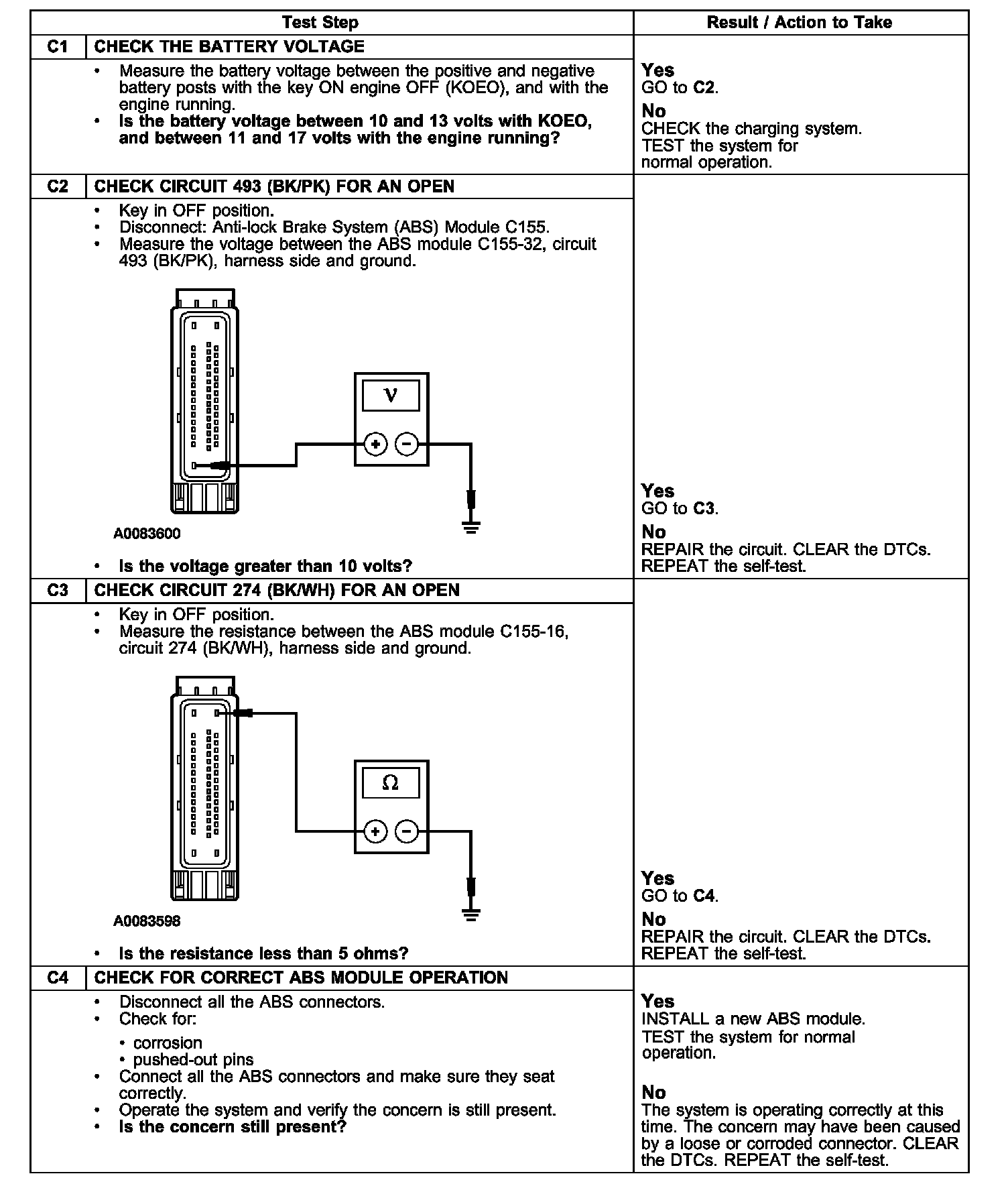

Tests C1 - C4:

PINPOINT TEST C: DTC B1676 BATTERY PACK VOLTAGE OUT OF RANGE

CAUTION: Use the flex probe kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
